Gear Motors

Universal, brushed DC or brushless DC motors paired with reduction stages. Compare output speed, torque and mounting dimensions; drives and encoders can be configured for the project.

02 / 04

Application scope

01Multiple motor-platform combinations
02Precision reduction stages
03Drive and encoder options
04Appliance, automation, and robotic applications

03 / 04

Gear Motors

Models and specifications

Select a product to view its specifications and dimensional information.

PGM.C174

Gear motor

Nominal supply: 230 V
No-load speed: 205 rpm
Torque at maximum efficiency: 15000 mN·m

PT.5230

DC gear motor

Nominal supply: 230 V
No-load speed: 55 rpm
Torque at maximum efficiency: 16500 mN·m

PGM.W66

Gear motor

Nominal supply: 220 V
No-load speed: 102 rpm
Torque at maximum efficiency: 8750 mN·m

PGM.C033

Gear motor

Nominal supply: 24 V
No-load speed: 30 rpm
Torque at maximum efficiency: 404 mN·m

PGM.P027

Gear motor

Nominal supply: 12 V
No-load speed: 196 rpm
Torque at maximum efficiency: 497 mN·m

PGM.P042

Gear motor

Nominal supply: 24 V
No-load speed: 460 rpm
Torque at maximum efficiency: 1466 mN·m

PGM.W192

Gear motor

Nominal supply: 220 V
No-load speed: 50 rpm
Torque at maximum efficiency: 12500 mN·m

PGM.W90

Gear motor

Nominal supply: 13.5 V
No-load cycle rate: 43-53 cycles/min
Torque at maximum efficiency: 1800 mN·m

PGM.P42

Gear motor

Nominal supply: 24V
No-load speed: 2200 rpm
Torque at maximum efficiency: 700 mN·m

PGM.D058

Gear motor

Nominal supply: 24 V
No-load speed: 60 rpm
Torque at maximum efficiency: 2200 mN·m

PGM.20

Gear motor

Nominal supply: 3.6 V
No-load speed: 173 rpm
Torque at maximum efficiency: 60 mN·m

PT.N20

Gear motor

Nominal supply: 5 V
No-load speed: 105 rpm
Torque at maximum efficiency: 15 mN·m

PGM.C064

Gear motor

Nominal supply: 12 V
No-load speed: 2.2 rpm
Torque at maximum efficiency: 490 mN·m

PGM.36FP

Gear motor

Nominal supply: 3.6 V
No-load speed: 1.55 rpm
Torque at maximum efficiency: 2078 mN·m

PGM.C052

Gear motor

Configuration: PGM.C052P0162-08
Nominal supply: 13.5 V
No-load speed: 23 rpm
Torque at maximum efficiency: 4000 mN·m

PGM.WH60

Variant: PGM.WH60DL-179-1317Q

Gear motor

Configuration: PGM.WH60DL-179-1317Q
Nominal supply: 12VDC
No-load speed: 24-27 rpm
Torque at maximum efficiency: 8000 mN·m

PGM.WH60

Variant: PGM.WH60HL-179-1317Q

Gear motor

Configuration: PGM.WH60HL-179-1317Q
Nominal supply: 12VDC
No-load speed: 24-27 rpm
Torque at maximum efficiency: 8000 mN·m

PGM.WP75

Variant: PGM.WP75AL-213-1311

Gear motor

Configuration: PGM.WP75AL-213-1311
Nominal supply: 12VDC
No-load speed: 11-16 rpm
Torque at maximum efficiency: 10000 mN·m

PGM.WP75

Variant: PGM.WP75BL-213-1311

Gear motor

Configuration: PGM.WP75BL-213-1311
Nominal supply: 12VDC
No-load speed: 11-16 rpm
Torque at maximum efficiency: 10000 mN·m

PGM.WH50

Variant: PGM.WH50BL-25-24180C

Gear motor

Configuration: PGM.WH50BL-25-24180C
Nominal supply: 24VDC
No-load linear speed: ≥9 mm/s
Torque at maximum efficiency: 5000 mN·m

PGM.WH50

Variant: PGM.WH50EL-25-24180C

Gear motor

Configuration: PGM.WH50EL-25-24180C
Nominal supply: 24VDC
No-load linear speed: ≥9 mm/s
Torque at maximum efficiency: 5000 mN·m

PGM.WH50

Variant: PGM.WH50CL-25-13180

Gear motor

Configuration: PGM.WH50CL-25-13180
Nominal supply: 12VDC
No-load linear speed: 7-11.5 mm/s
Torque at maximum efficiency: 5000 mN·m

PGM.WH50

Variant: PGM.WH50DR-25-13180D

Gear motor

Configuration: PGM.WH50DR-25-13180D
Nominal supply: 12VDC
No-load linear speed: 7-11.5 mm/s
Torque at maximum efficiency: 5000 mN·m

PGM.WH60

Variant: PGM.WH60BL-162-1317

Gear motor

Configuration: PGM.WH60BL-162-1317
Nominal supply: 12VDC
No-load speed: 24-33 rpm
Torque at maximum efficiency: 8000 mN·m

PGM.WH60

Variant: PGM.WH60AL-162-1317

Gear motor

Configuration: PGM.WH60AL-162-1317
Nominal supply: 12VDC
No-load speed: 24-33 rpm
Torque at maximum efficiency: 8000 mN·m

PGM.D105

Gear motor

Configuration: PGM.D105M1084-01
Nominal supply: 24VDC
No-load speed: 2.5~5 rpm
Torque at maximum efficiency: 10000 mN·m

PGM.P016

Brushless coreless gear motor

Configuration: PGM.P016M0171-01
Nominal supply: 24 V
No-load speed: 100 rpm
Torque at maximum efficiency: 934 mN·m

PGM.P017

Brushed coreless gear motor

Configuration: PGM.P017M0037-01
Nominal supply: 24 V
No-load speed: 200 rpm
Torque at maximum efficiency: 70 mN·m

PGM.W030

Gear motor

Configuration: PGM.W030M006-01
Nominal supply: 13.5 V

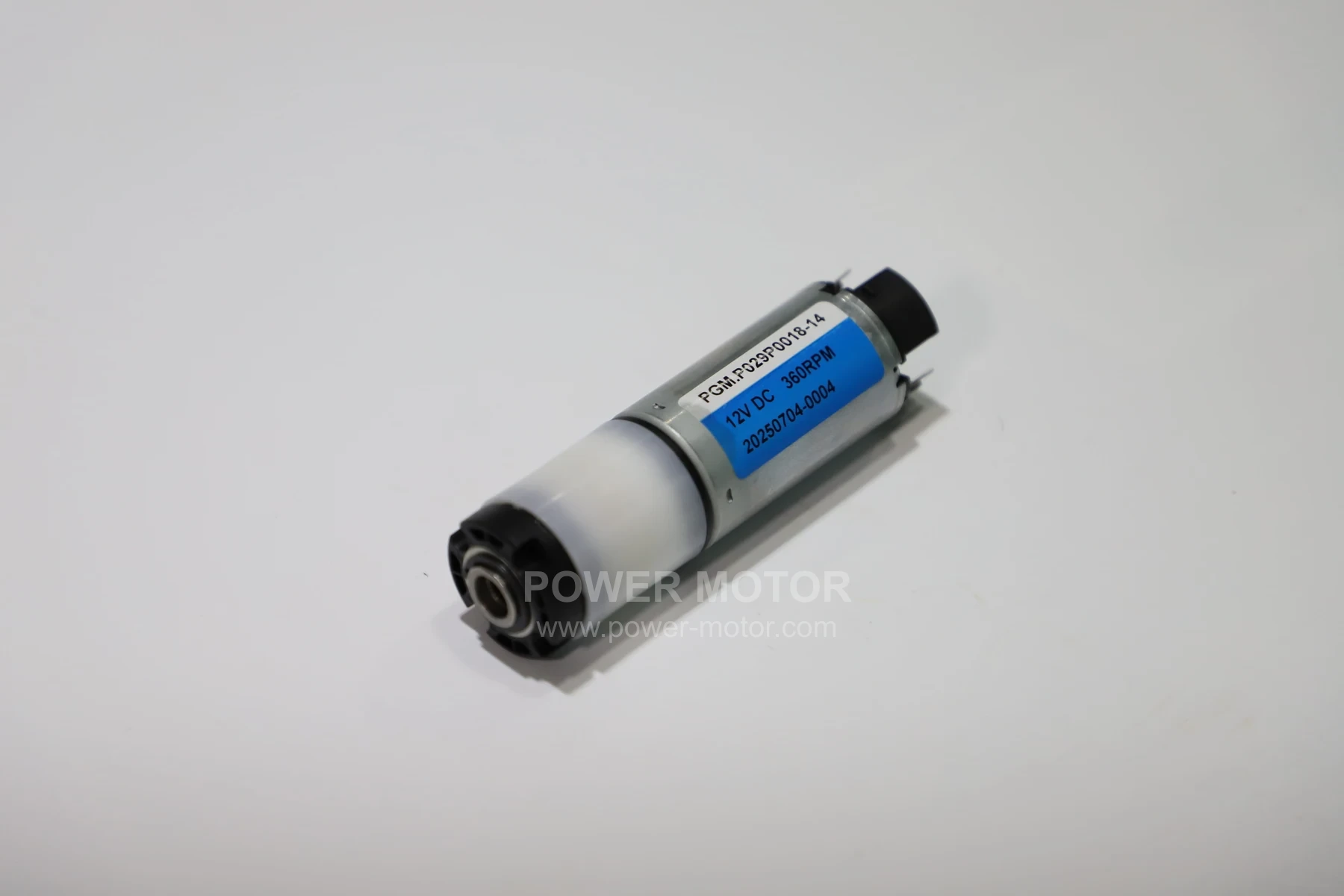

PGM.P029

Brushed DC gear motor

Configuration: PGM.P029P0018-14
Nominal supply: 12V
No-load speed: 330 rpm
Torque at maximum efficiency: 620 mN·m

PGM.C025

Gear motor

Configuration: PGM.C025M0050-02
Nominal supply: 12V
No-load speed: 120 rpm
Torque at maximum efficiency: 260 mN·m

PGM.P022

Gear motor

Configuration: PGM.P022M0045-01
Nominal supply: 12 V
No-load speed: 211 rpm
Torque at maximum efficiency: 0.02 mN·m
