Product model
PGM.W192
Gear motors
00
Technical profile
- Platform
- PGM.W192
- Specification models
- PGM.W192
- Typical applications
- Noodle maker
- Voltage (contact us for units)
- 220
00

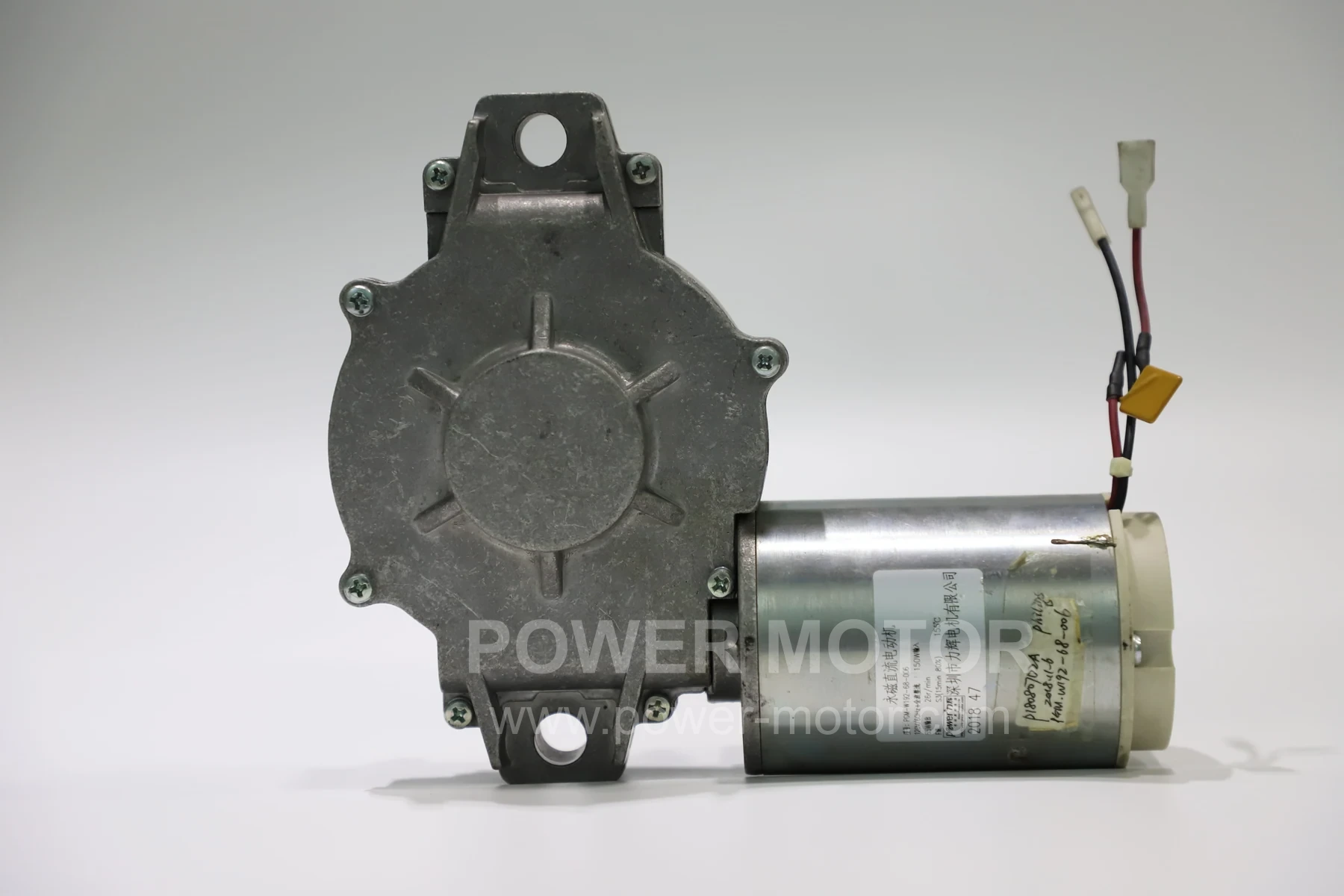

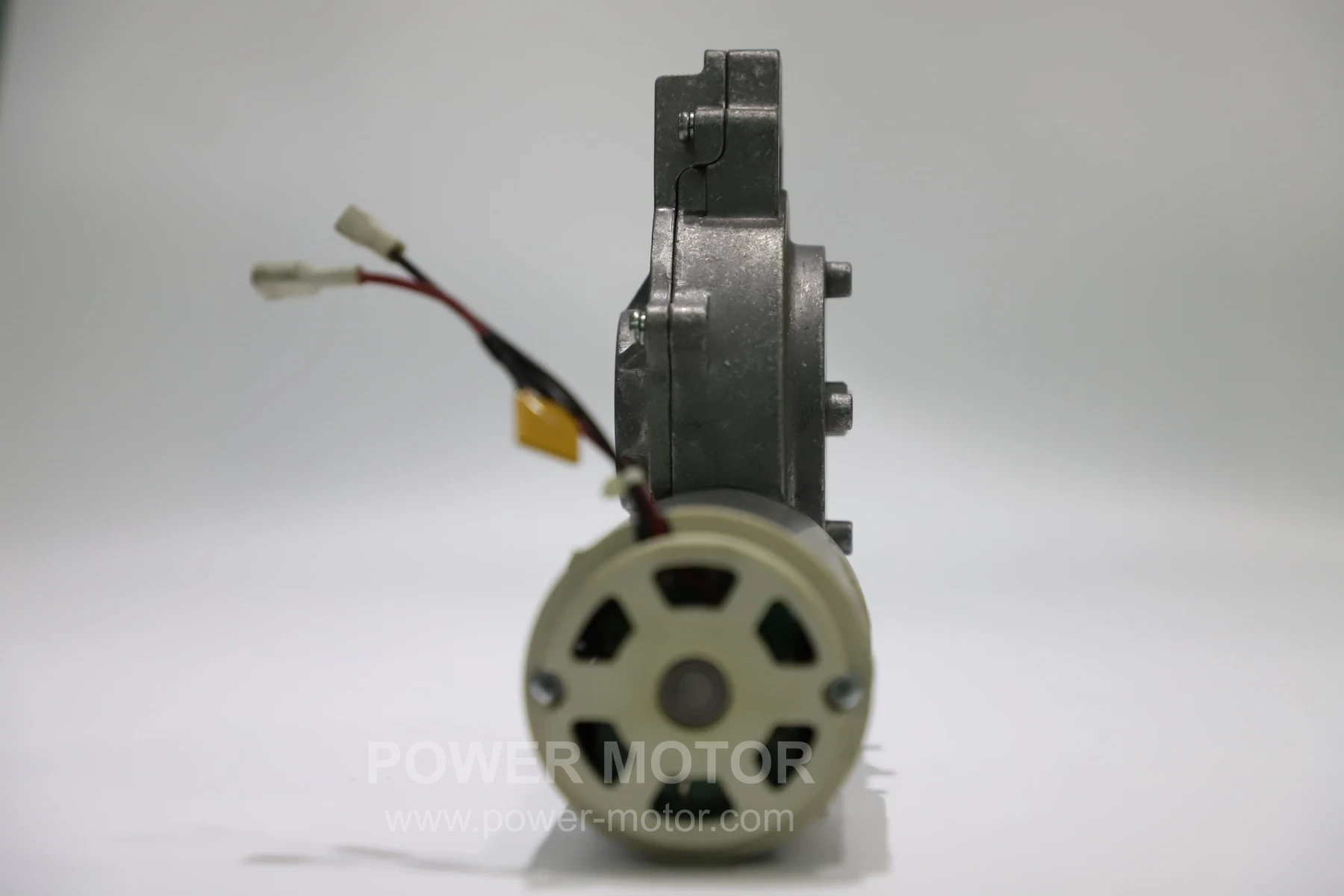

Product views
01

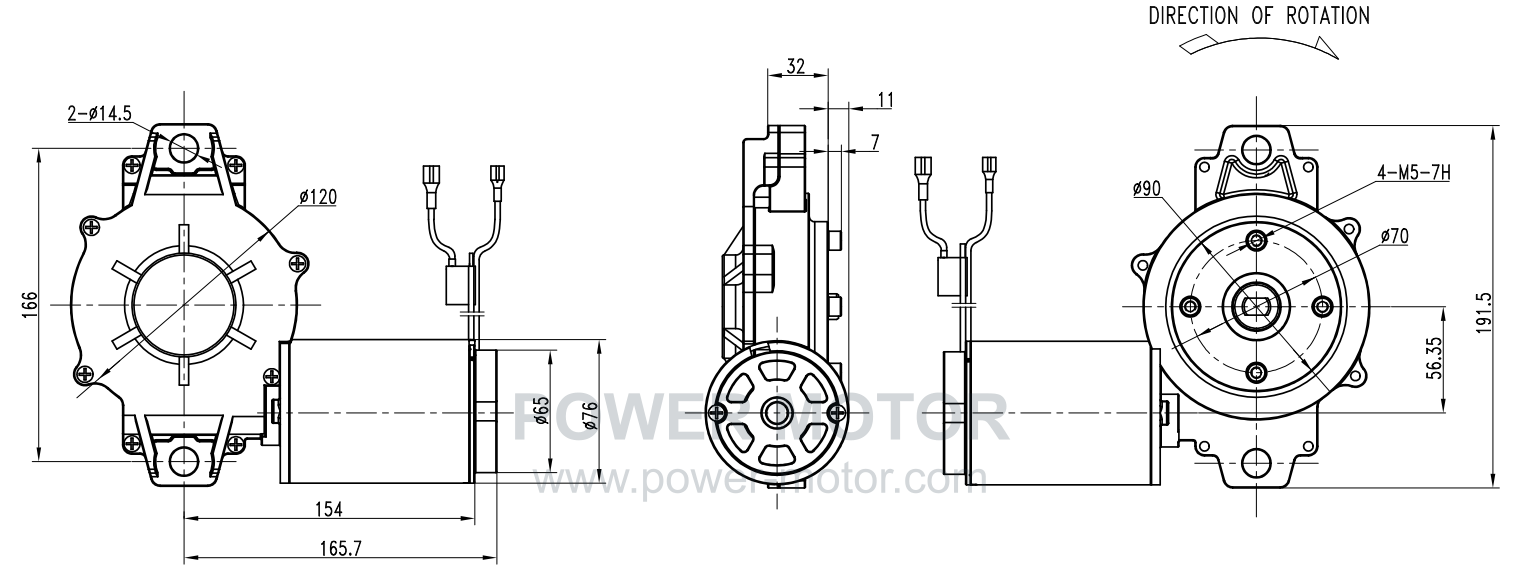

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.W192 | 220-240 | 220 | 50 | 0.2Max | 34.7 | 0.48 | 127500 | 12500 | 45.3 |
03

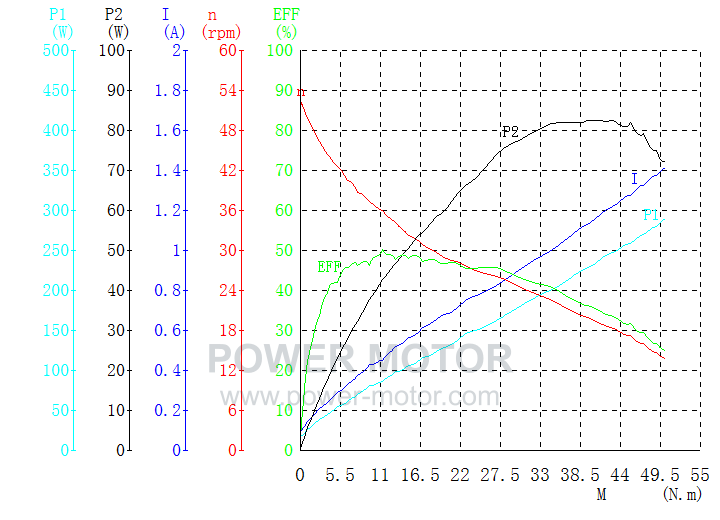

Performance curve
