Product model
PGM.WH50
Gear motor
00
Technical profile
- Platform
- PGM.WH50
- Specification models
- PGM.WH50EL-25-24180C
- Typical applications
- Whole-seat lift motor
- Voltage
- 24VDC
01

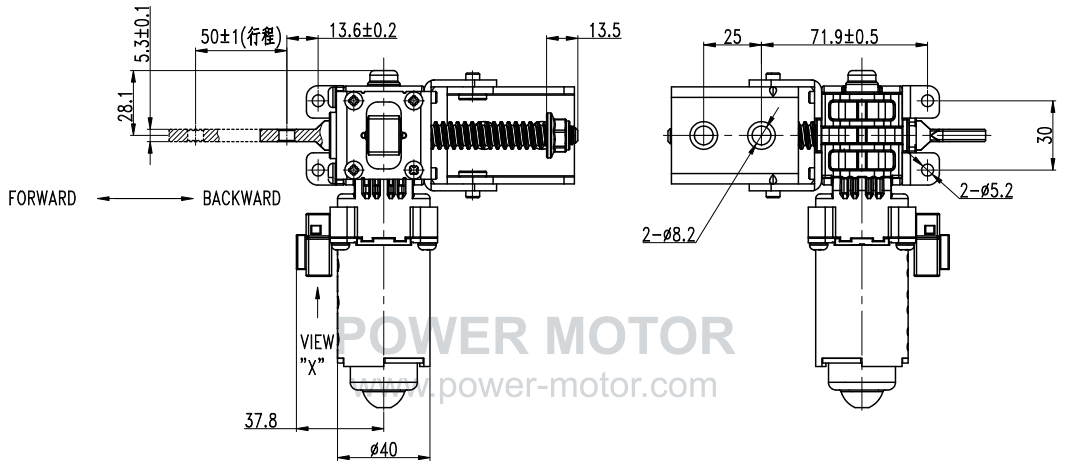

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · mm/s | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · mm/s | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.WH50EL-25-24180C | 21-27VDC | 24VDC | ≥9 | ≤2.5 | ≥6.5 | ≤5 | 51020 | 5000 | 20 |
03

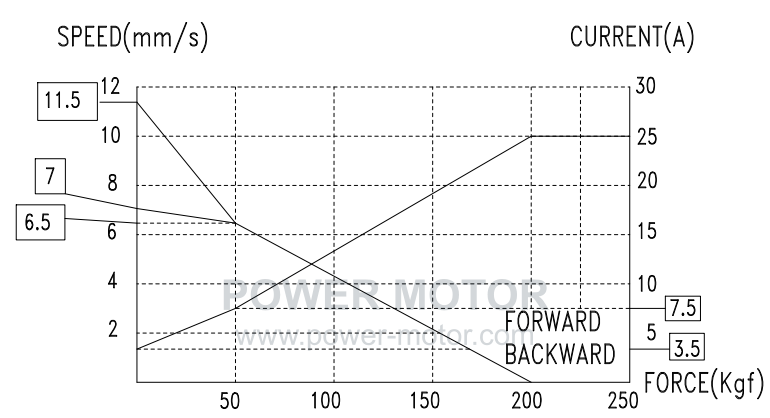

Performance curve
