Product model
PGM.WH60
Gear motor
00
Technical profile
- Platform
- PGM.WH60
- Specification models
- PGM.WH60HL-179-1317Q
- Typical applications
- Seat angle adjustment motor
- Voltage
- 12VDC
01

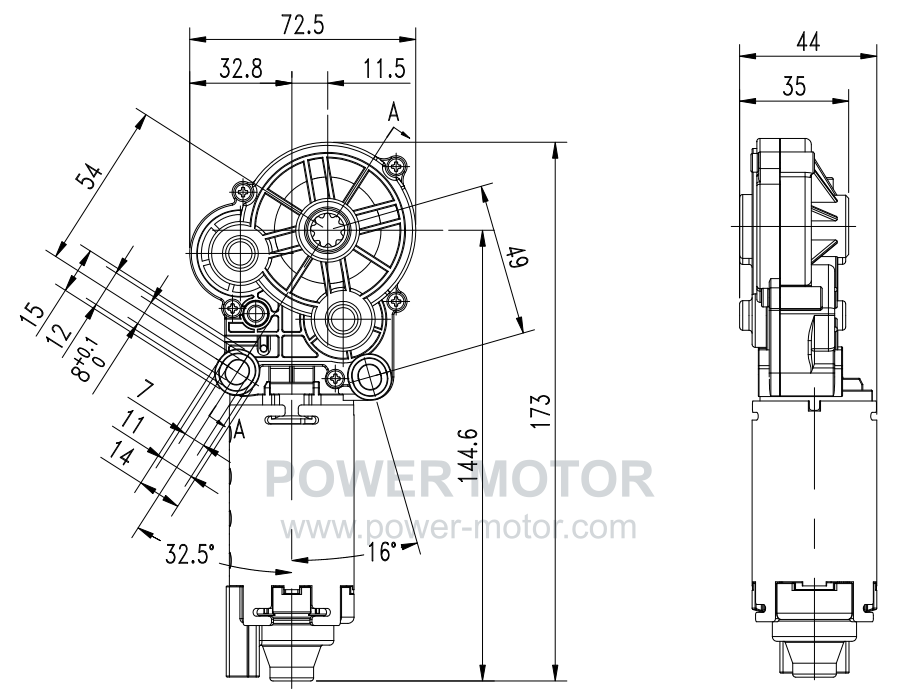

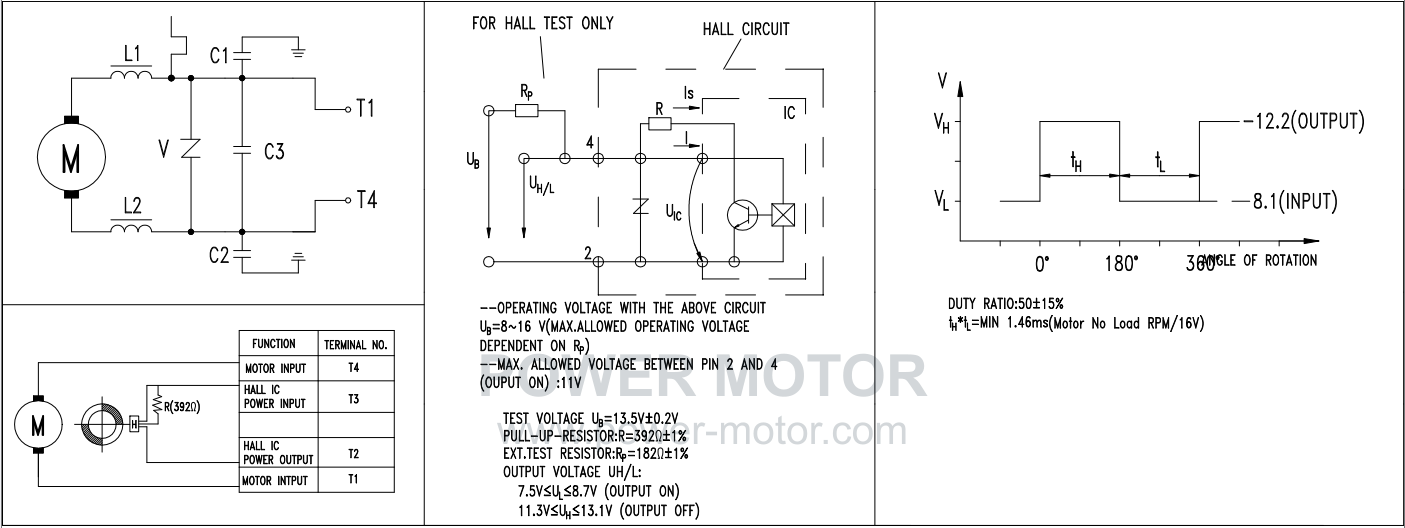

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.WH60HL-179-1317Q | 9-16VDC | 12VDC | 24-27 | 0.7-2 | 15-19 | 3-5 | 81632 | 8000 | 14 |
03

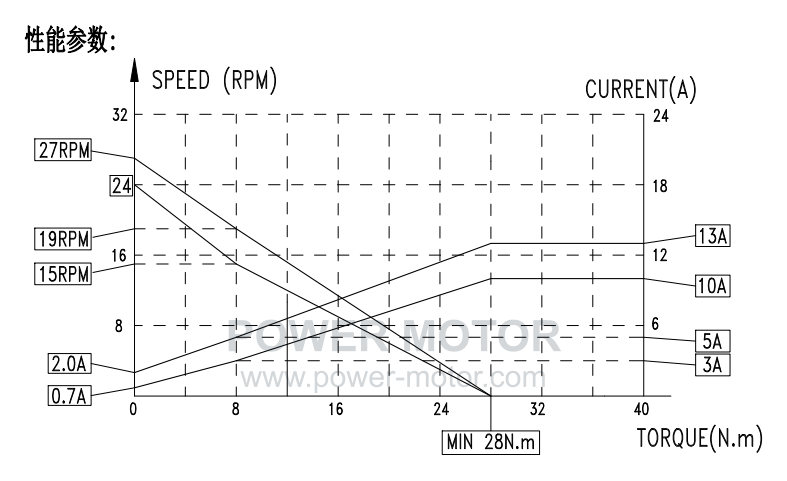

Performance curve
