Product model
PGM.C025
Gear motor
00
Technical profile
- Platform
- PGM.C025
- Specification models
- PGM.C025M0050-02
- Typical applications
- RV roof lifting and ventilation
- Voltage
- 12V
00

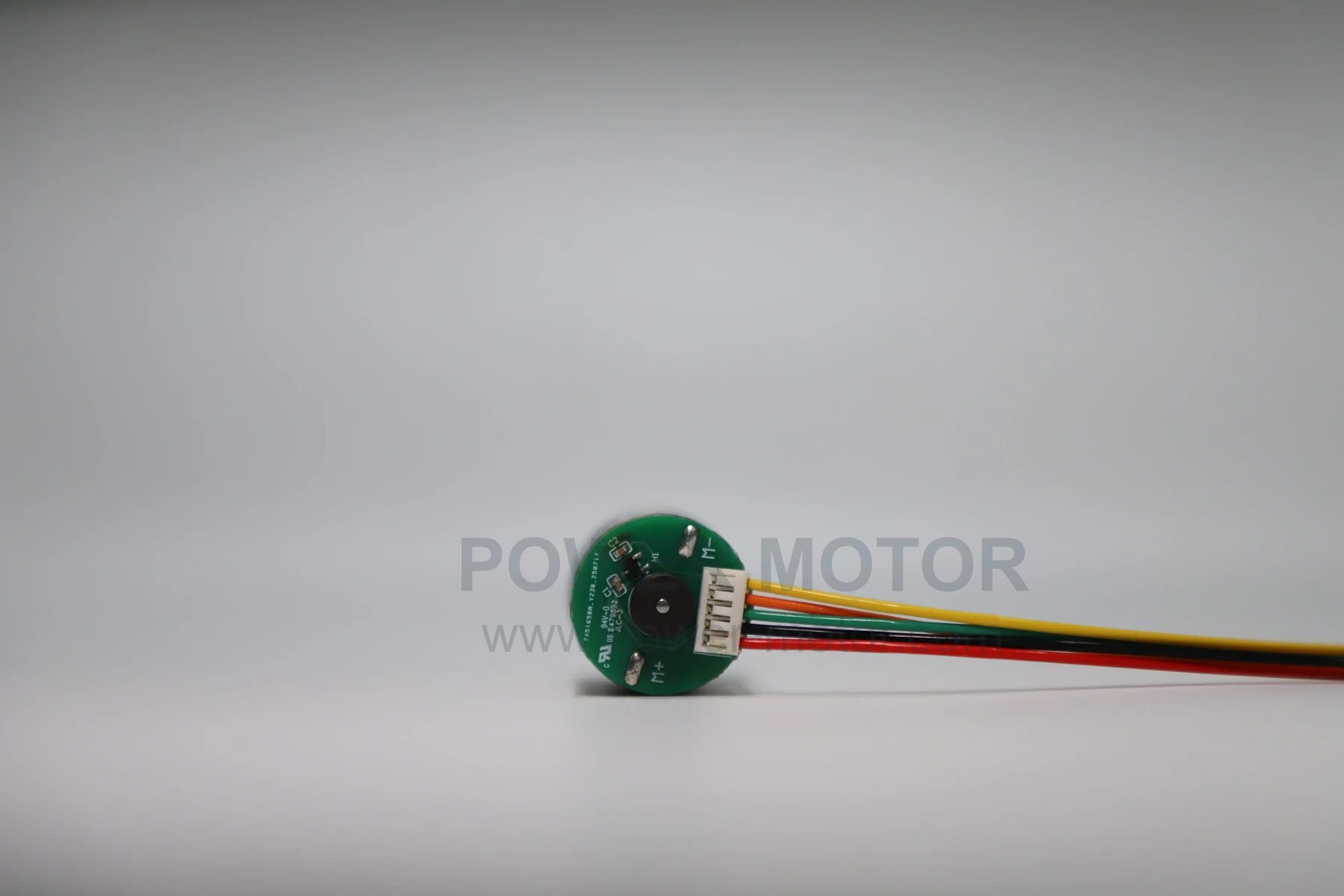

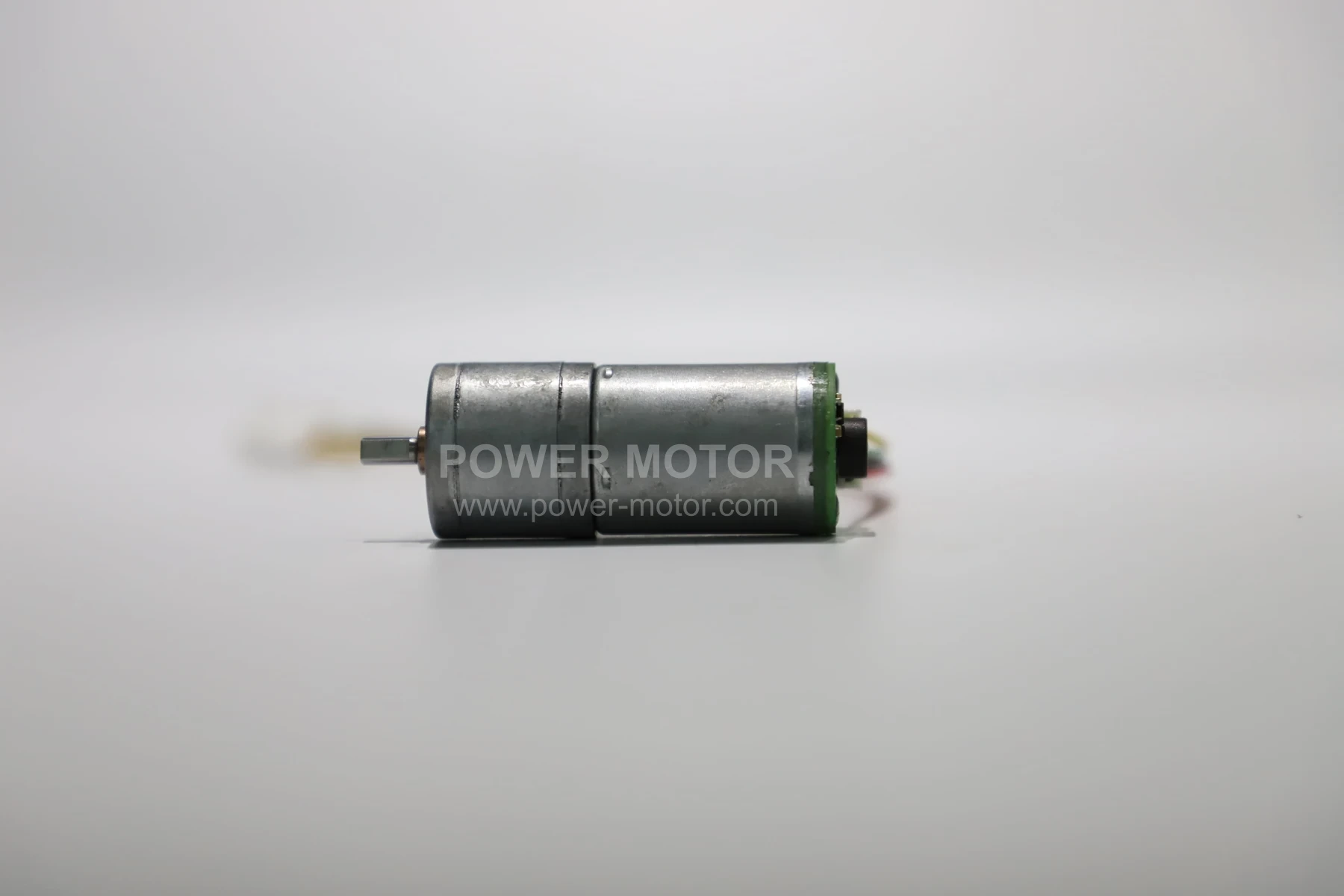

Product views
01

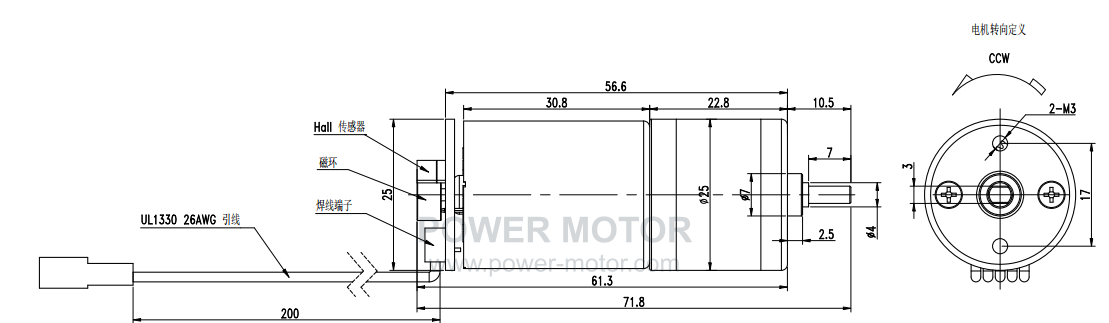

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.C025M0050-02 | 9~16V | 12V | 120 | 0.2 | 90 | 0.8 | 260 | 2.112 |
03

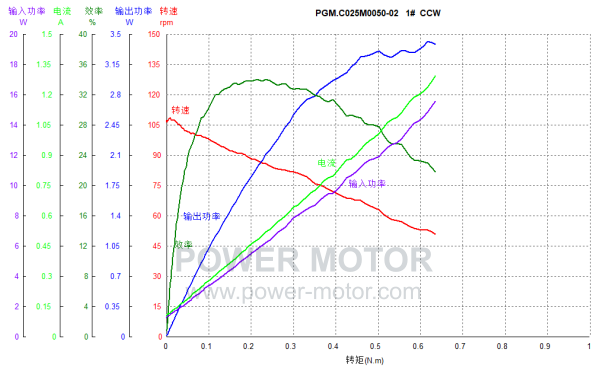

Performance curve
