Product model
PGM.P016
Brushless coreless gear motor
00
Technical profile
- Platform
- PGM.P016
- Specification models
- PGM.P016M0171-01
- Typical applications
- Robot; Medical equipment
- Voltage
- 24 V
00

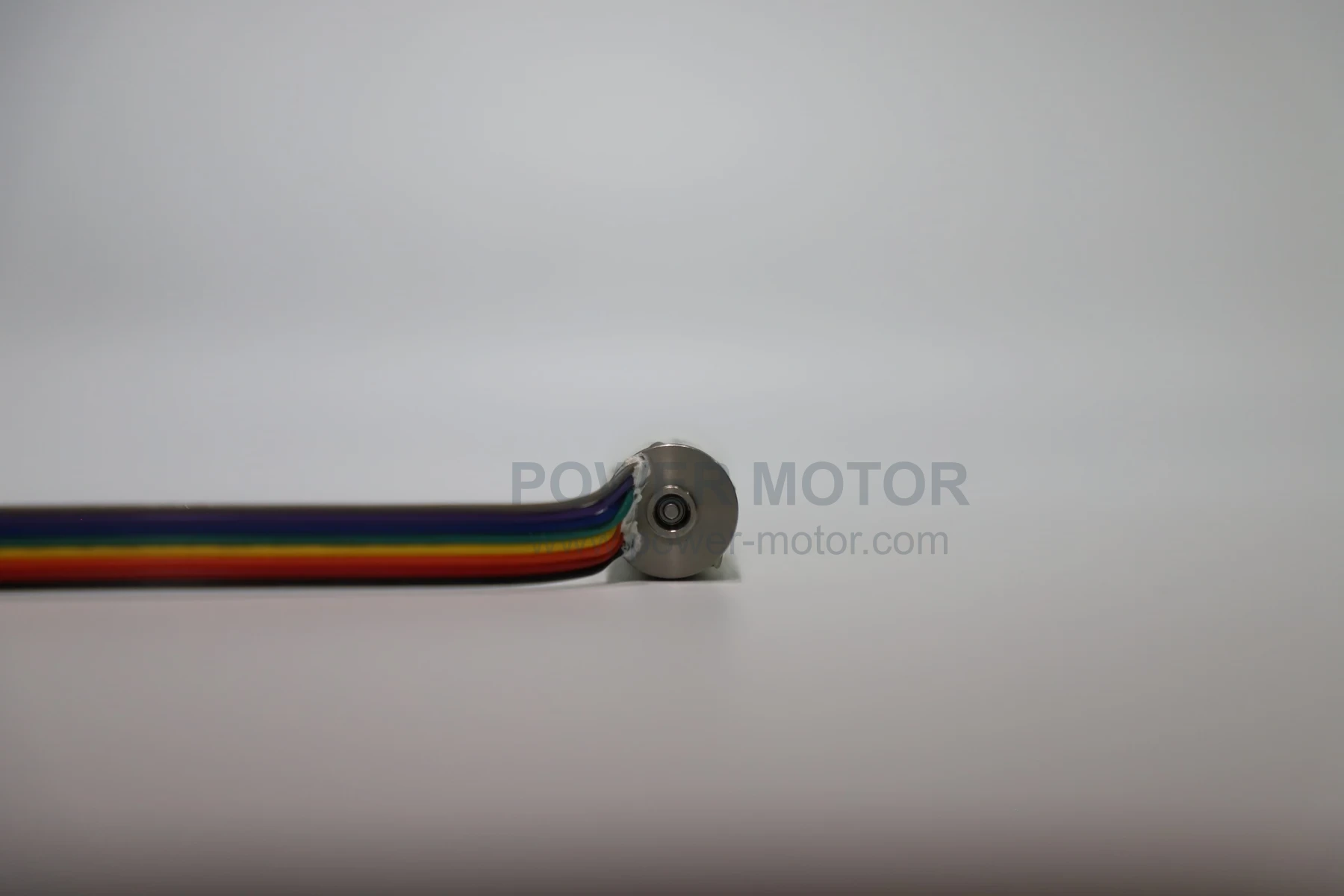

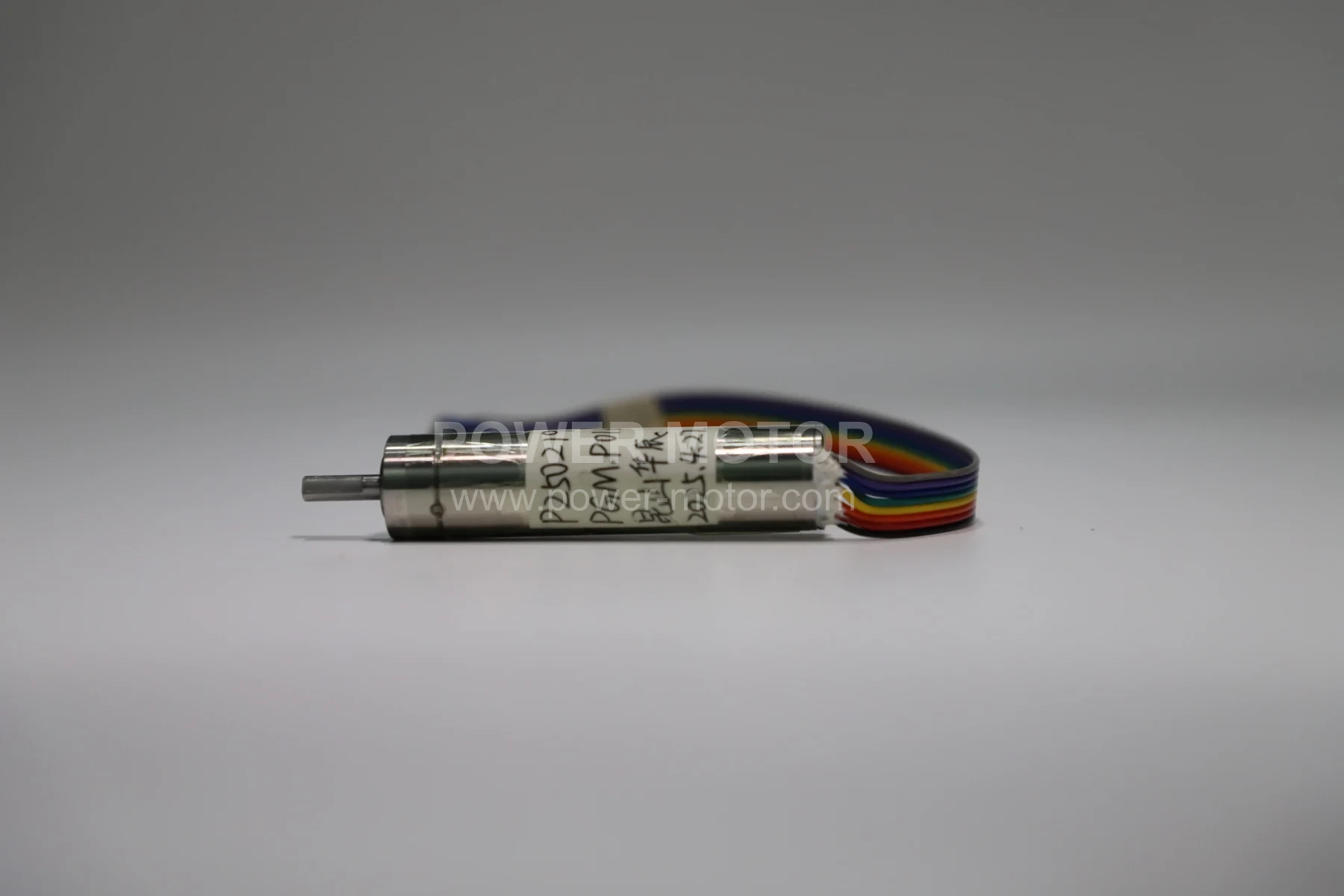

Product views
01

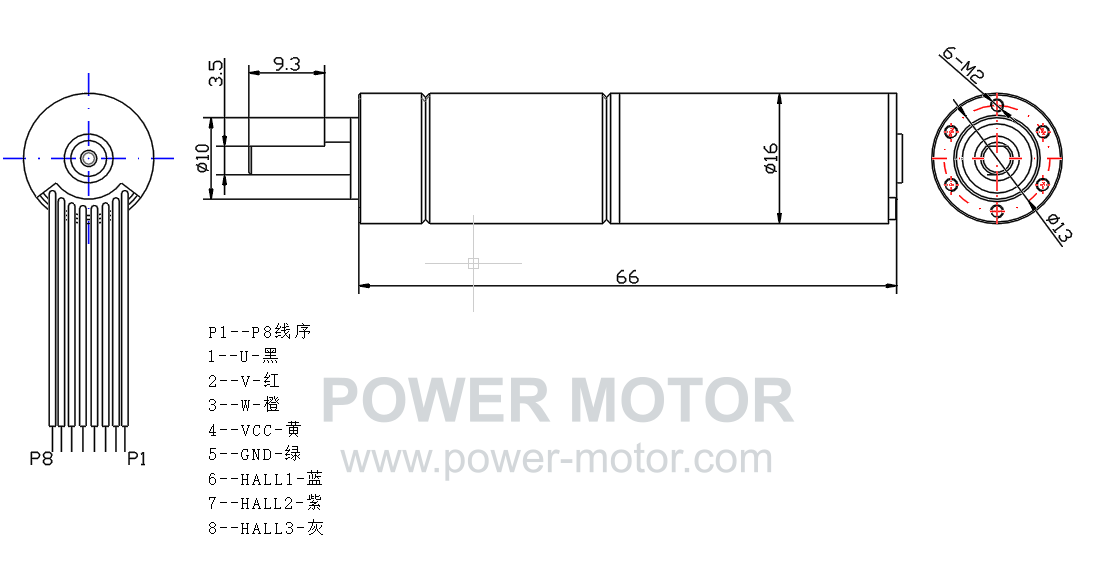

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.P016M0171-01 | 24 | 100 | 0.18 | 78 | 0.7 | 934 | 7.7 |
03

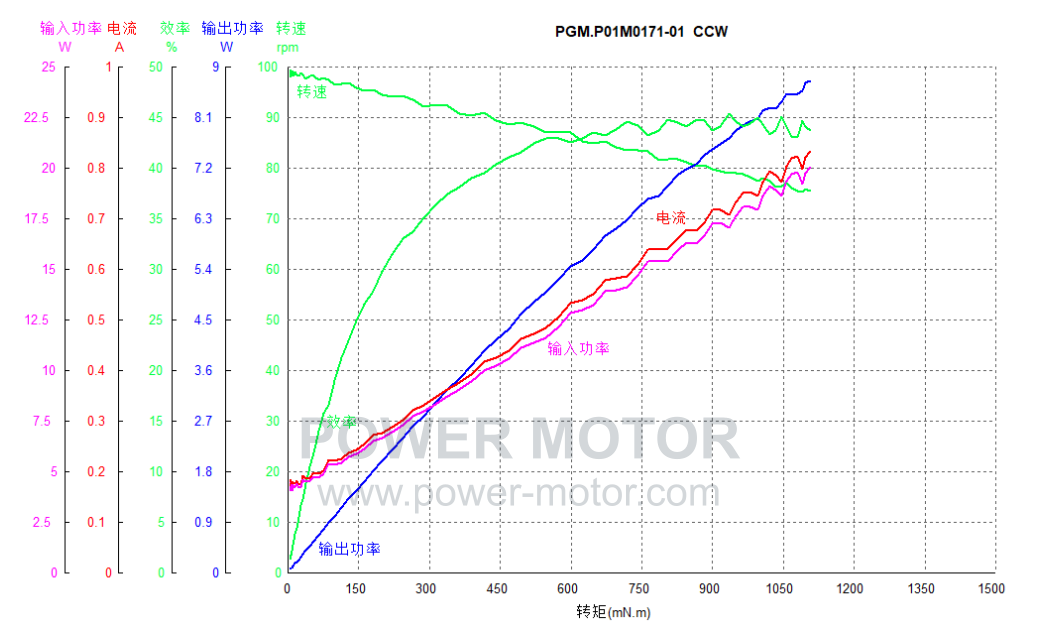

Performance curve
