Product model
PGM.WH50
Gear motor
00
Technical profile
- Platform
- PGM.WH50
- Specification models
- PGM.WH50DR-25-13180D
- Typical applications
- Seat front lift motor
- Voltage
- 12VDC
00

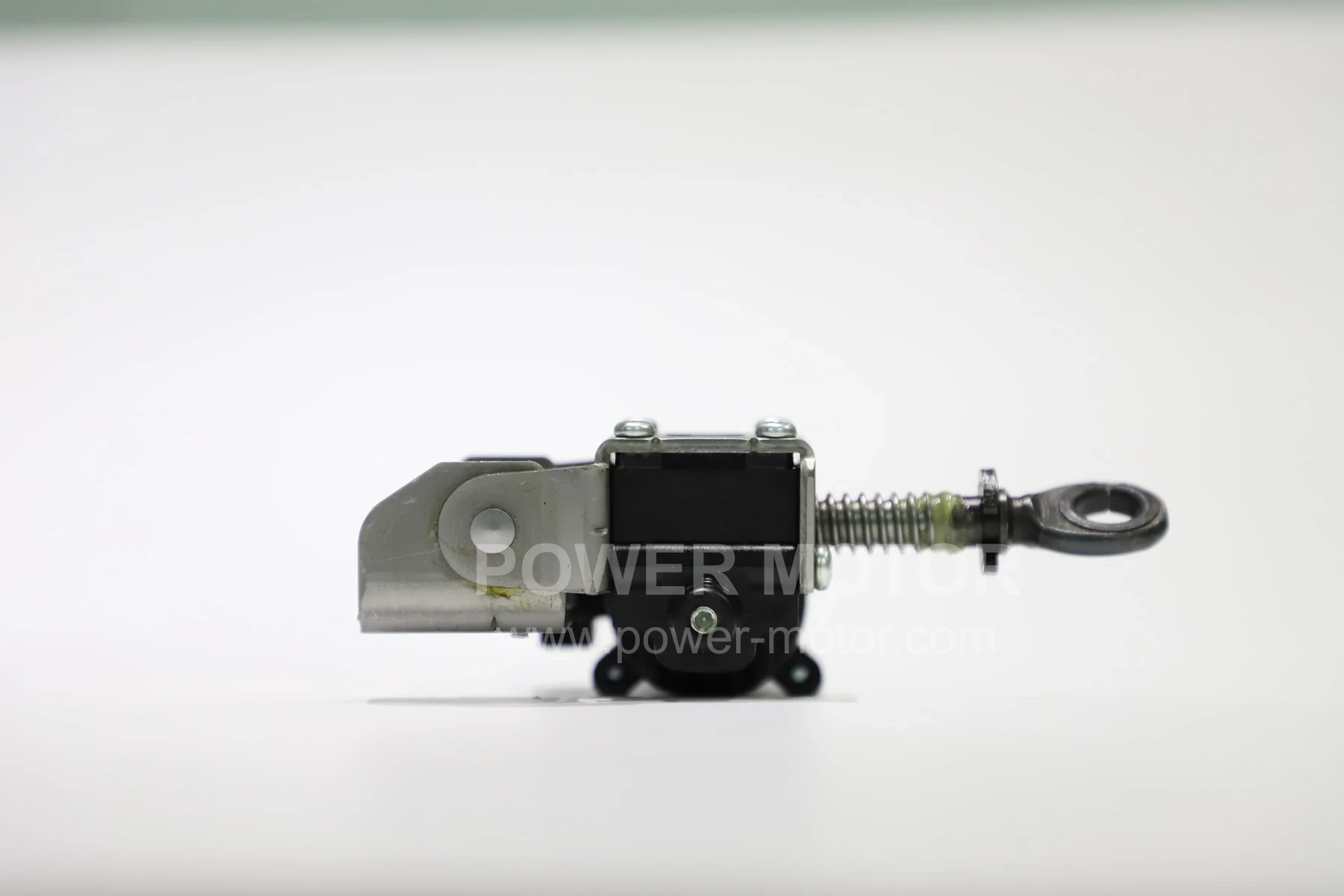

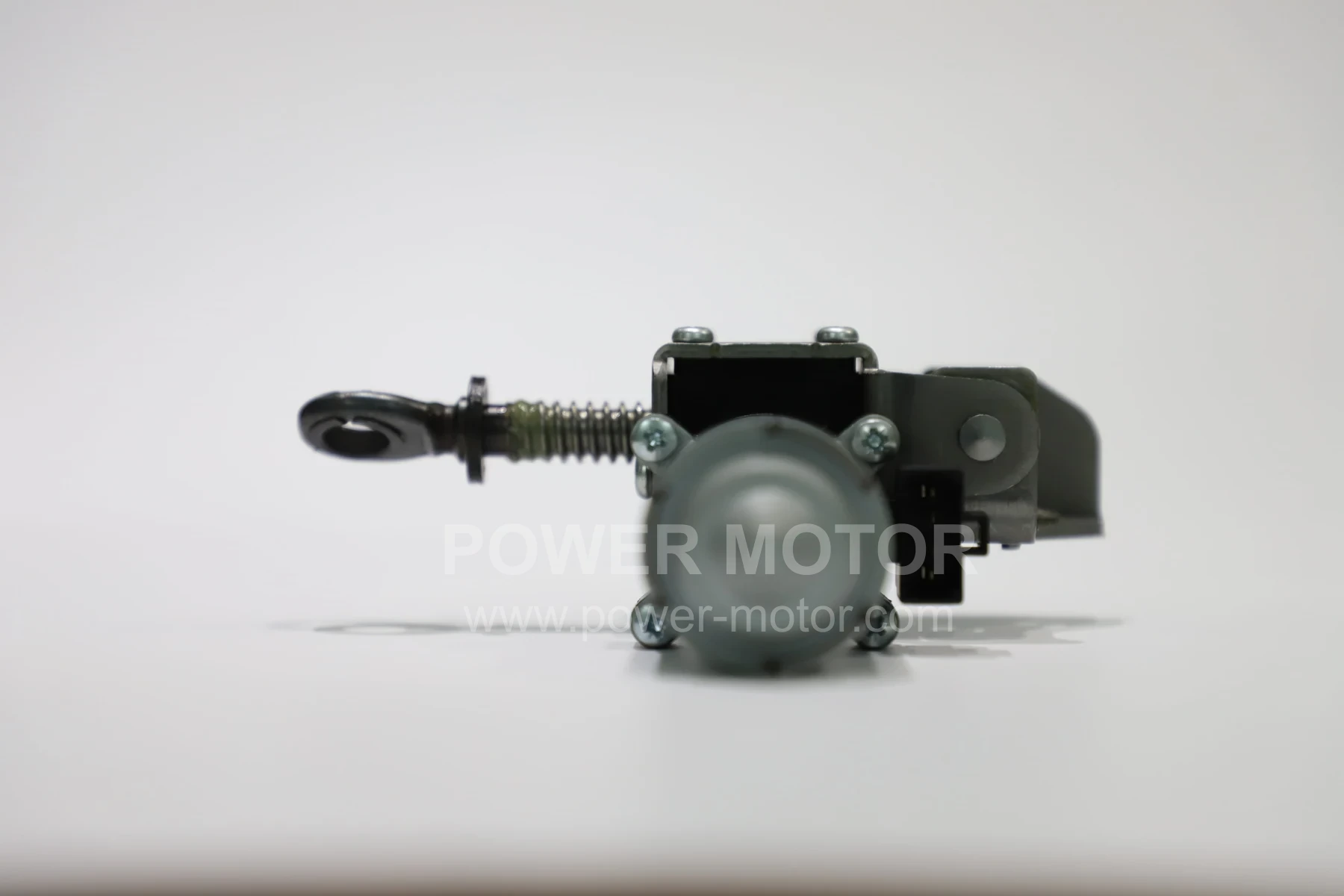

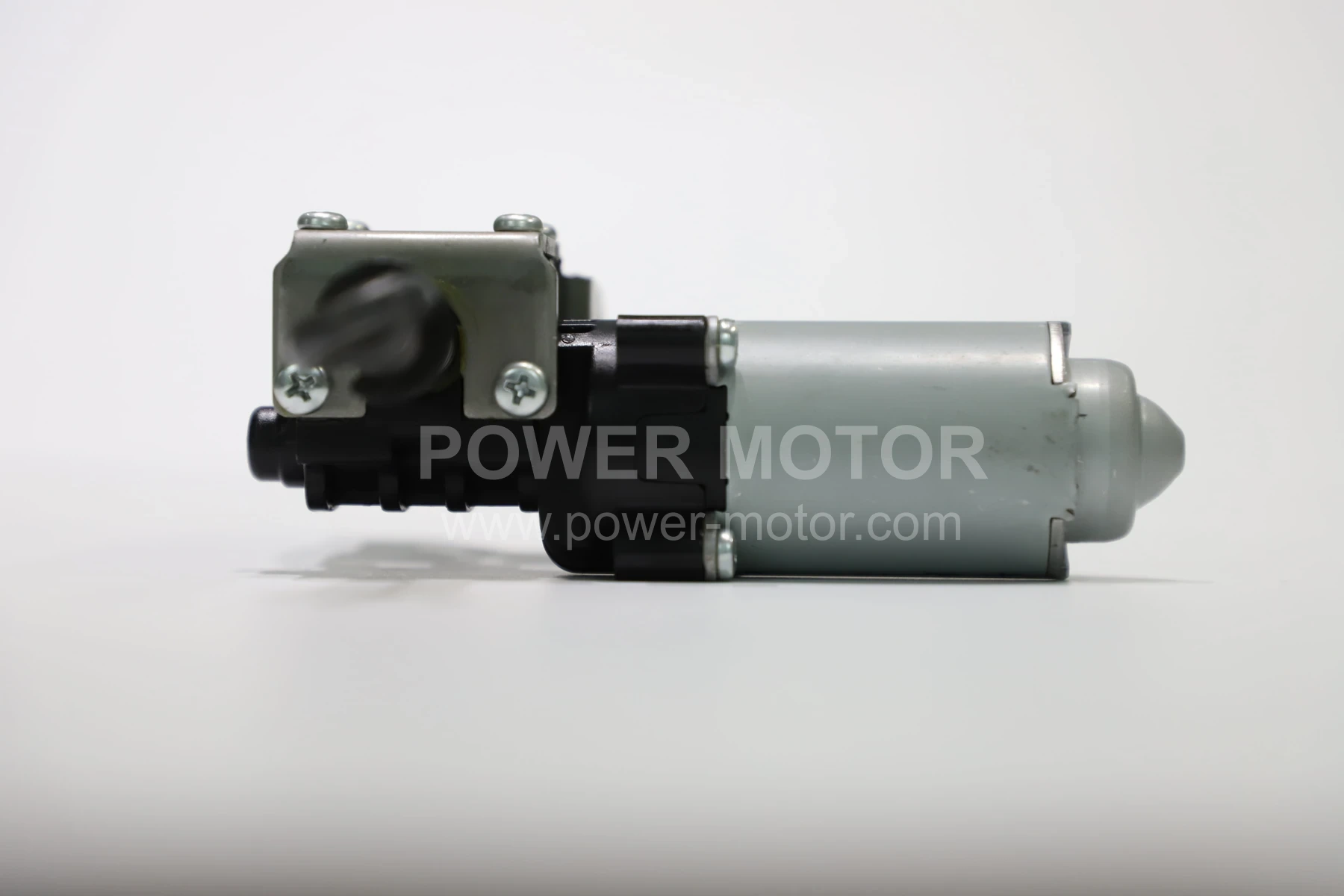

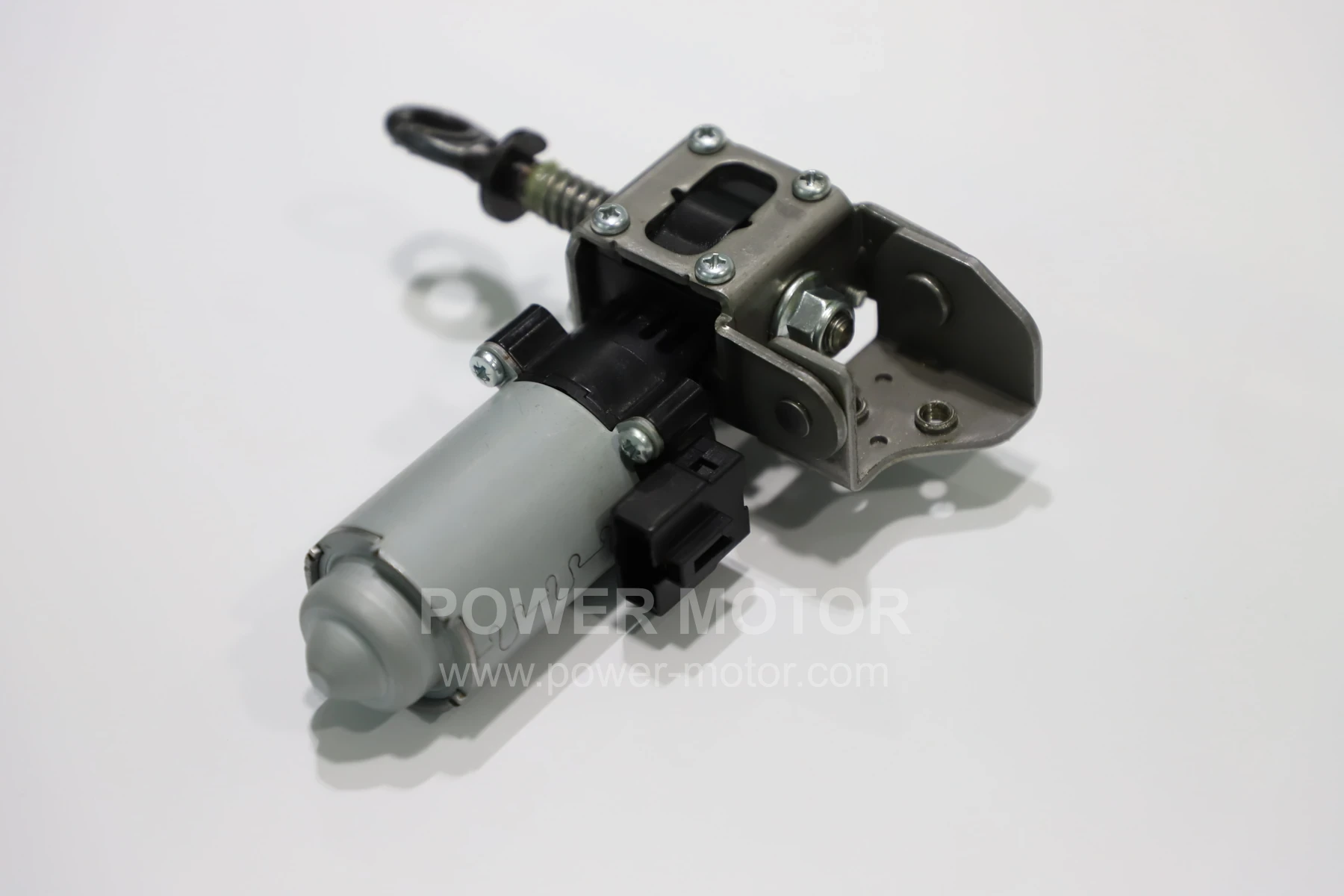

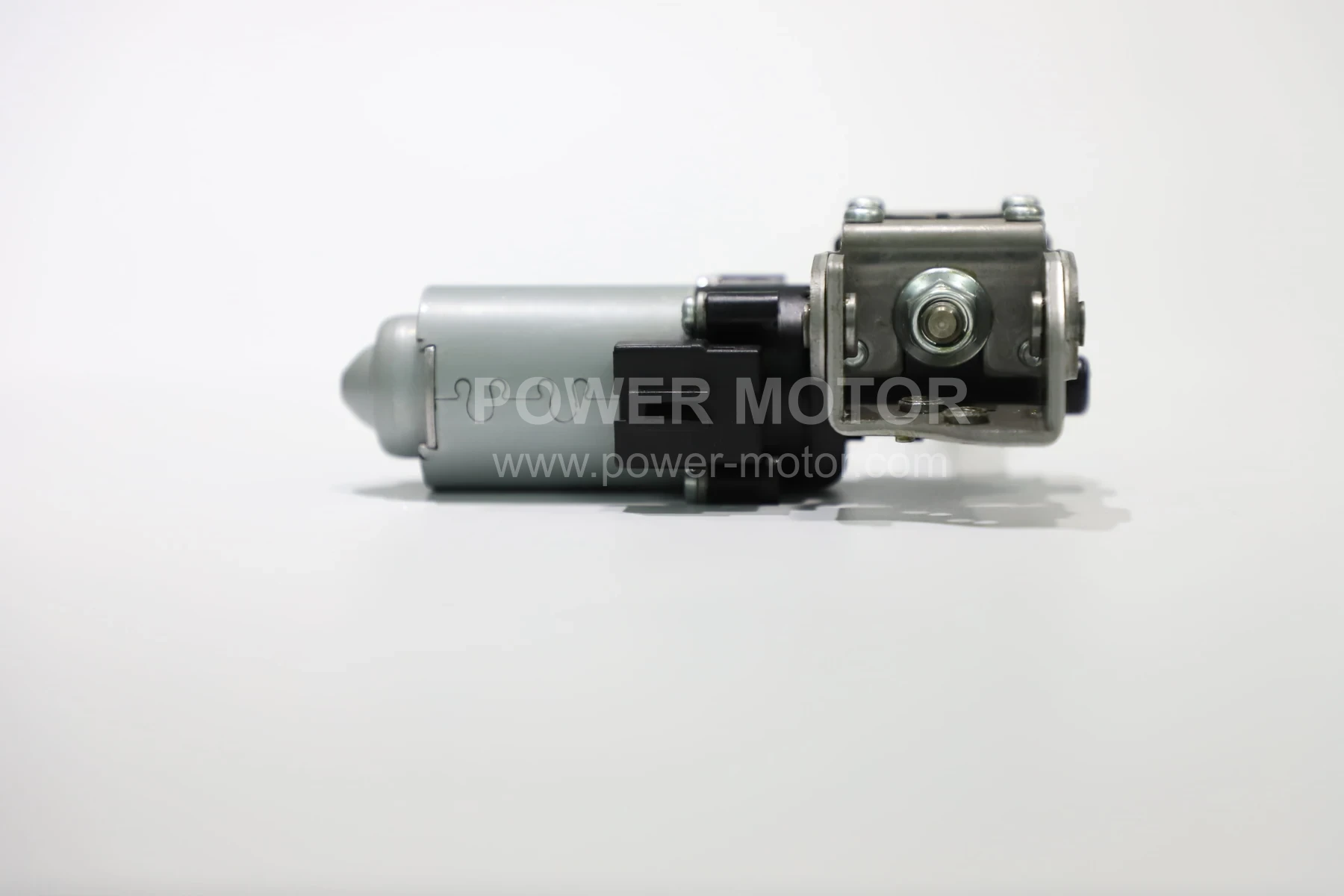

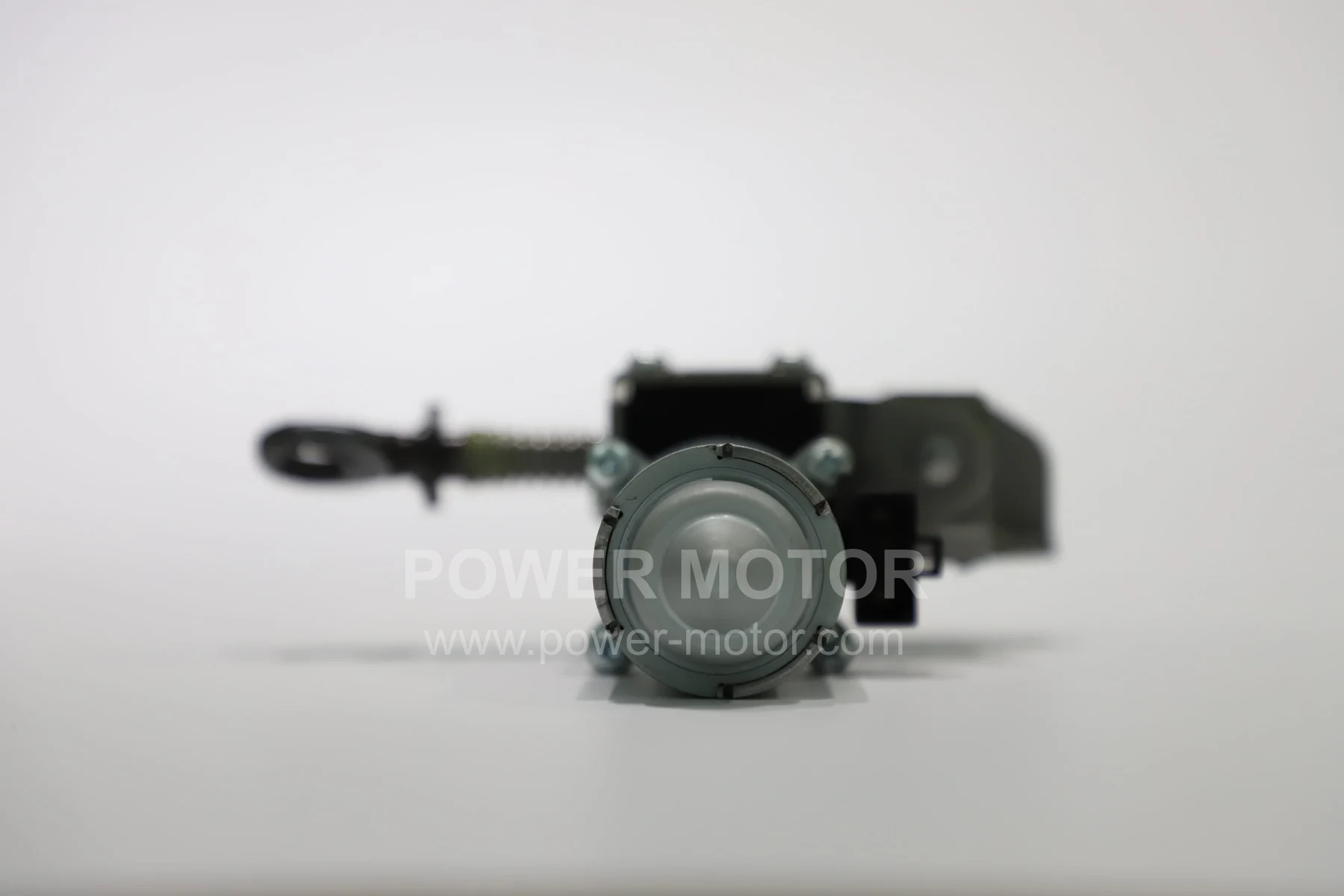

Product views
01

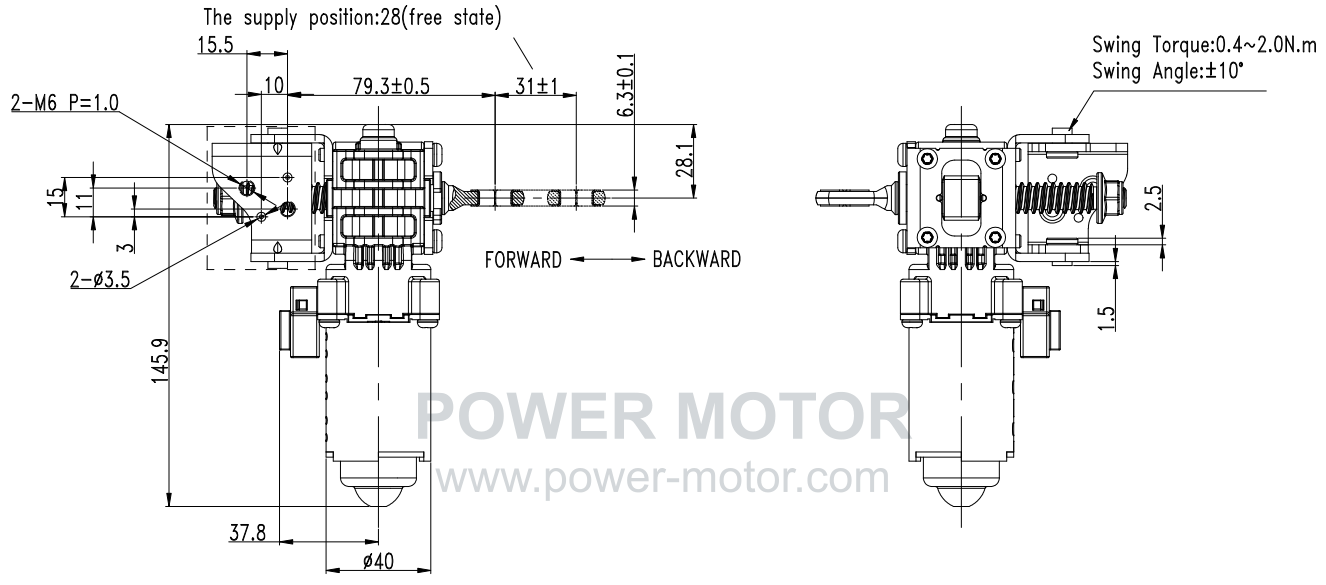

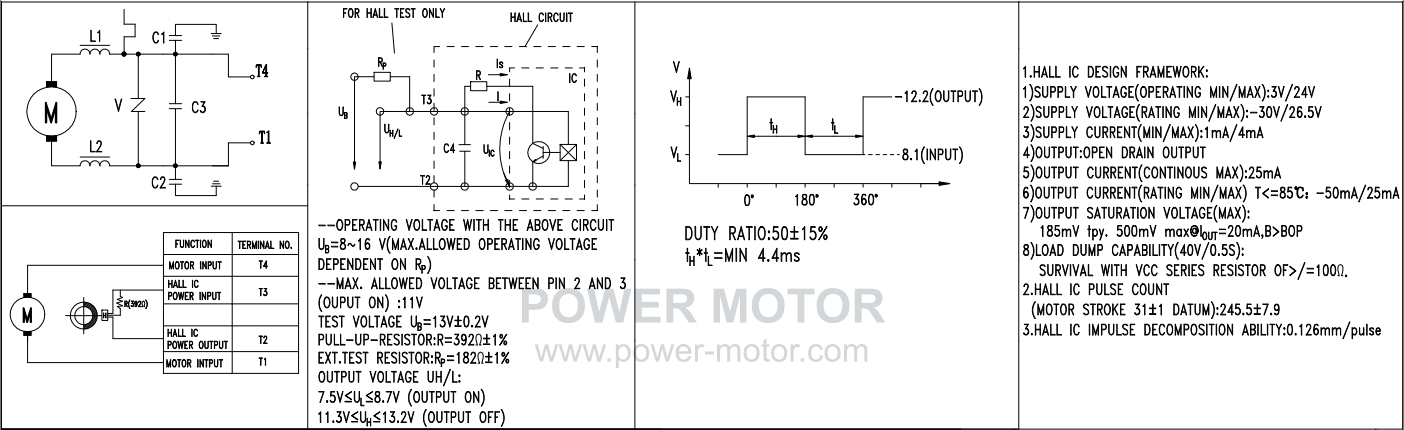

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · mm/s | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · mm/s | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.WH50DR-25-13180D | 9-16VDC | 12VDC | 7-11.5 | ≤3.5 | ≥6.5 | ≤7.5 | 51020 | 5000 | 20 |
03

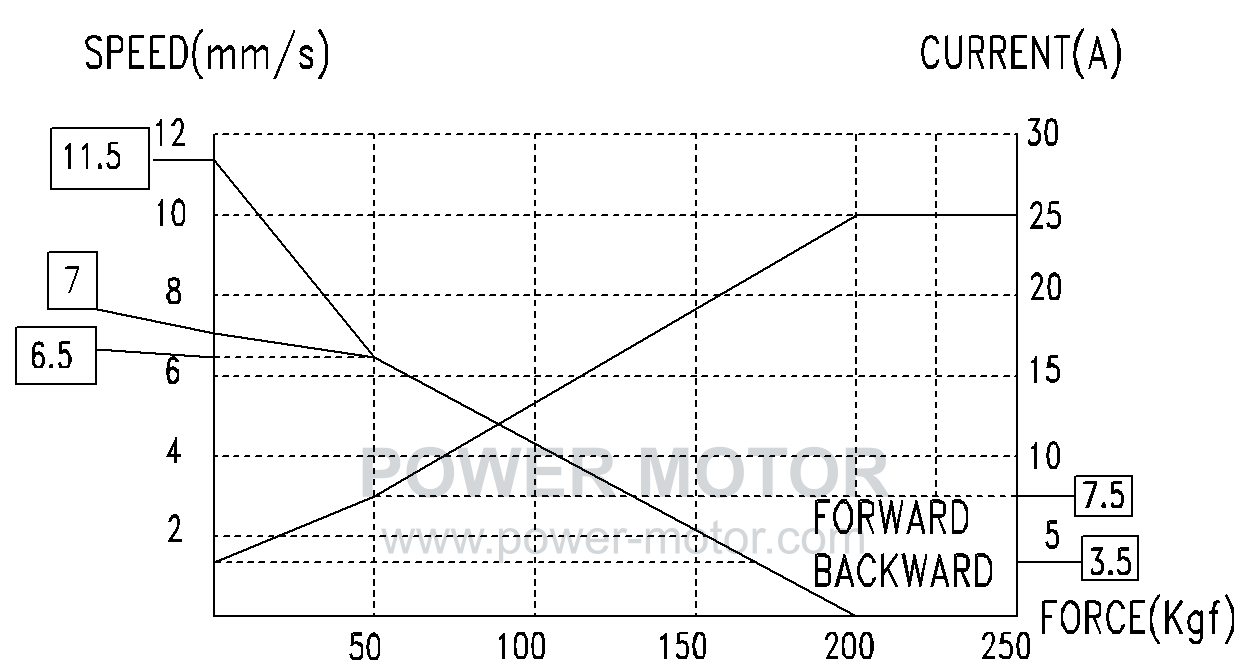

Performance curve
