Product model
PT.N20
Gear motor
00
Technical profile
- Platform
- PT.N20
- Specification models
- PT.N20
- Typical applications
- Safety lock
- Voltage
- 5 V
00

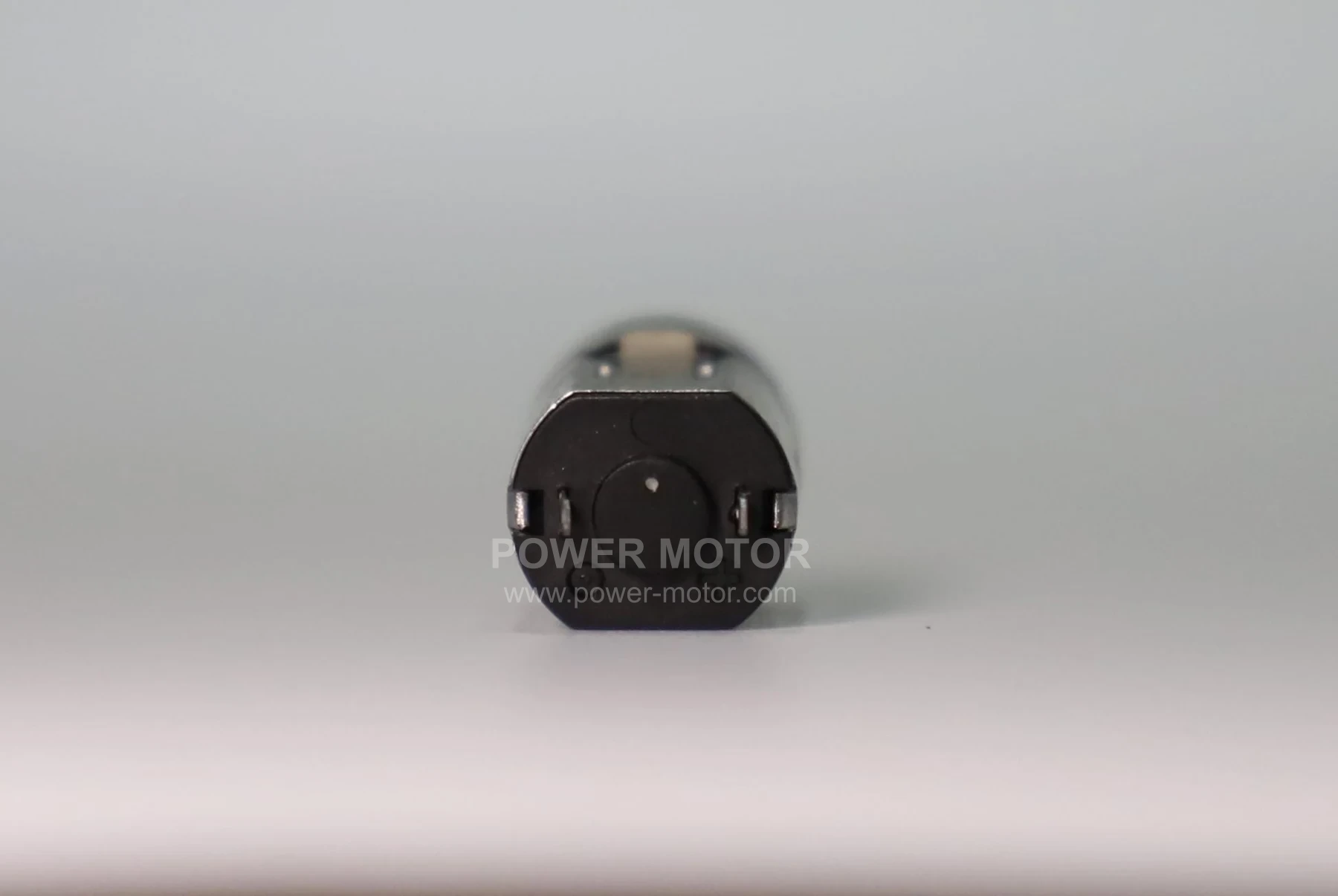

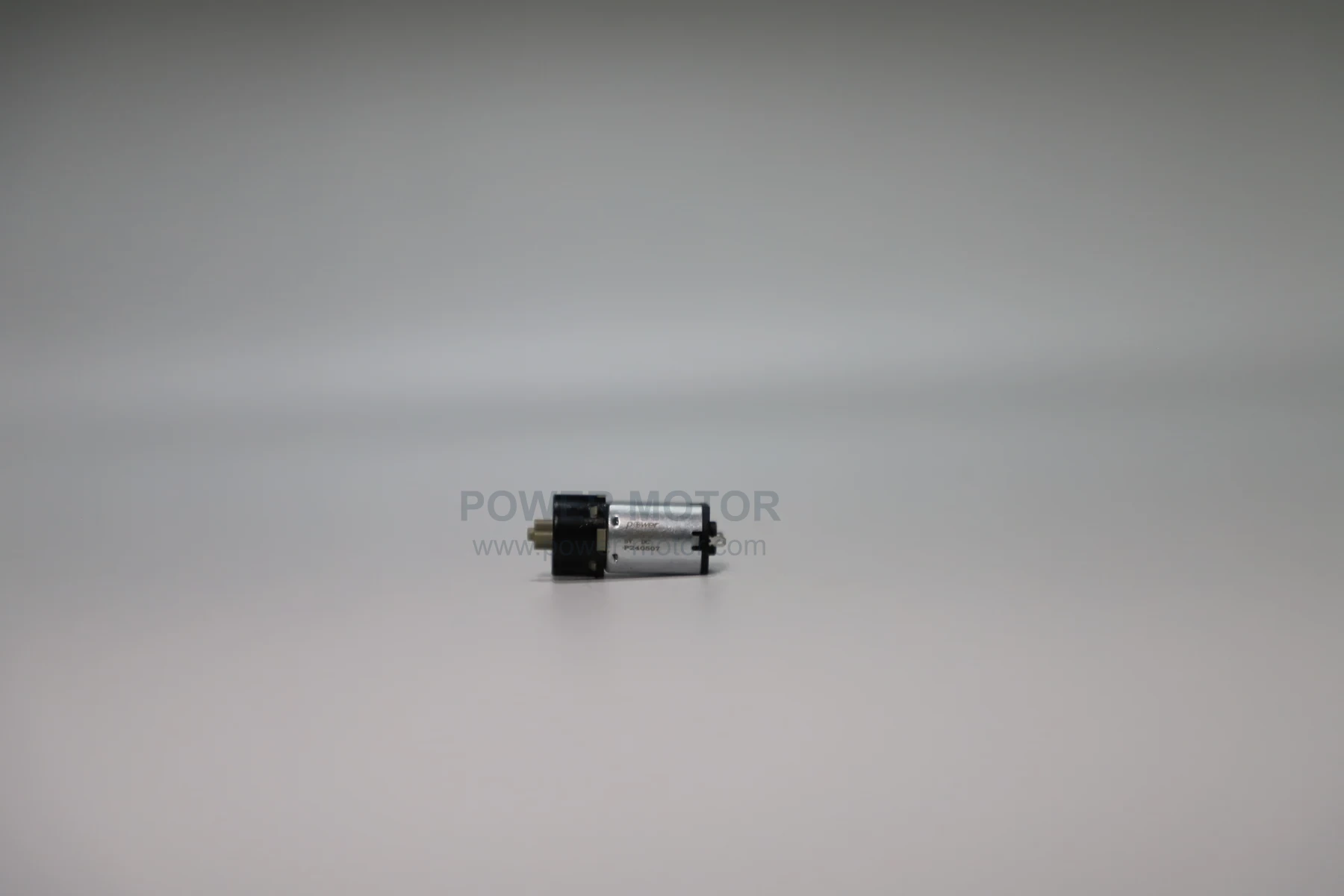

Product views
01

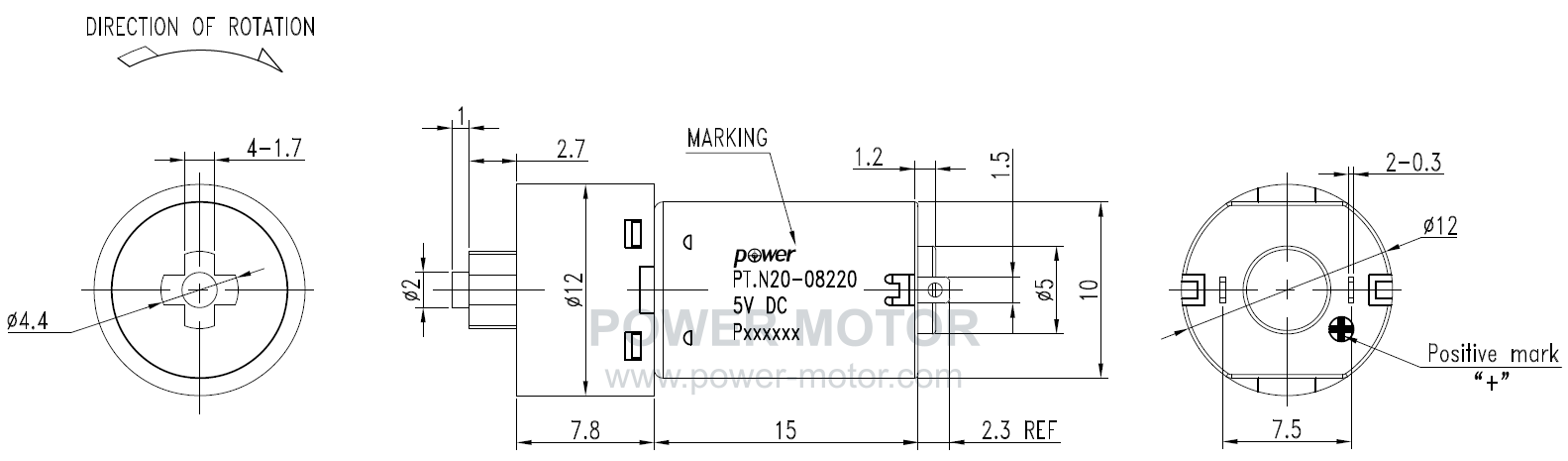

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.N20 | 4-6 | 5 | 105 | 0.06Max | 81 | 0.118 | 153 | 15 | 0.13 |
03

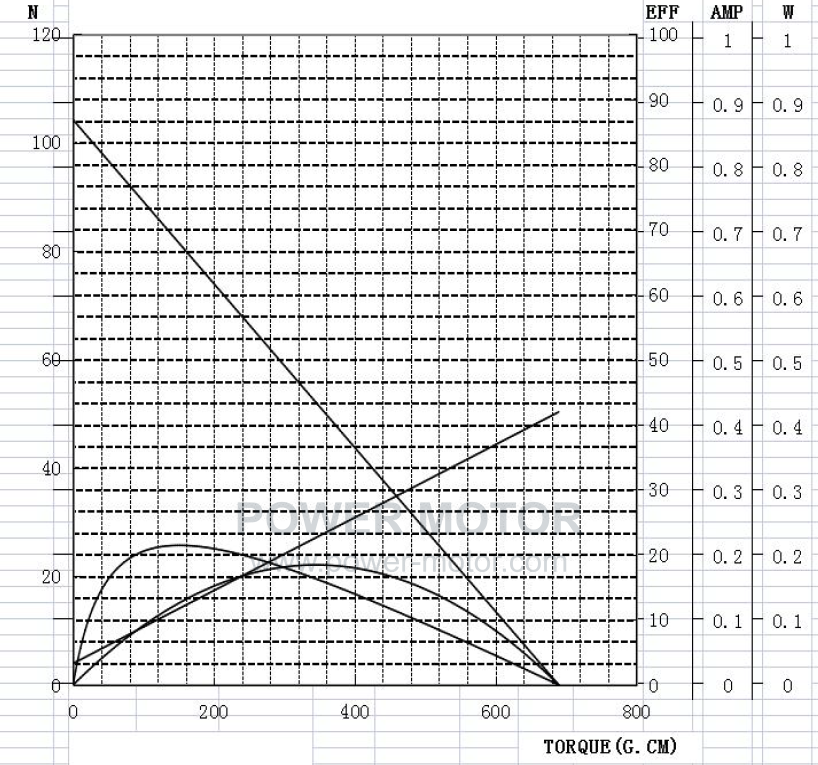

Performance curve
