Product model
PGM.P042
Gear motor
00
Technical profile
- Platform
- PGM.P042
- Specification models
- PGM.P042
- Typical applications
- Coffee grinder
- Voltage
- 24 V
00

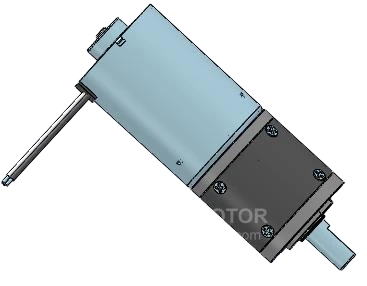

Product views
01

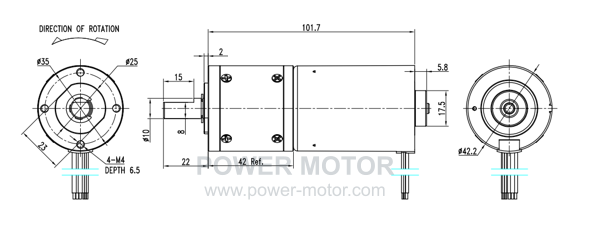

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.P042 | 22-26 | 24 | 460 | 1Max | 384 | 3.653 | 14953 | 1466 | 59 |
03

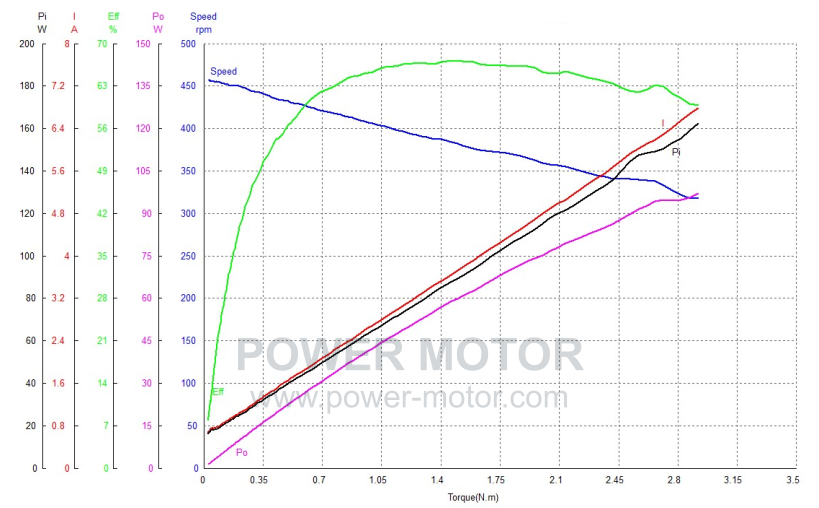

Performance curve
