Product model
PGM.P42
Gear motors
00
Technical profile
- Platform
- PGM.P42
- Specification models
- PGM.P42
- Typical applications
- Packing machine
- Voltage
- 24V
00

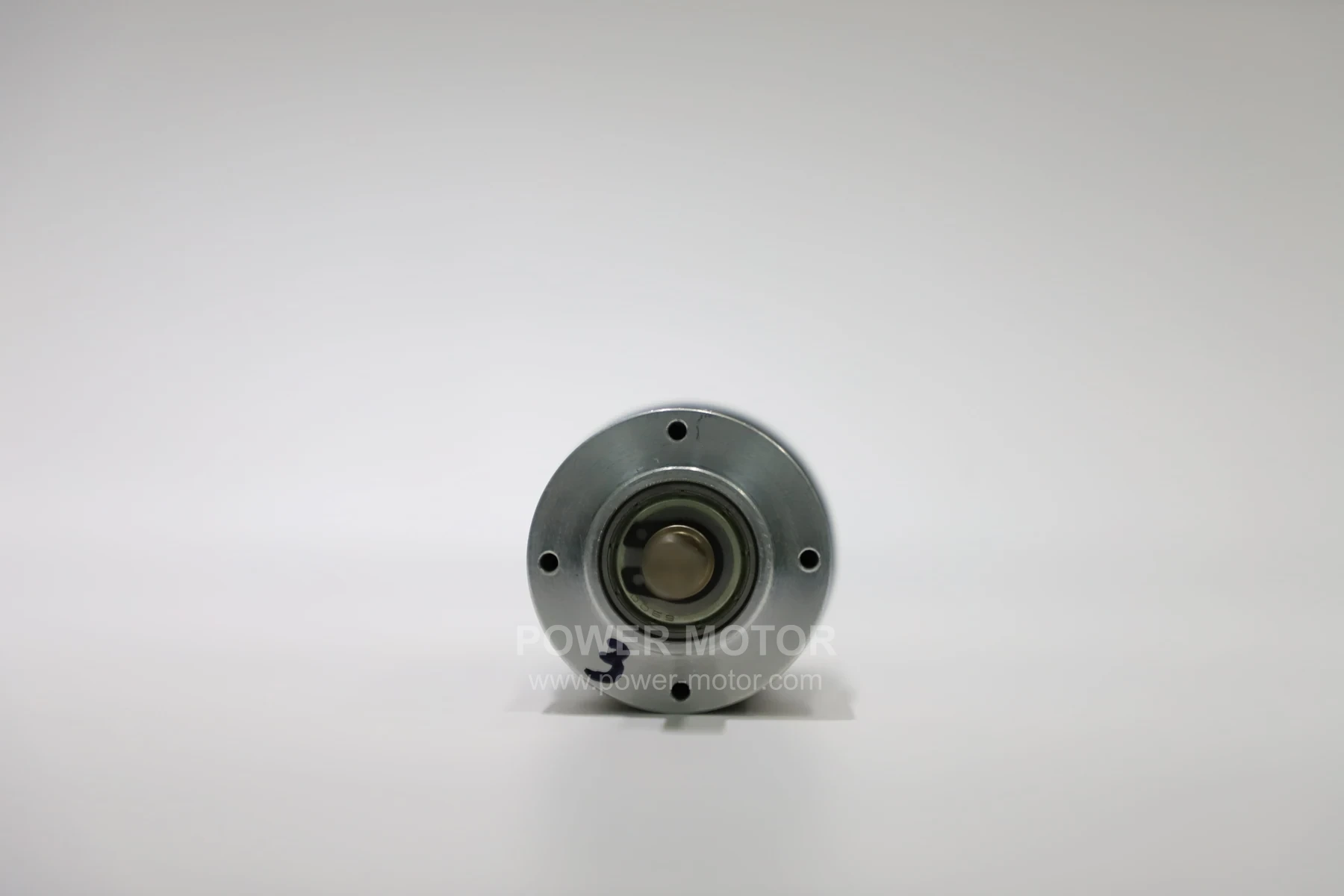

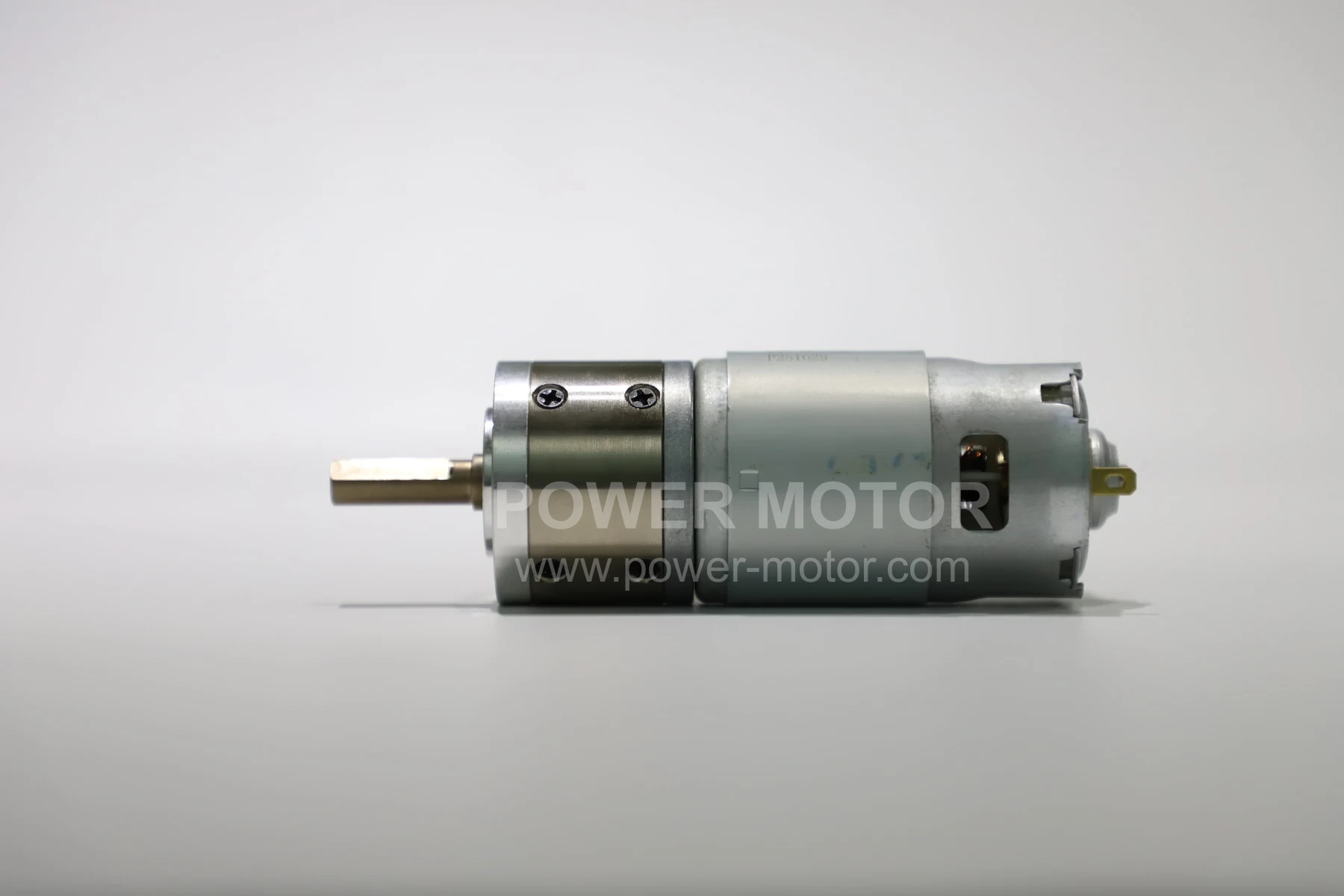

Product views
01

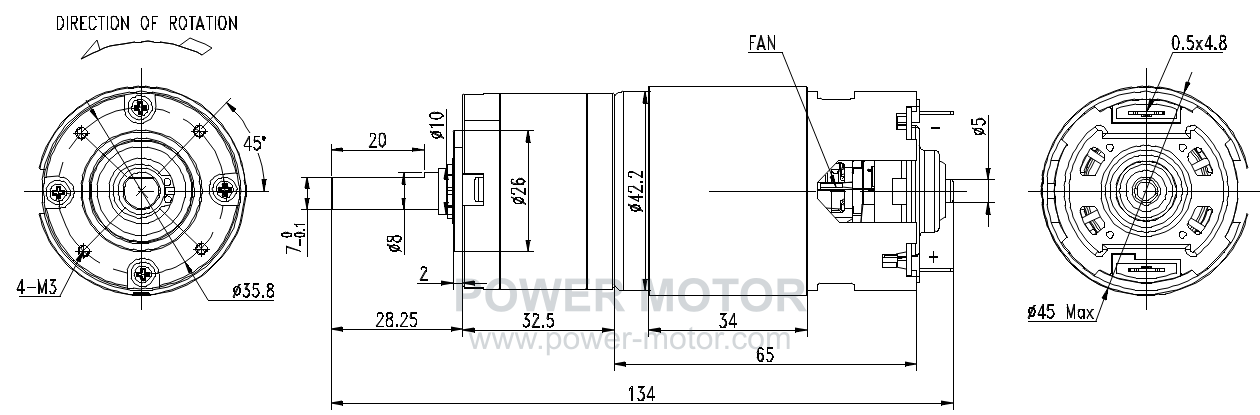

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PGM.P42 | 12-36V | 24V | 2200 | 2 Max | 1900 | 7.5 | 7140 | 700 | 180 |
03

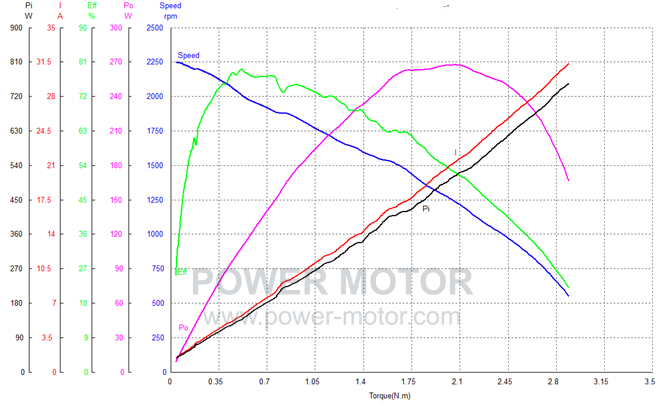

Performance curve
