With over 25 years of experience in the micro motor industry, we can categorize motors primarily by the use of input voltage into AC (Alternating Current) and DC (Direct Current). AC motors include universal motors, induction motors, shaded-pole motors, etc. DC motors cover brushed motors, brushless motors, servo motors, stepper motors, coreless motors, etc.

Currently in the market, DC motors feature standardized, serialized, and universalized designs, with series defined by rotor lamination diameter. Since rotor lamination dimensions do not show on outline drawings generally, quickly matching suitable motors by selecting the similar casing diameter and length per your existing or benchmark sample from the market.

For quick and easier selection of motor, we list out the full range of Brushed DC Motor with main dimension of casing diameter and length. Also Brushless DC motors which are particularly suitable for customers who have higher requirment of motor life, noise and control. Under the limitation of unit assembly room space and dimension, quick matching the suitable model by checking the housing diameter and length.

Besides, based on typical application scenarios, it can accurately meet the needs of industries such as home appliances, automotive electronics, healthcare and smart homes.

Our customization of motor parameters in operating voltage, speed, torque, output shaft specifications and dimensions to fulfill the unique requirement and application for our customers.

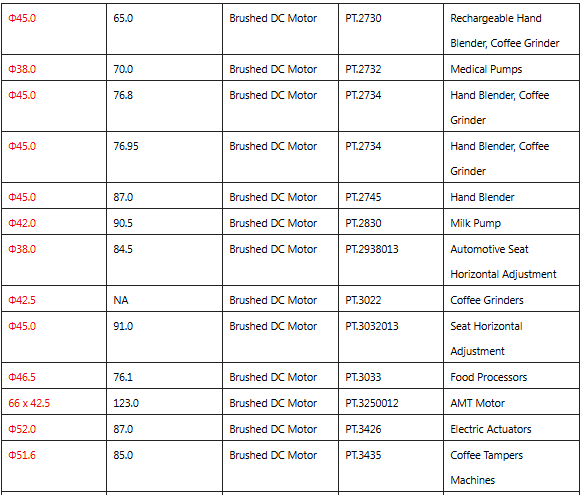

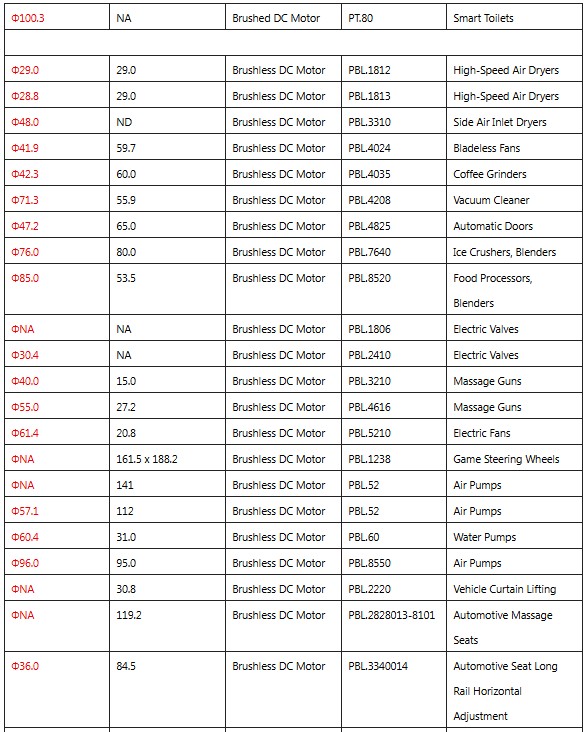

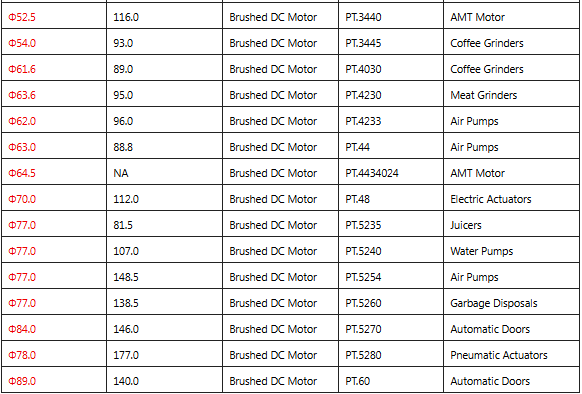

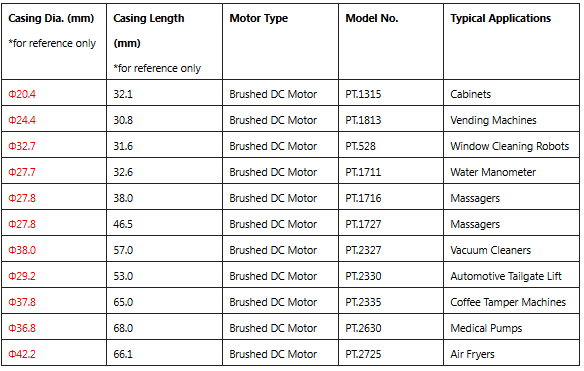

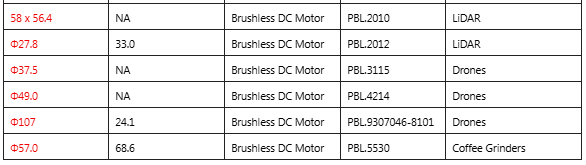

Power Motor Brushed/ Brushless DC Motor Model List:

Power Motor has over 25 years of industry experience and is equipped with an experienced sales and R&D team. We can provide customized motor solutions that are highly adaptable, reliable, and practical according to your product and project needs, helping to create high-quality products and gain a foothold in the market.

‌Contact Us Today:‌

�� Tel：400-666-3630, ✉ Email: info.power@power-motor.com

Note:‌ This article is contributed by Power Motor Sales Department
