Are coreless motors brushless? Both coreless and brushless motors excel in small, compact designs and efficient operation and are commonly used in precision devices. However, they are not the same. In fact, coreless motors can be either brushed or brushless, depending on how they are constructed.

In this article, Power Motor will break down the essential differences in the brushless vs. coreless motor discussion, helping you choose the right motor for your application!

Brushless vs. Coreless Motors: Definitions and Key Differences

1. What Is a Brushless Motor? (Brushless DC or BLDC)

A brushless motor is defined by its commutation method. It does not use brushes or a mechanical commutator to switch the current direction. Instead, it relies on an external electronic speed controller (ESC) or a driver to electronically manage the current flow to the stationary coils (the stator) based on the rotor’s position.

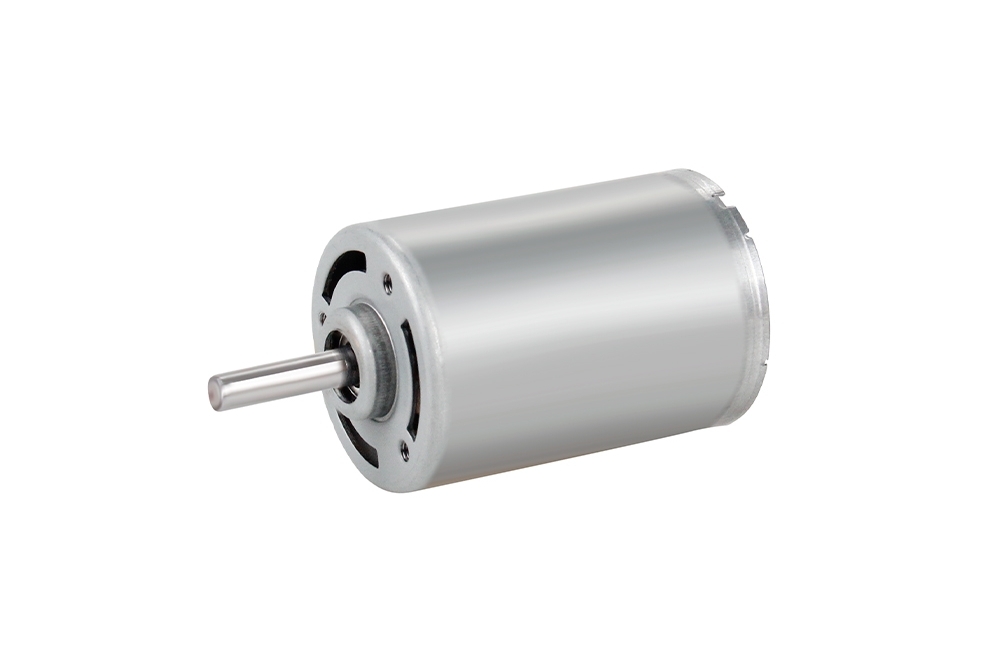

Product shown: Low Noise Bladeless Fan Brushless DC Motor

Key Advantages of Brushless Motors:

| Long lifespan due to the absence of brush wear

| High efficiency with reduced energy loss

| Low maintenance because fewer mechanical parts wear out

| High reliability for continuous or high-speed operation

Common Trade-off:

The required electronic controller adds to the system complexity and cost. Some designs may exhibit cogging torque (a magnetic "lumpiness") at low speeds due to the iron core.

2. What Is a Coreless Motor?

A coreless motor is defined by its rotor construction. Its rotor is constructed without a heavy iron core (which is why they are often called "ironless"). The windings are usually made from a self-supporting, hollow cylinder or bell of copper wire, which is then reinforced with epoxy.

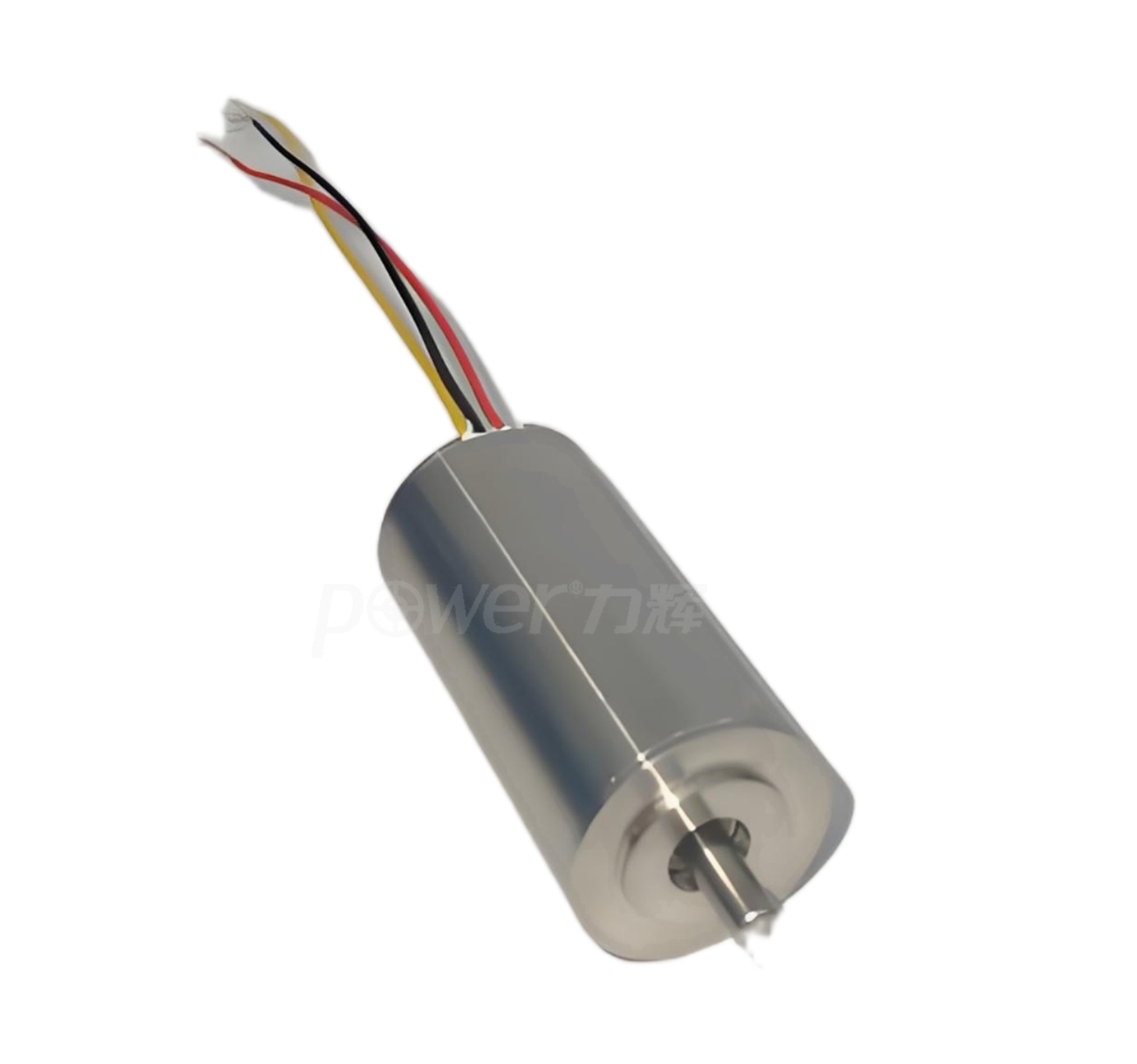

Product shown: Robotic Coreless Motor

Key Advantages of Coreless Motors:

| Quick, precise speed control thanks to low rotor inertia (the absence of iron core weight)

| Smooth rotation with zero cogging

| High efficiency without iron losses

| Compact size and light weight

Common Trade-off:

Coreless motors have a lower torque for a given size and weight compared to iron-core motors, as they lack a magnetic core to concentrate and amplify the magnetic flux. They are also more susceptible to thermal damage under sustained high loads, as there is no iron core to serve as a heat sink.

As we can see, "brushless" and "coreless" refer to two different aspects of a motor: the commutation system and the rotor construction. This means a motor can be:

| Brushed + Coreless

| Brushless + Iron Core

| Brushless + Coreless (a brushless coreless motor)

Each type has its own strengths and advantages, making them suitable for different applications.

How to Choose the Right Electric Motor

Choosing the right motor depends on the performance requirements of your application. Below are some general guidelines:

1. Choose Brushless Motors When:

| Your device needs a long service life and high reliability.

| You want minimal maintenance and quiet operation.

| You require high efficiency and low heat generation.

| The motor must run at high speeds for long periods.

Brushless motors are best for devices where uptime, durability, and efficiency drive performance. Some examples include industrial fans and blowers, electric vehicles, robotic actuators, power tools, and continuous-duty pumps.

2. Choose Coreless Motors When:

| You need an extremely fast response.

| Smooth, vibration-free rotation is important.

| The application requires low inertia.

| The system needs very precise control.

Coreless motors excel in lightweight systems that need quick acceleration or sensitive accuracy. These can include surgical hand tools, high-end drones/UAVs, optical shutters, precision micro-pumps, and high-speed scanners.

3. Choose Brushless Coreless Motors When:

| You need both longevity and ultra-smooth performance.

| The device must be compact but powerful.

| High-precision and high-speed control are required.

| Heat and energy efficiency must be optimized.

The brushless coreless motor is often chosen for advanced medical and optical equipment where both precision and durability are essential. It is becoming critical in advanced surgical robotics, high-performance lab automation equipment, premium gimbal systems, precision factory automation, and other high-precision applications.

Power Motor: Your Partner in Motor Solutions

Power Motor specializes in designing and manufacturing industry-leading motor solutions, particularly high-performance brushless DC motors and coreless motors.

Our expertise covers everything from high-precision micro motors used in medical instruments to durable motors for home appliances and industrial automation. We offer full engineering support, prototype customization, and stable mass production capabilities.

We help our clients analyze performance needs, mechanical constraints, lifetime expectations, and cost considerations. Our goal is to provide the optimal motor configuration that improves product quality and long-term reliability.

Conclusion

So, are coreless motors brushless? The answer is they can be, but not always. A coreless motor describes the rotor design, while brushless refers to the commutation method. Understanding the difference is essential when selecting a motor that matches your product’s performance requirements.

At Power Motor, we are committed to helping you choose the right motor—whether it's a traditional coreless motor, a high-efficiency brushless motor, or an advanced brushless coreless motor.

If you want to learn more about how our motor technologies can support your next project, we invite you to connect with us and explore our capabilities.
