When designing mechatronic systems, robotics, or precision medical devices, you may face a critical question: should I choose a traditional cored DC motor or a coreless variant that doesn't have an iron-made inner core? This decision impacts many things, from system efficiency and responsiveness to long-term reliability and cost.

At Power Motor, we've helped countless customers find the ideal motor and offered them high-performance electric motors. In this article, let us focus on the cored vs. coreless DC motors, explaining their difference to help you make an informed selection!

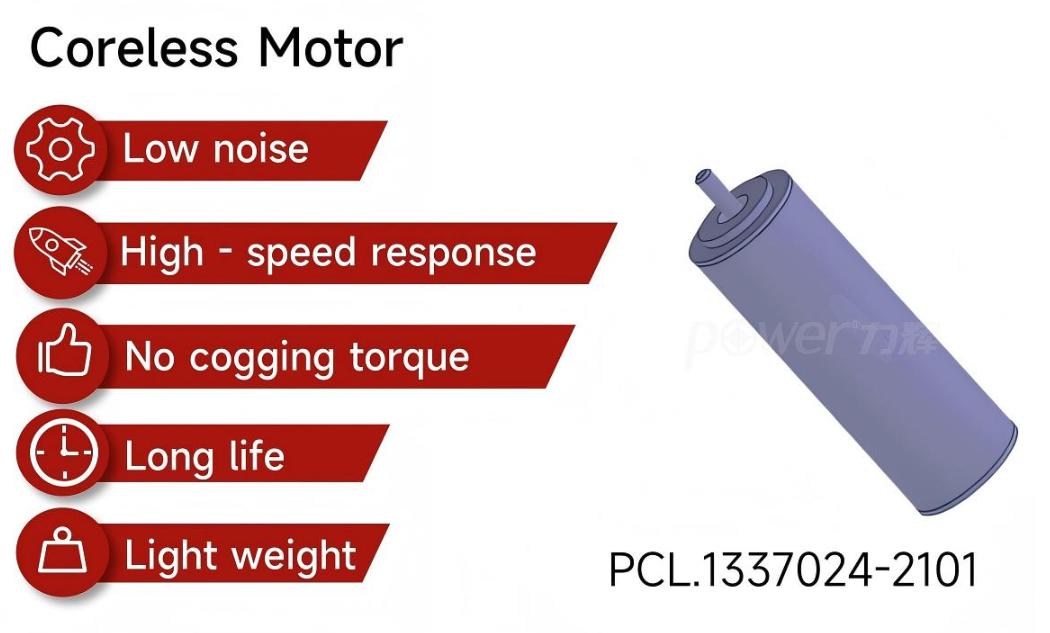

Picture shown: Coreless Motor PCL.1337024-2101

What is a Cored DC Motor?

The cored DC motor features a rotor made up of a laminated iron core with copper wire windings around it. The rotor spins inside a stationary magnet (the stator). The iron core is what gives this motor type its name, its strength, and its drawbacks.

Pros of Cored DC Motors:

lHigh Torque Density: The iron core concentrates the magnetic flux, allowing the motor to generate a higher turning force (torque) for a given size compared to coreless alternatives. This makes them ideal for heavy-duty applications.

lDurability and Robustness: The rigid iron core provides structural integrity, making cored motors more mechanically resilient and better able to withstand thermal overloads.

lLower Cost: Due to simpler construction and the use of widely available materials like iron, cored DC motors are generally more cost-effective to manufacture.

lEfficient Heat Dissipation: The iron core acts as a heat sink, which helps manage thermal energy and allows the motor to sustain higher loads.

Cons of Cored DC Motors:

lHigh Inertia: The heavy iron core increases the rotor's mass, leading to high inertia. This limits the motor's ability to accelerate, decelerate, and change direction quickly.

lCogging Effect: The magnetic attraction between the rotor's windings and the iron core causes a "cogging" or pulsating torque at low speeds, resulting in less smooth operation.

lLower Efficiency: The iron core introduces energy losses (hysteresis and eddy current losses), which reduce overall efficiency, especially at high speeds.

Typical Applications of Cored DC Motors:

Cored DC motors are the preferred choice for applications where high torque, durability, and cost-effectiveness are more important than quick response time or high efficiency. For example:

lPower Tools: Drills, saws, and handheld equipment.

lAutomotive: Power window regulators and seat adjusters.

lIndustrial: Pumps, conveyors, and larger actuators.

What is a Coreless DC Motor?

The coreless DC motor does not have a traditional iron core. Instead, its rotor uses a self-supporting, hollow cylindrical coil—often a cup or bell shape—made of windings bonded together with epoxy. The magnets are typically placed inside this hollow coil, and the coil spins around them. This distinctive design dramatically changes the motor's performance characteristics.

Pros of Coreless DC Motors

lExtremely Low Inertia: The absence of a heavy iron core results in a very lightweight rotor and extremely low inertia. This is the main characteristic of coreless motors, enabling blistering fast acceleration, deceleration, and high dynamic response.

lHigh Efficiency: Without the iron core, eddy current and hysteresis losses are virtually eliminated. This allows coreless motors to achieve efficiencies up to 90%, making them ideal for battery-powered devices.

lSmooth and Precise Motion (No Cogging): Since there is no iron core for the magnets to attract, there is no cogging torque. This results in ultra-smooth operation, even at very low speeds, which is essential for precision control.

lCompact and High Power Density: They offer a high power-to-weight and power-to-volume ratio, allowing for powerful performance in a smaller, lighter package.

Cons of Coreless DC Motors

lLower Peak Torque: While they have high power density, the lack of an iron core means they cannot produce the same absolute peak torque as a cored motor of a comparable size.

lHigher Cost: The specialized winding and bonding process, along with the use of high-performance magnets, makes coreless motors more expensive to manufacture.

lThermal Sensitivity: The self-supporting coil structure is more vulnerable to damage from overheating and is less able to handle continuous thermal overload compared to an iron-core design.

Typical Applications of Coreless DC Motors:

Coreless DC motors are selected for applications demanding high efficiency, fast response, and extreme precision, especially in weight- or space-constrained systems.

lMedical Devices: Surgical tools, drug delivery pumps (e.g., insulin pumps), and prosthetics.

lRobotics: Small robotic actuators and grippers requiring quick, precise movements.

lAerospace & UAVs: Drones and portable electronic devices where low weight and high efficiency are critical.

Cored vs. Coreless DC Motors: A Comprehensive Comparison Table

Power Motor: Your Partner in Custom Motor Solutions

Choosing between a cored and a coreless DC motor depends entirely on your application's unique needs. We at Power Motor understand that the perfect motor often doesn't come "off the shelf." That's why our core strength lies in custom motor engineering.

Our team of dedicated engineers brings decades of experience to the table. We employ rigorous processes—including mechanical structure analysis and dynamic simulation—to create and optimize a motion solution that meets your exact specifications. If you have a detailed spec sheet or just a product concept, we are here to provide the expertise to make your design a reality.

Conclusion

Ultimately, the choice between a robust cored motor and a high-performance coreless electric motor is a choice between two distinct engineering philosophies. For projects that prioritize raw power and budget, cored motor prevails. For those that require speed, precision, and efficiency in a compact package, the advantages of the coreless design are unmatched. If you have further doubts, you are more than welcome to contact Power Motor for tailored advice.
