Achieving exceptional positioning accuracy in automated machinery often requires combining the torque multiplication of gearing with the digital precision of a stepper motor. The resulting system resolution—measured in steps per millimeter or degree—is not solely determined by the motor's native step angle, but by the careful calculation and selection of the gear ratio. Maximizing this resolution is critical for applications like high-end optical systems, precise dispensing, and delicate robotics where positioning repeatability is paramount. This level of optimization requires a specialized partner, an expert stepper gear motor manufacturerlike Power Motor.

The Formula for System Resolution and Microstepping

The fundamental formula for calculating the total system steps per revolution (SPR) is straightforward:

System SPR = Motor Native Steps Per Revolution *Gear Reduction Ratio

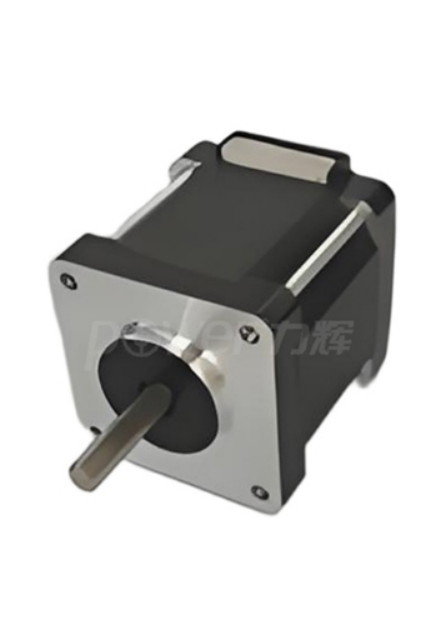

For example, if a standard stepper motor has 200 steps per revolution (1.8° per step) and is paired with a 10:1 gearbox, the final shaft has 200* 10 = 2000 steps per revolution. The gear ratio acts as a direct multiplier of the motor's native mechanical resolution.

However, modern systems rarely rely solely on full steps. Microstepping, a technique where the driver electronically controls the current to the windings to create fractional steps, can further increase the effective resolution. If the motor is microstepped at 1/16th of a step, the total resolution becomes:

Final Resolution =System SPR*Microstepping Factor

In our example, 2000*16 = 32,000microsteps per revolution. A precise stepper motor manufacturerknows that while microstepping increases theoretical resolution, it significantly reduces available torque and holding stiffness. Therefore, gearing is often a more reliable path to maximizing resolution and torque simultaneously.

Custom Ratios Maximizing Precision without Backlash

While a high gear ratio instantly boosts resolution, it can also amplify mechanical errors and introduce significant backlash (the play or clearance between gear teeth), potentially negating the precision gains. The advantage of partnering with Power Motor is our ability to custom-design and manufacture the entire system. As a dedicated stepper gear motor manufacturer, we don't rely on standard, off-the-shelf gearheads. Instead, we select or manufacture custom gear ratios specifically chosen to hit a target resolution while utilizing high-precision gear types, such as planetary or harmonic drives, that feature minimal to zero backlash.

Furthermore, we assess the rotational inertia of the entire system. A large gear ratio can reflect a massive amount of load inertia back to the motor shaft, reducing the motor's ability to accelerate quickly. Power Motor engineers analyze this critical factor to ensure the final gear ratio not only maximizes resolution but also maintains the necessary dynamic response for rapid indexing or continuous motion. This approach ensures that the theoretical resolution improvement translates directly into actual, repeatable positioning accuracy, which is essential for any sensitive application.

Power Motor’s Integrated Approach to Geared Systems

Maximizing resolution is not just a simple calculation; it's a deep engineering practice that requires holistic control over the motion stack. As a leading stepper motor manufacturer, Power Motor integrates the motor design (considering factors like detent torque and winding impedance) with the mechanical gearing. We specialize in producing complete stepper gear motor manufacturer solutions where the motor and gearhead are pre-aligned, pre-lubricated, and optimized for efficiency and minimal wear. This integrated package is superior to combining disparate components. Our control over the entire drivetrain ensures that system inertia is manageable and that the motor's torque remains sufficient to drive the load through the reduction process efficiently. This level of customization allows us to deliver a perfectly optimized stepper gear motor manufacturer product that provides the highest possible resolution and long-term reliability for your precision motion systems. Choosing Power Motor means choosing precision engineered from the ground up.
