Product model
PT.3445
DC motor
00
Technical profile
- Platform
- PT.3445
- Specification models
- PT.3445
- Typical applications
- Coffee grinder
- Voltage
- 120 V
00

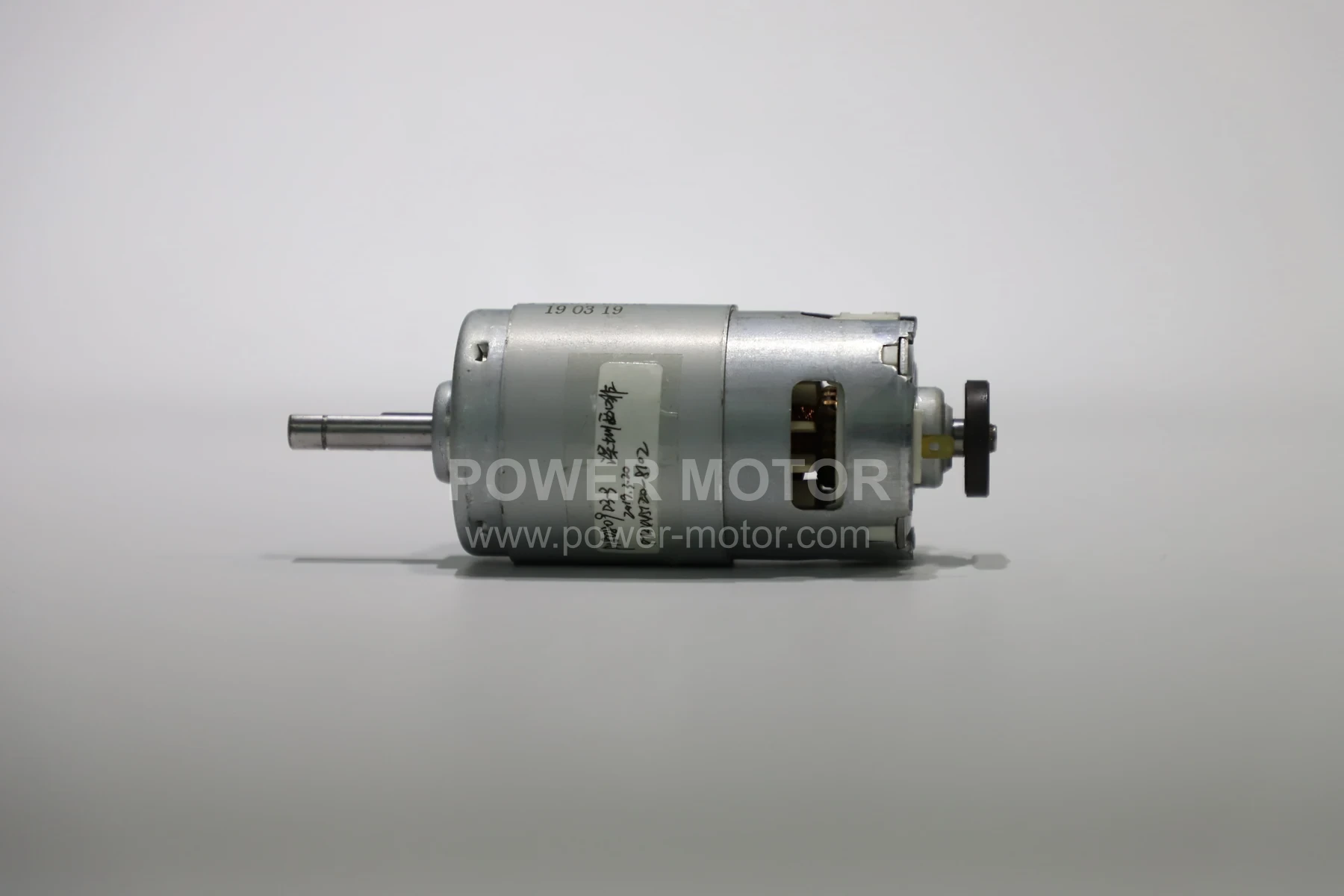

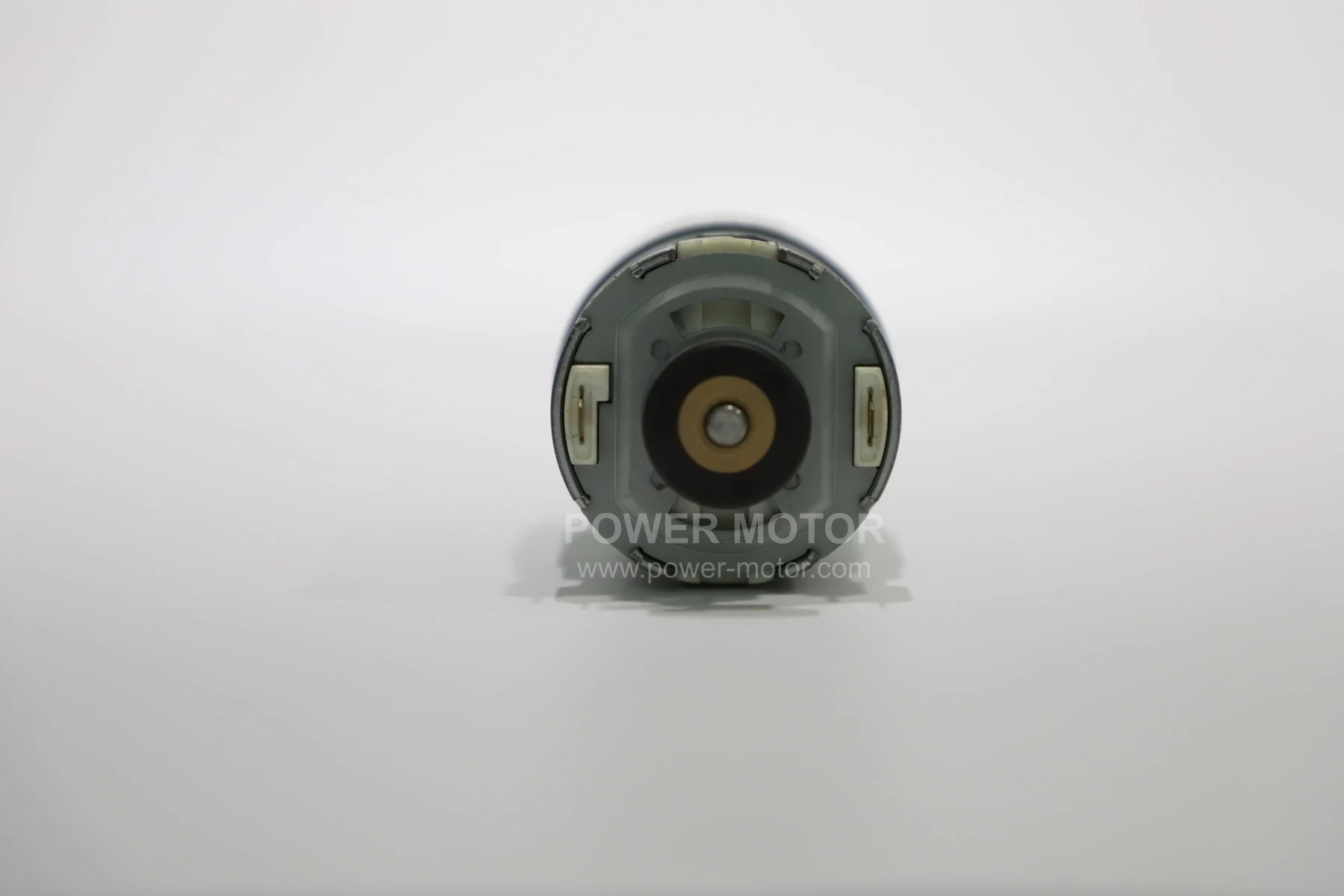

Product views
01

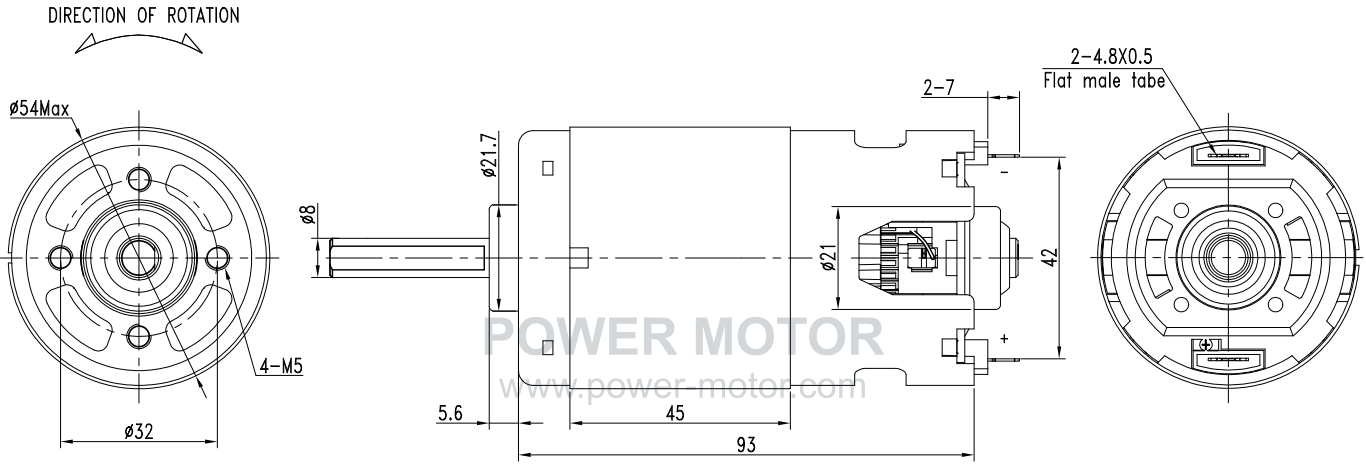

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.3445 | 110-130 | 120 | 14500 | 1.1Max | 11900 | 2.48 | 1489 | 146 | 181.5 |
03

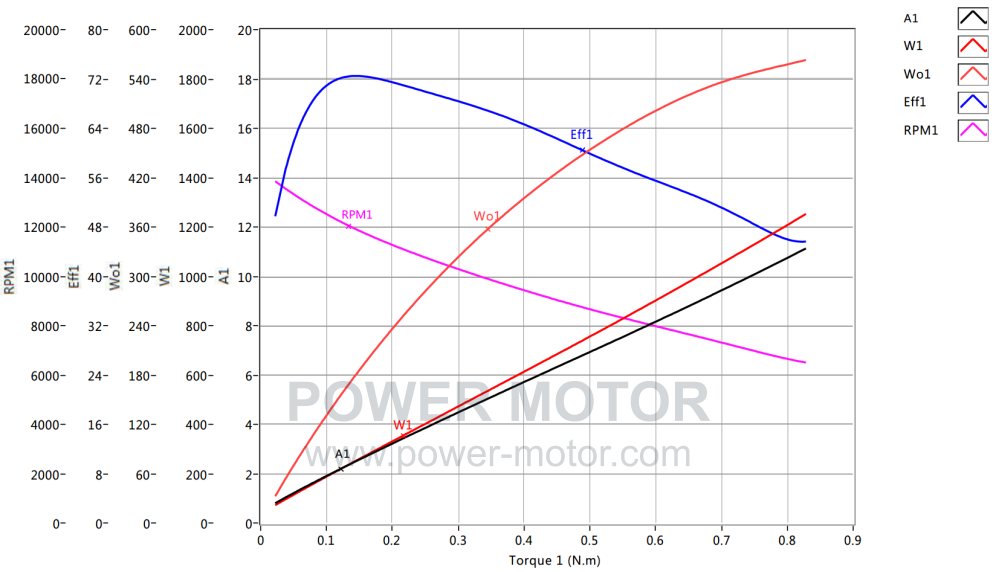

Performance curve
