Product model
PT.3440
DC motor
00
Technical profile
- Platform
- PT.3440
- Specification models
- PT.3440013-8101
- Typical applications
- Gear selection and shift motor
- Voltage
- 13 V
00

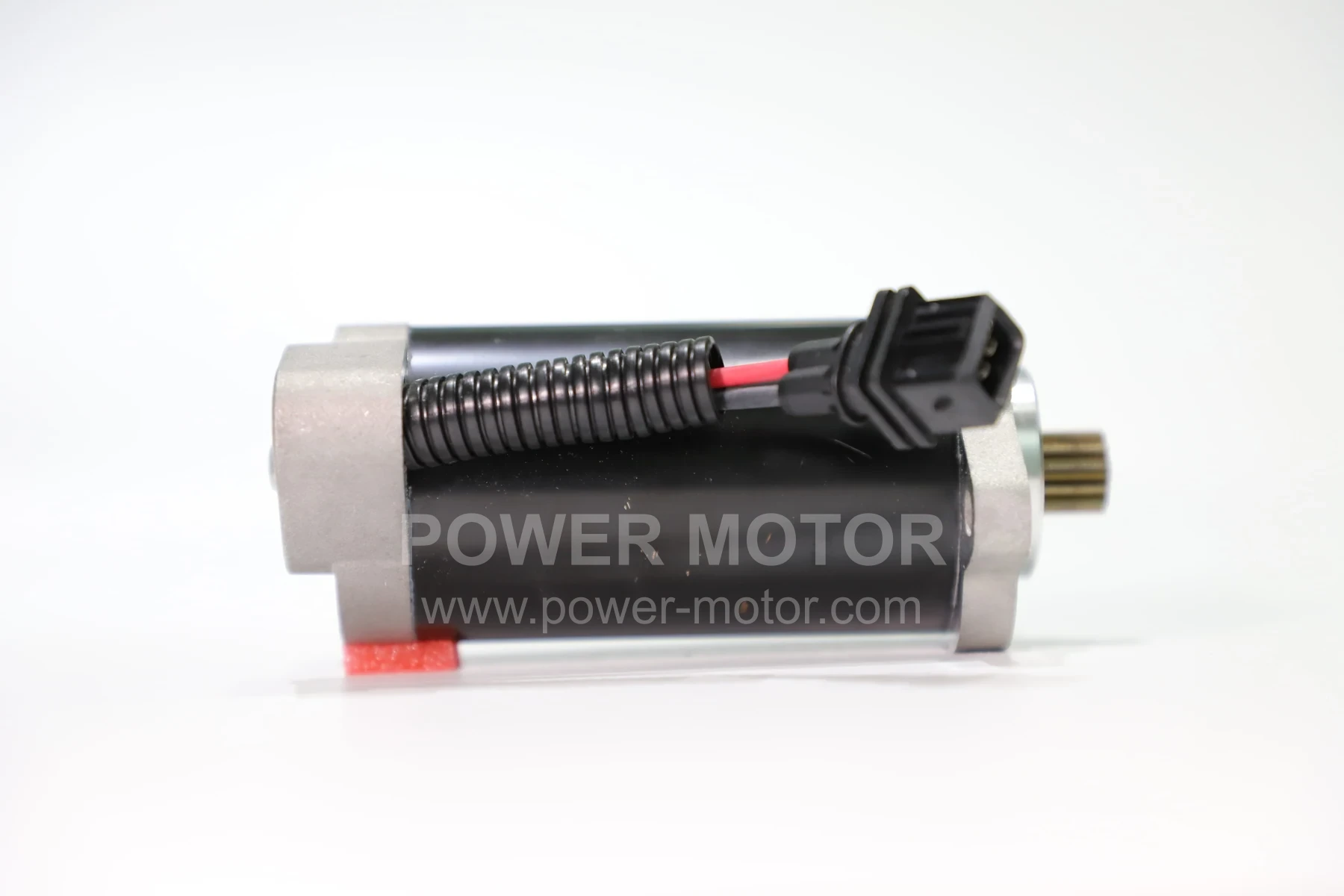

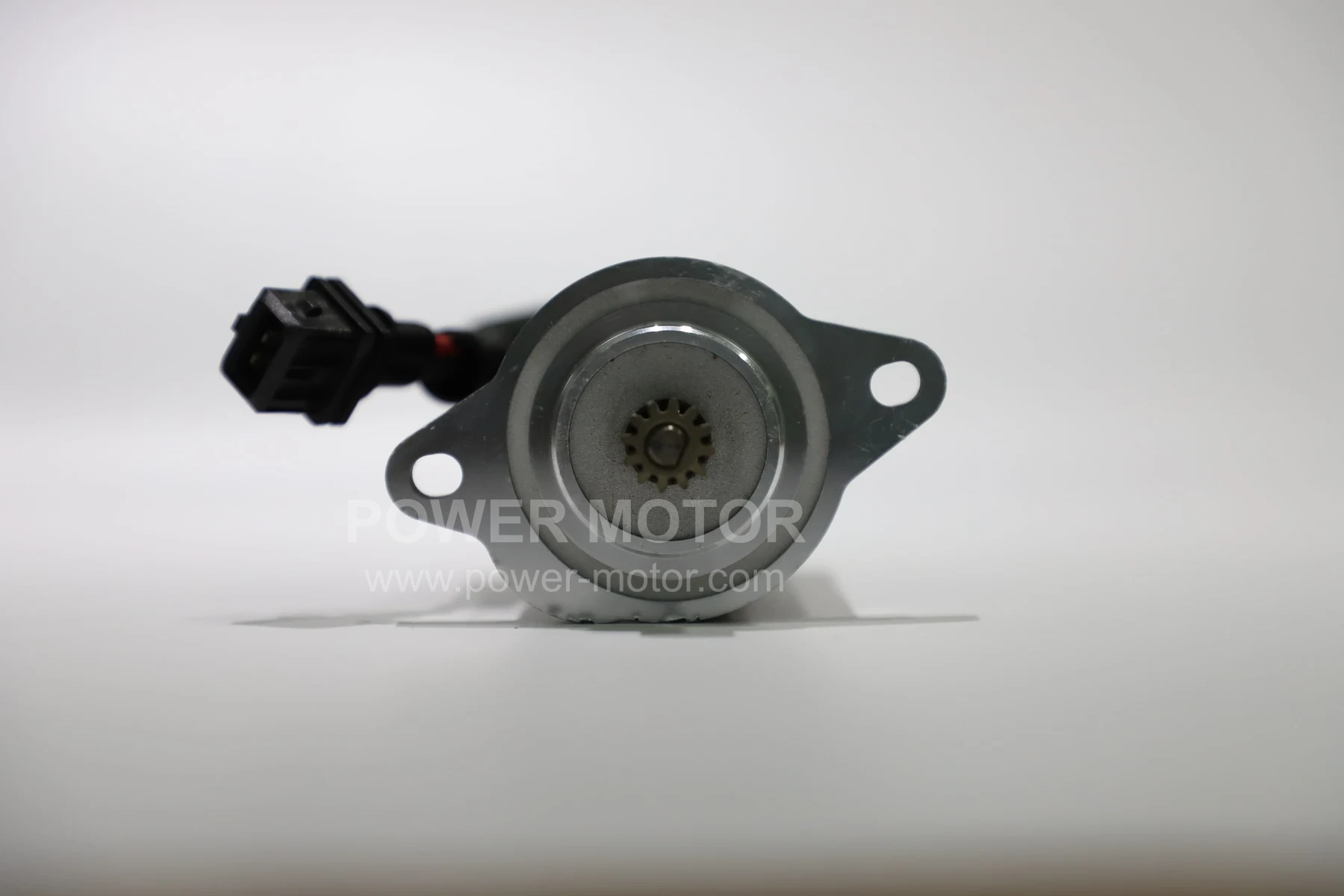

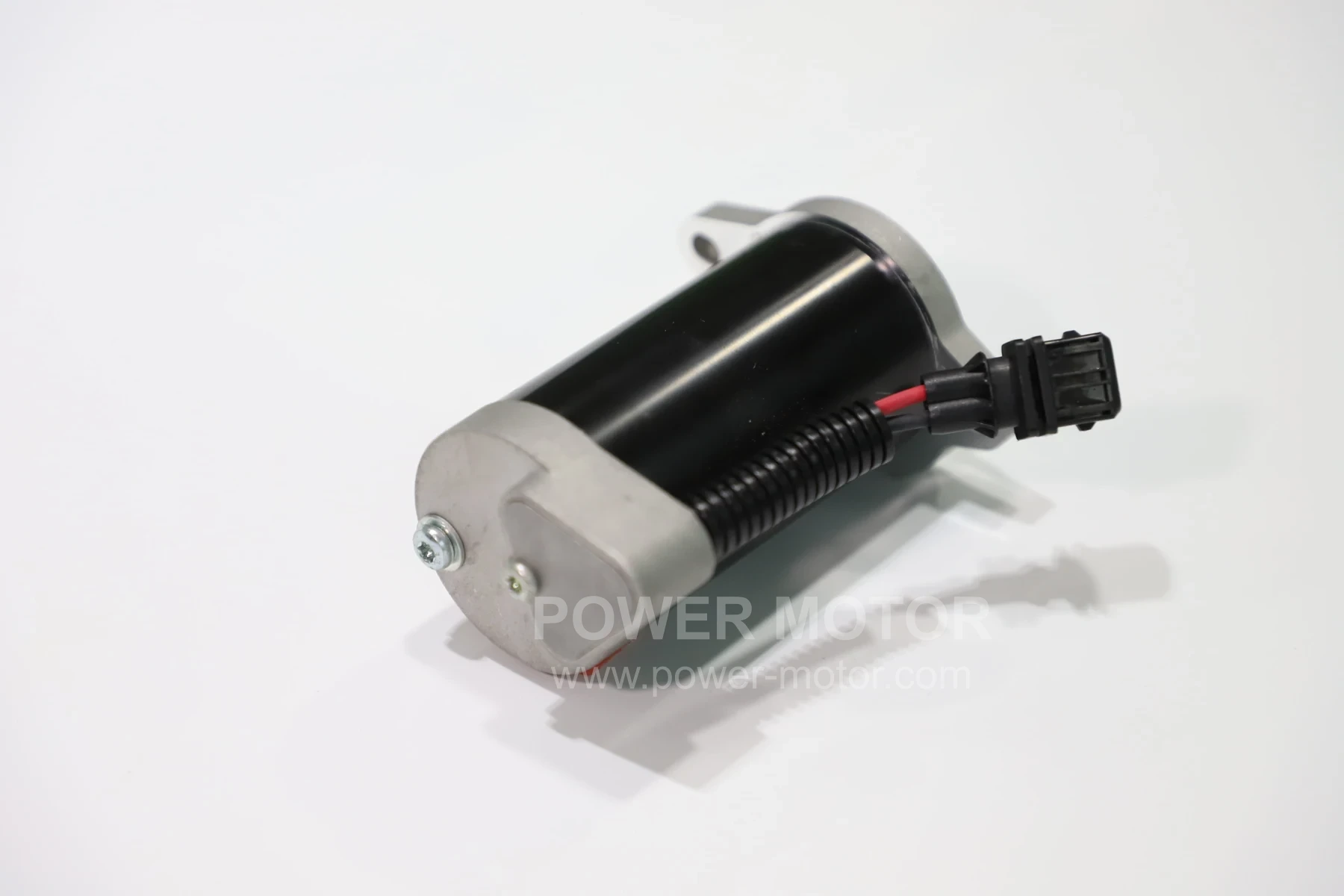

Product views
01

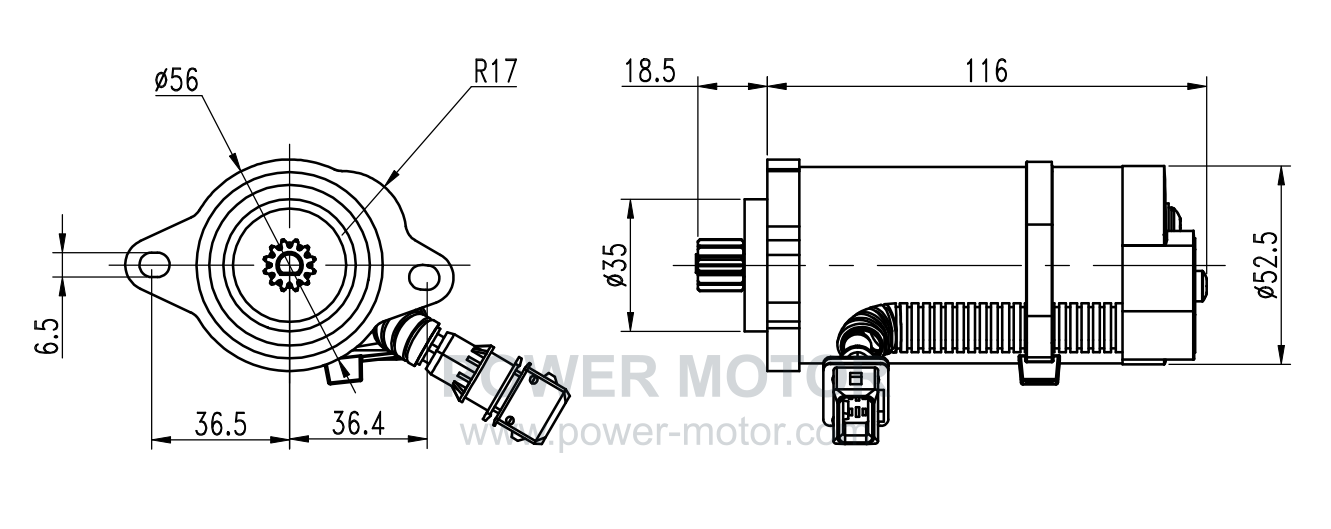

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.3440013-8101 | 12.5-13.5 | 13 | 6945 | 2.6 | 5814 | 11.7 | 1720 | 172 | 104.7 |
03

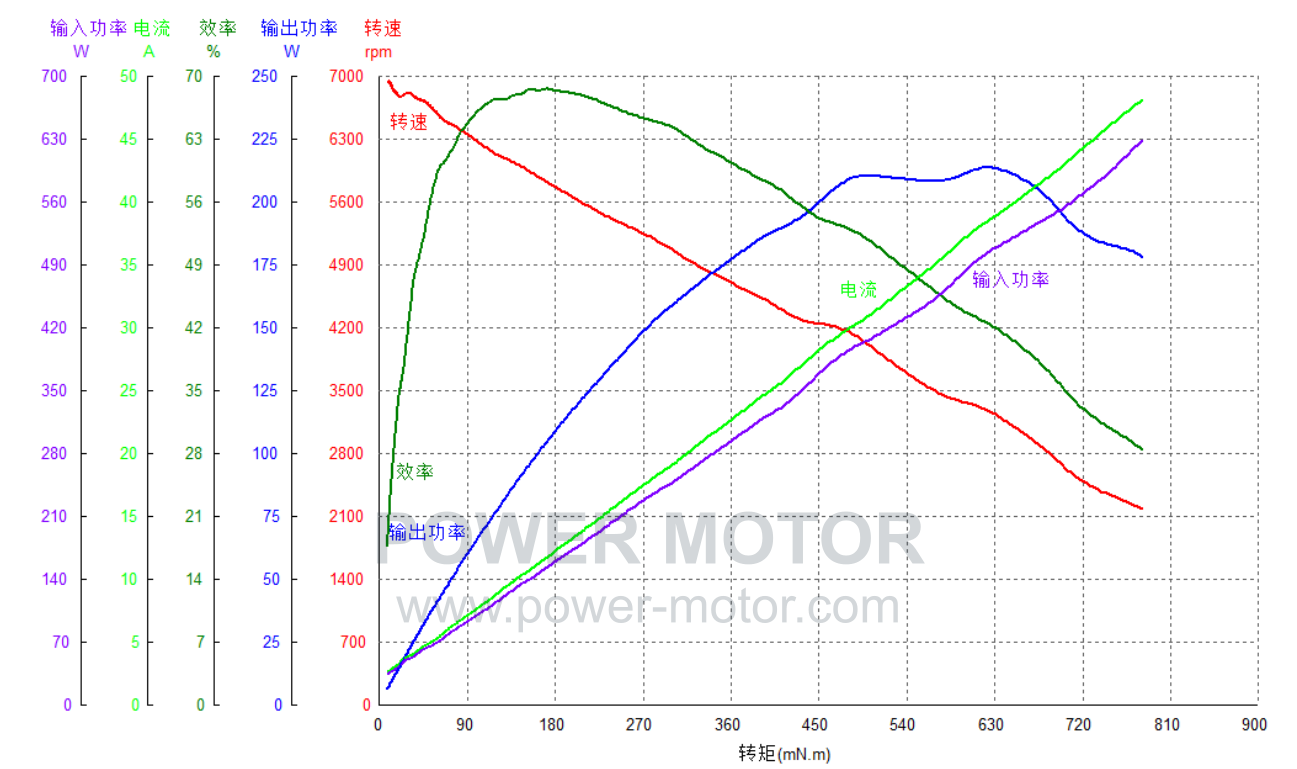

Performance curve
Related applications
Need help choosing a motor?
Discuss your equipment requirements or drawings with our engineers.
