Product model
PT.3032013-8101
DC motors
00
Technical profile
- Platform
- PT.3032013
- Specification models
- PT.3032013-8101
- Typical applications
- Seat horizontal adjustment motor
- Voltage
- 12VDC
00

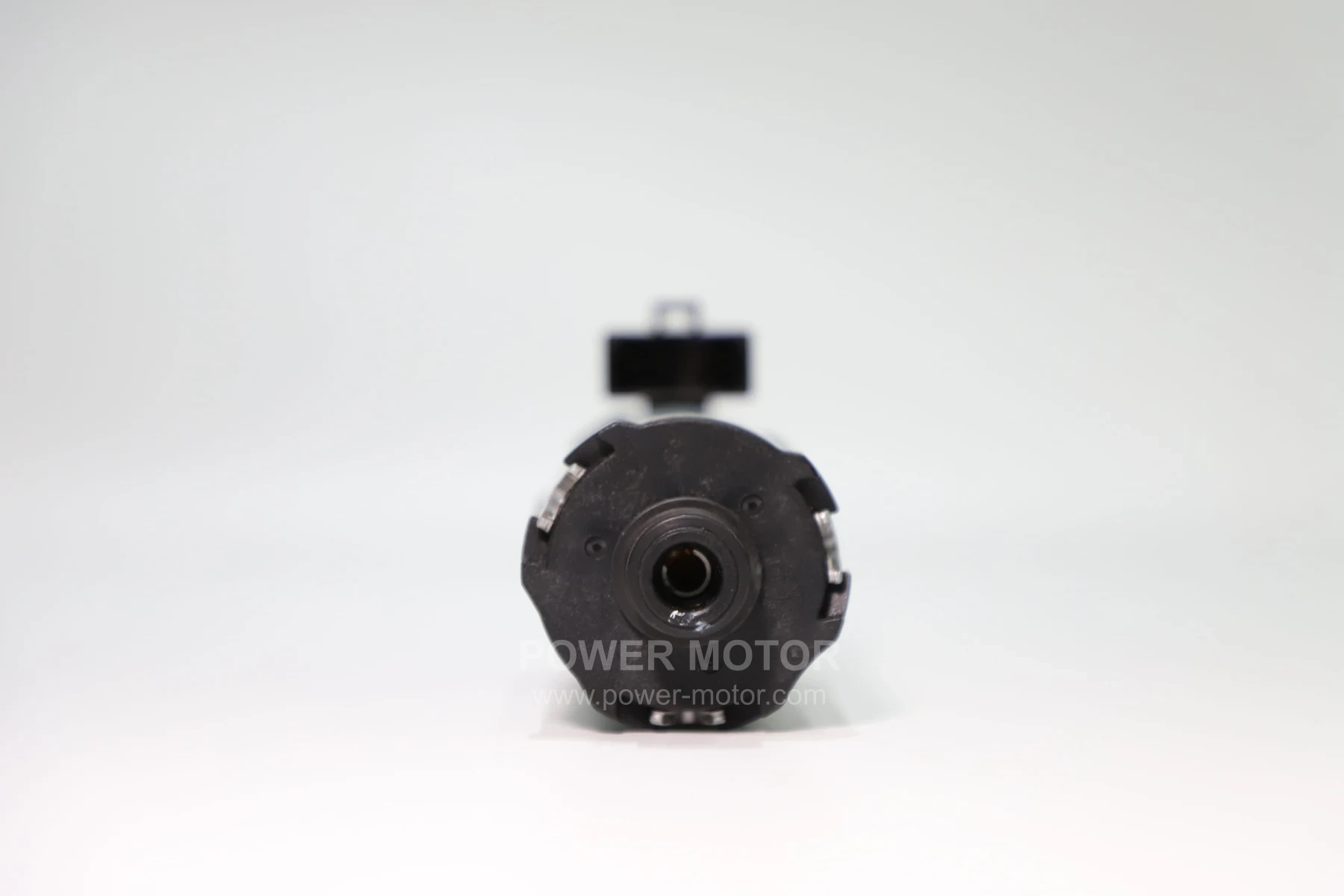

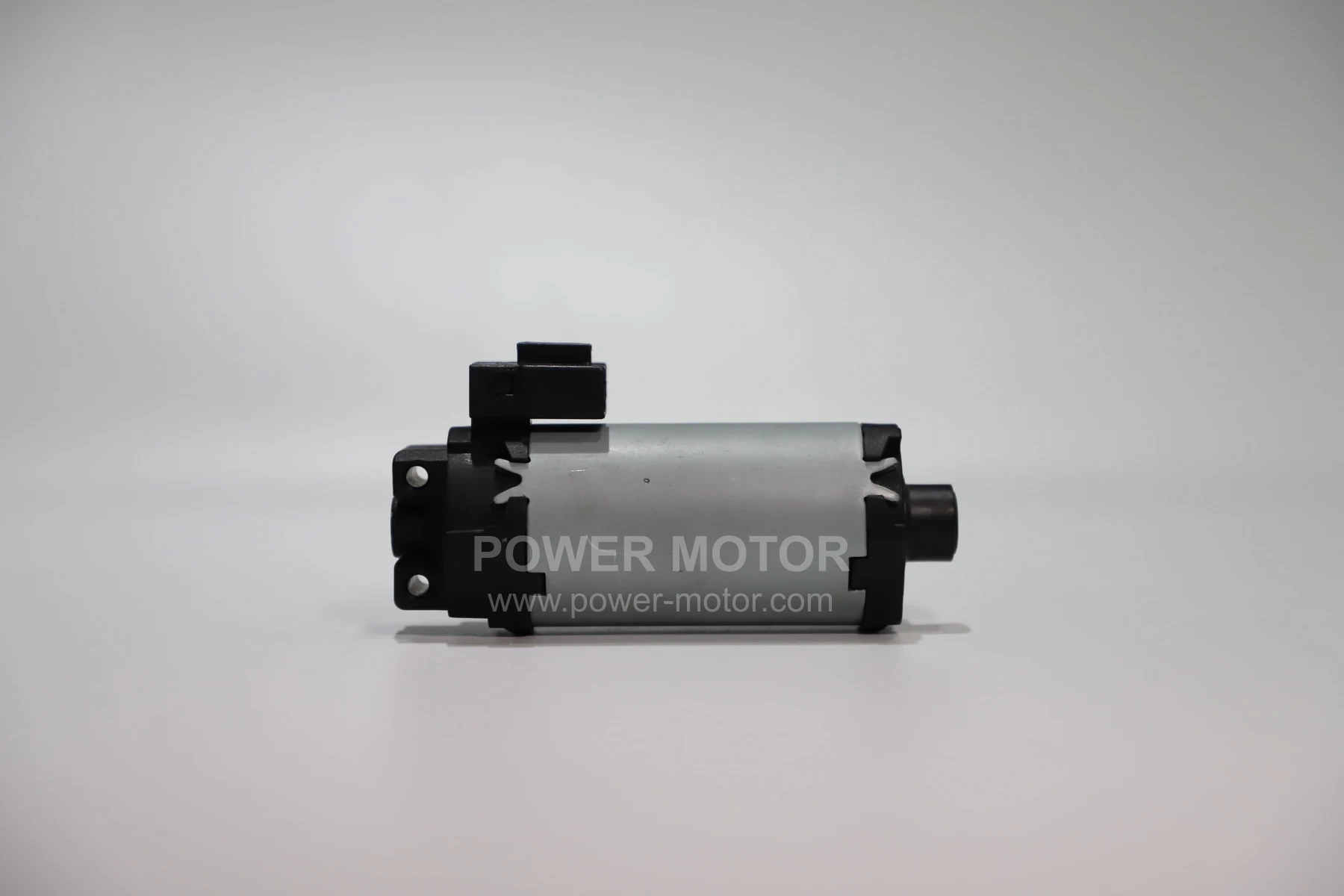

Product views
01

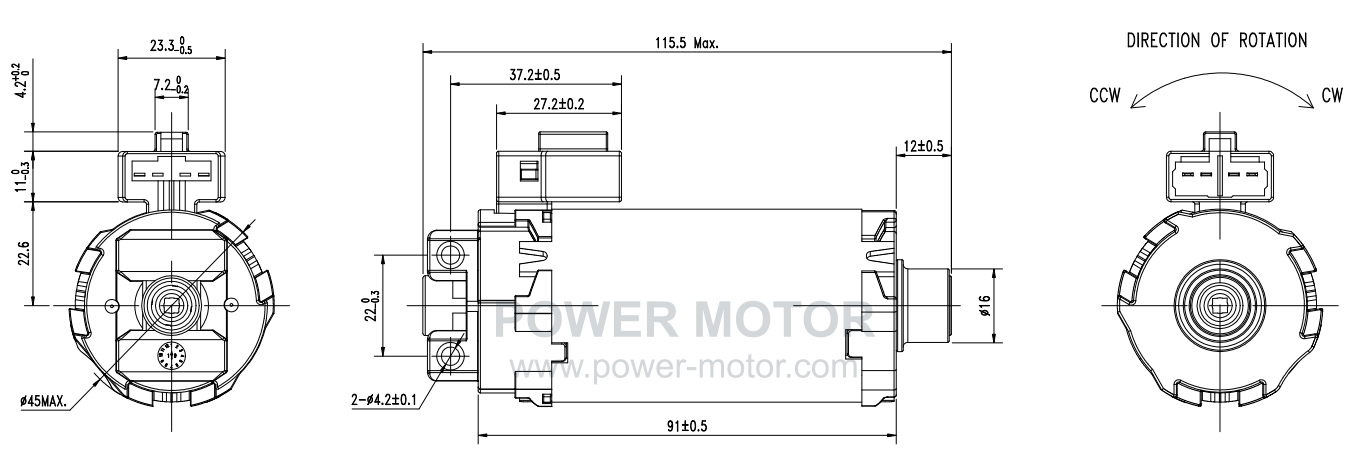

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.3032013-8101 | 9-16VDC | 12VDC | 2900-3500 | 0.2-1 | 2725 | 2.86 | 882 | 86.5 | 24.7 |
03

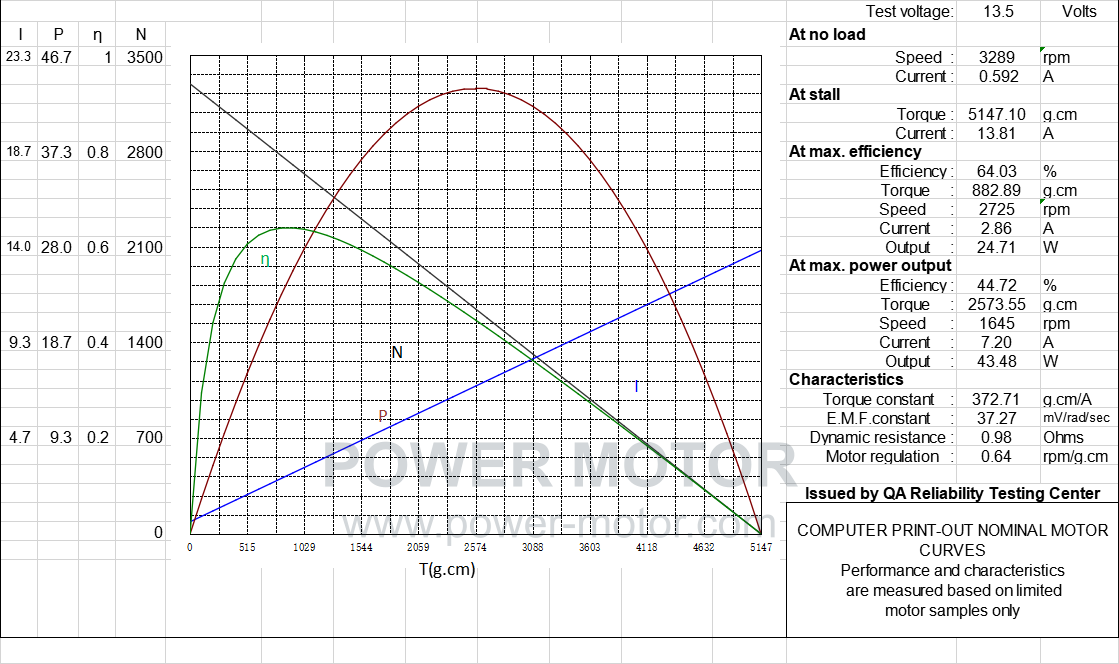

Performance curve
