Product model
PT.2335
DC motor
00
Technical profile
- Platform
- PT.2335
- Specification models
- PT.2335
- Typical applications
- Coffee tamper
- Voltage
- 24 V
00

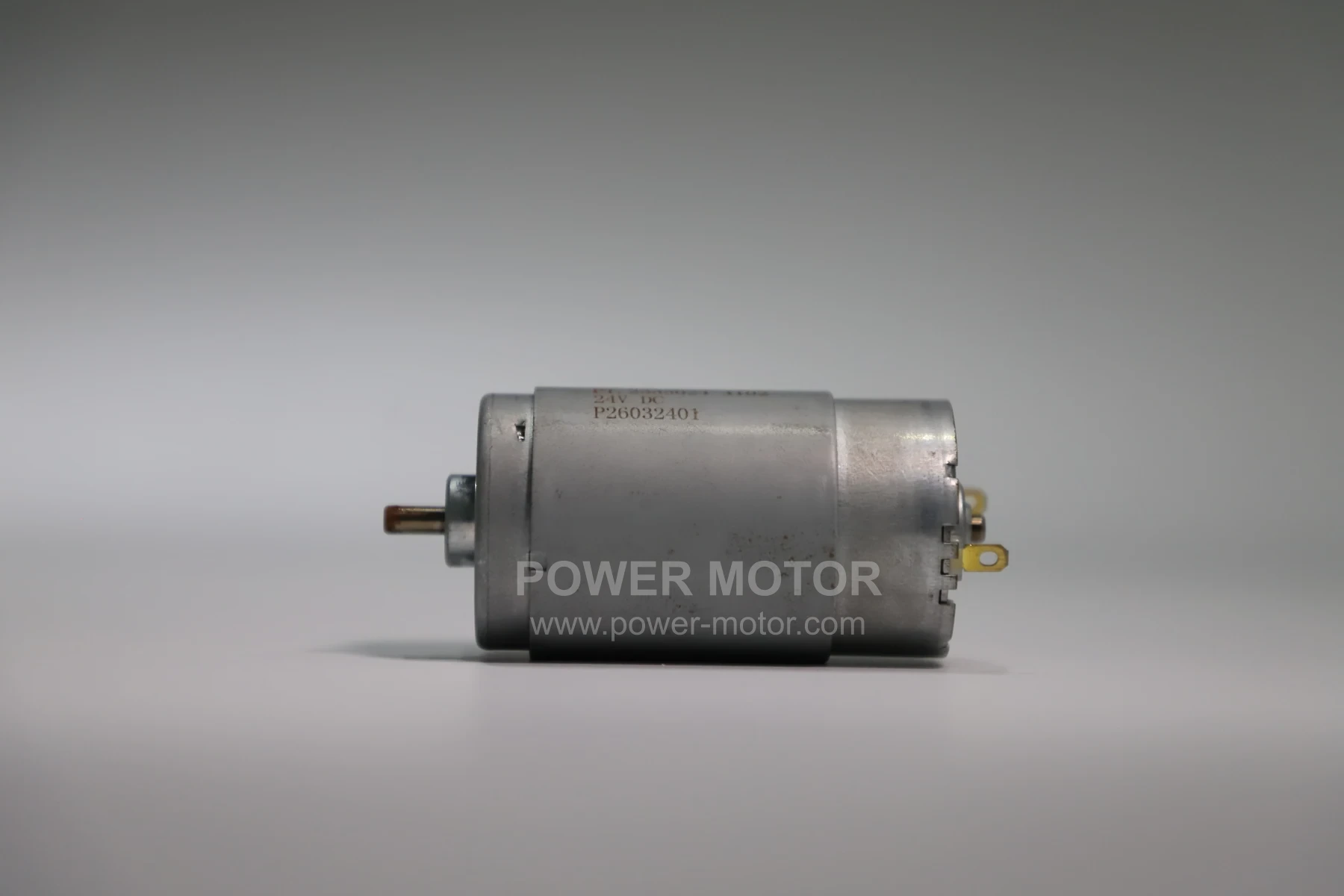

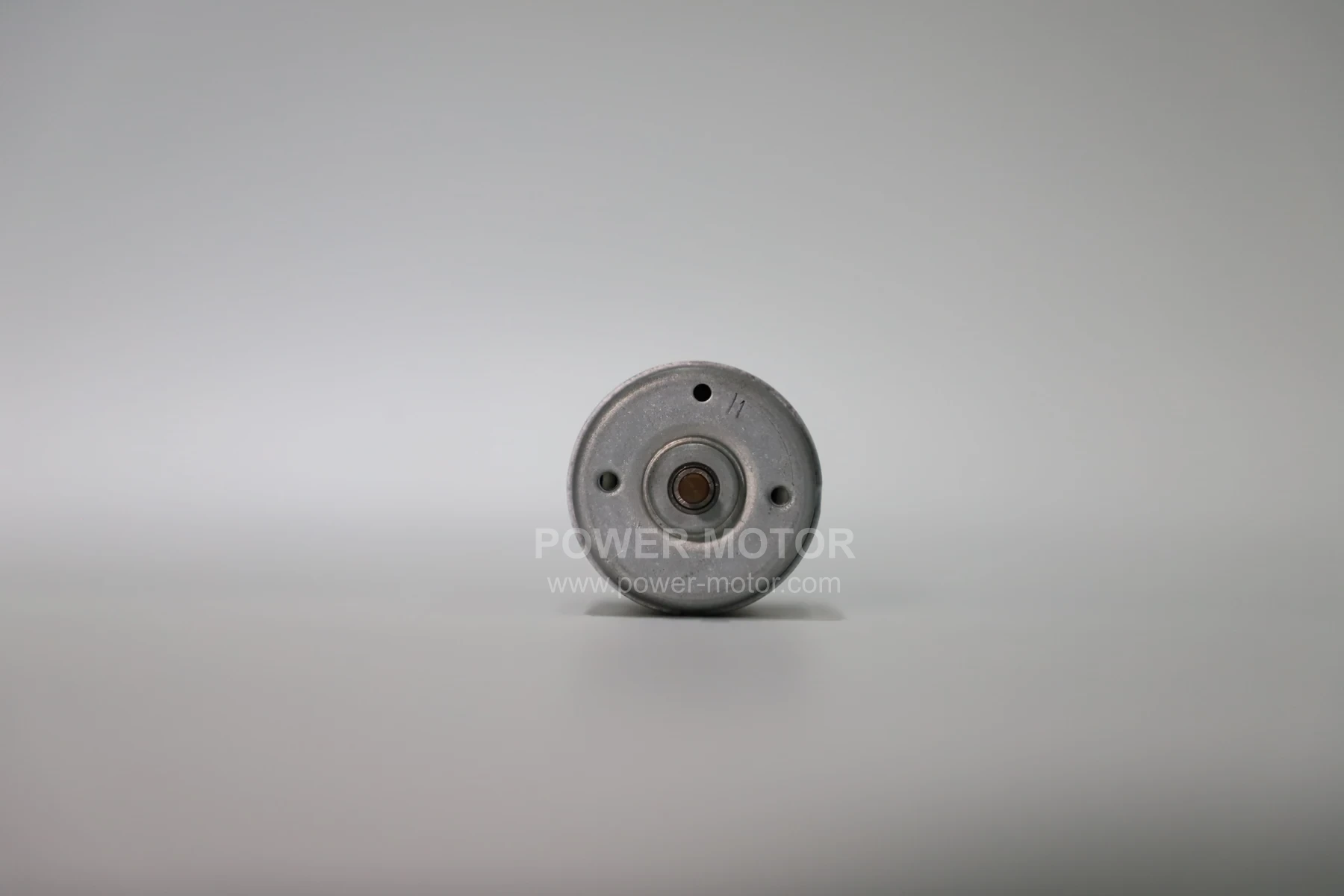

Product views
01

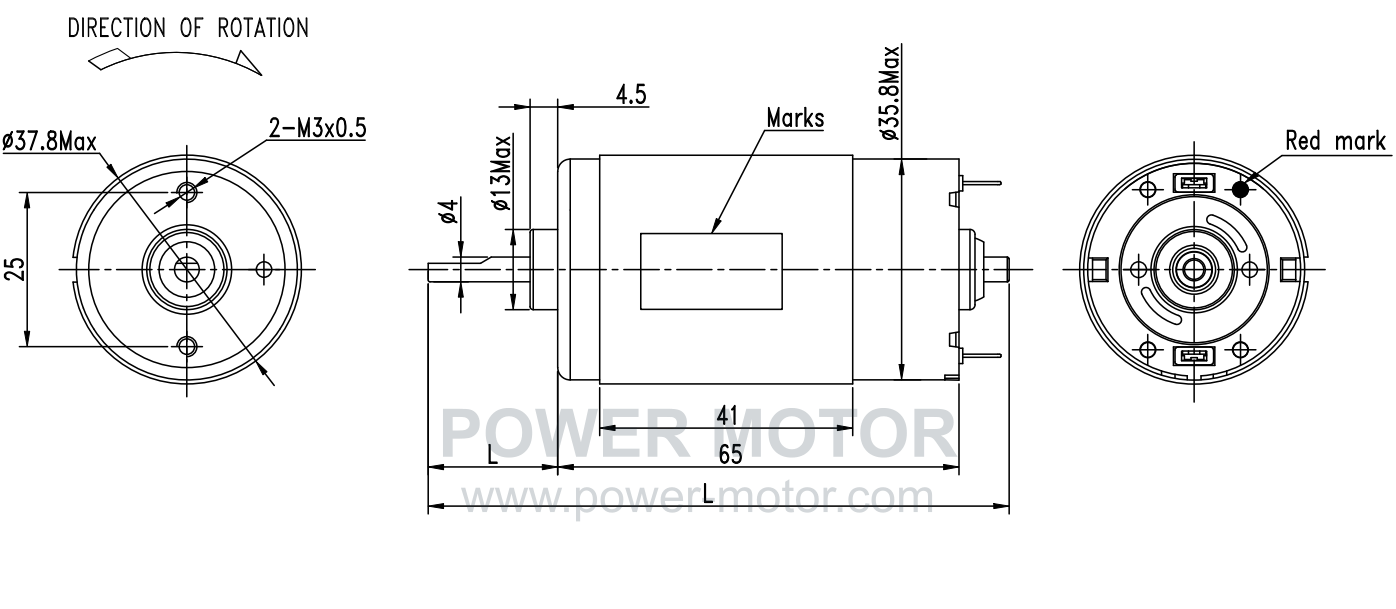

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.2335 | 12-48 | 24 | 4800 | 0.5Max | 3550 | 1.2 | 540.6 | 53 | 29 |
03

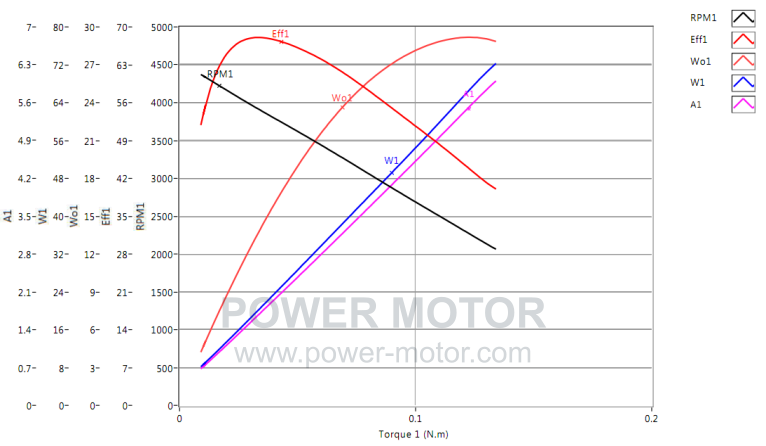

Performance curve
