At Power Motor, we pride ourselves on being a trusted brushless motor manufacturer, producing high-quality AC universal motors that cater to a diverse range of applications. With our advanced engineering capabilities and innovative designs, our AC universal motors deliver exceptional performance with power consumption ranging from 150W to 2000W and speeds between 3439 RPM and 35,000 RPM. In this article, we will discuss how to reverse an AC universal motor effectively.

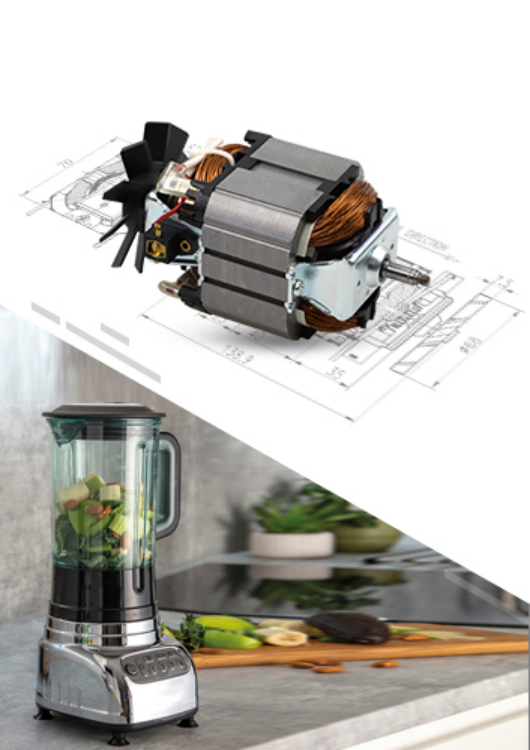

Understanding the AC Universal Motor

Before delving into the process of reversing an AC universal motor, it is essential to understand its structure. The AC universal motor is designed for versatile use, capable of operating on both alternating current (AC) and direct current (DC). This dual capability, combined with its high-speed performance and unique design features—such as integrated thermal protection and customizable mounting configurations—make it suitable for various high-performance applications.

Reversing the direction of an AC universal motor can significantly enhance functionality in applications requiring bidirectional operation, such as industrial machinery or power tools. As a brushless motor manufacturer, our goal at Power Motor is to ensure that customers can maximize the potential of their motors.

Steps to Reverse an AC Universal Motor

Reversing an AC universal motor involves changing the polarity of either the armature winding or the field winding. Below are the corrected steps to follow:

1. Power Off: Before making any adjustments, it is crucial to turn off the power supply to the AC universal motor. Safety should always be the top priority when dealing with electrical components.

2. Identify the Wires: Locate the input terminals of the motor. Typically, there are two main windings: the armature winding and the field winding. These wires are usually color-coded or labeled to indicate their respective connections.

3. Switch the Connections: To reverse the motor's direction, interchange the connections of either the armature winding or the field winding. By doing this, you change the magnetic field orientation, which in turn reverses the motor's rotation.

4. Reconnect and Test: After swapping the connections, securely reconnect all terminals. Turn the power supply back on and test the AC universal motor to ensure it runs in the desired direction.

5. Monitor Performance: Once the motor has been successfully reversed, it’s essential to monitor its performance. Check for any unusual sounds or vibrations, which may indicate improper installation or other underlying issues.

Conclusion

In conclusion, reversing an AC universal motor can be accomplished through changing the polarity of either the armature winding or the field winding. At Power Motor, we understand the importance of versatility and performance in our brushless motors. Our AC universal motors are engineered to meet the demands of various applications while providing users the flexibility to reverse motor direction easily. As a trusted brushless motor manufacturer, we are committed to providing high-quality products that empower our customers. Whether you are operating machinery or working with power tools, understanding how to reverse an AC universal motor can greatly enhance your operational efficiency and effectiveness.
