AC universal motors are versatile devices commonly found in various household appliances and power tools. Their unique design allows them to operate on both alternating current (AC) and direct current (DC), making them a popular choice for many applications. In this article, we will explore the principles behind the AC universial motor, its components, and applications.

The Basic Principle of Operation

At the core of an AC universal motor is its ability to convert electrical energy into mechanical energy. This transformation occurs through electromagnetic induction. When an AC voltage is applied, it creates a rotating magnetic field in the stator, which is the stationary part of the motor. This alternating current causes the magnetic poles to switch polarity, allowing the rotor to turn continuously.

The rotor, often designed with a series of conductive bars, interacts with the magnetic field generated by the stator. As the magnetic field rotates, it exerts a force on the rotor, causing it to spin. This interaction is what enables the AC universal motor to function effectively, regardless of the type of current supplied.

Components of an AC Universal Motor

The key components of an universal motor AC include the stator, rotor, brushes, and commutator. The stator, as mentioned earlier, creates the magnetic field. The rotor is the rotating part that converts electrical energy into mechanical energy.

The brushes and commutator play a vital role in ensuring the motor operates smoothly. Brushes are conductive materials that maintain contact with the commutator, allowing current to flow to the rotor. The commutator is a segmented conductor that reverses the direction of current flow through the rotor windings, enabling continuous rotation. This combination of components is what distinguishes AC universal motors from other types of motors.

Applications of AC Universal Motors

The versatility of AC universal motors makes them suitable for a wide range of applications. They are commonly found in household appliances like blenders, vacuum cleaners, and hair dryers. Their high-speed capability, often exceeding 20,000 RPM, allows for efficient operation in devices that require rapid spinning.

Moreover, AC universal motors are also used in industrial applications where variable speed and torque are essential. Their ability to run on both AC and DC makes them particularly useful in situations where power supply types may vary.

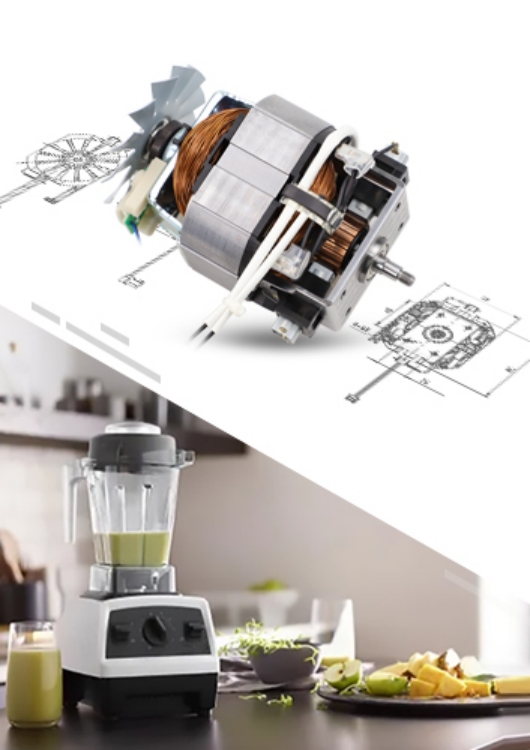

In conclusion, understanding how AC universal motors work provides insight into their widespread use in various applications. Their design and functionality enable them to deliver high performance in both household and industrial settings. At Power Motor, we are committed to providing high-quality motors, including our mature blender motor, the 230V AC universal motor PU8830 series, which features a torque of 750 mN.m, power of 768W, and speed of 21,000 RPM.
