Product model
PU.9840
Universal motor
00
Technical profile
- Platform
- PU.9840
- Specification models
- PU.9840120-0102
- Typical applications
- Mixer; High-speed blender
- Voltage
- 120V/60Hz
00

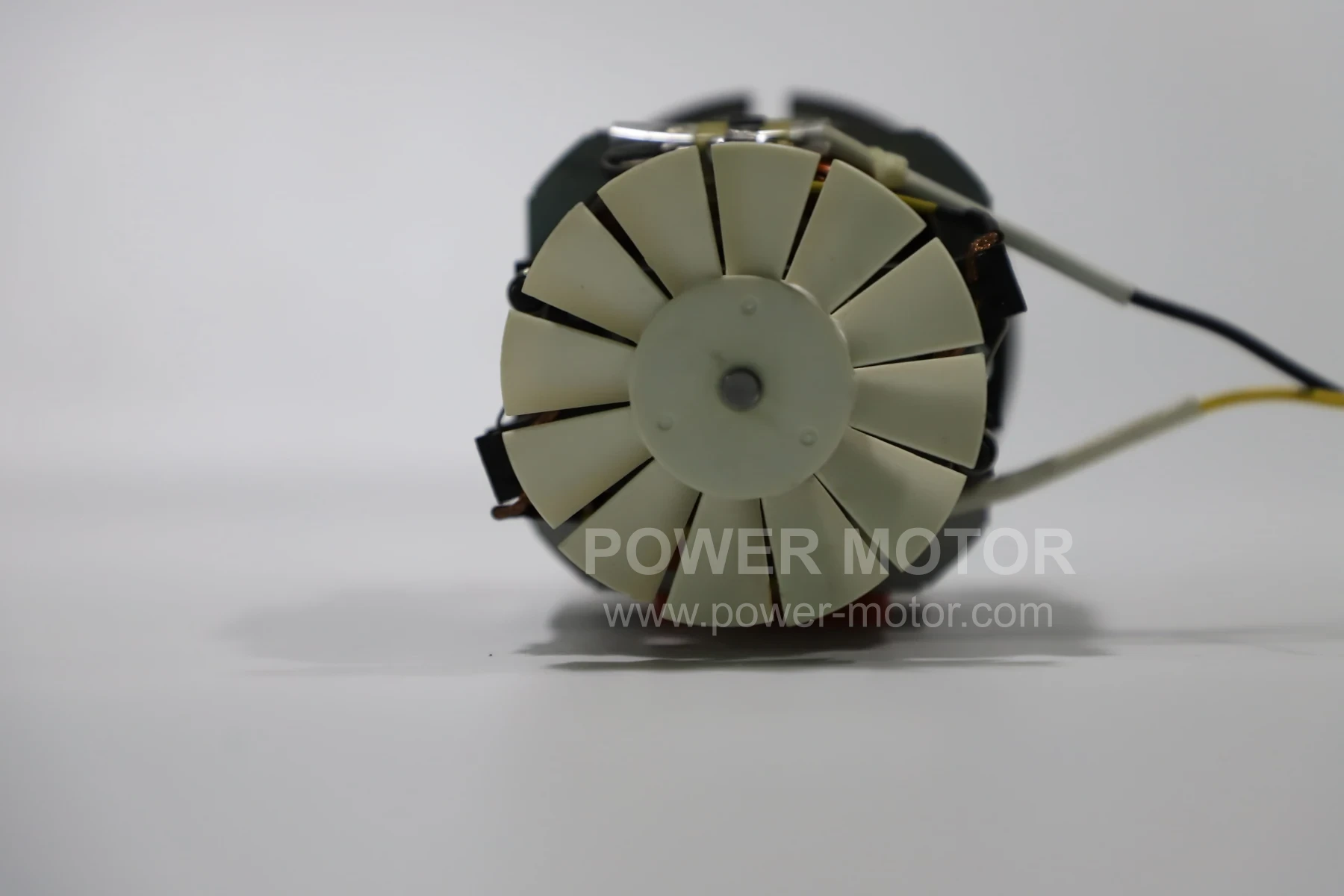

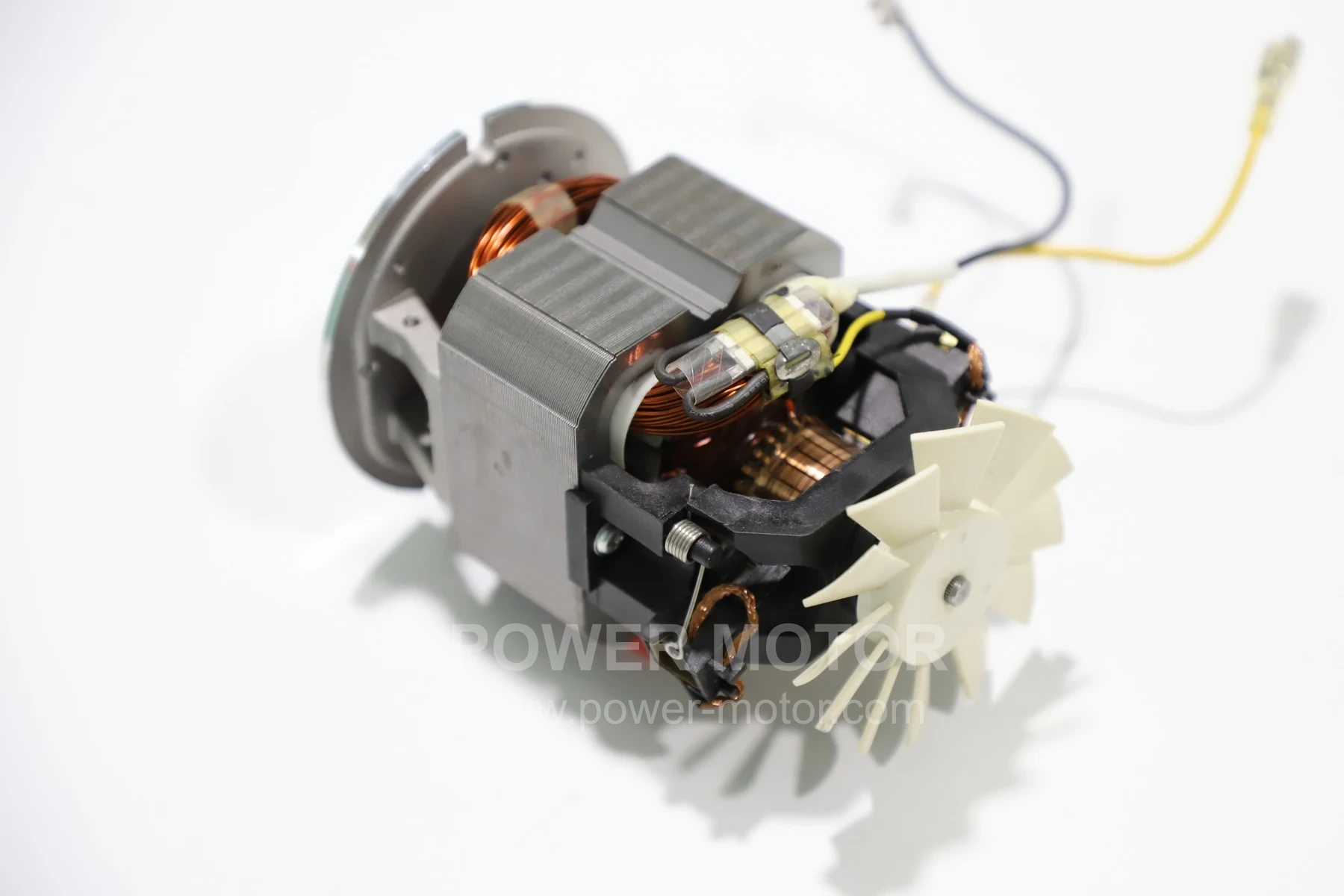

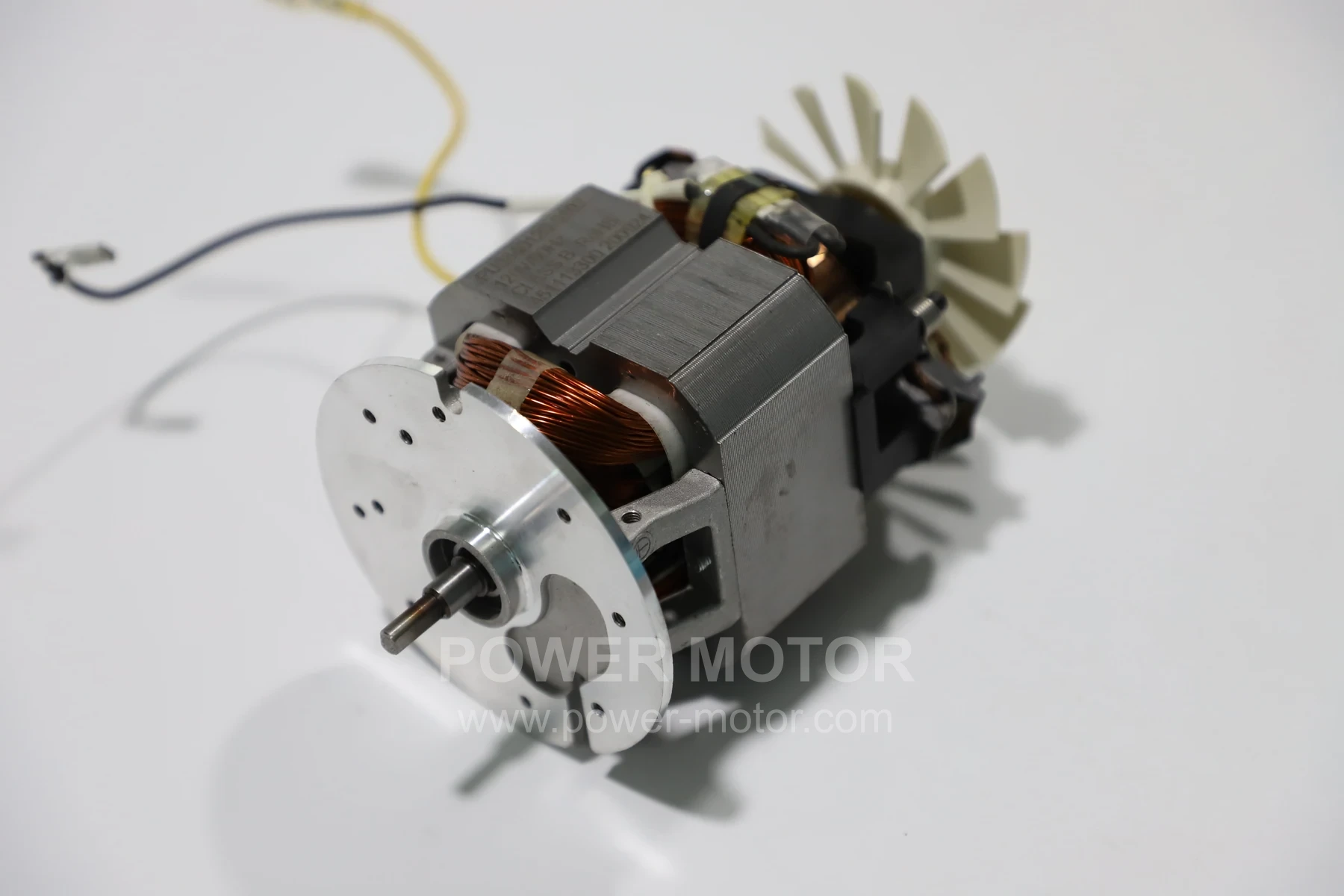

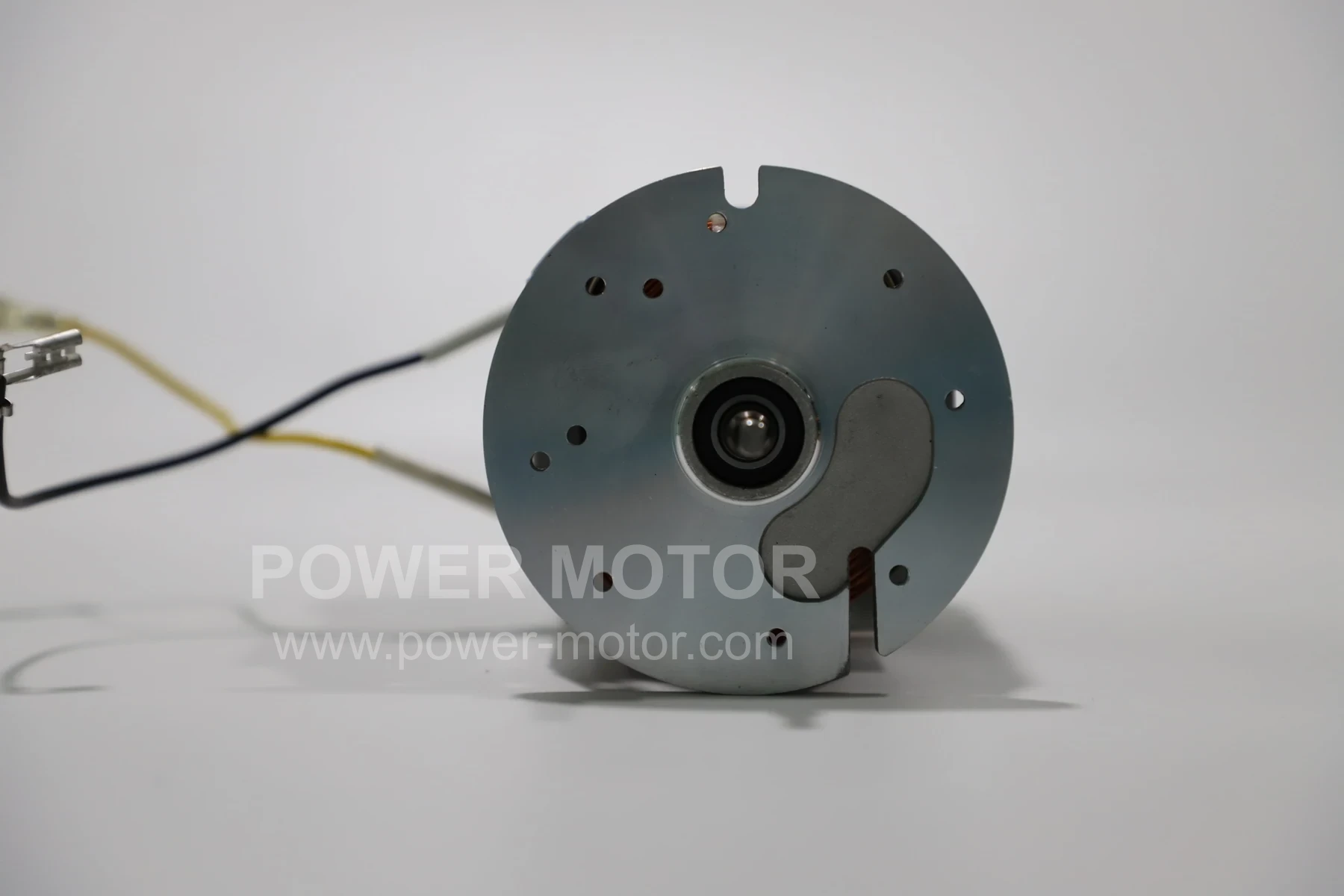

Product views
01

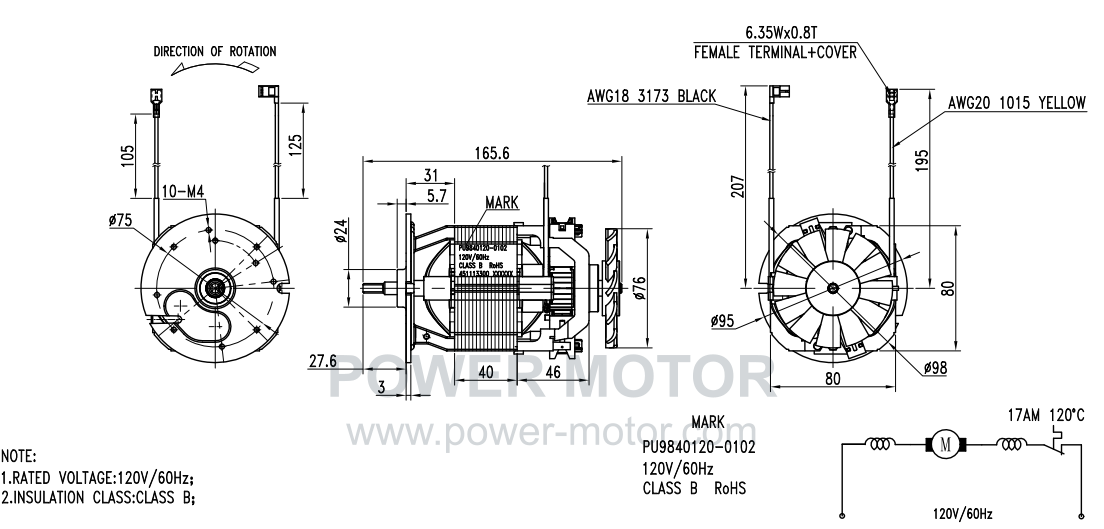

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|
| PU.9840120-0102 | 120V/60Hz | 120V/60Hz | 18700 | 2.3 | 9300 | 7 | 470 | 450 |
03

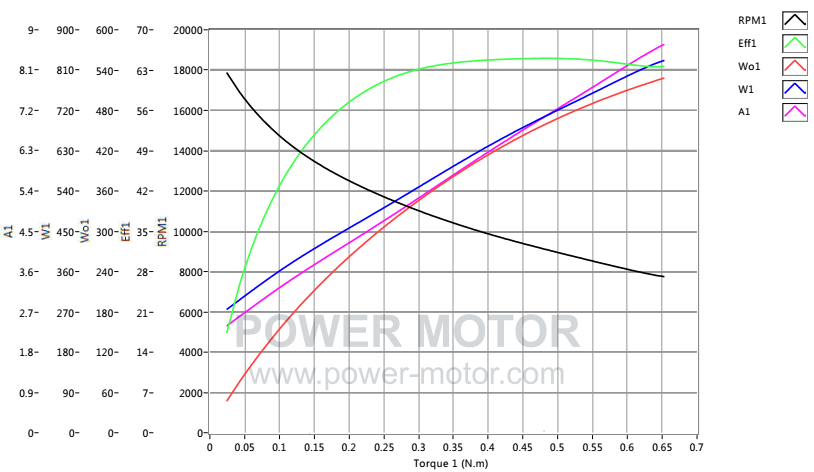

Performance curve
