Product model
PU.7025
Universal motor
00
Technical profile
- Platform
- PU.7025
- Specification models
- PU.7025230-8150-AL
- Typical applications
- Mixer; Juicer
- Voltage
- 230V/50Hz
00

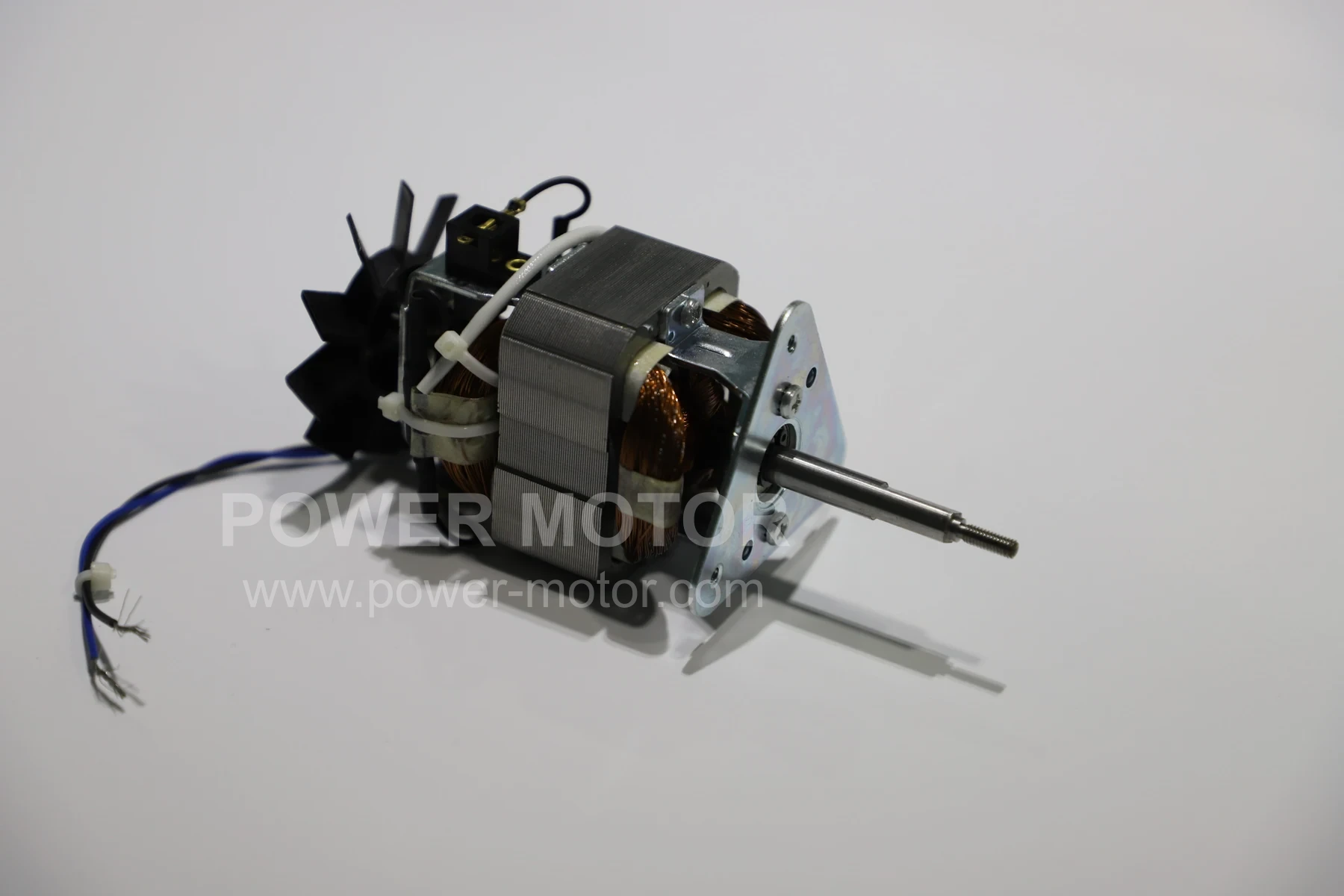

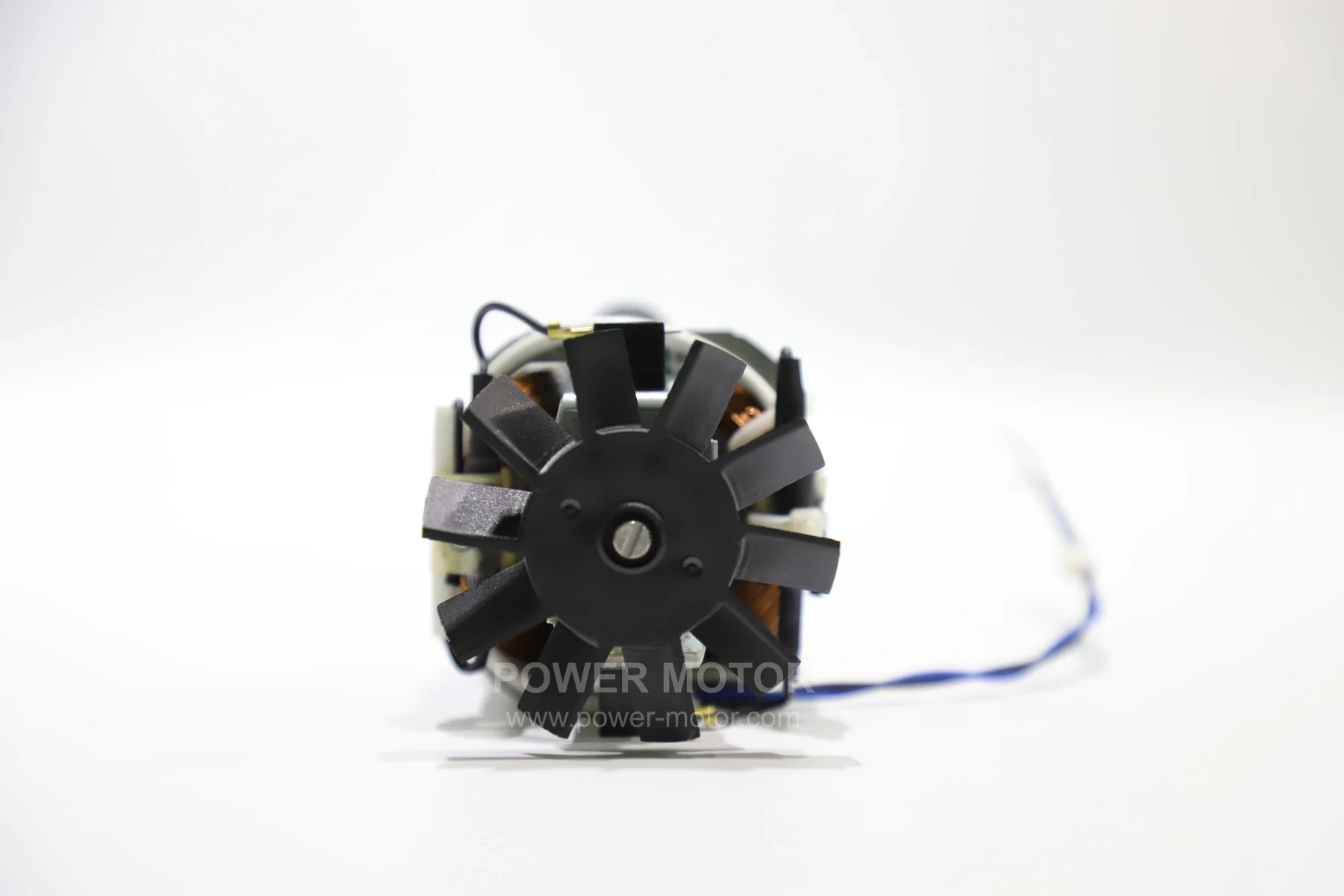

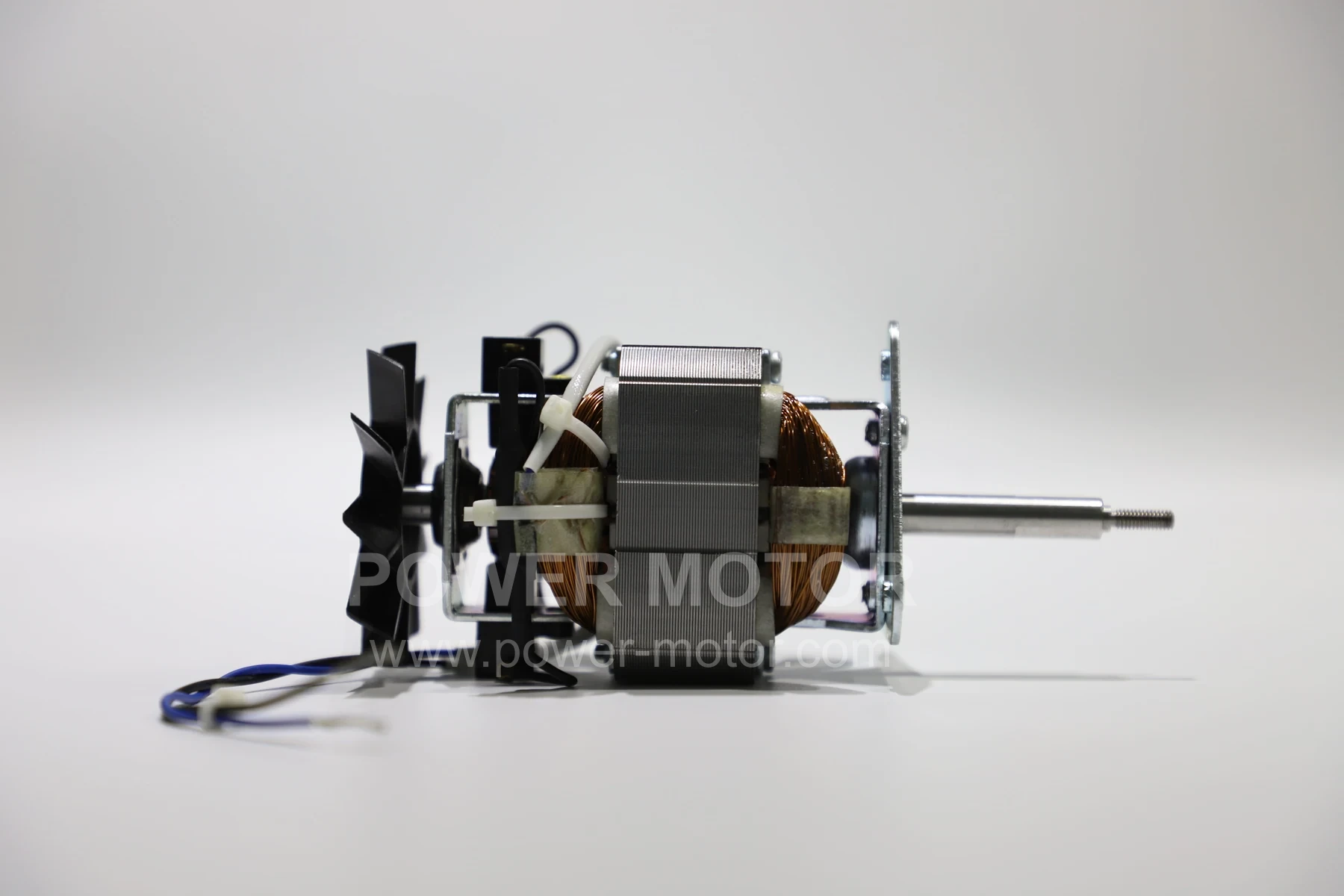

Product views
01

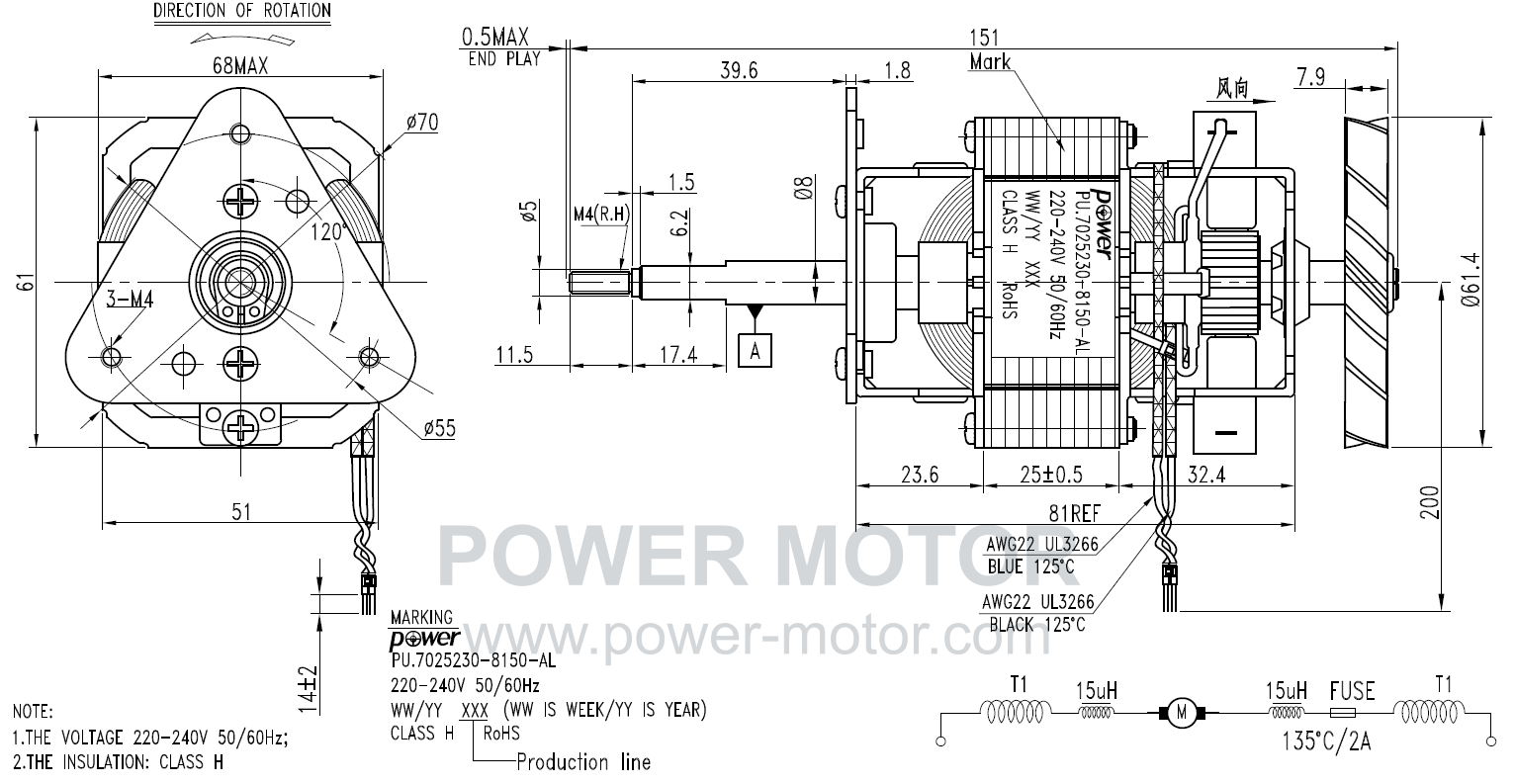

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|
| PU.7025230-8150-AL | 230~240V 50/60Hz | 230V/50Hz | 20000 | 0.58 | 12000 | 1.2 | 120 | 150 |
03

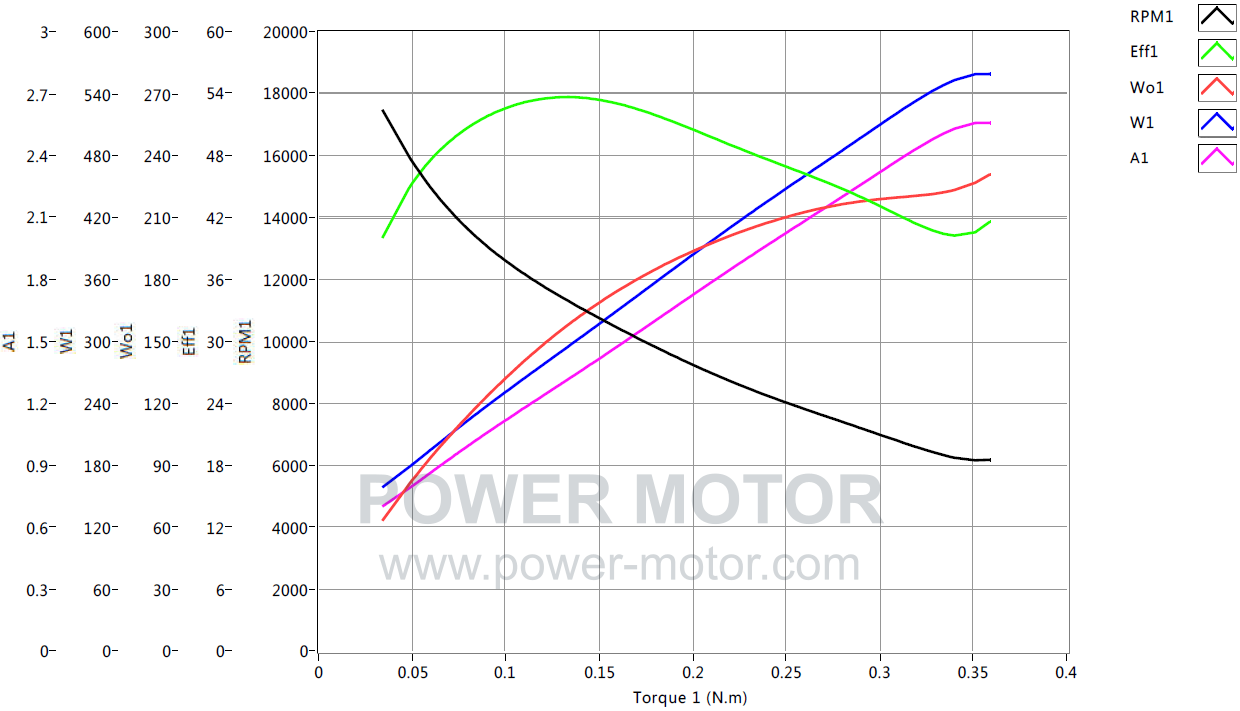

Performance curve
