Product model
PST.60HB
STEP MOTORS
00
Technical profile
- Platform
- PST.60HB
- Specification models
- PST.60HB3220-001 / PST.60HB3245-001 / PST.60HB6520-001 / PST.60HB6535-001
- Typical applications
- Stage lighting; Automation equipment
00

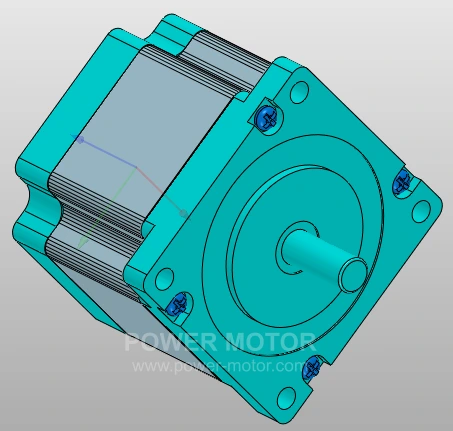

Product views
01

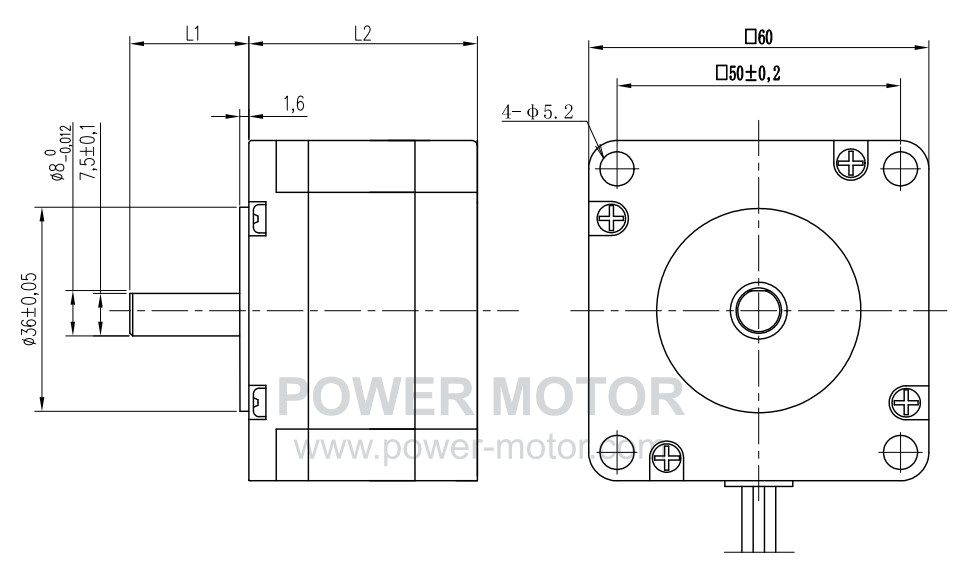

Outline / product media
02
Performance data
| MODEL | (°) · Step Angle | (Ω) · Phase Resistance | (mH) · Phase Inductance | (A) · Rated Current | (mN.m) · Static Moment | (g.cm2) · Rotor Inertia | (mm) · Motor Length |
|---|---|---|---|---|---|---|---|
| PST.60HB3220-001 | 1.8 | 2.3 | 6.5 | 2 | 1500 | 460 | 53.5 |
| PST.60HB3245-001 | 1.8 | 0.45 | 1 | 4.5 | 1500 | 460 | 53.5 |
| PST.60HB6520-001 | 1.8 | 2.5 | 8.9 | 2 | 2600 | 990 | 86.5 |
| PST.60HB6535-001 | 1.8 | 0.78 | 2.6 | 3.5 | 2600 | 990 | 86.5 |
03

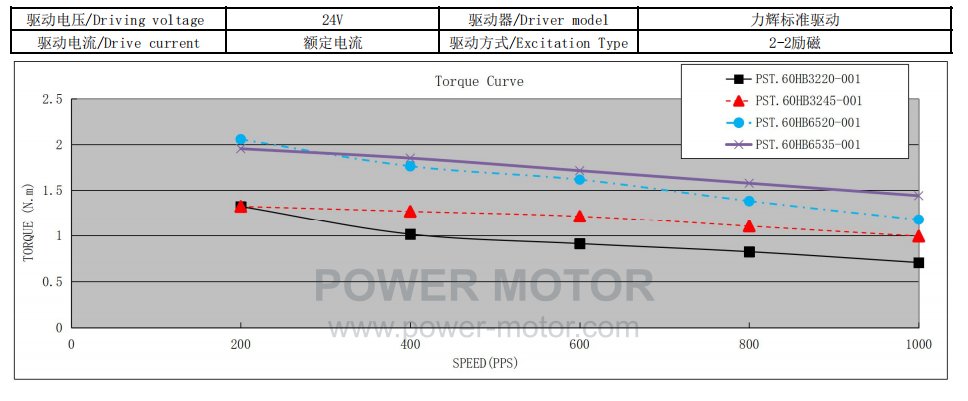

Performance curve
