Product model
PST.28HB
STEP MOTORS
00
Technical profile
- Platform
- PST.28HB
- Specification models
- PST.28HB1612-002 / PST.28HB1607-001 / PST.28HB2512-001 / PST.28HB2506-001
- Typical applications
- Household appliances; In-vehicle equipment
00

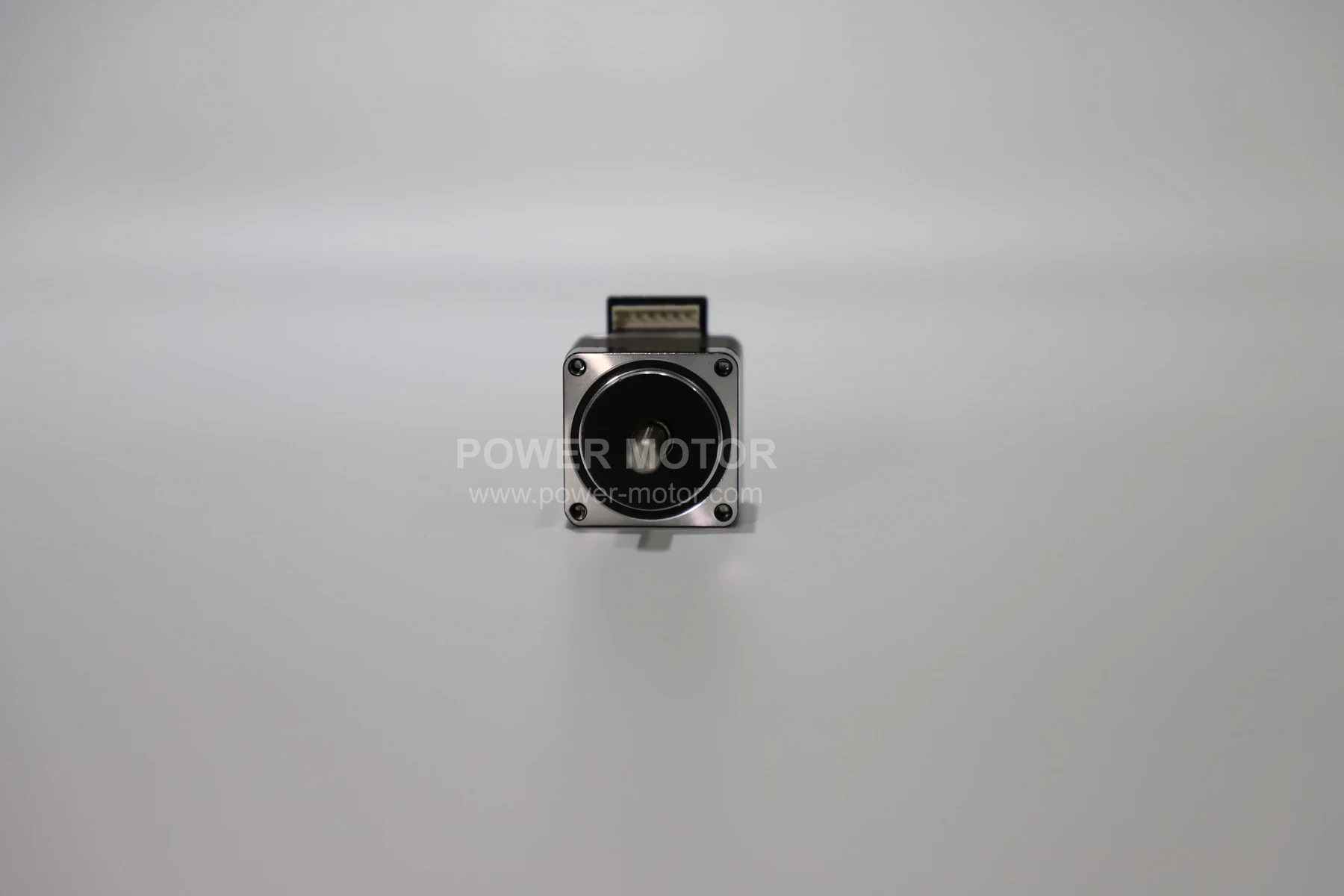

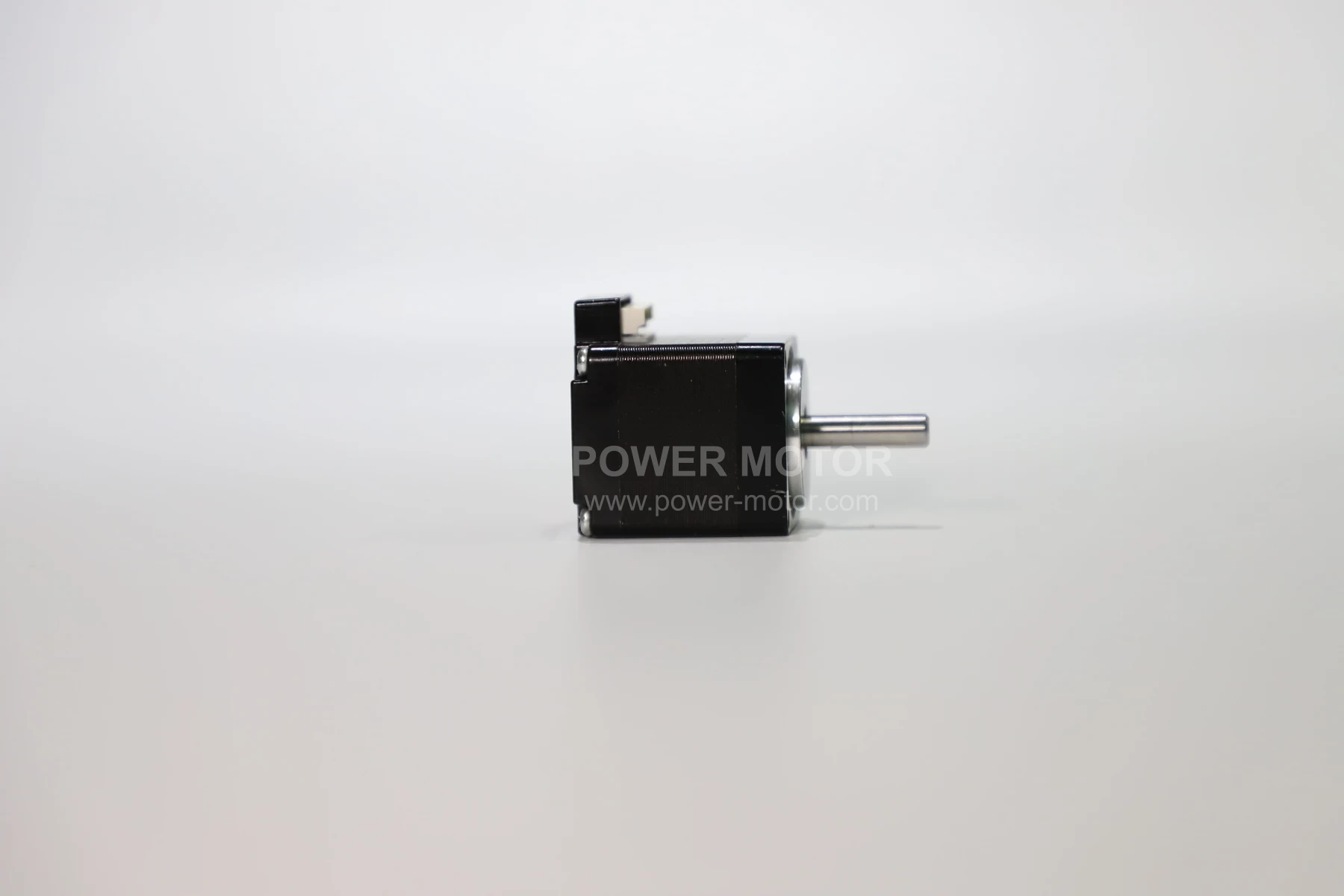

Product views
01

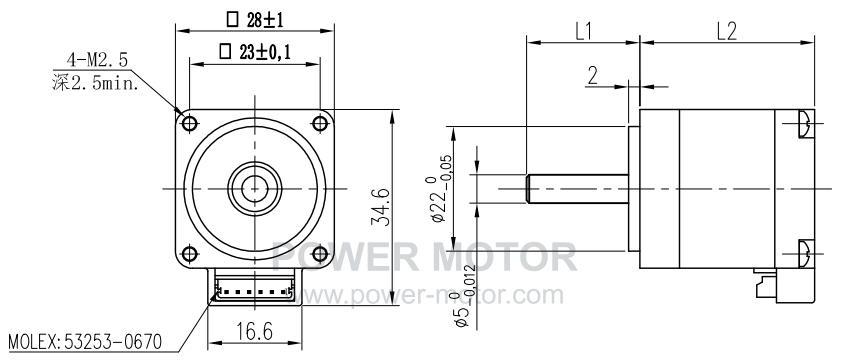

Outline / product media
02
Performance data
| MODEL | (°) · Step Angle | (Ω) · Phase Resistance | (mH) · Phase Inductance | (A) · Rated Current | (mN.m) · Static Moment | (g.cm2) · Rotor Inertia | (mm) · Motor Length |
|---|---|---|---|---|---|---|---|
| PST.28HB1612-002 | 1.8 | 1.8 | 1.3 | 1.3 | 85 | 8.5 | 30.8 |
| PST.28HB1607-001 | 1.8 | 5.8 | 3.8 | 0.7 | 85 | 8.5 | 30.8 |
| PST.28HB2512-001 | 1.8 | 2.2 | 1.4 | 1.2 | 125 | 13 | 39.2 |
| PST.28HB2506-001 | 1.8 | 7.4 | 4.6 | 0.6 | 125 | 13 | 39.2 |
03

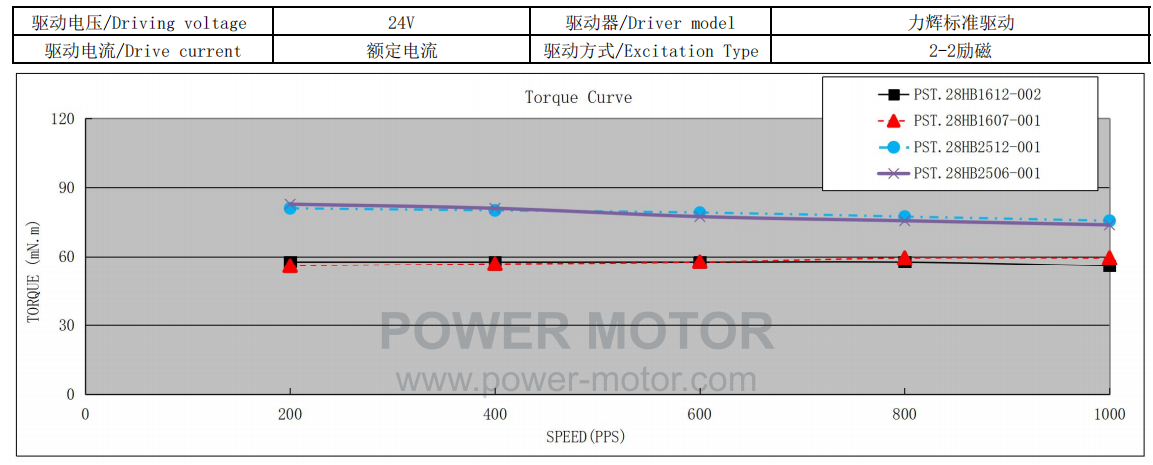

Performance curve
