Product model
PST.24BE1901-001
STEP MOTORS
00
Technical profile
- Platform
- PST.24BE
- Specification models
- PST.24BE1901-001
- Typical applications
- Bedside lamp; Hydraulic valve control
- Voltage
- 12 V
00

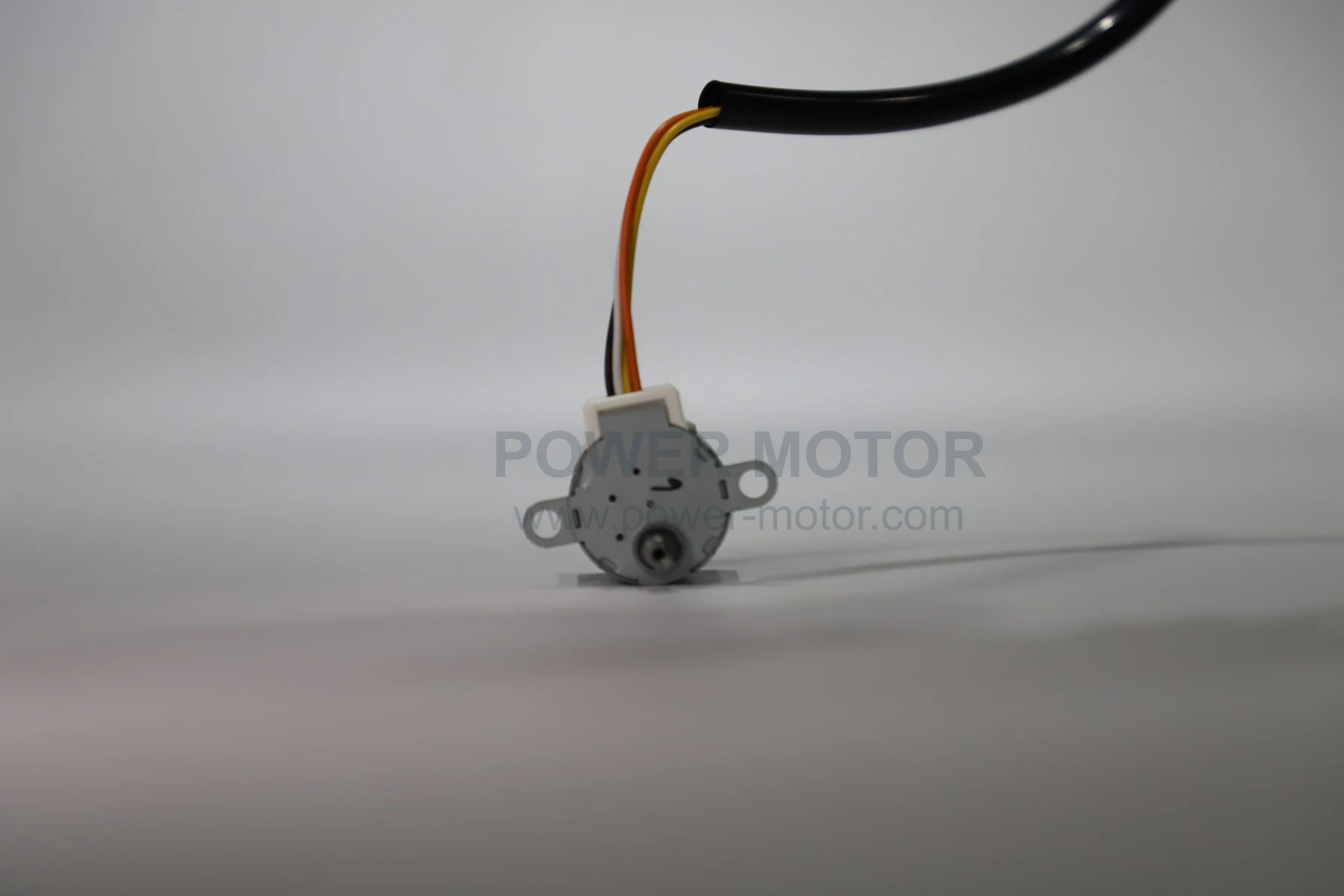

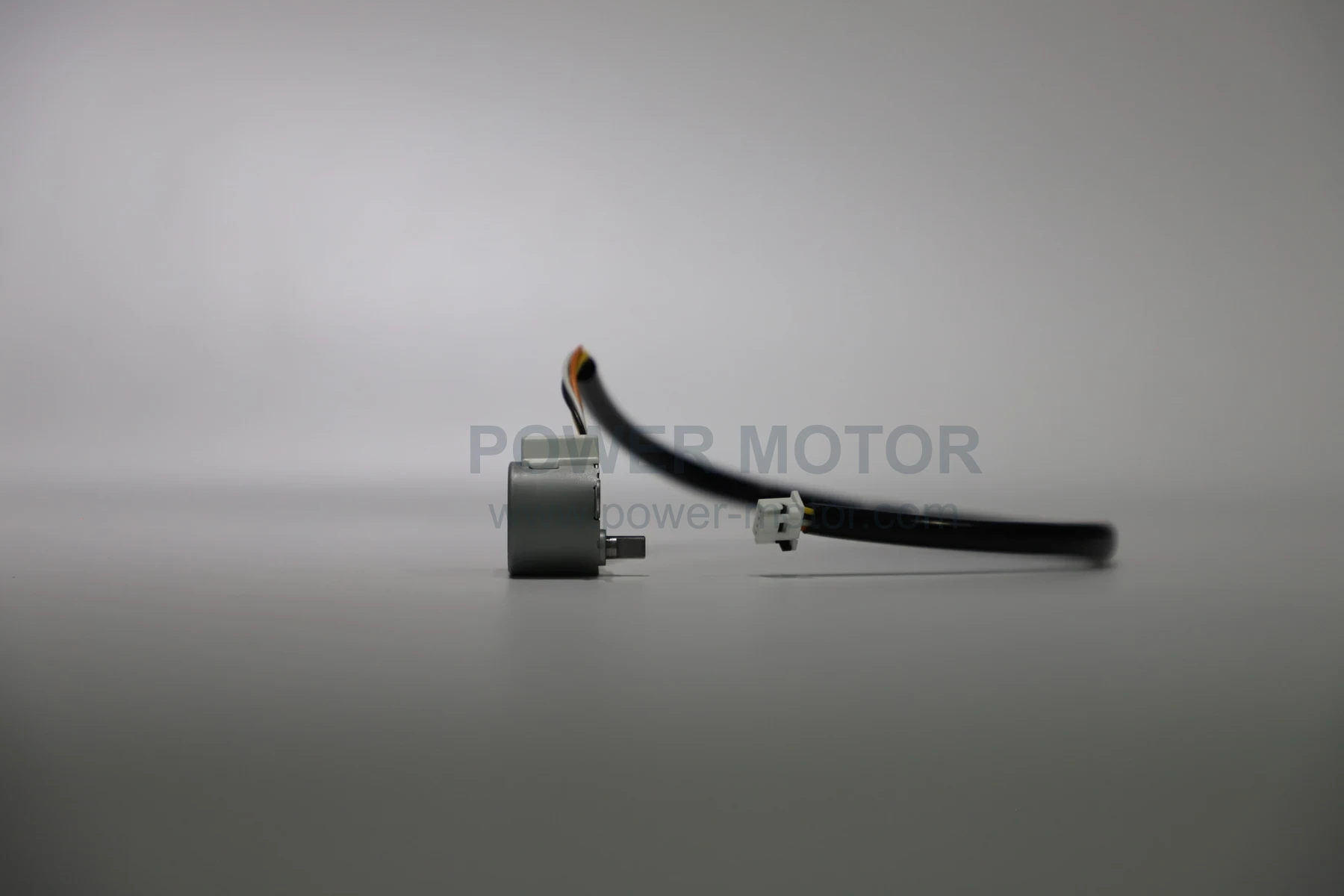

Product views
01

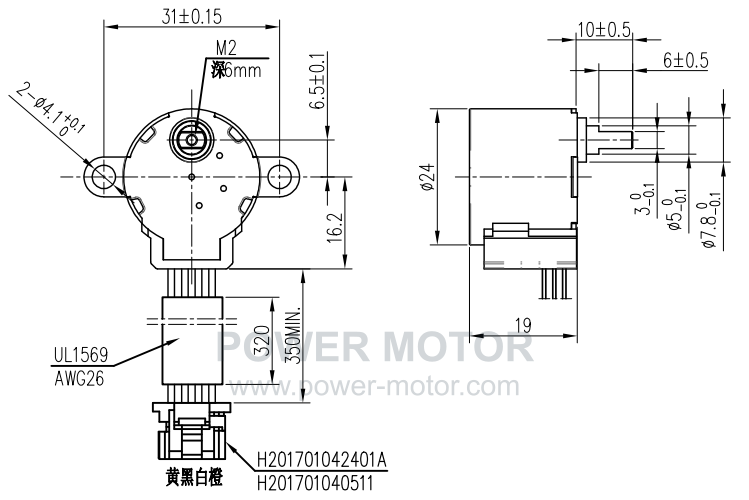

Outline / product media
02
Performance data
| MODEL | (°) · Step Angle | (Ω) · Phase Resistance | · Excitation Method | (V) · Voltage | · Reduction Ratio | 400PPS (gf.cm) · Pull Out Torque | (dBA) · Noise |
|---|---|---|---|---|---|---|---|
| PST.24BE1901-001 | 5.625/64 | 220 | 1-2 | 12 | 64 | 850 | ≤35 |
03

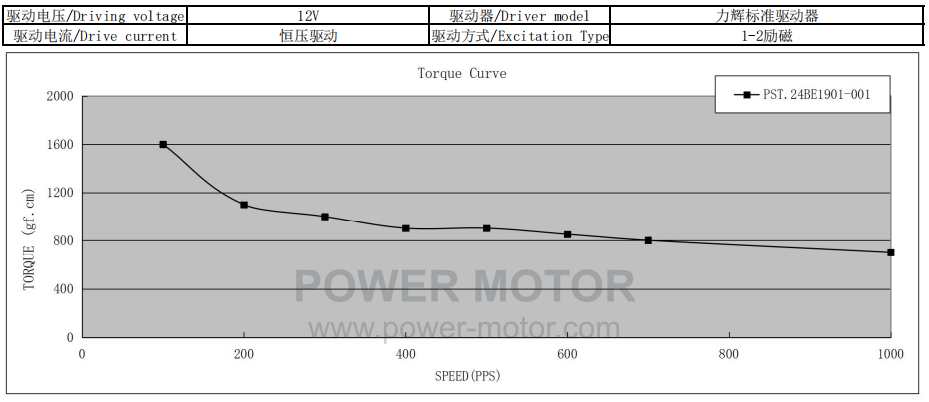

Performance curve
