Product model
PCL.2244
Brushless coreless motor
00
Technical profile
- Platform
- PCL.2244
- Specification models
- PCL.2244024-4101
- Typical applications
- Robot; Medical equipment
- Voltage
- 24 V
00

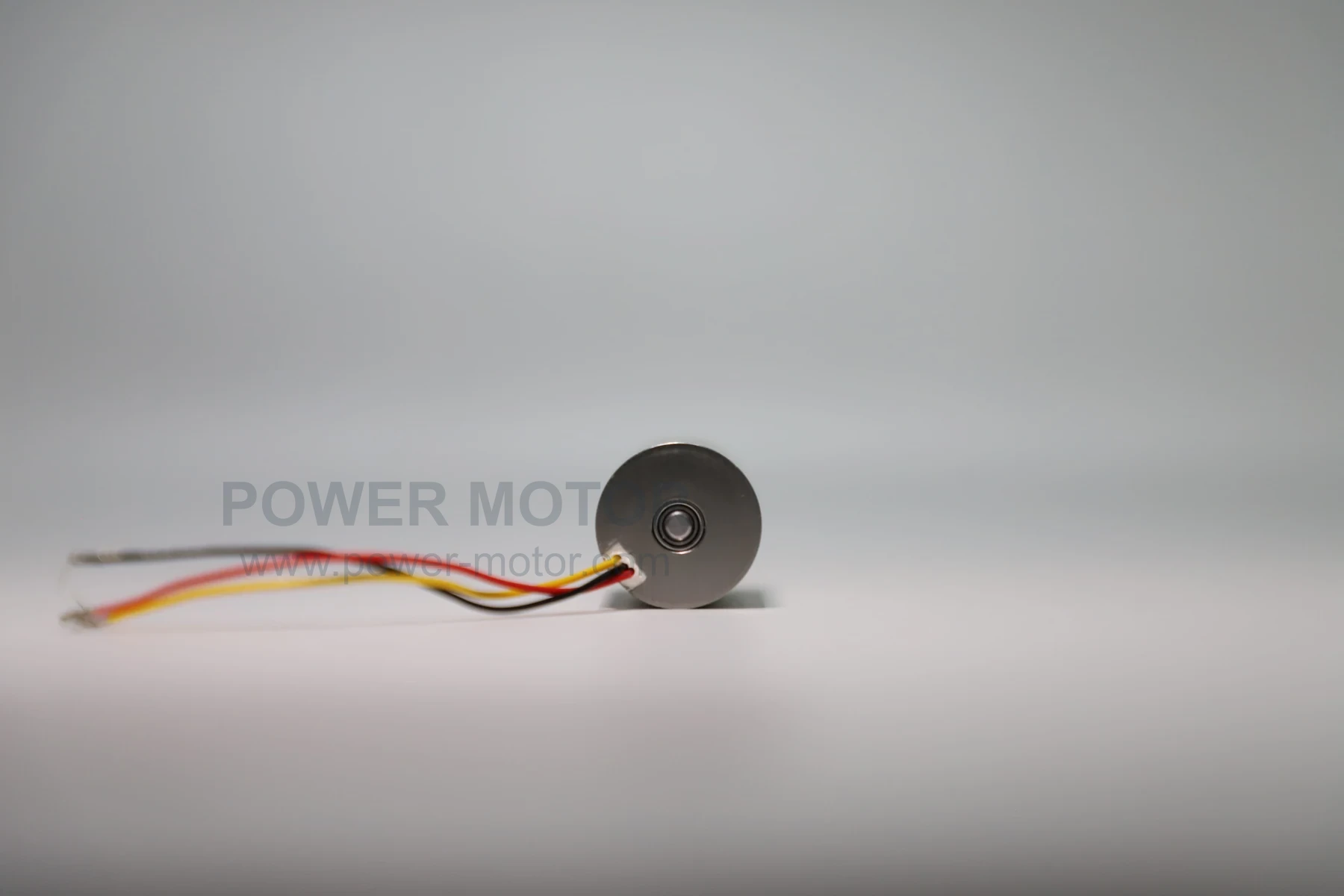

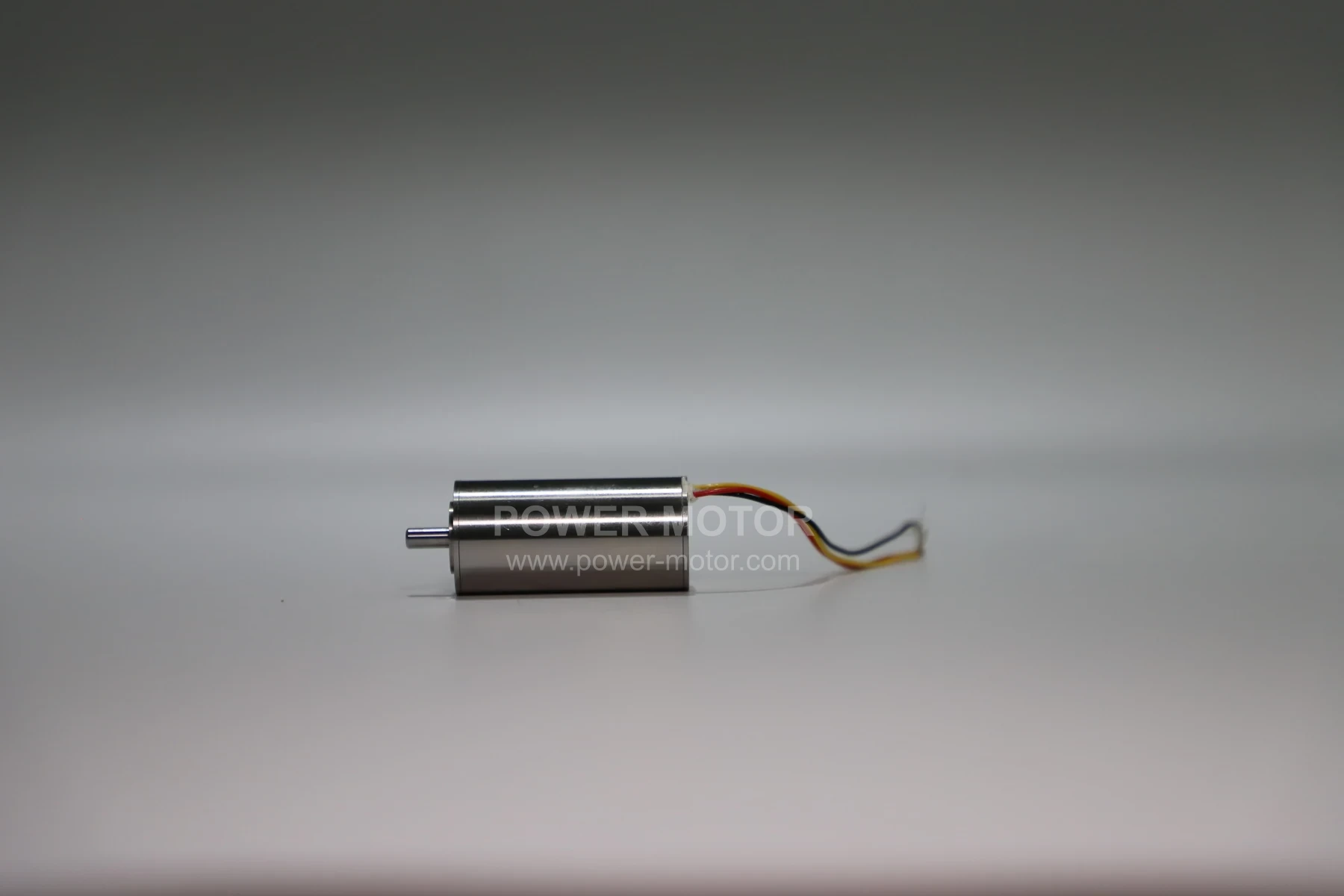

Product views
01

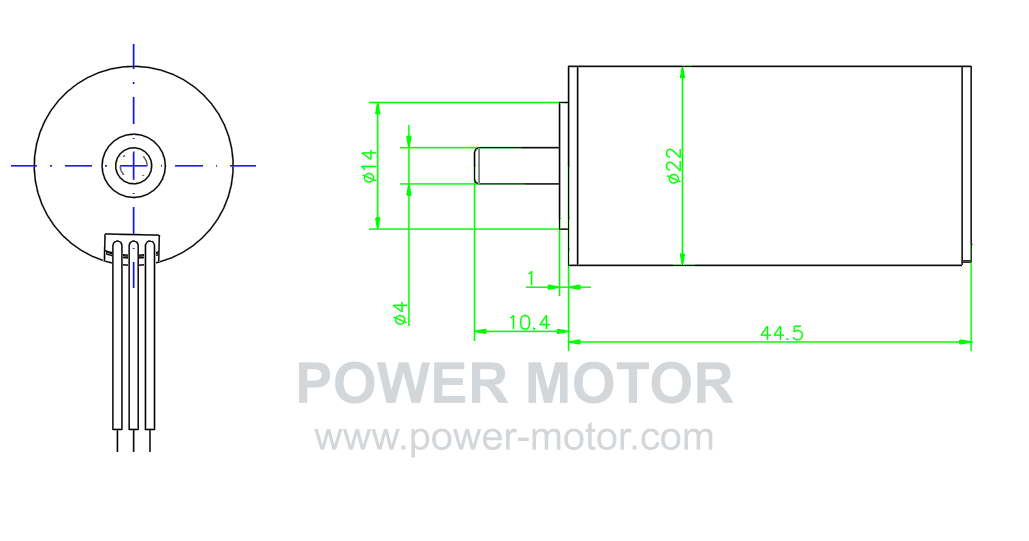

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PCL.2244024-4101 | 24 | 45600 | 0.7 | 41080 | 8.8 | 40 | 172 |
03

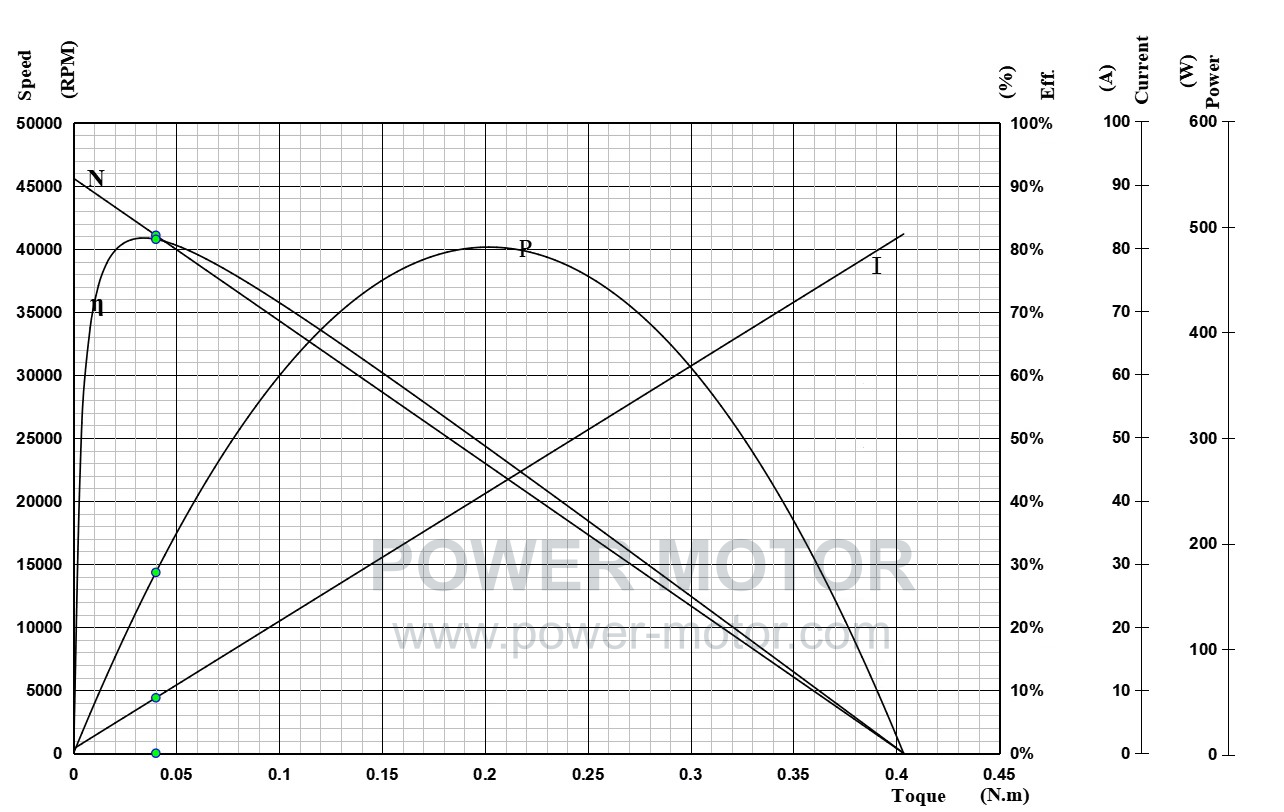

Performance curve
