Product model
PCL.1337
Brushless coreless motor
00
Technical profile
- Platform
- PCL.1337
- Specification models
- PCL.1337024-2101
- Typical applications
- Robot; Medical equipment
- Voltage
- 24 V
00

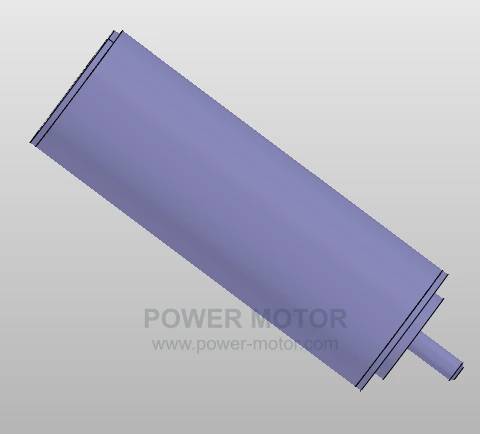

Product views
01

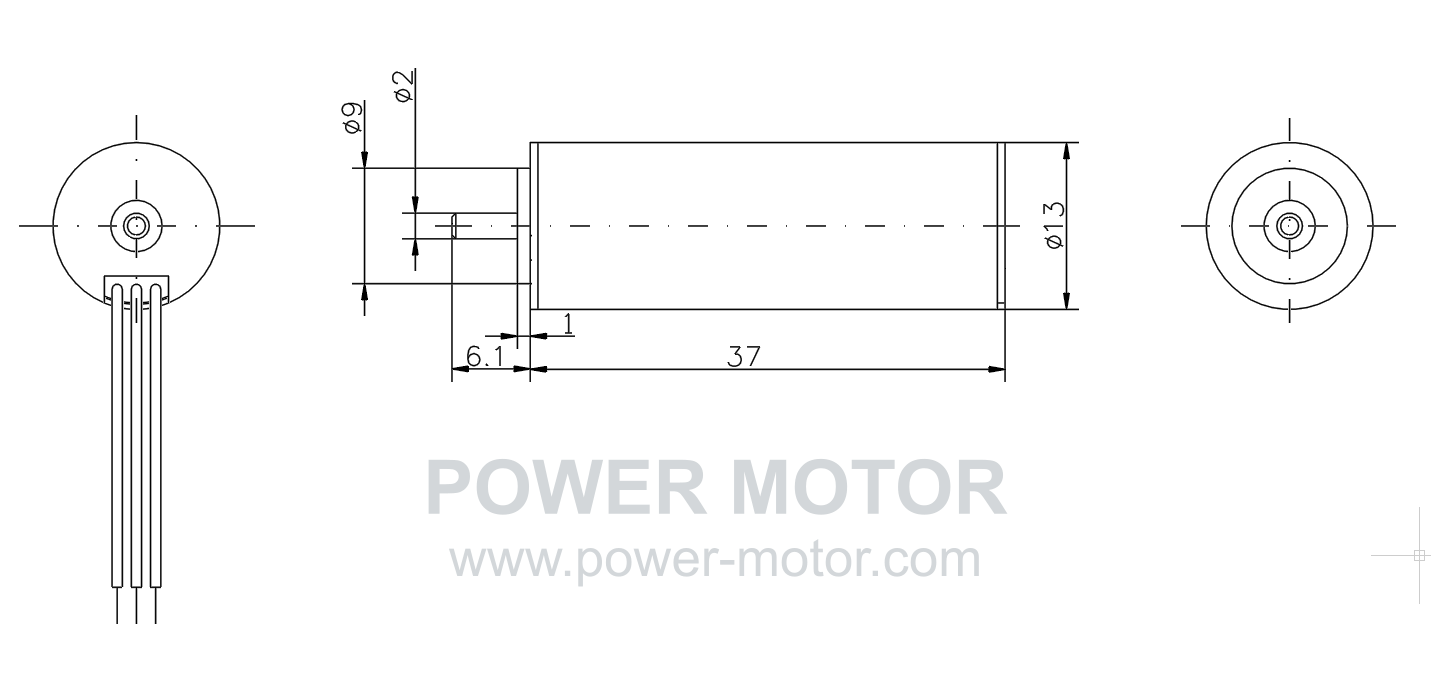

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PCL.1337024-2101 | 24 | 34000 | 0.18 | 29366 | 1.7 | 10 | 30.8 |
03

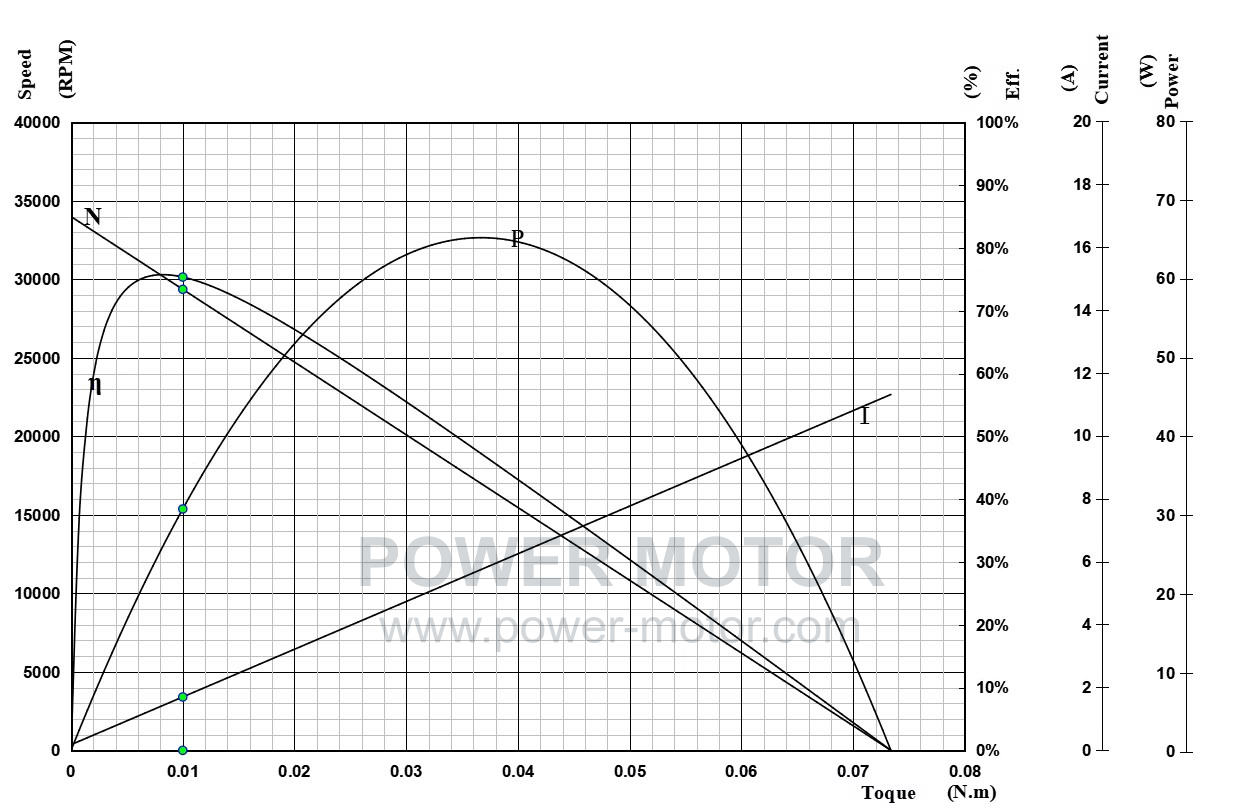

Performance curve
Need help choosing a motor?
Discuss your equipment requirements or drawings with our engineers.
