Product model
PBL.8550
Brushless DC motor
00
Technical profile
- Platform
- PBL.8550
- Specification models
- PBL.8550048-8101
- Typical applications
- Air pump motor
- Voltage
- 48 V
00

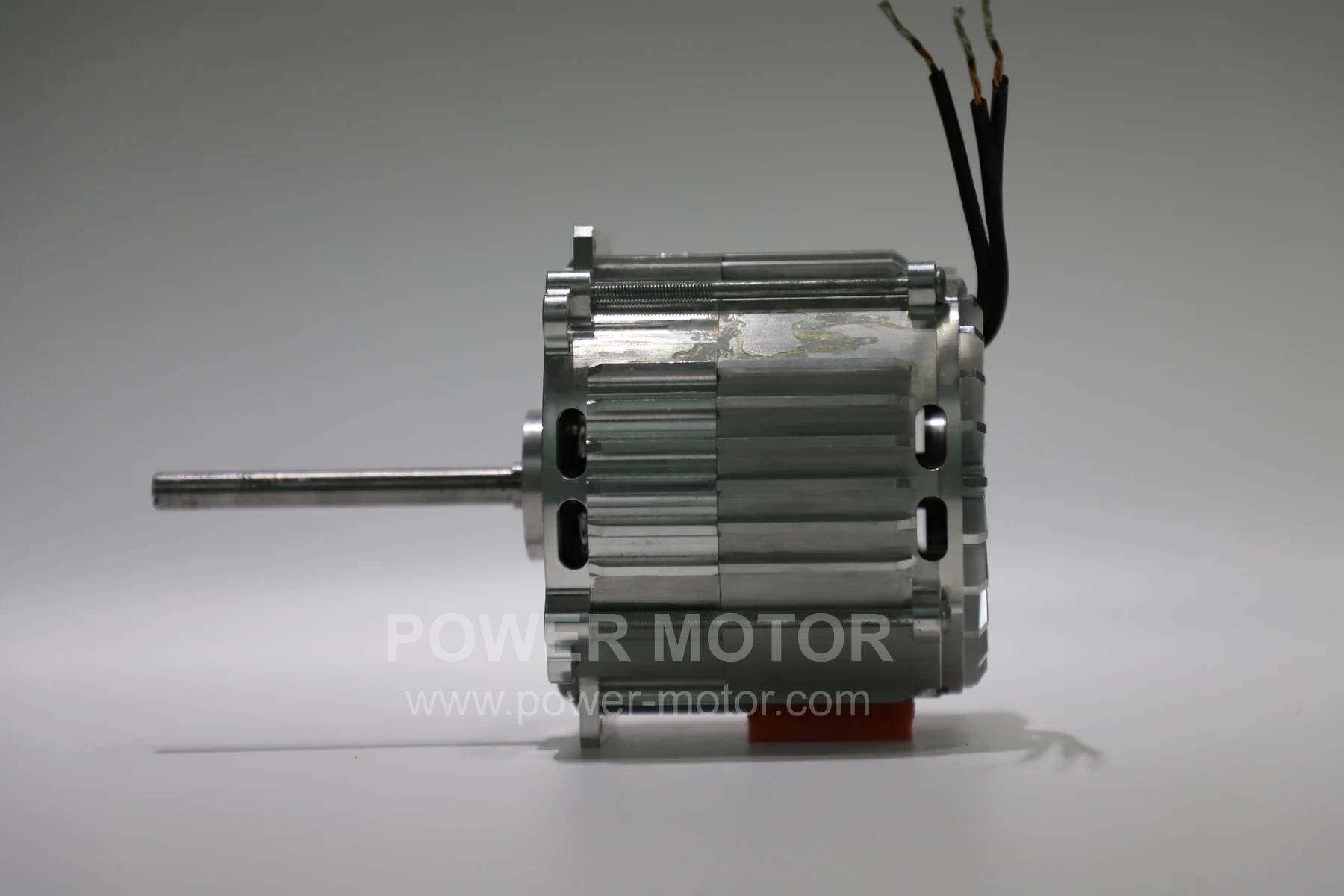

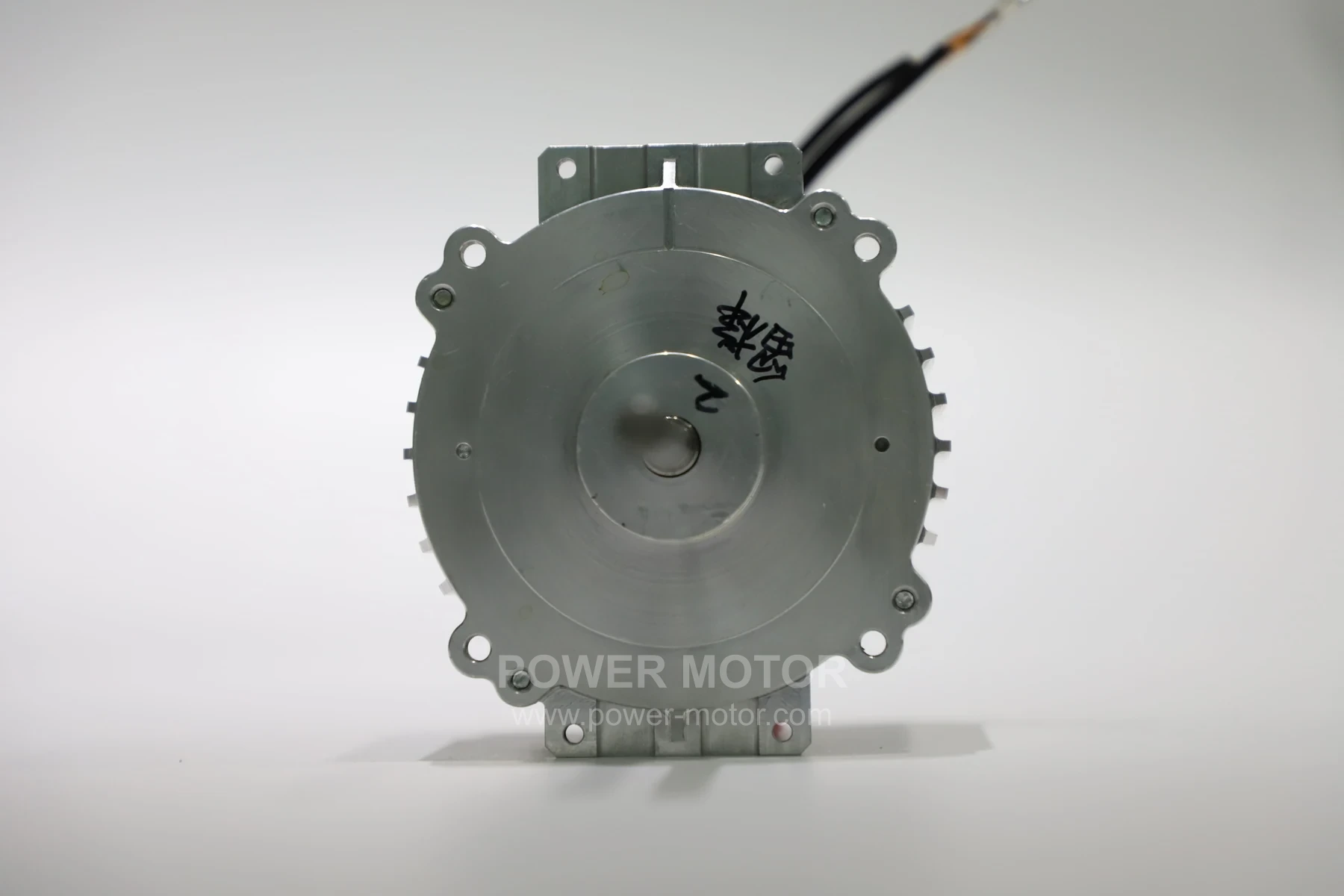

Product views
01

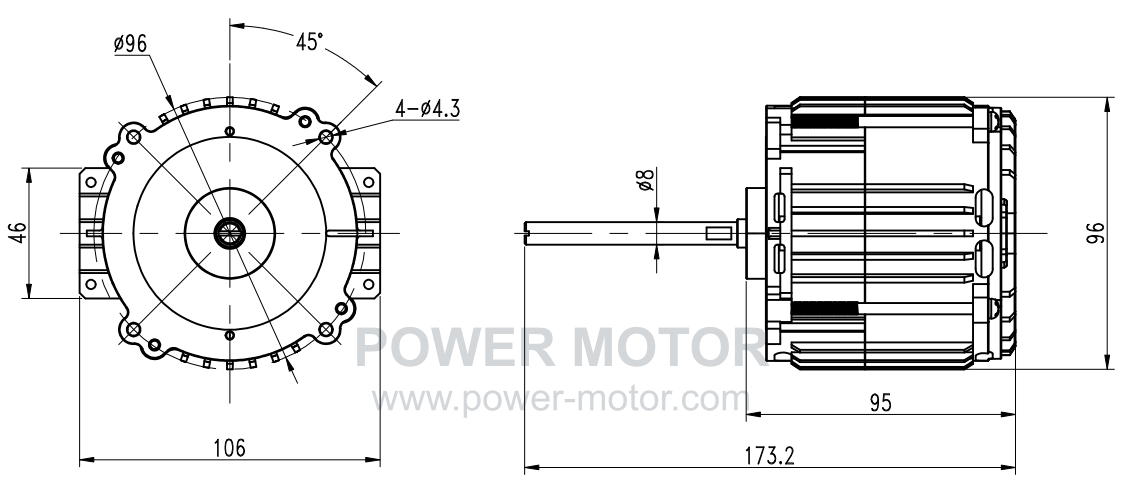

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.8550048-8101 | 47-49 | 48 | 2425 | 0.7 | 2203 | 5.0 | 9700 | 970 | 224 |
03

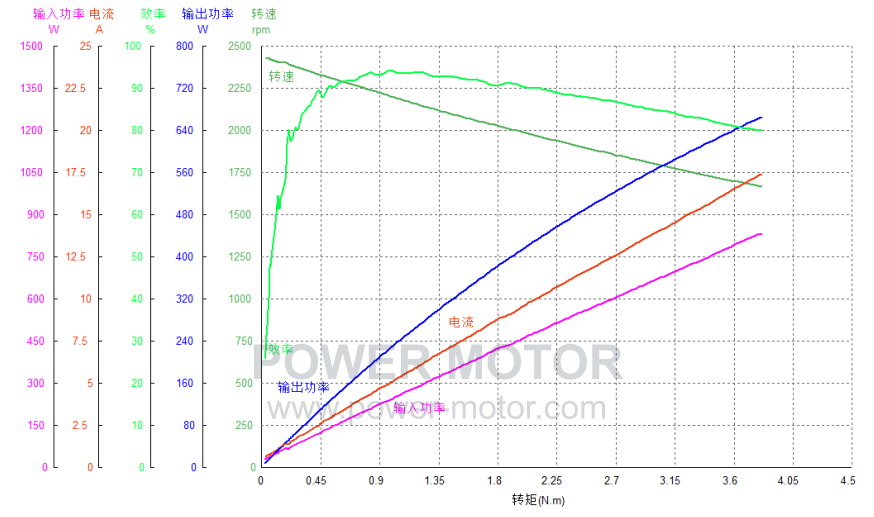

Performance curve
