Product model
PBL.8520
Brushless DC motor
00
Technical profile
- Platform
- PBL.8520
- Specification models
- PBL.8520120-2D01
- Typical applications
- Multi-purpose food processor; High-speed blender
- Voltage
- 120V/60Hz
00

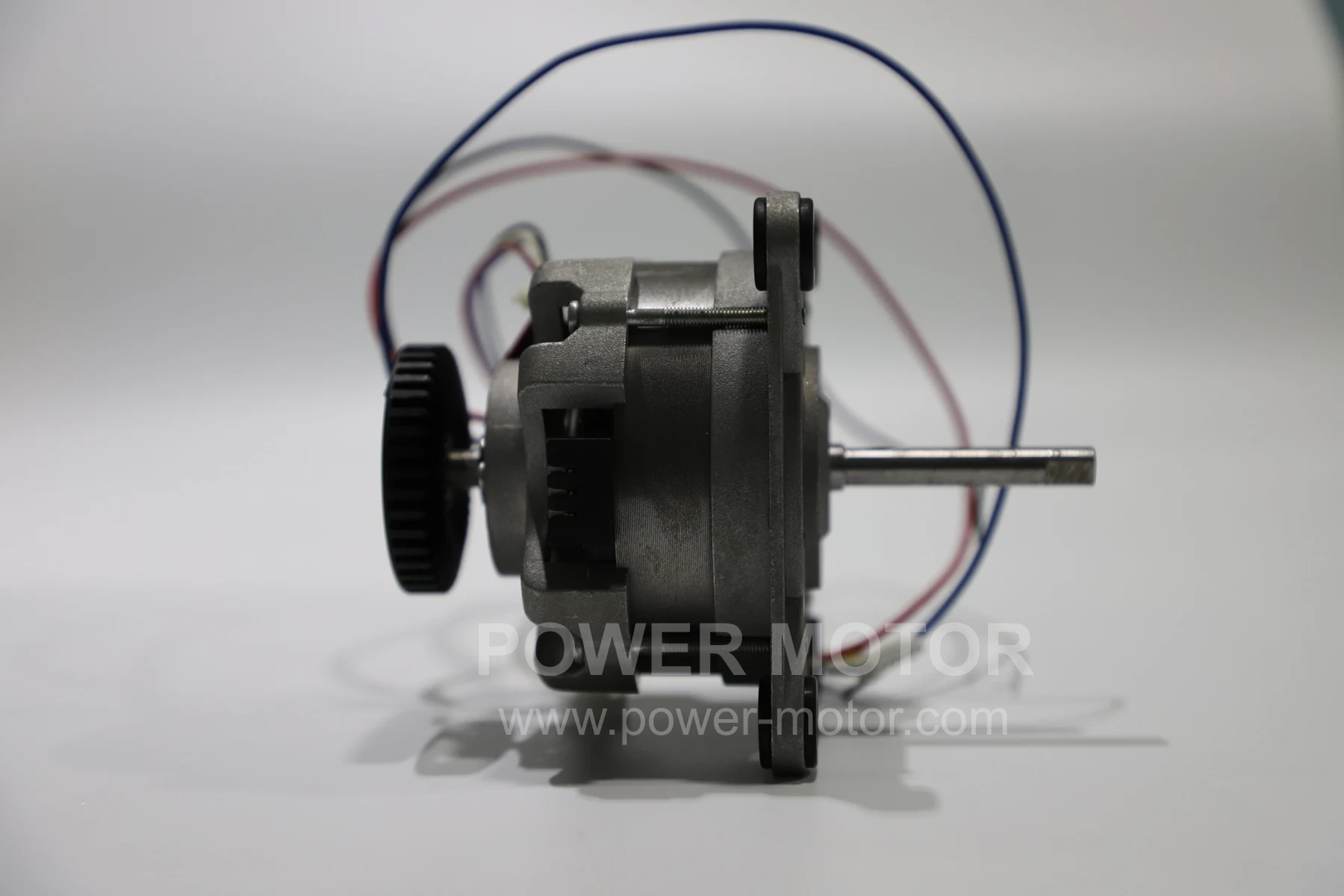

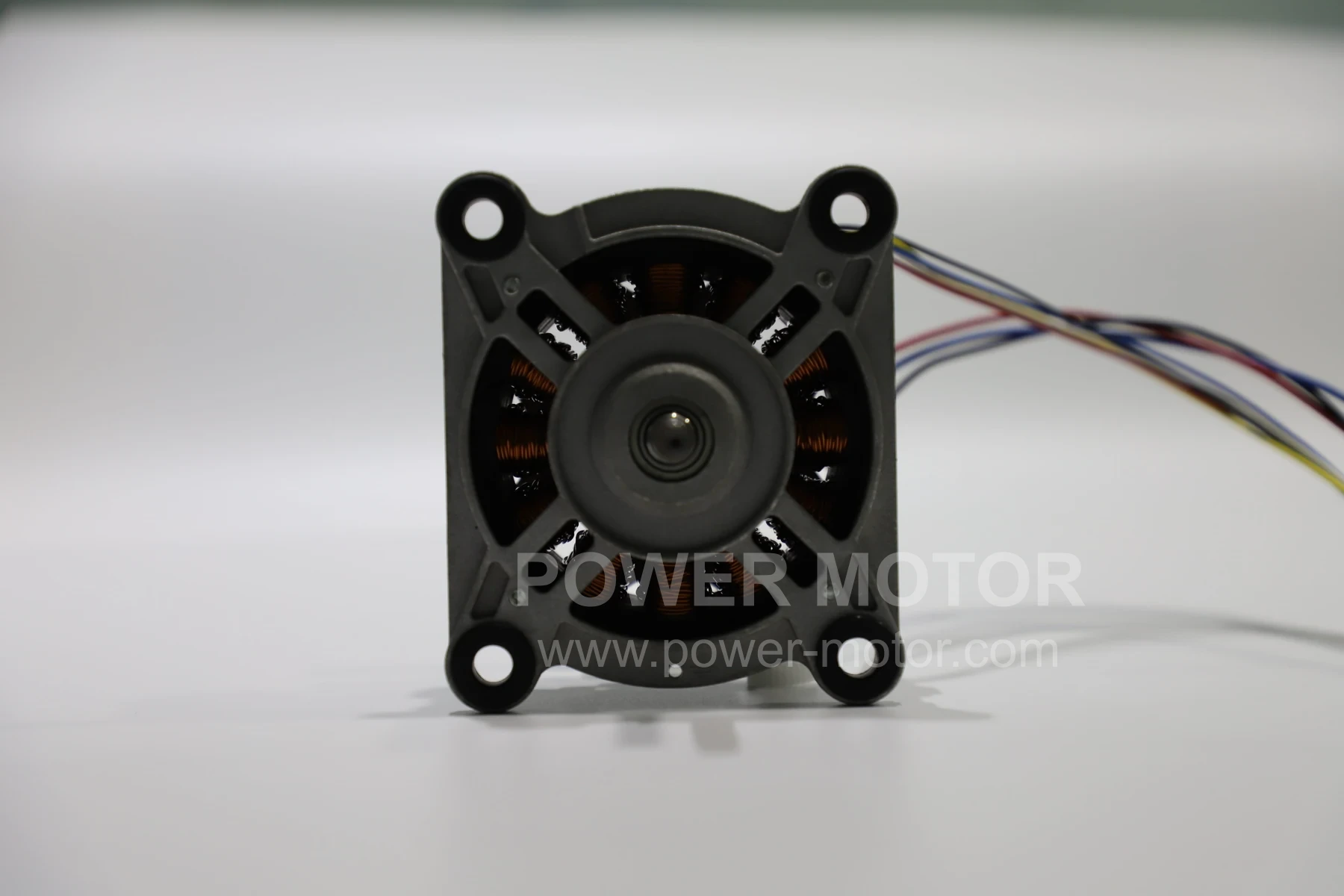

Product views
01

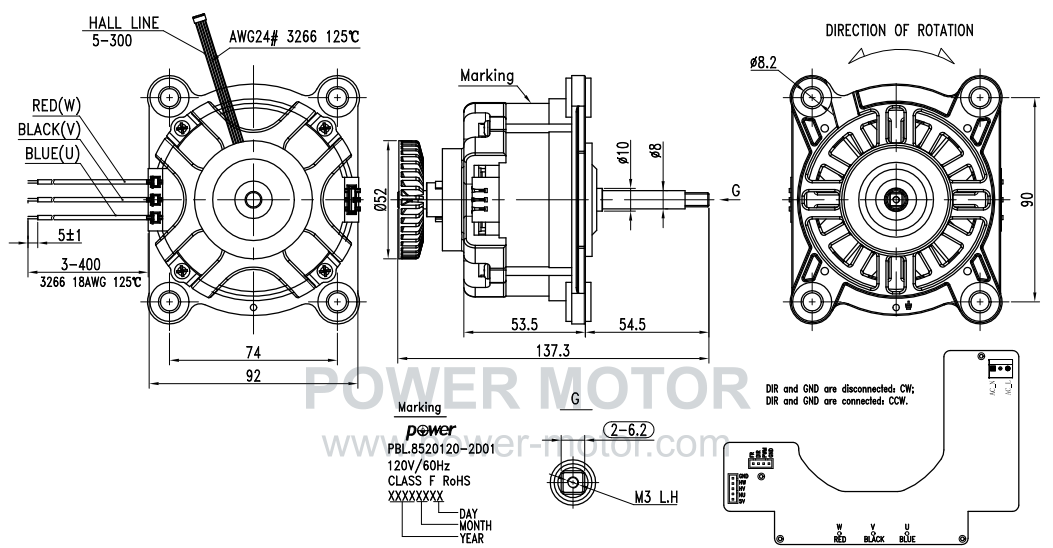

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|
| PBL.8520120-2D01 | 100~127V 50/60Hz | 120V/60Hz | 12000 | 2 | 12000 | 13 | 640 | 800 |
03

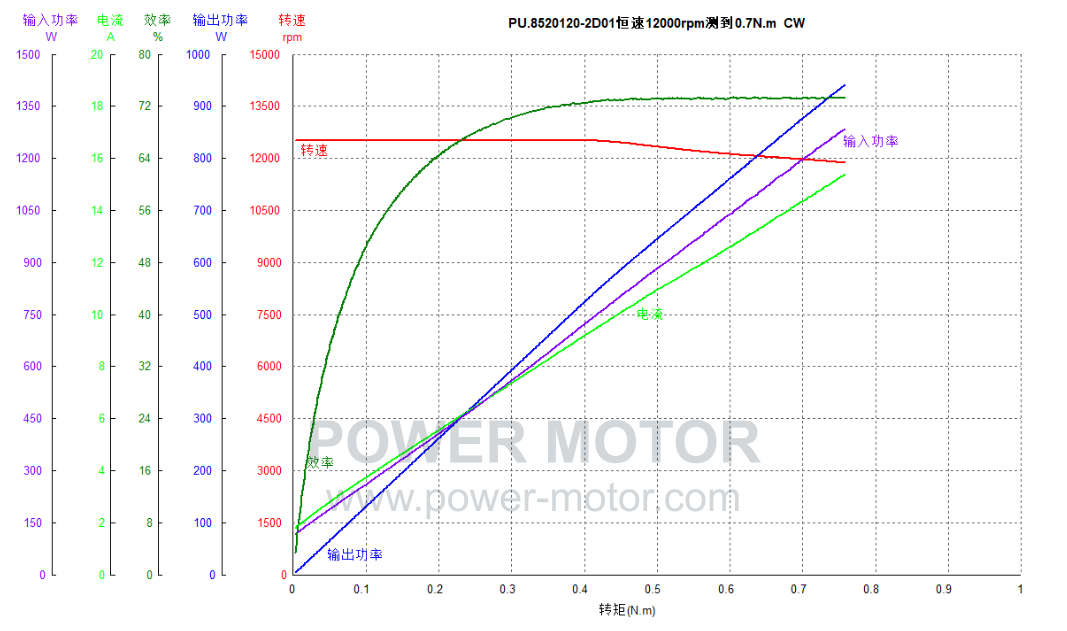

Performance curve
Related applications
