Product model
PBL.5210
Brushless DC motor
00
Technical profile
- Platform
- PBL.5210
- Specification models
- PBL.5210
- Typical applications
- Fan motor
- Voltage
- 24 V
00

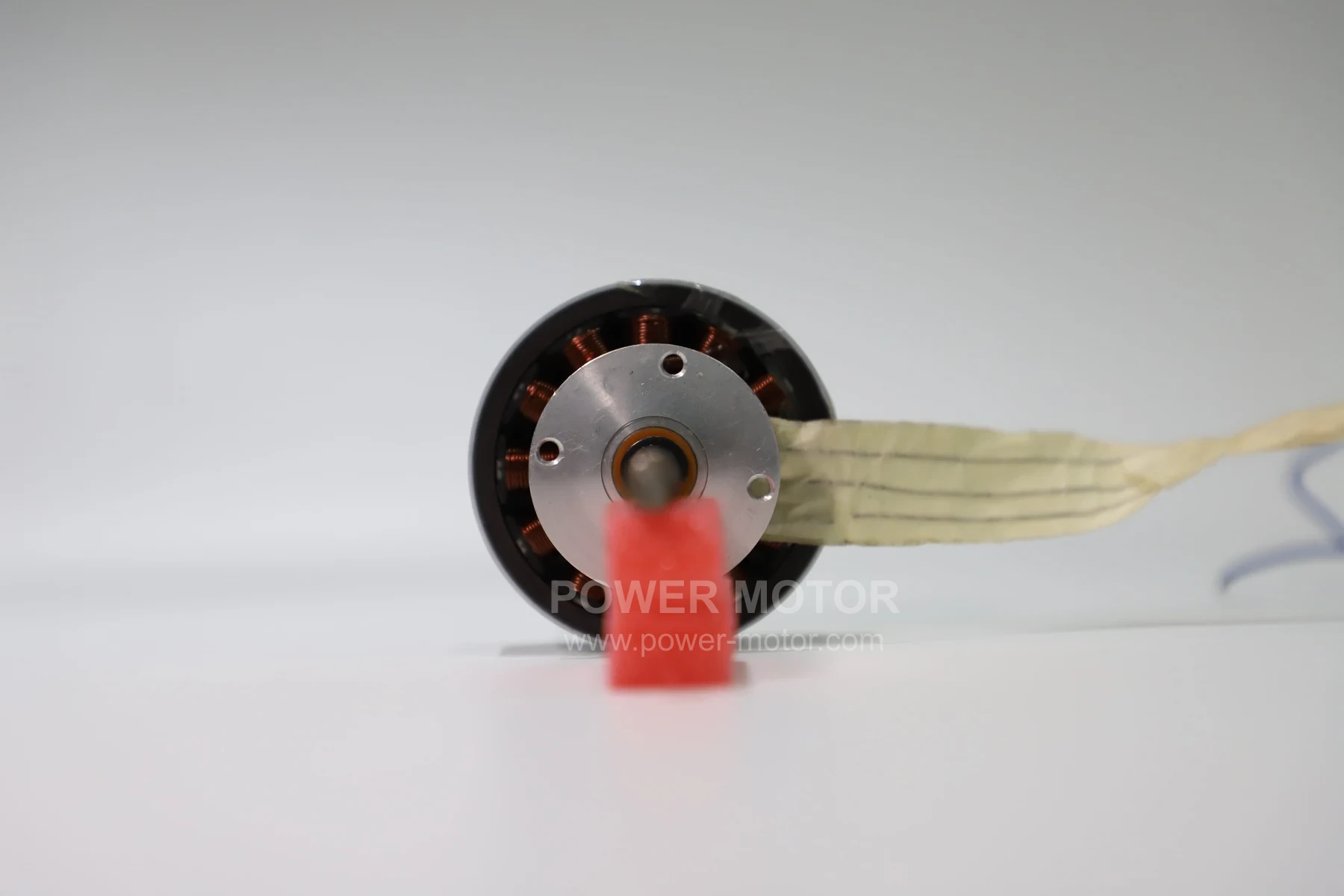

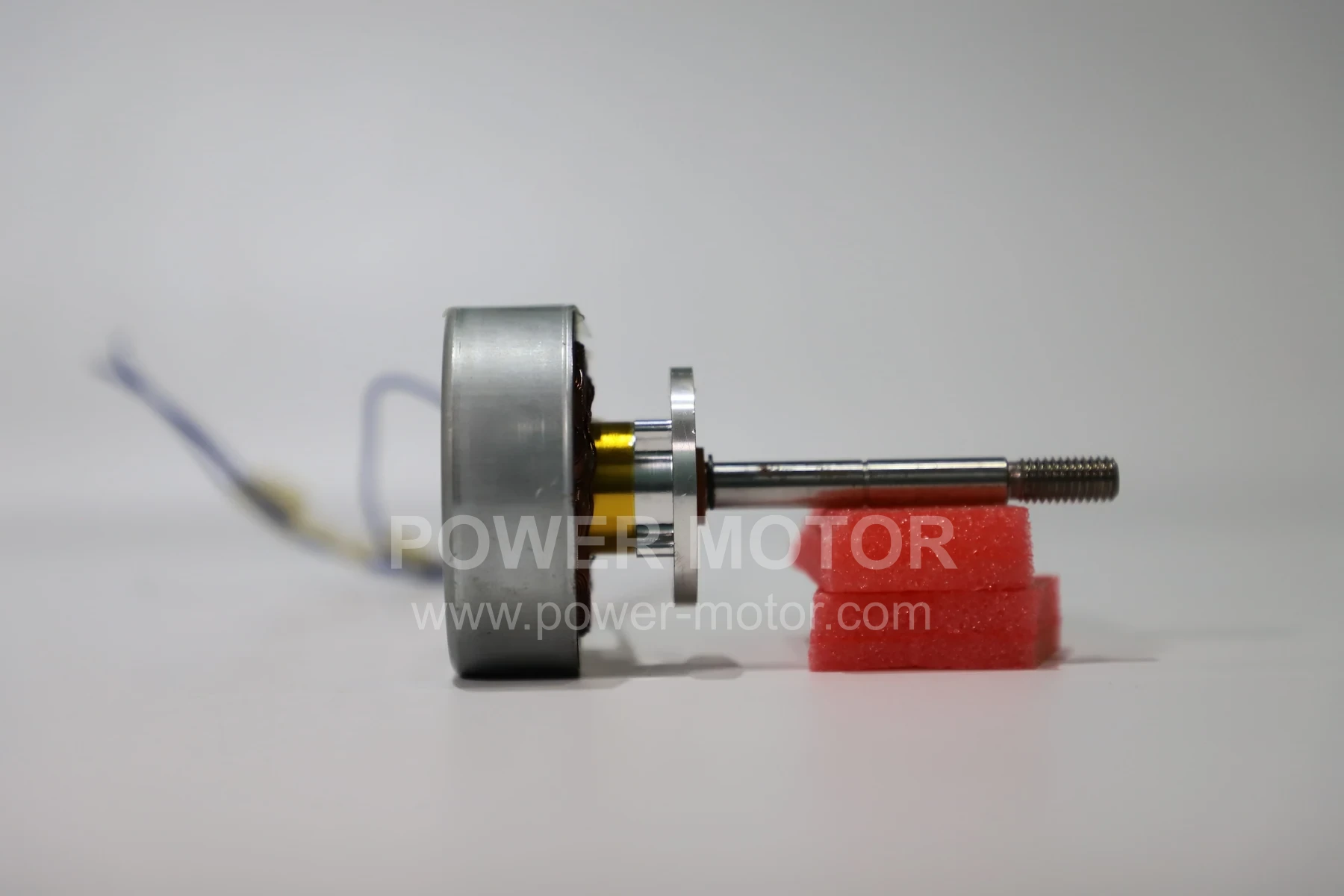

Product views
01

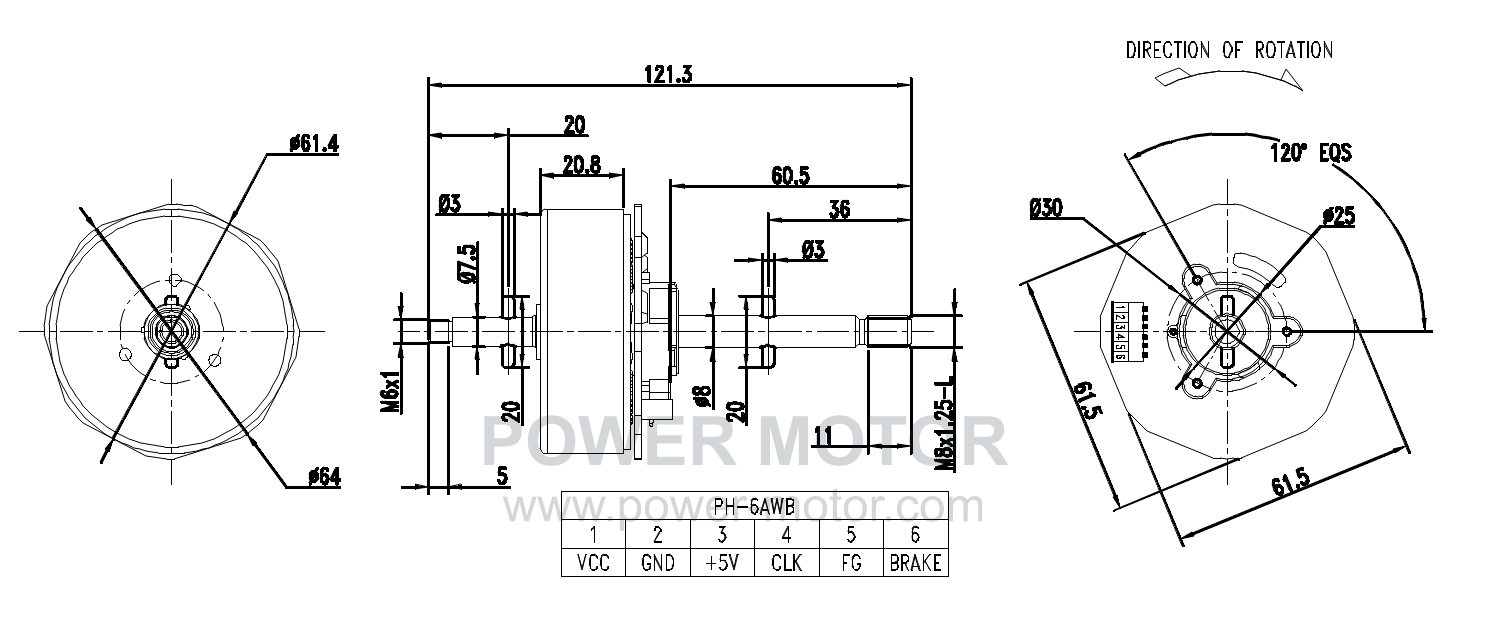

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.5210 | 12-36 | 24 | 1860 | 0.3Max | 1385 | 0.6 | 683 | 67 | 9.7 |
03

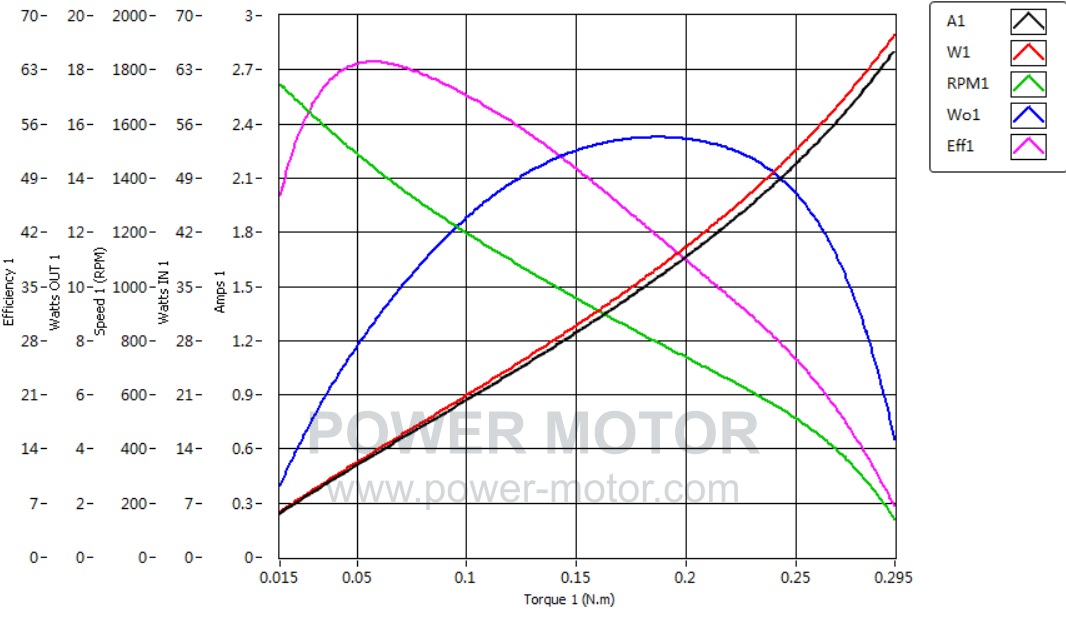

Performance curve
