Product model
PBL.3115
Brushless DC motor
00
Technical profile
- Platform
- PBL.3115
- Specification models
- PBL.3115024-5101
- Typical applications
- Drone motor
- Voltage
- 24 V
00

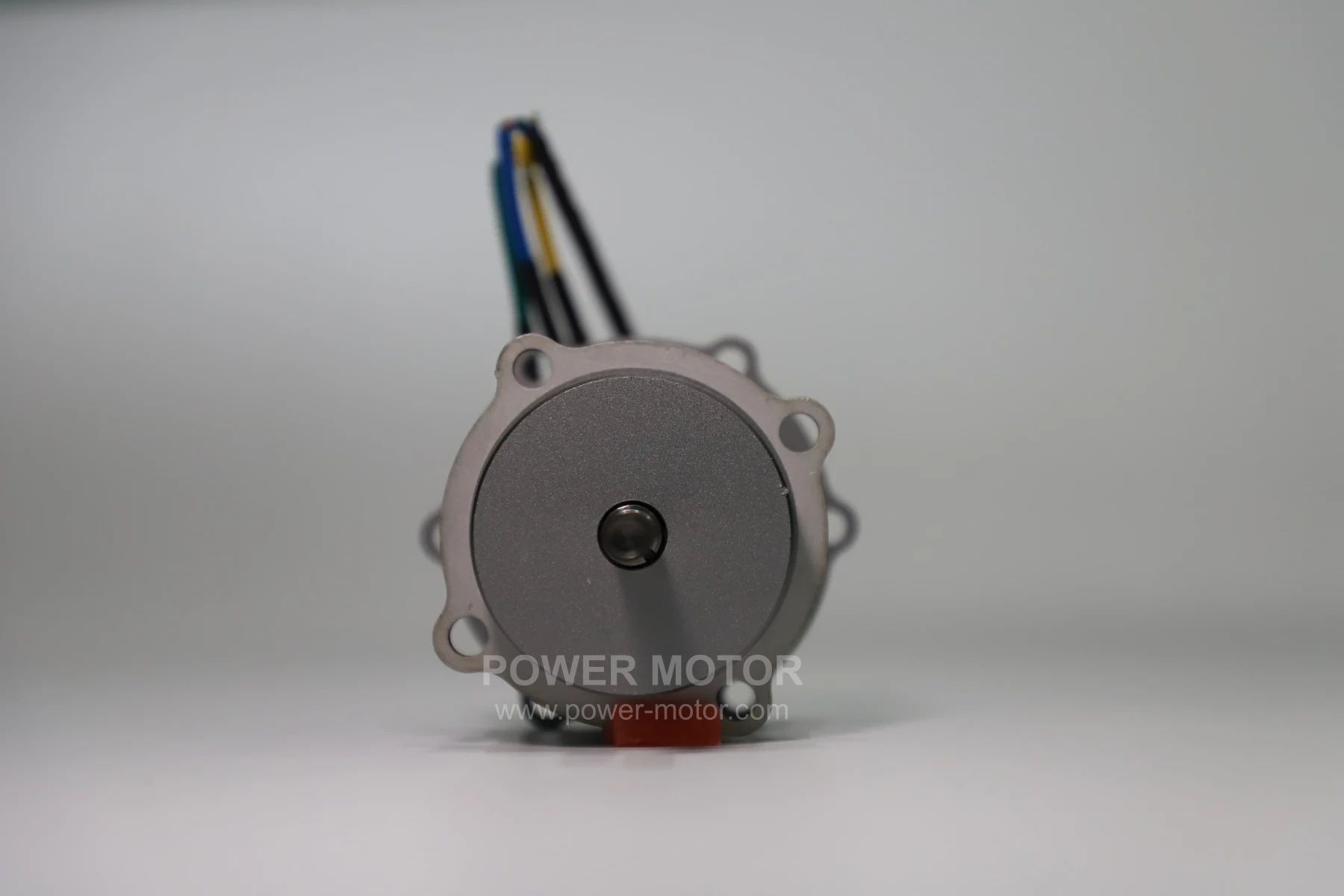

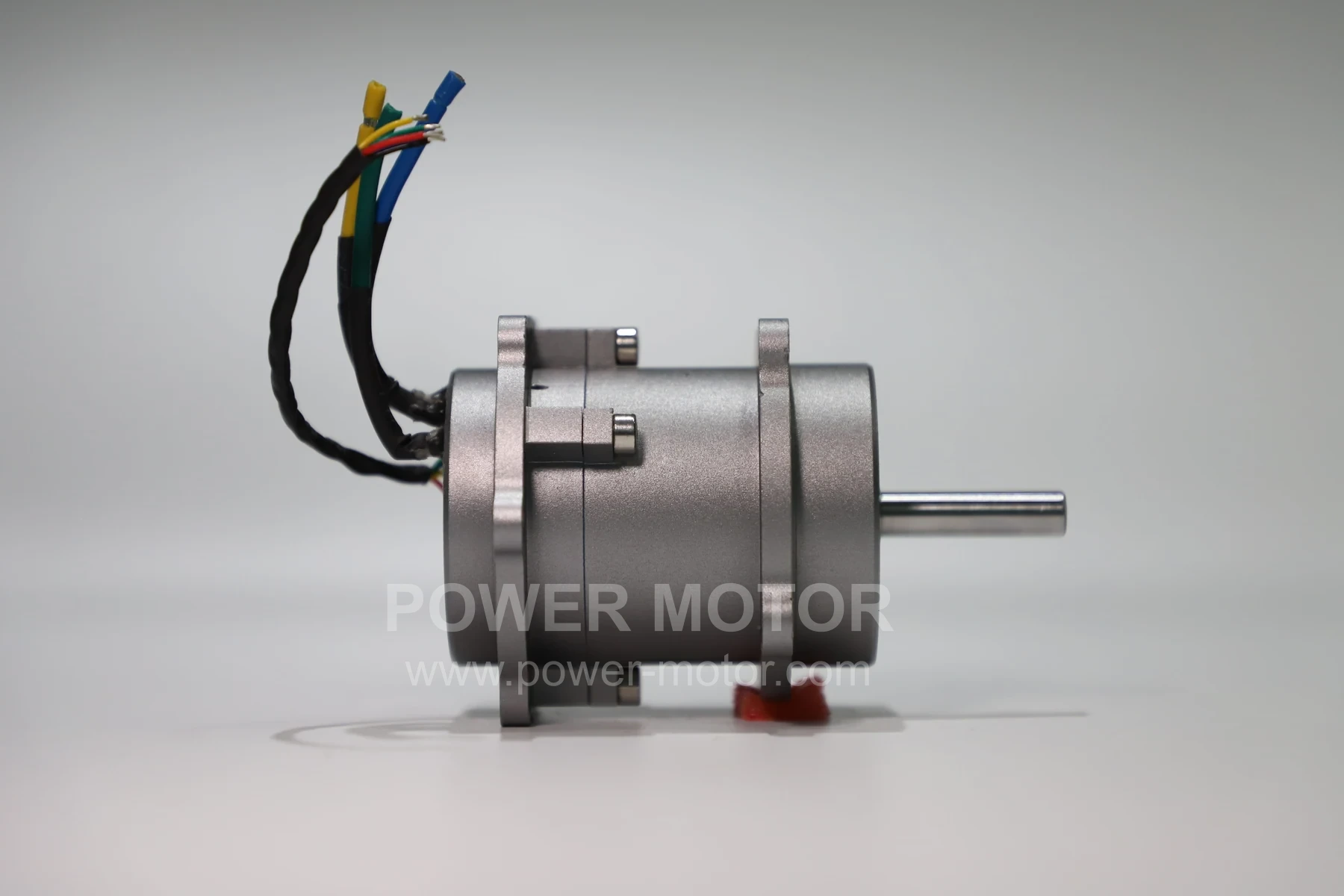

Product views
01

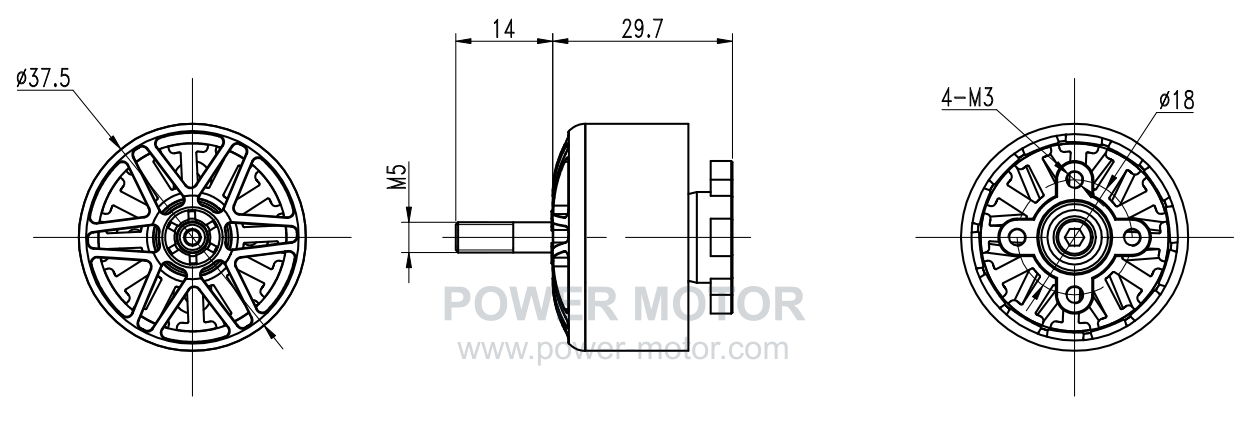

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.3115024-5101 | 23-25 | 24 | 20000 | 2.6 | 18338 | 15.6 | 1570 | 157 | 301 |
03

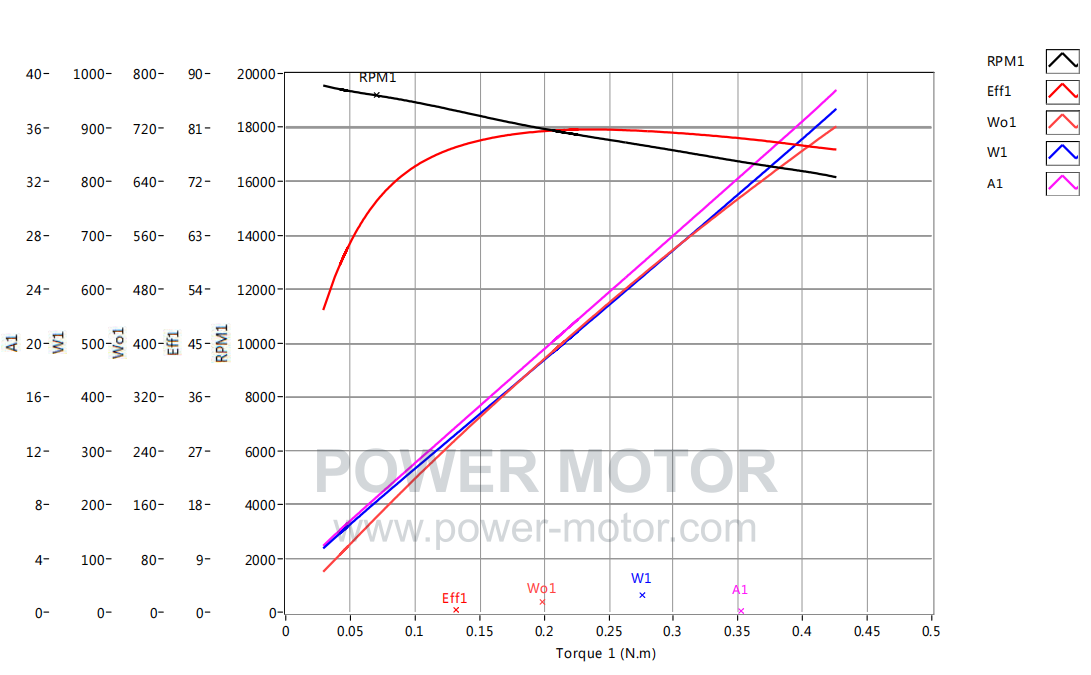

Performance curve
