Product model
PBL.2410
Brushless DC motor
00
Technical profile
- Platform
- PBL.2410
- Specification models
- PBL.2410
- Typical applications
- Electric valve
- Voltage
- 24 V
00

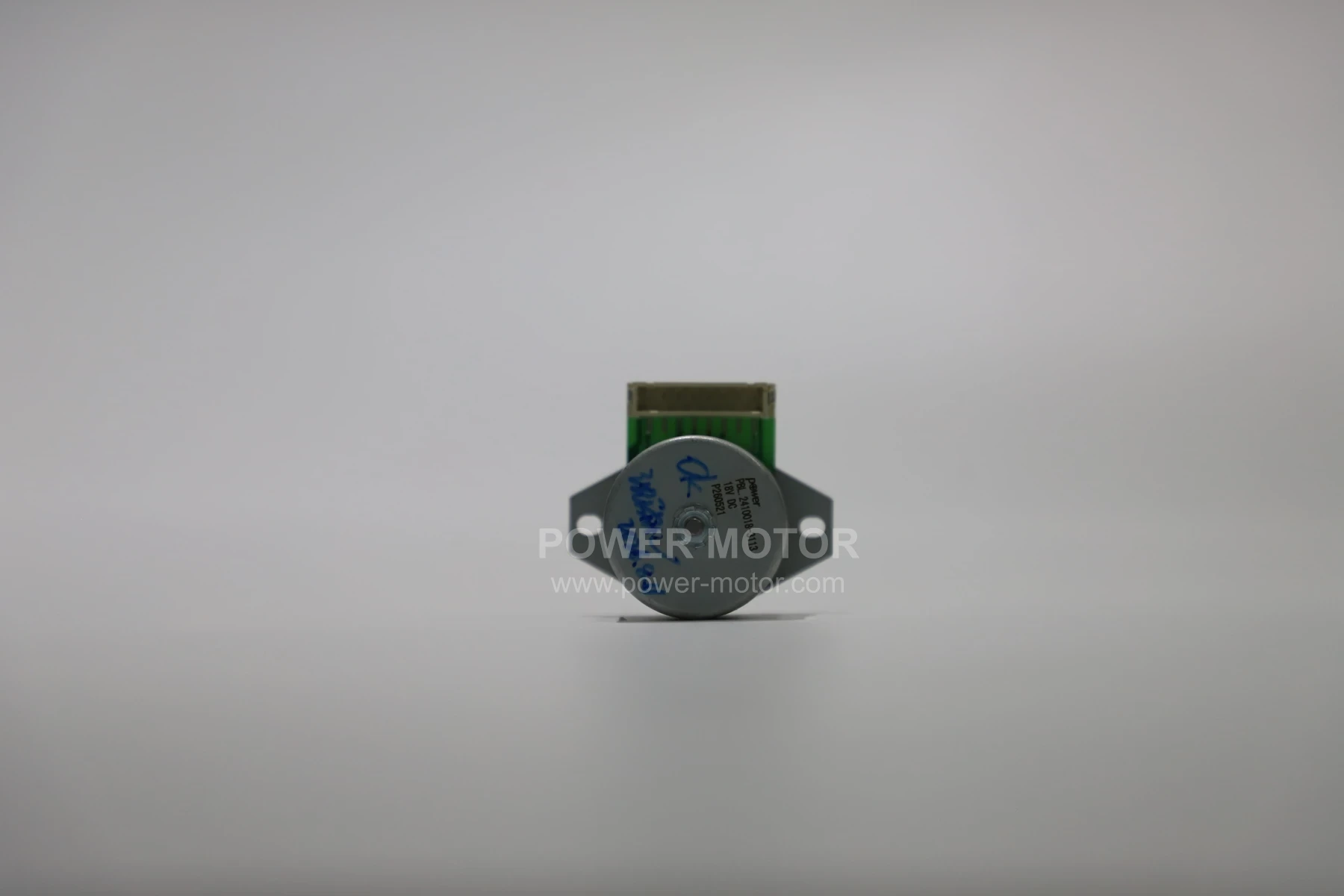

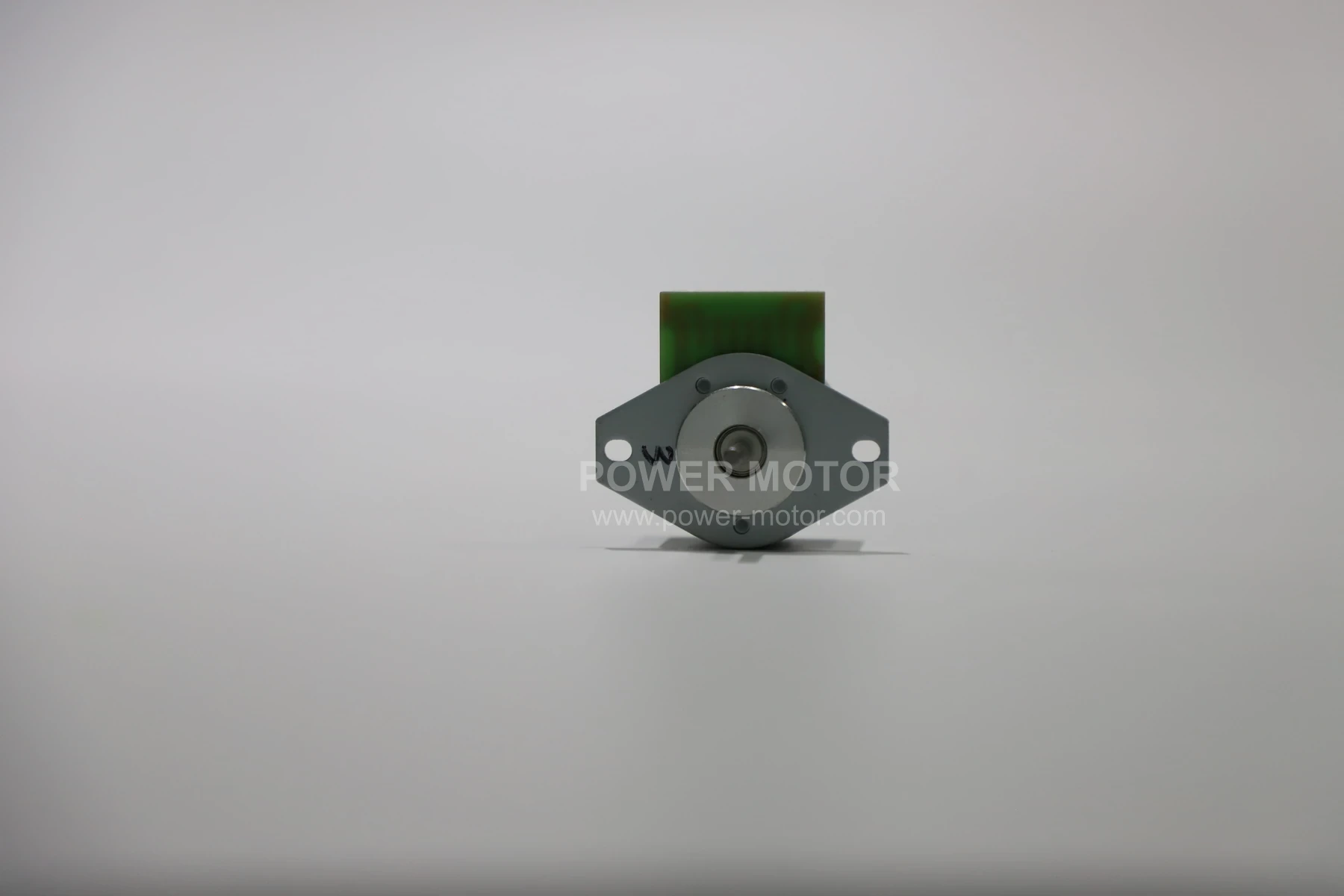

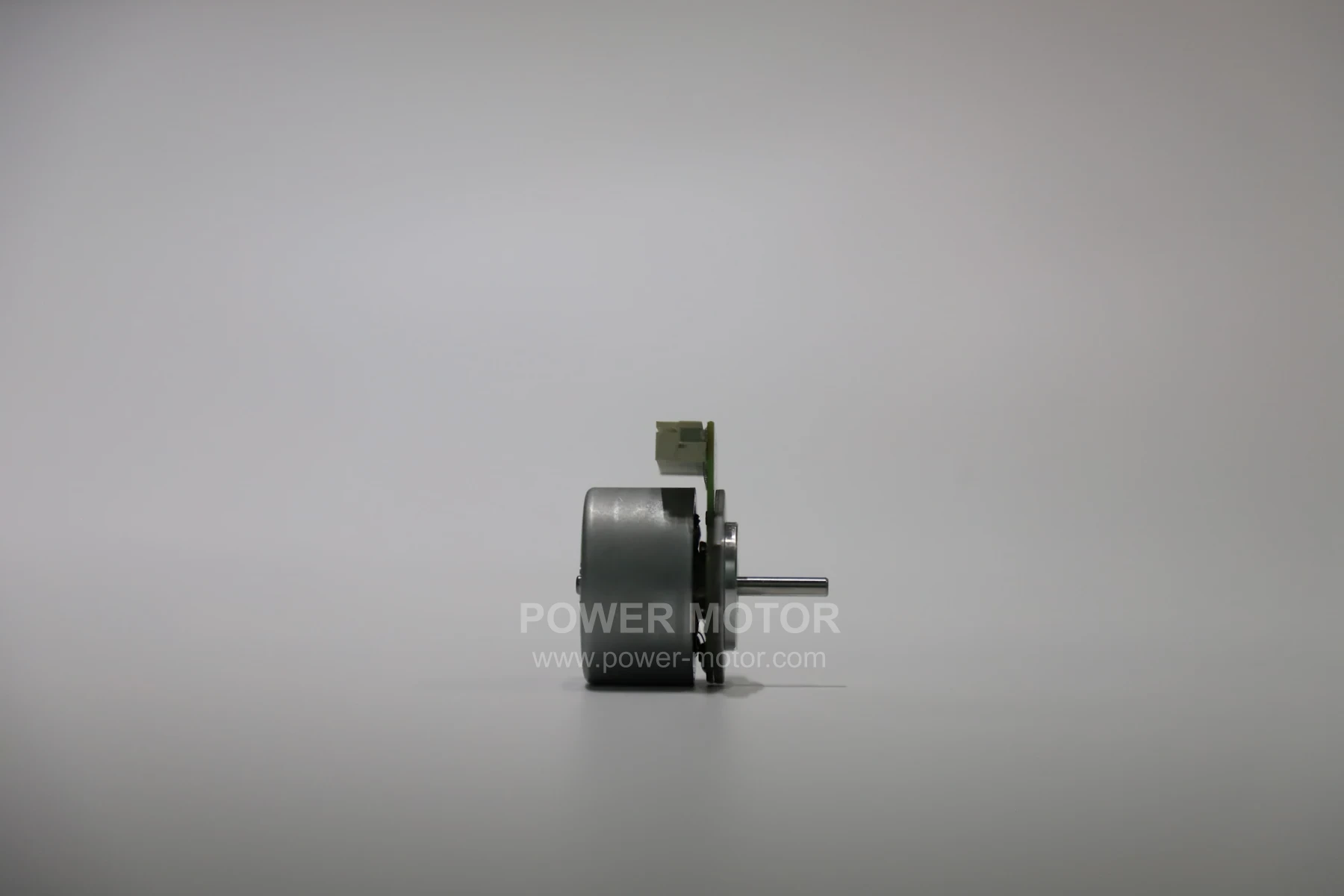

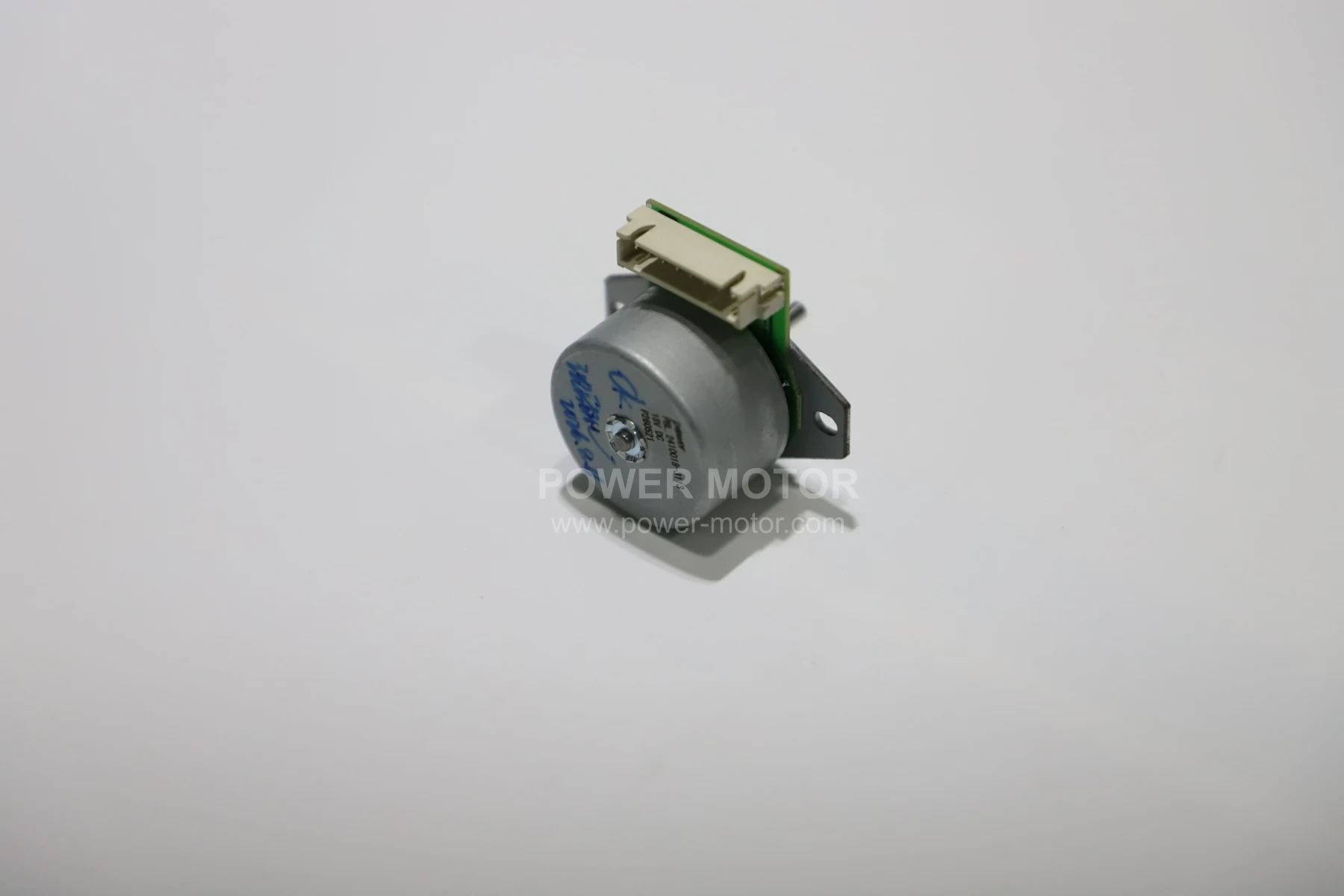

Product views
01

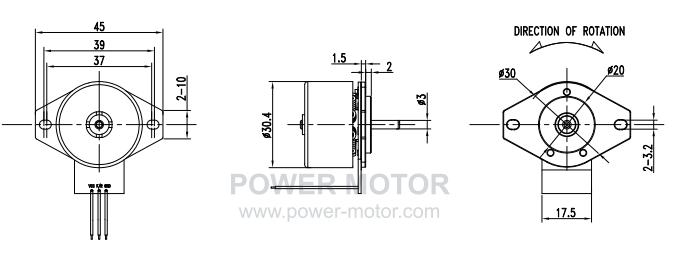

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.2410 | 22-30 | 24 | 3300 | 0.13Max | 2600 | 0.46 | 232 | 22.7 | 8.4 |
03

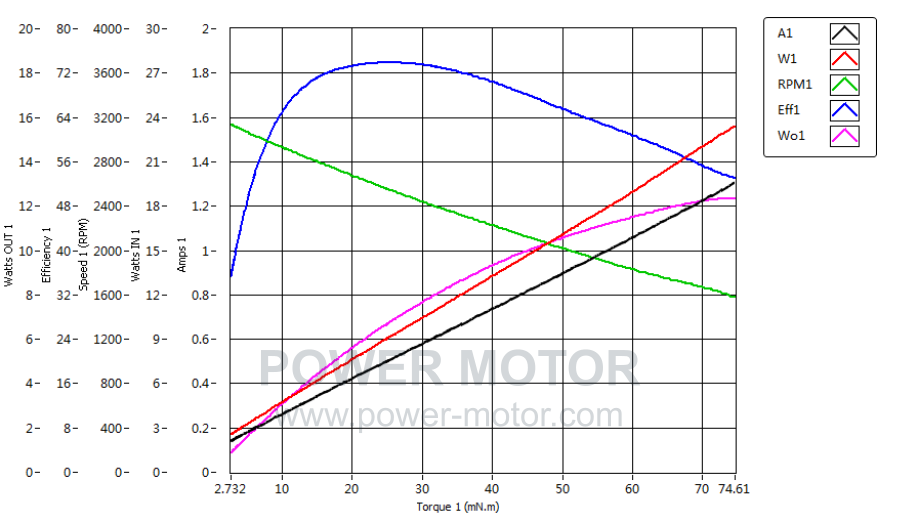

Performance curve
