Product model
PBL.2012
Brushless DC motor
00
Technical profile
- Platform
- PBL.2012
- Specification models
- PBL.2012012-2103
- Typical applications
- LiDAR motor
- Voltage
- 12 V
00

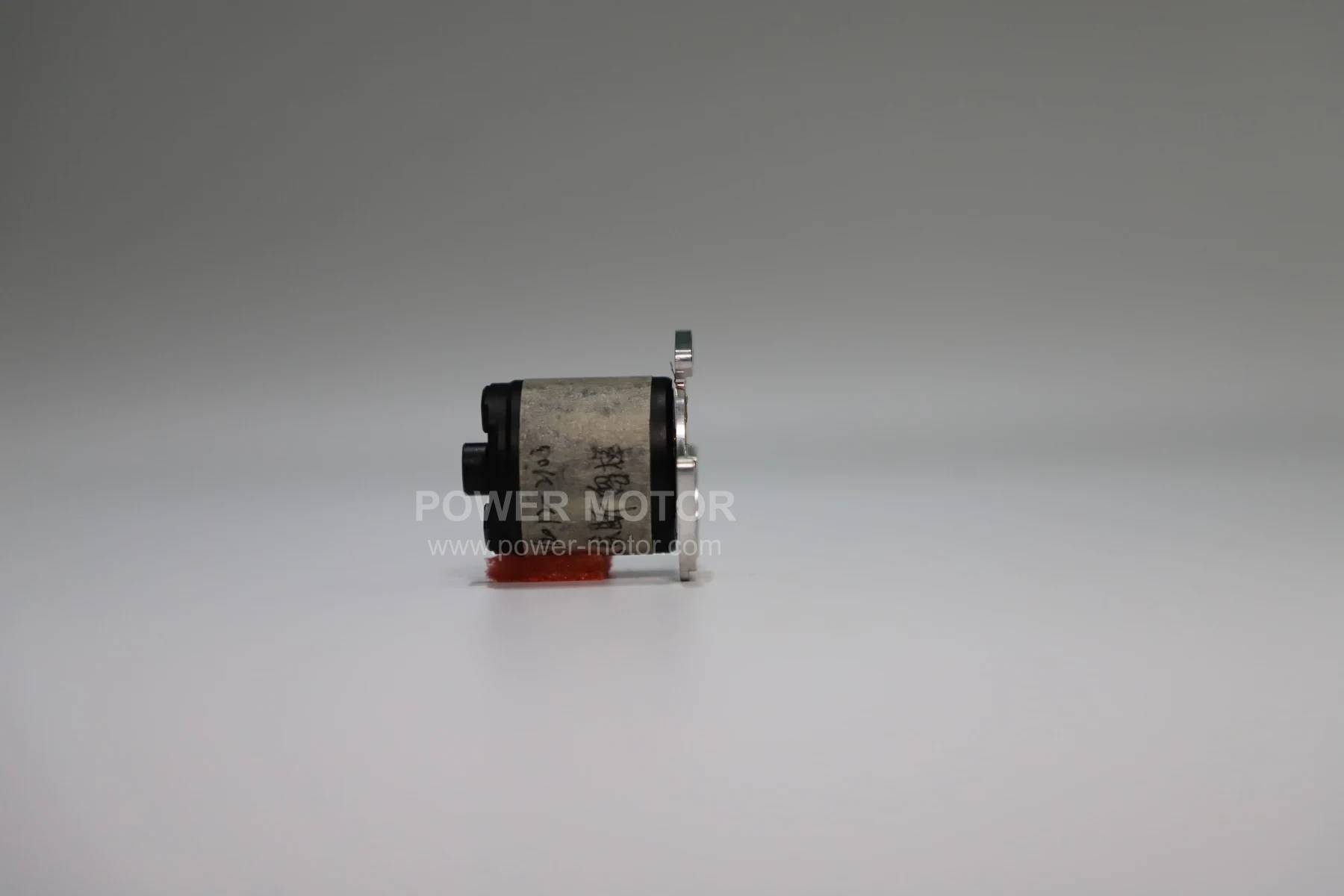

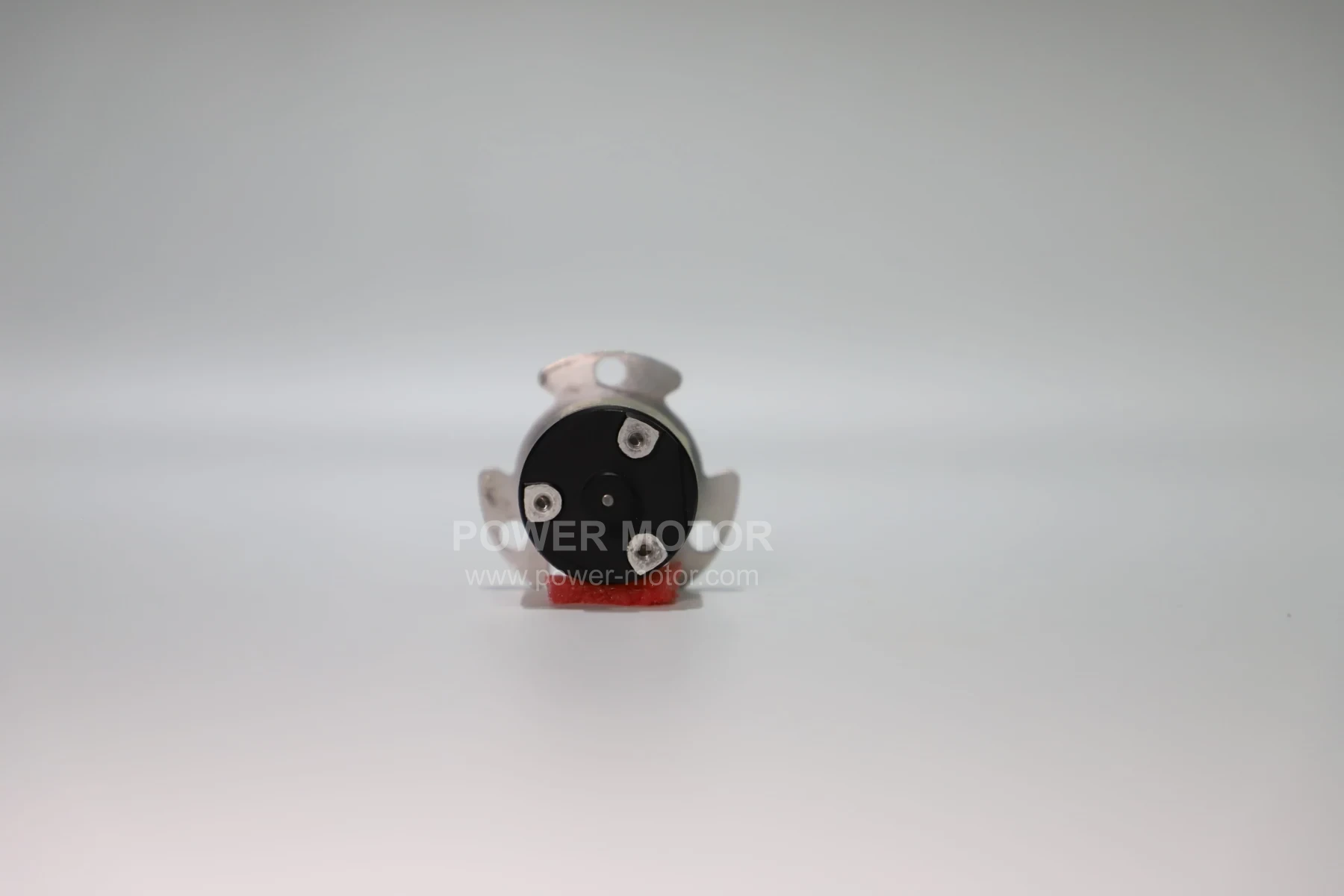

Product views
01

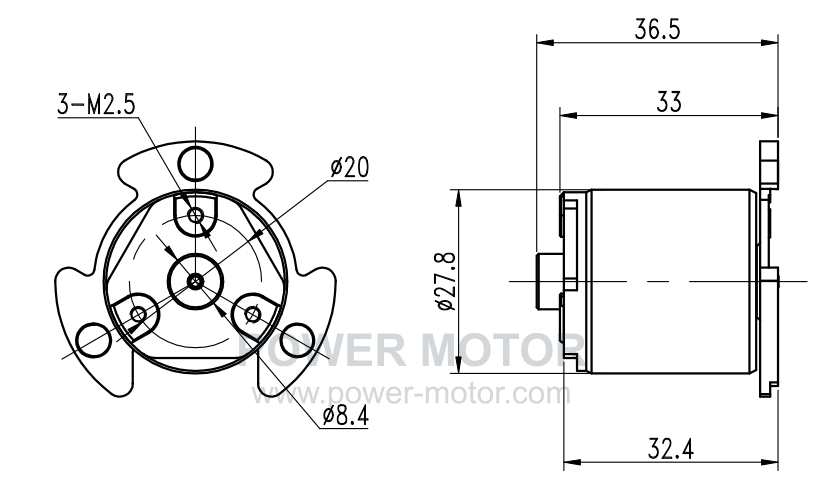

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.2012012-2103 | 11.5-12.5 | 12 | 600 | 0.05 | 600 | 0.05 | / | / | 0.6 |
02
Additional specifications & test conditions
