Product model
PBL.1806
Brushless DC motor
00
Technical profile
- Platform
- PBL.1806
- Specification models
- PBL.1806
- Typical applications
- Electric valve
- Voltage
- 18 V
00

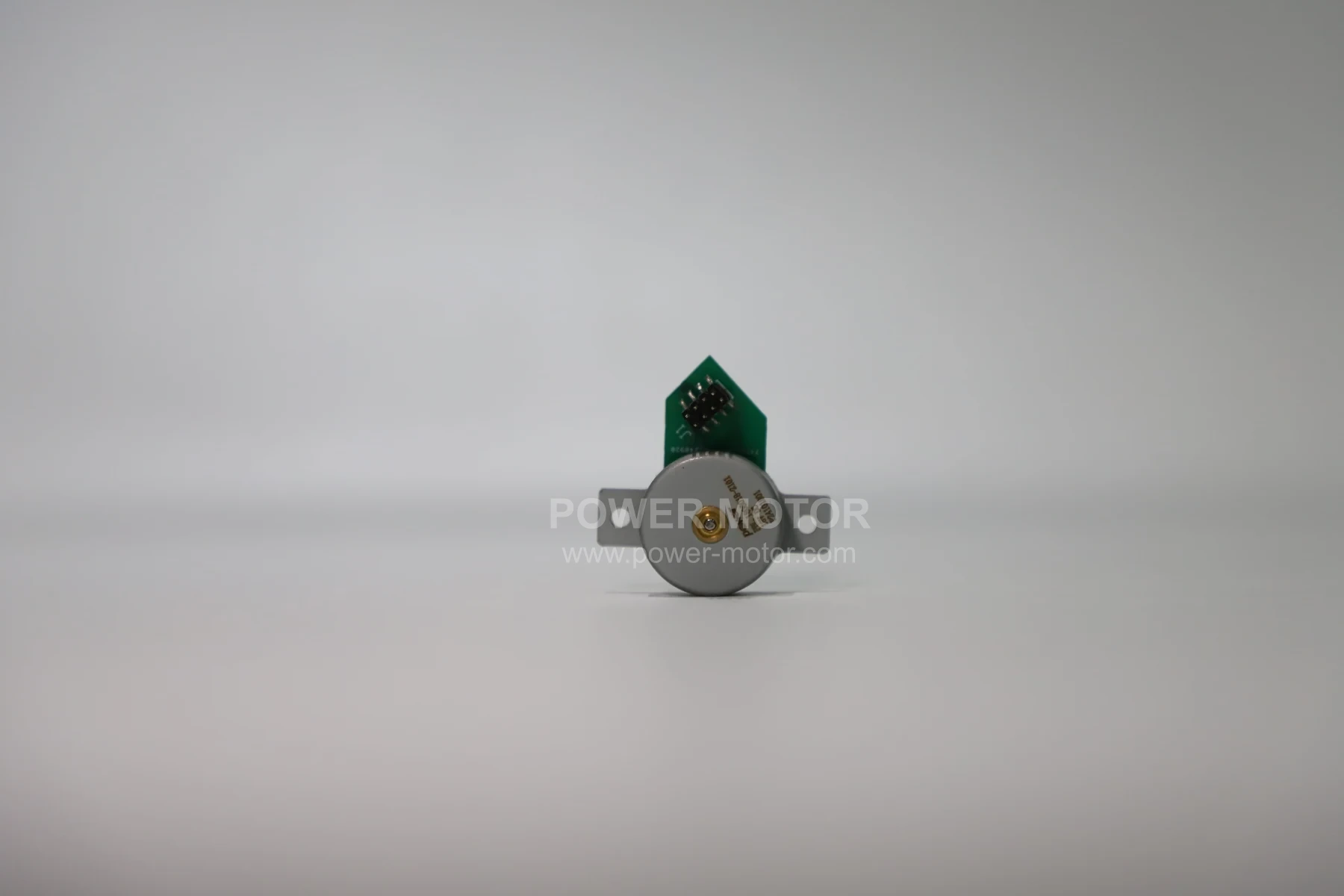

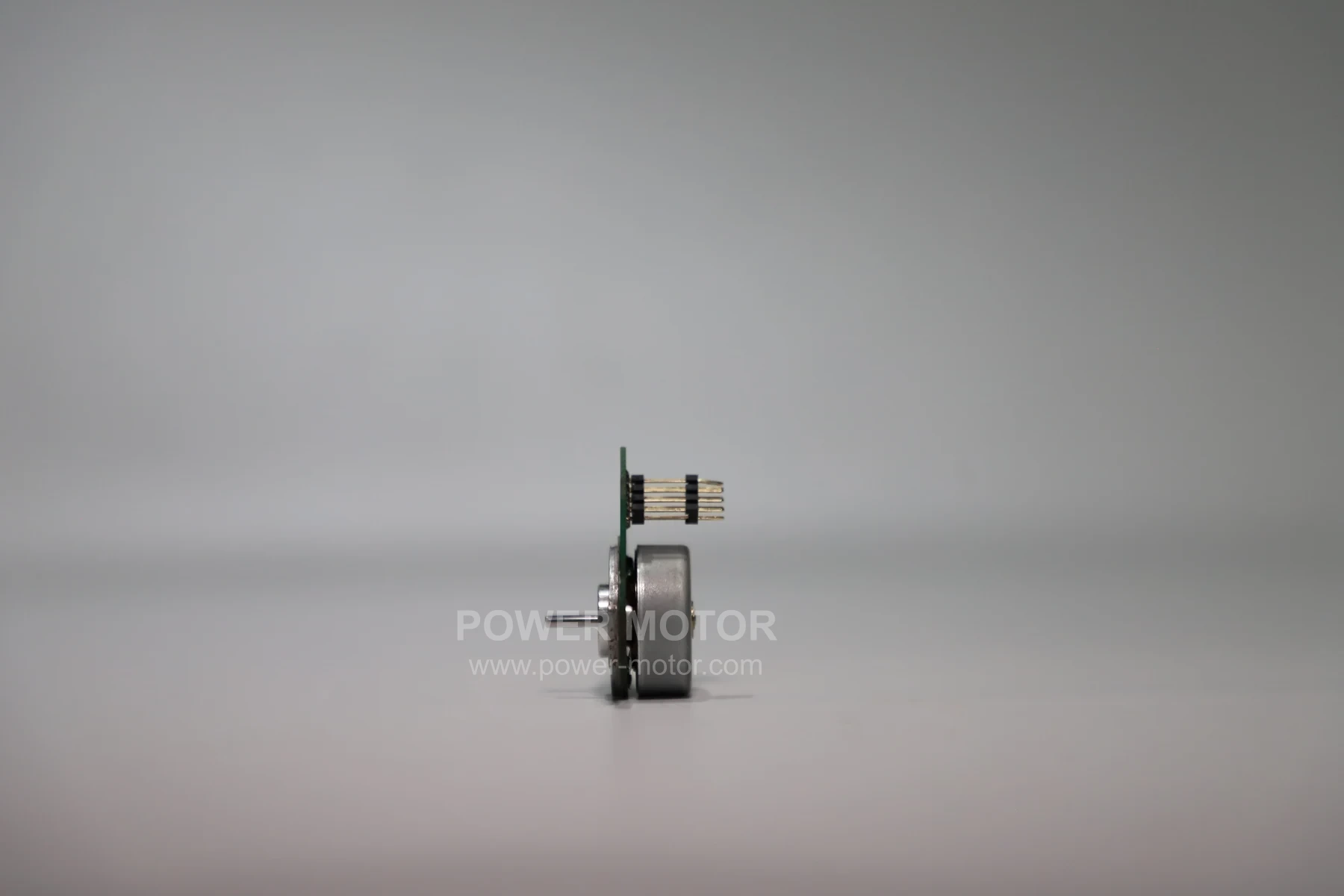

Product views
01

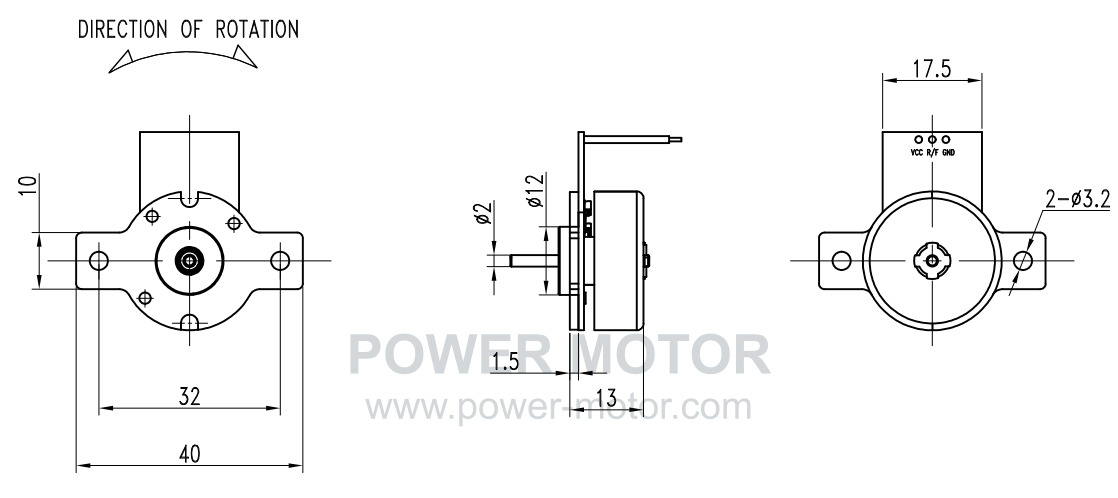

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PBL.1806 | 16-20 | 18 | 5100 | 0.2Max | 3460 | 0.45 | 91.7 | 9 | 3.25 |
03

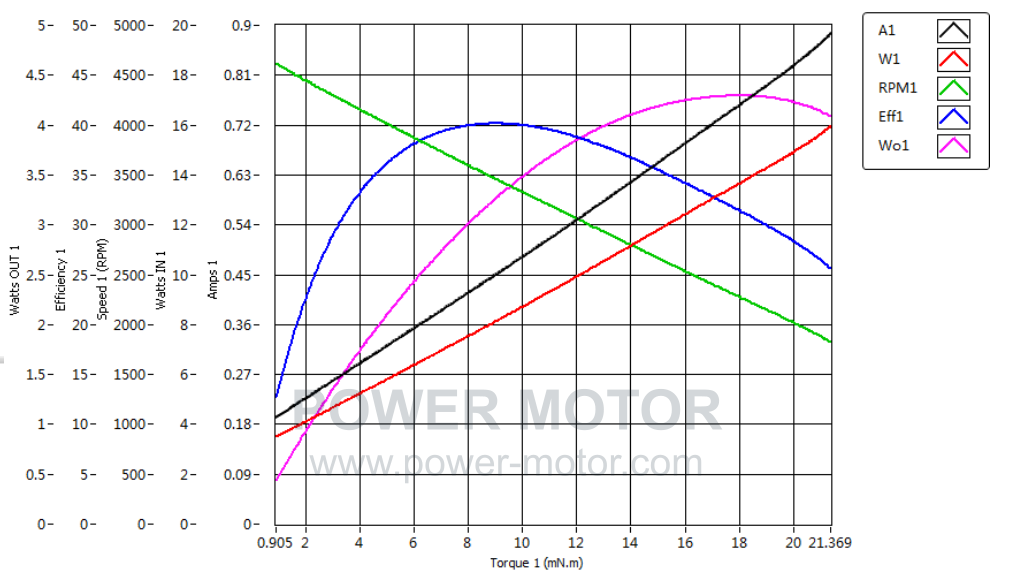

Performance curve
