Product model
PT.60
DC motor
00
Technical profile
- Platform
- PT.60
- Specification models
- PT.60
- Typical applications
- Automatic door
- Voltage
- 24 V
00

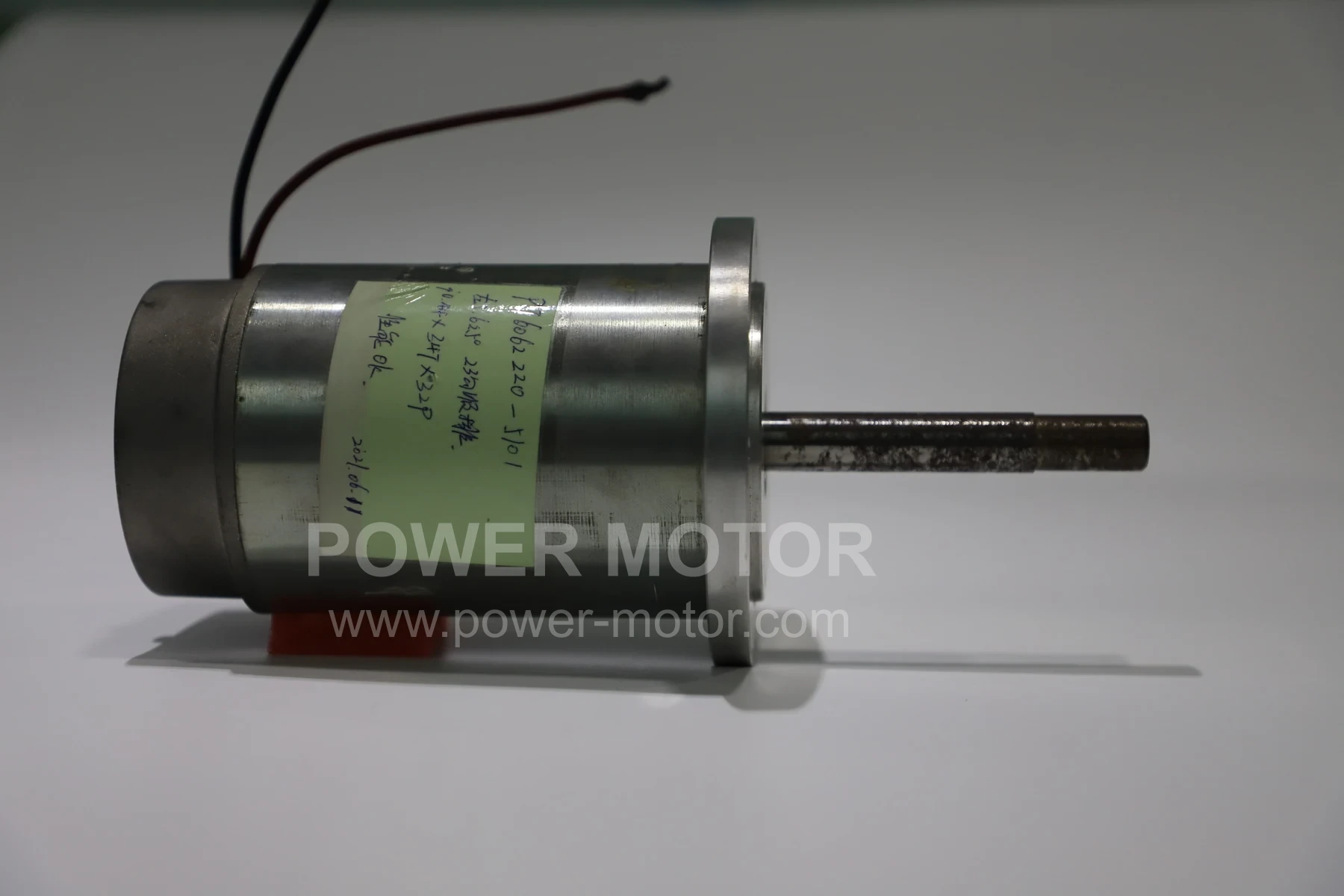

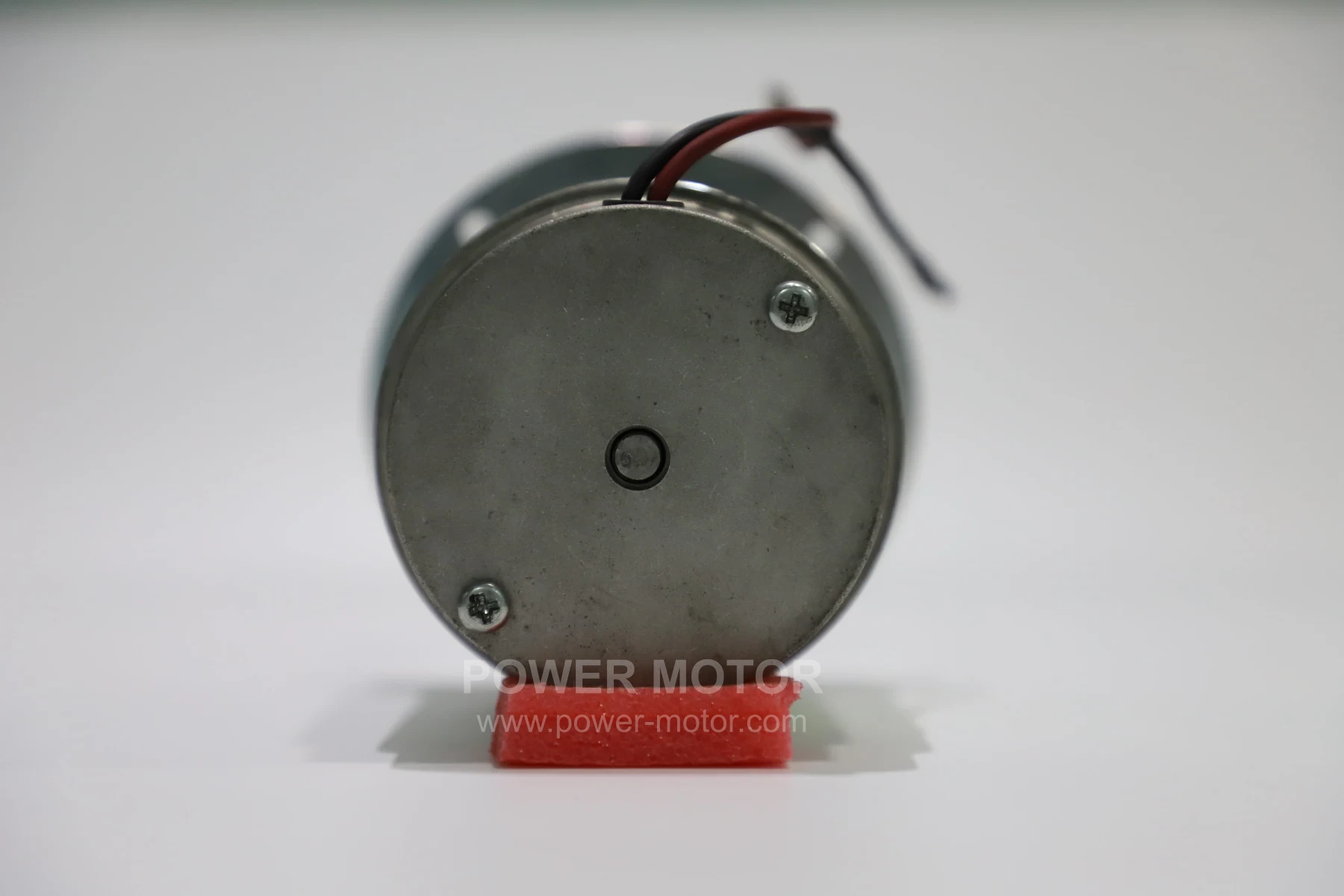

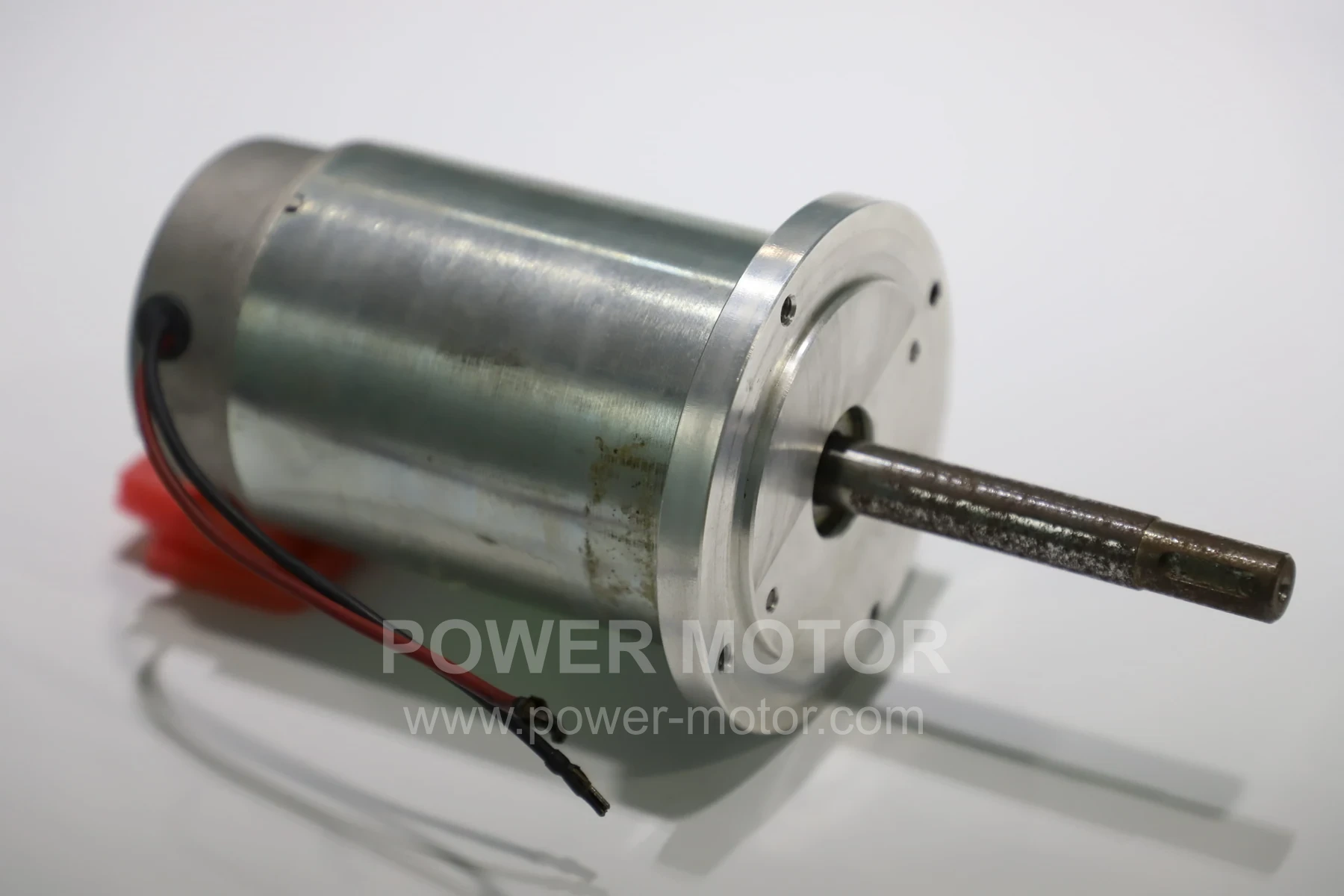

Product views
01

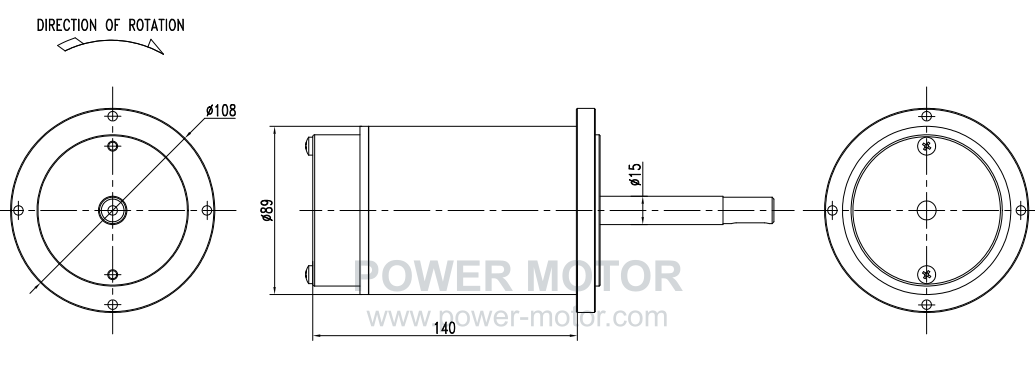

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.60 | 12-24 | 24 | 2600 | 1.7Max | 2090 | 7.7 | 6517 | 639 | 140 |
03

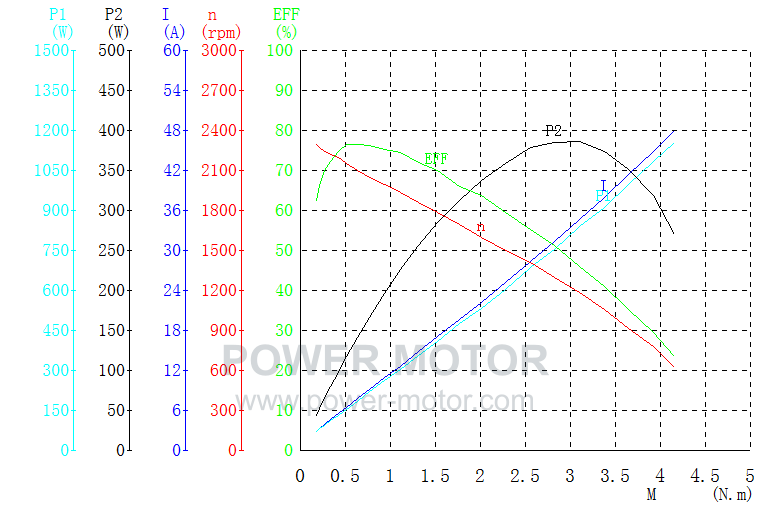

Performance curve
