Product model
PT.5240
DC motor
00
Technical profile
- Platform
- PT.5240
- Specification models
- PT.5240
- Typical applications
- Water pump
- Voltage
- 230 V
00

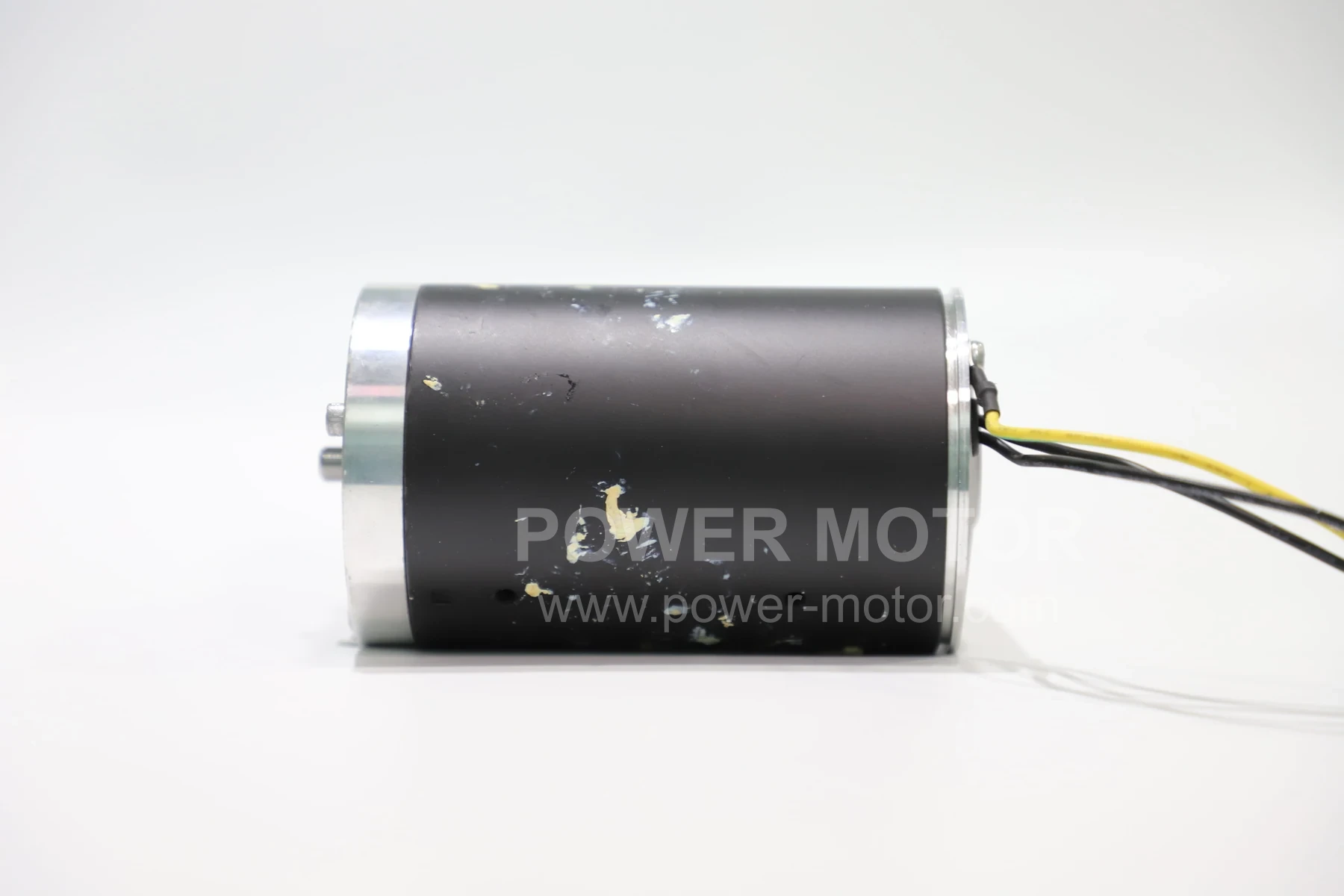

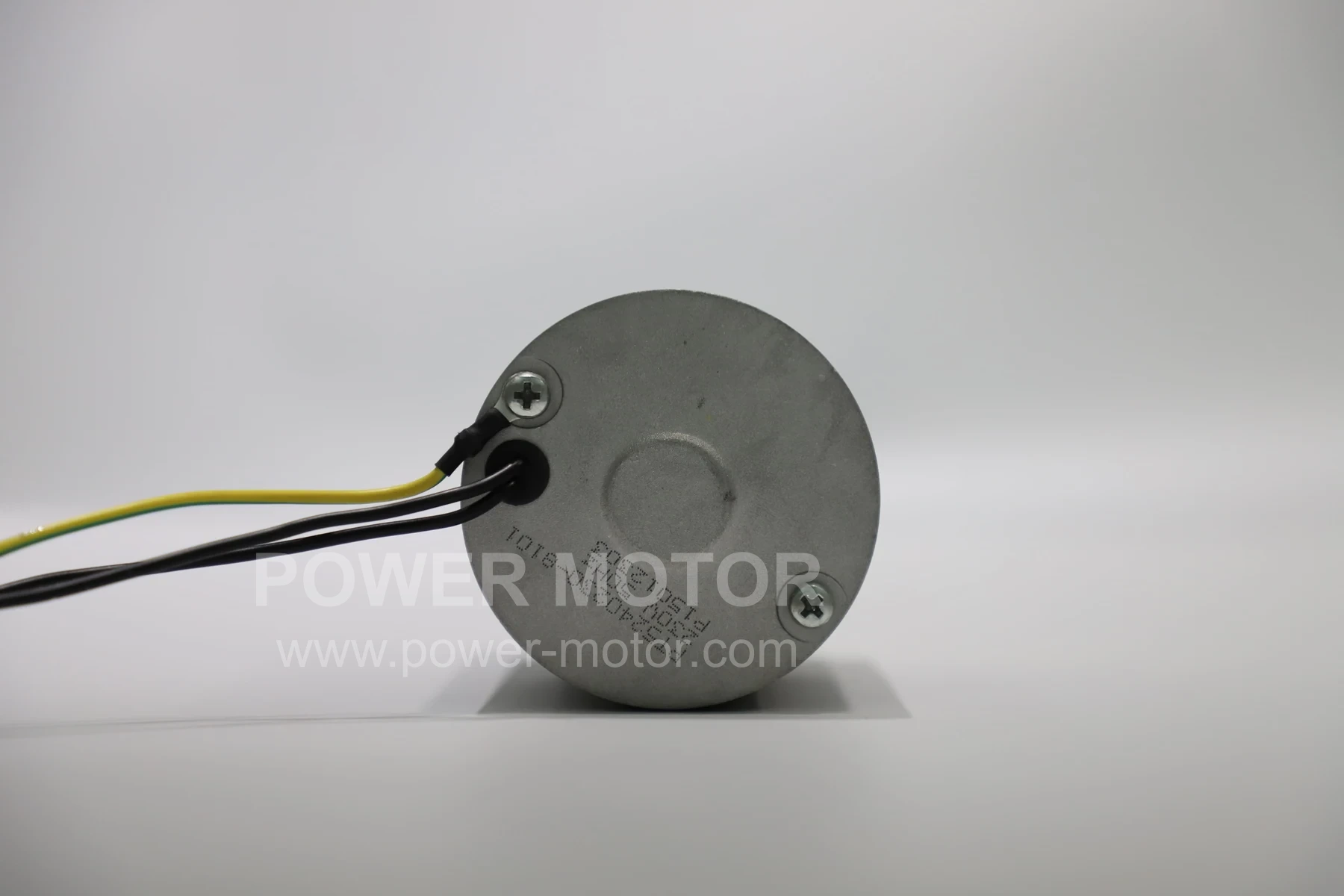

Product views
01

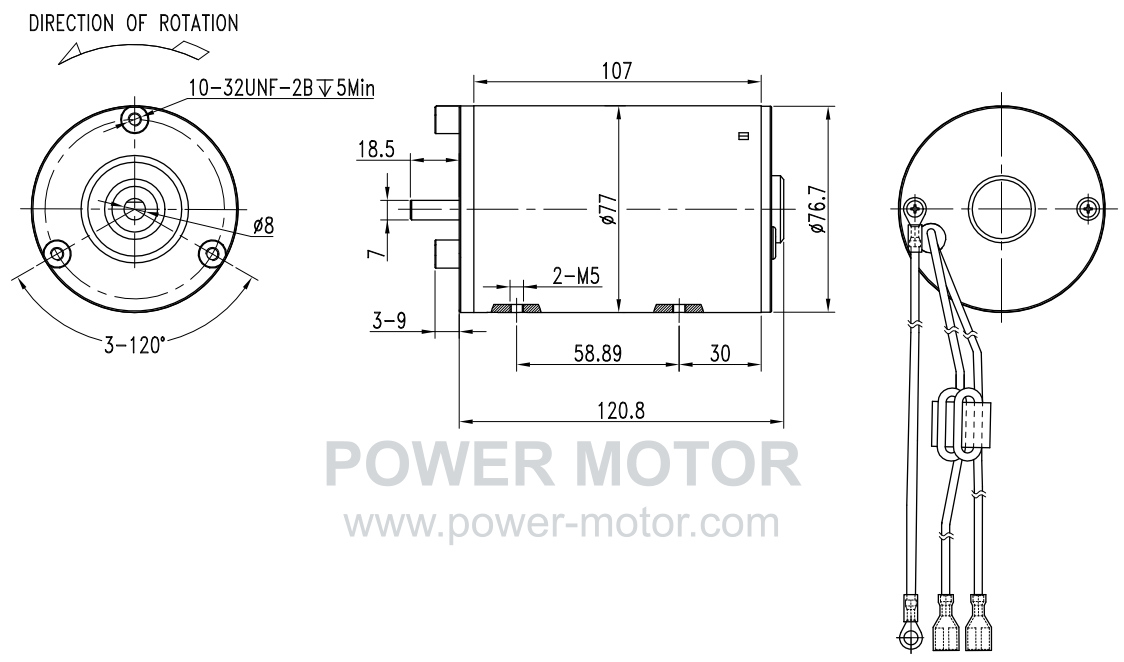

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.5240 | 220-240 | 230 | 2650 | 0.14Max | 1827 | 0.386 | 2019 | 258 | 49 |
03

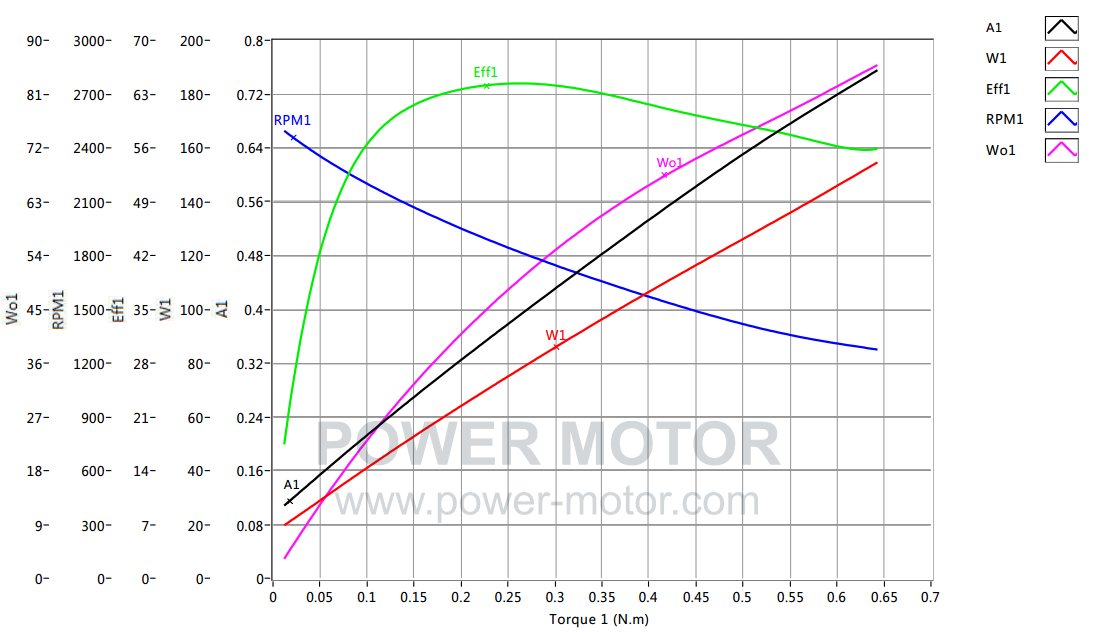

Performance curve
