Product model
PT.48
DC motor
00
Technical profile
- Platform
- PT.48
- Specification models
- PT.48
- Typical applications
- Electric actuator
- Voltage
- 24 V
00

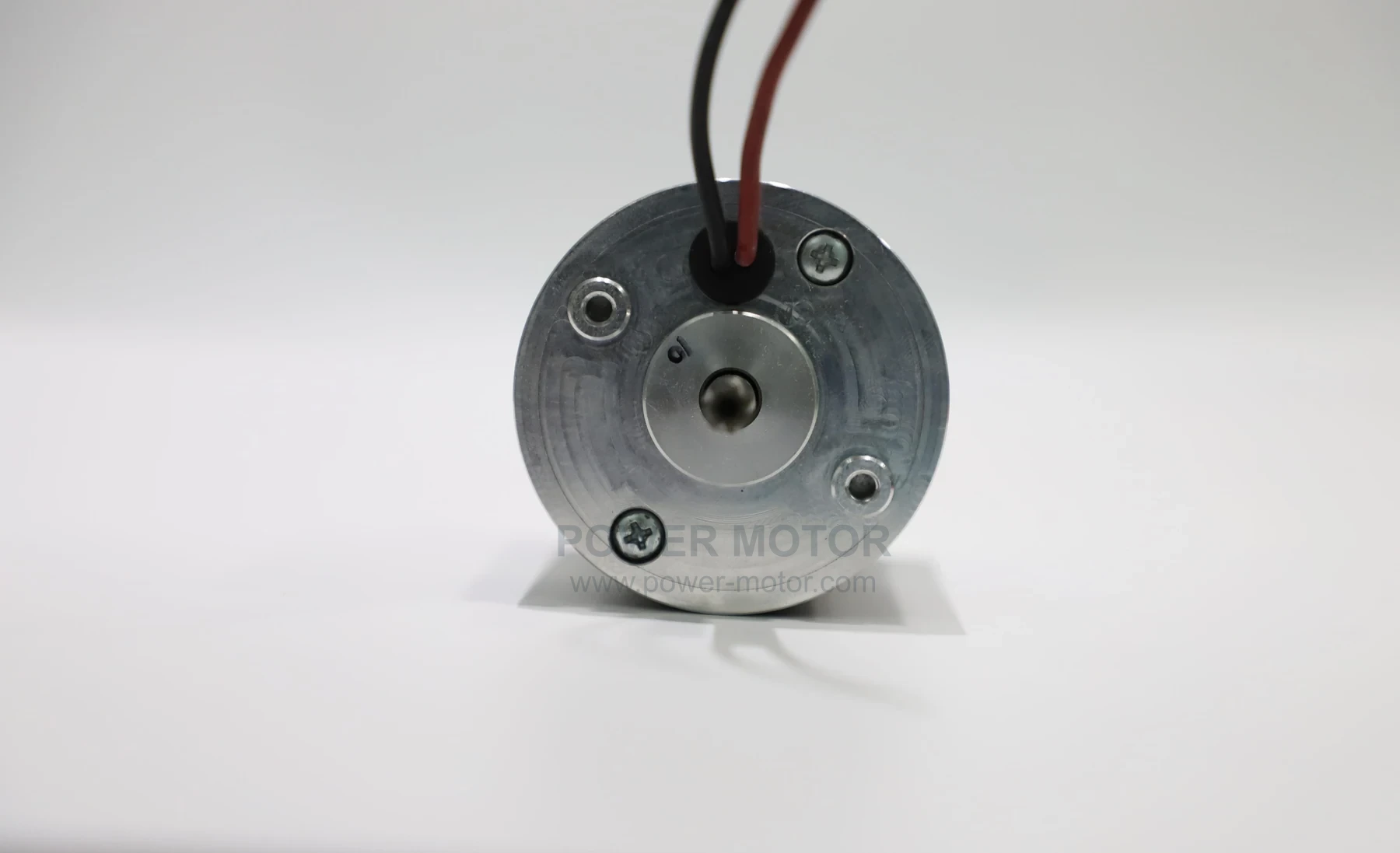

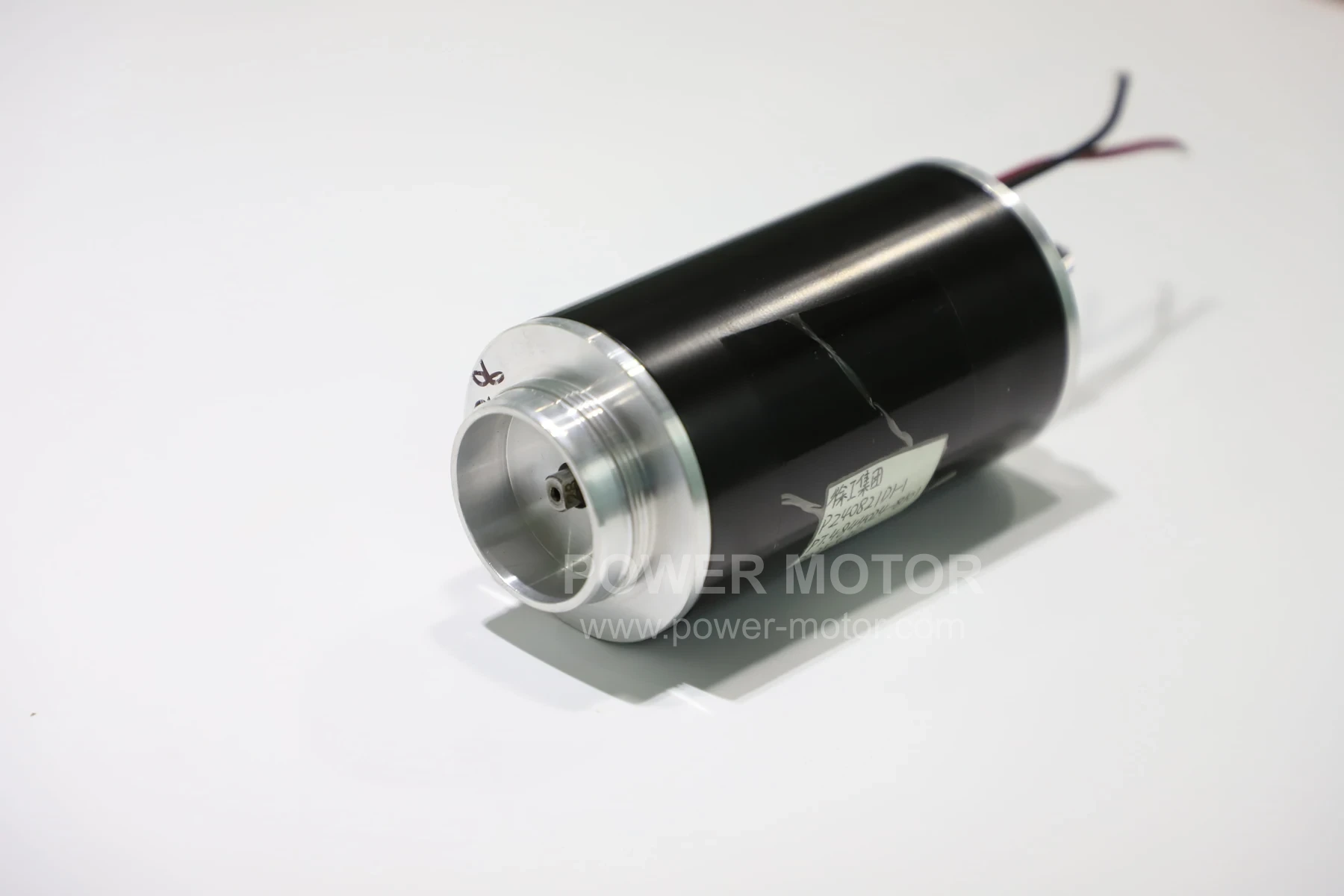

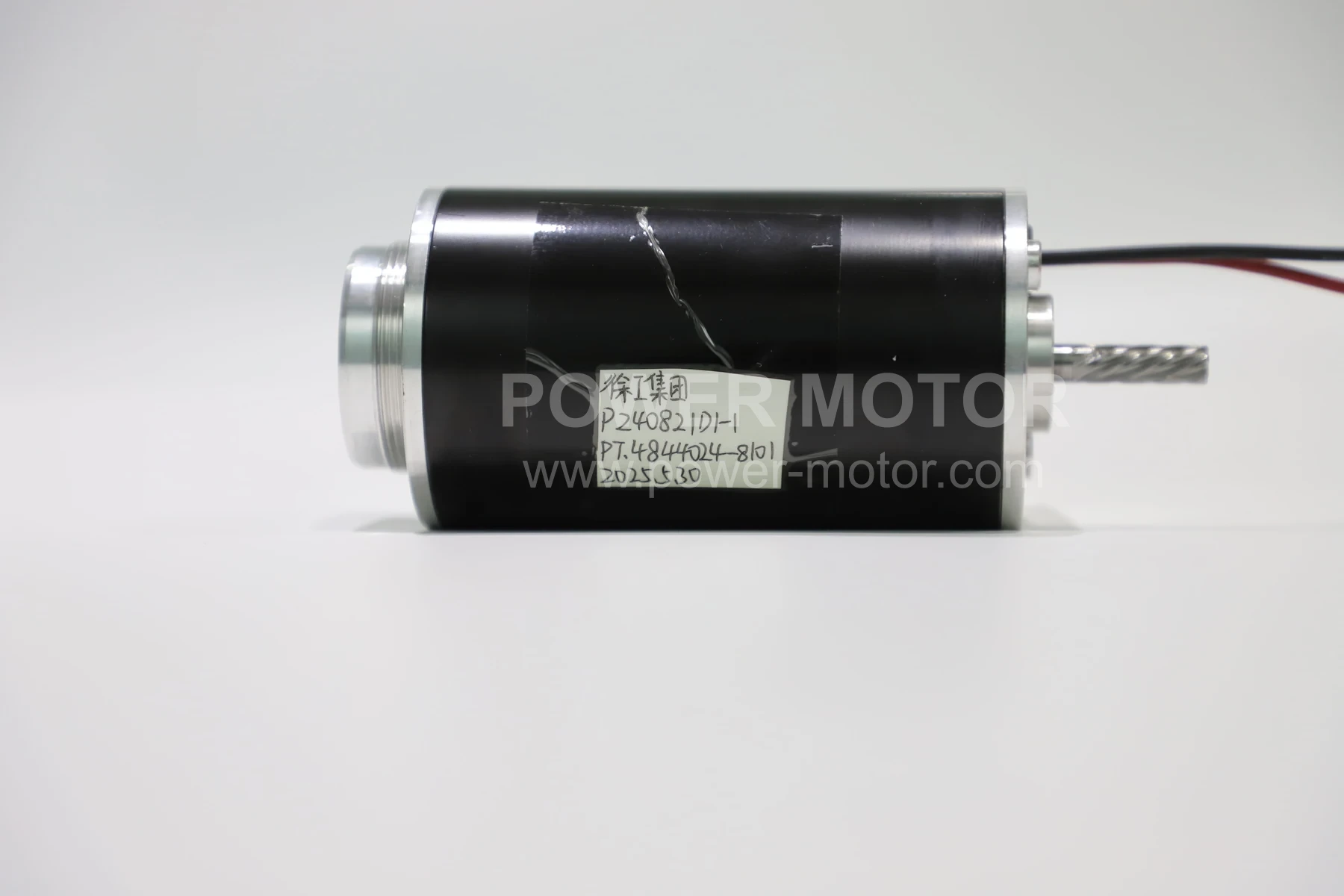

Product views
01

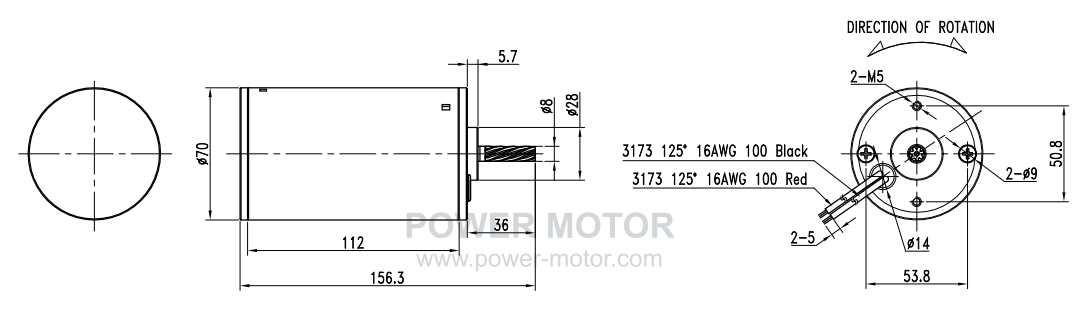

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.48 | 22-26 | 24 | 4150 | 0.8Max | 3748 | 4.8 | 2478 | 243 | 95.3 |
03

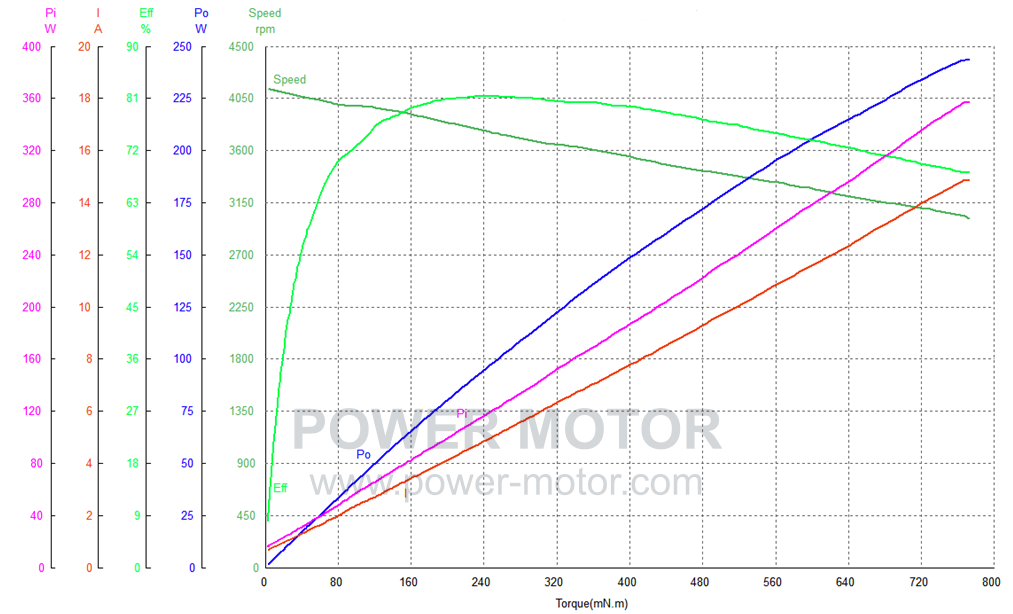

Performance curve
