Product model
PT.4434
DC motor
00
Technical profile
- Platform
- PT.4434
- Specification models
- PT.4434024-0101
- Typical applications
- Mining truck gearshift motor
- Voltage
- 24VDC
00

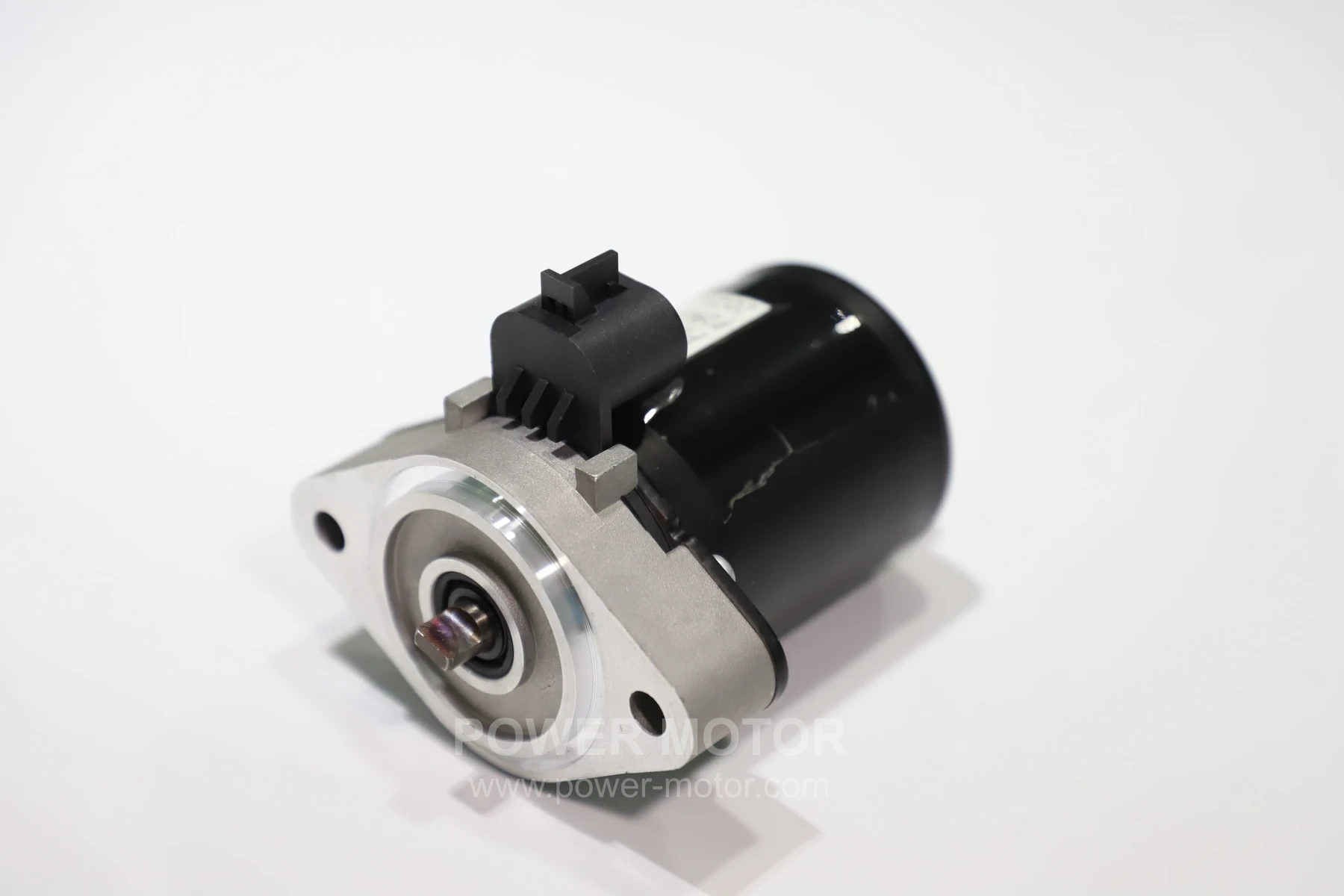

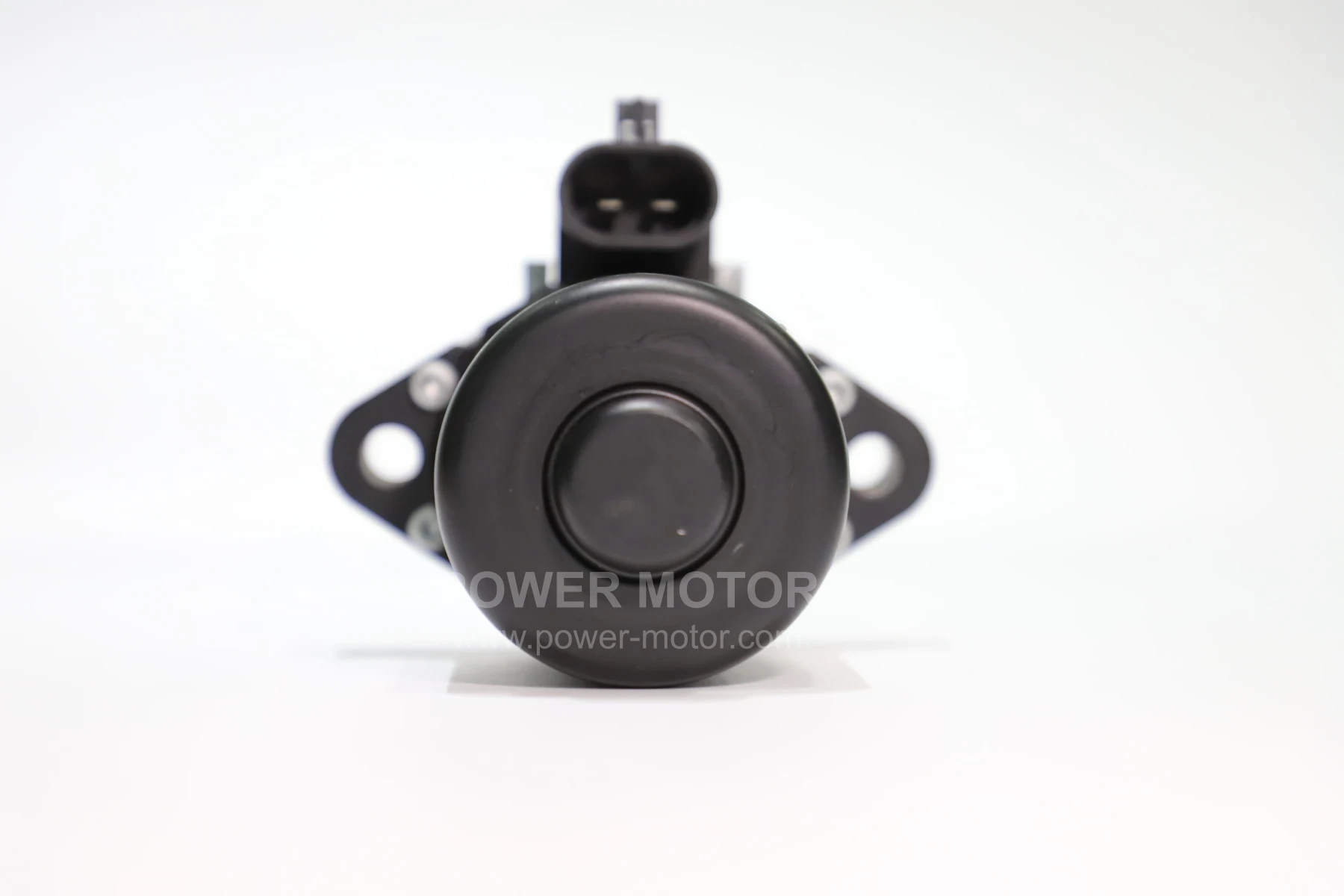

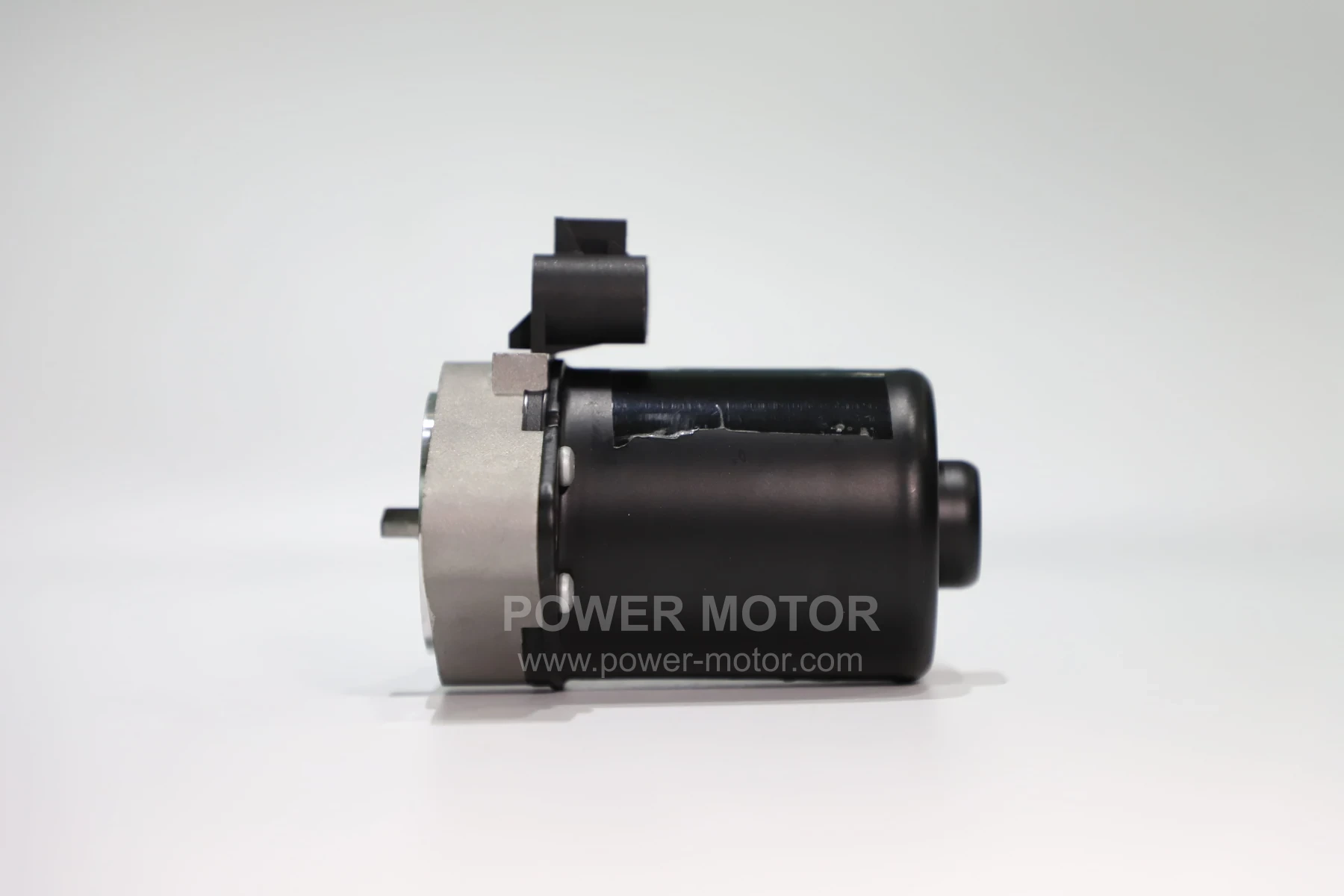

Product views
01

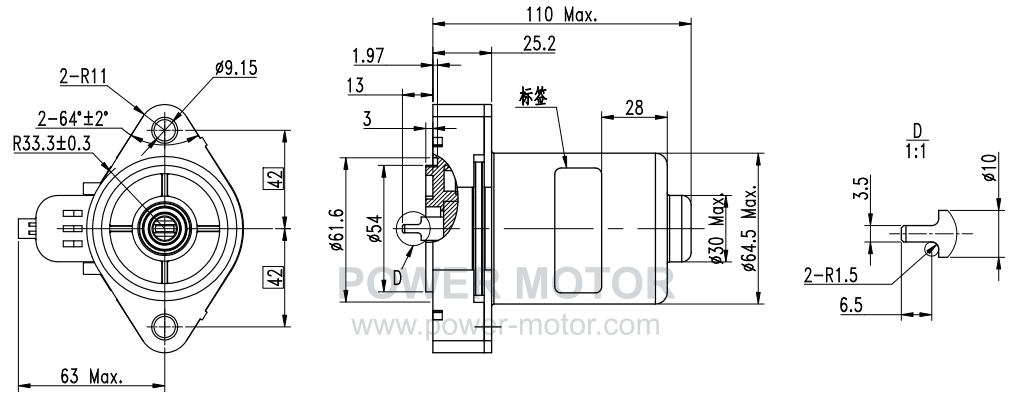

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.4434024-0101 | 23.8-24.2VDC | 24VDC | 4200±10% | 2MAX | 3600±10% | 11MAX | 3061 | 300 | 105 |
03

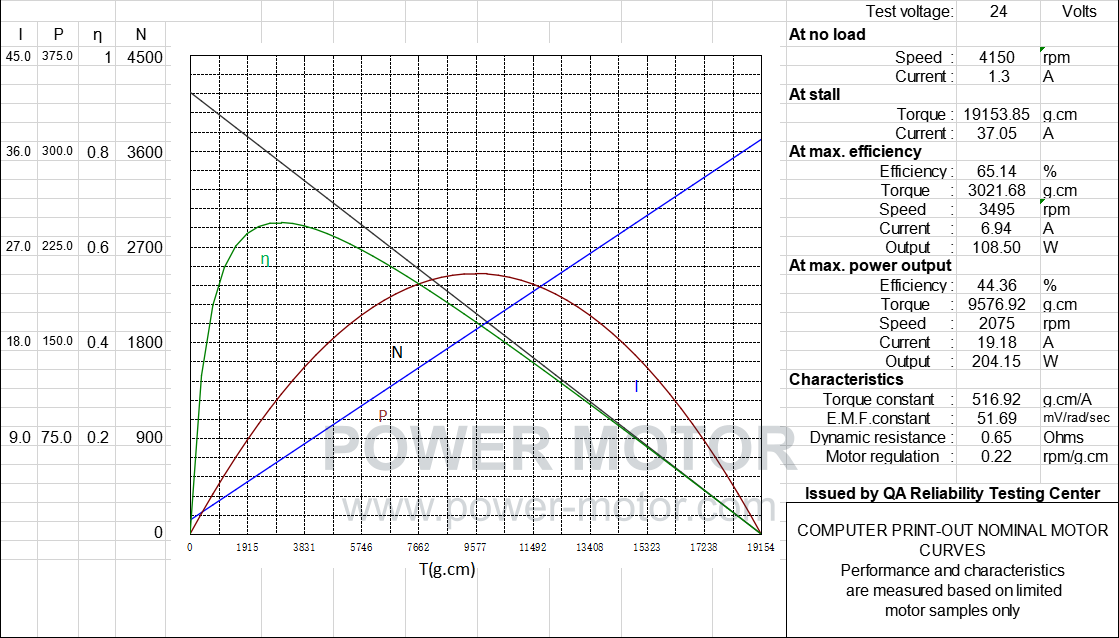

Performance curve
