Product model
PT.4230
DC motor
00
Technical profile
- Platform
- PT.4230
- Specification models
- PT.4230
- Typical applications
- Meat grinder
- Voltage
- 230 V
00

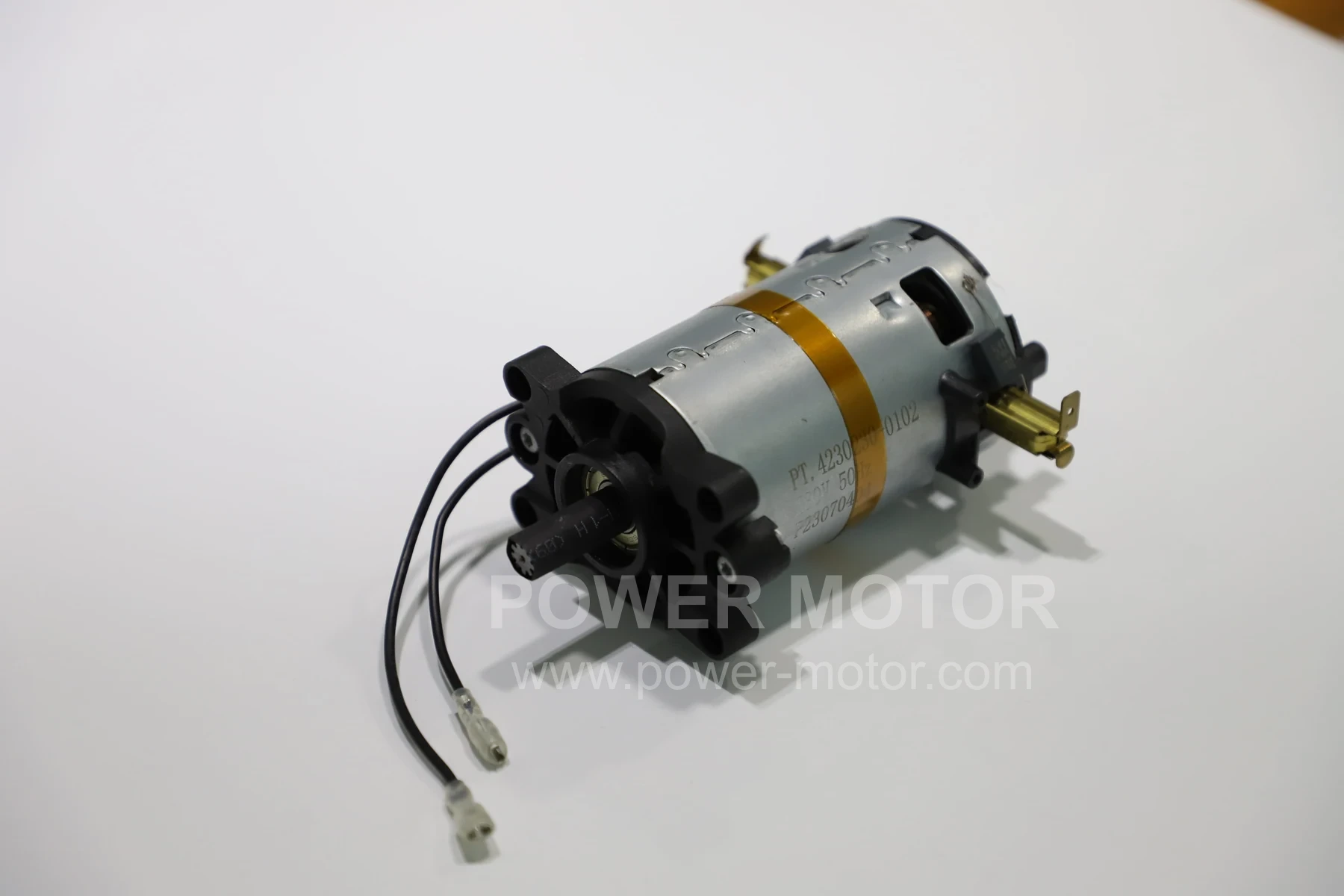

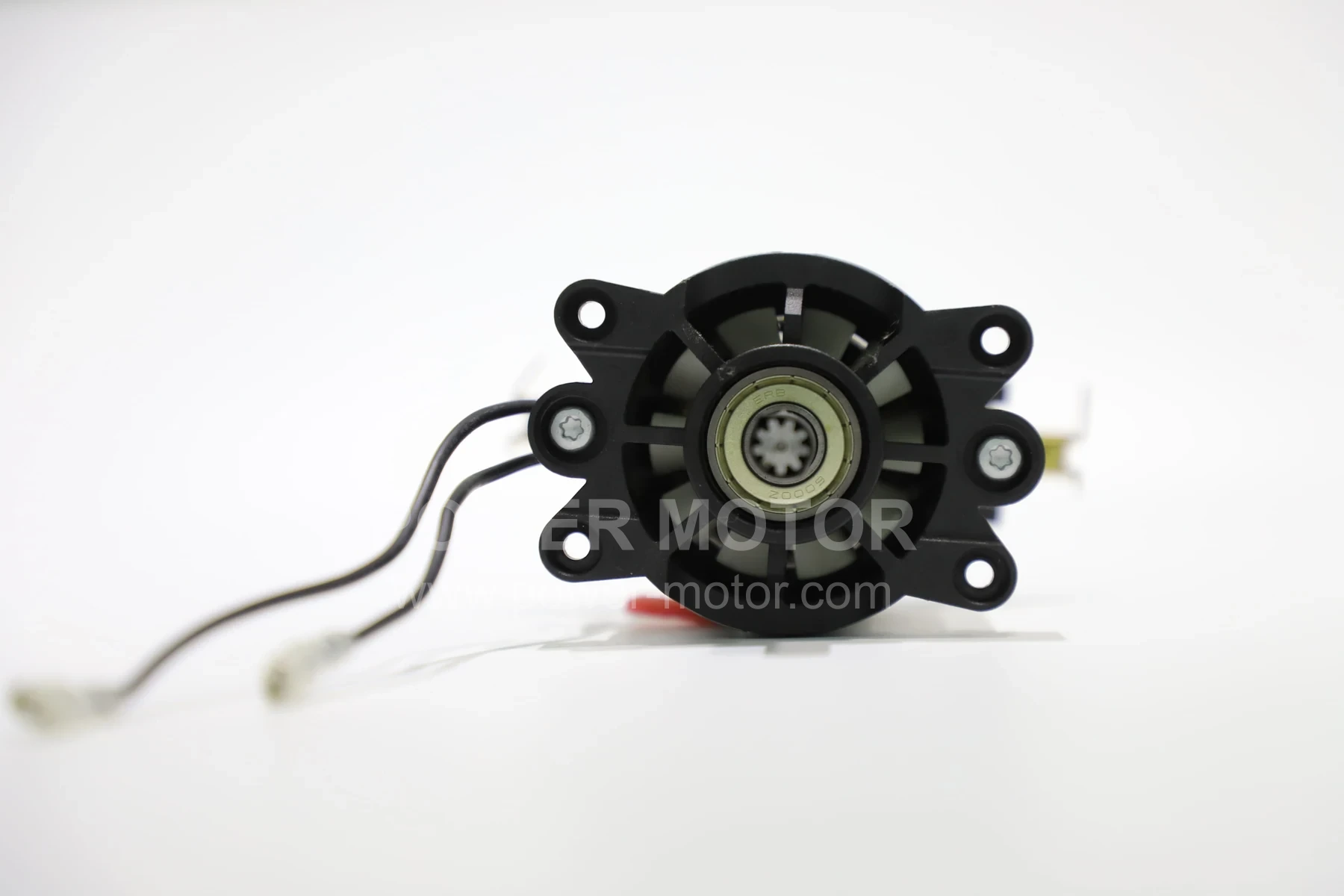

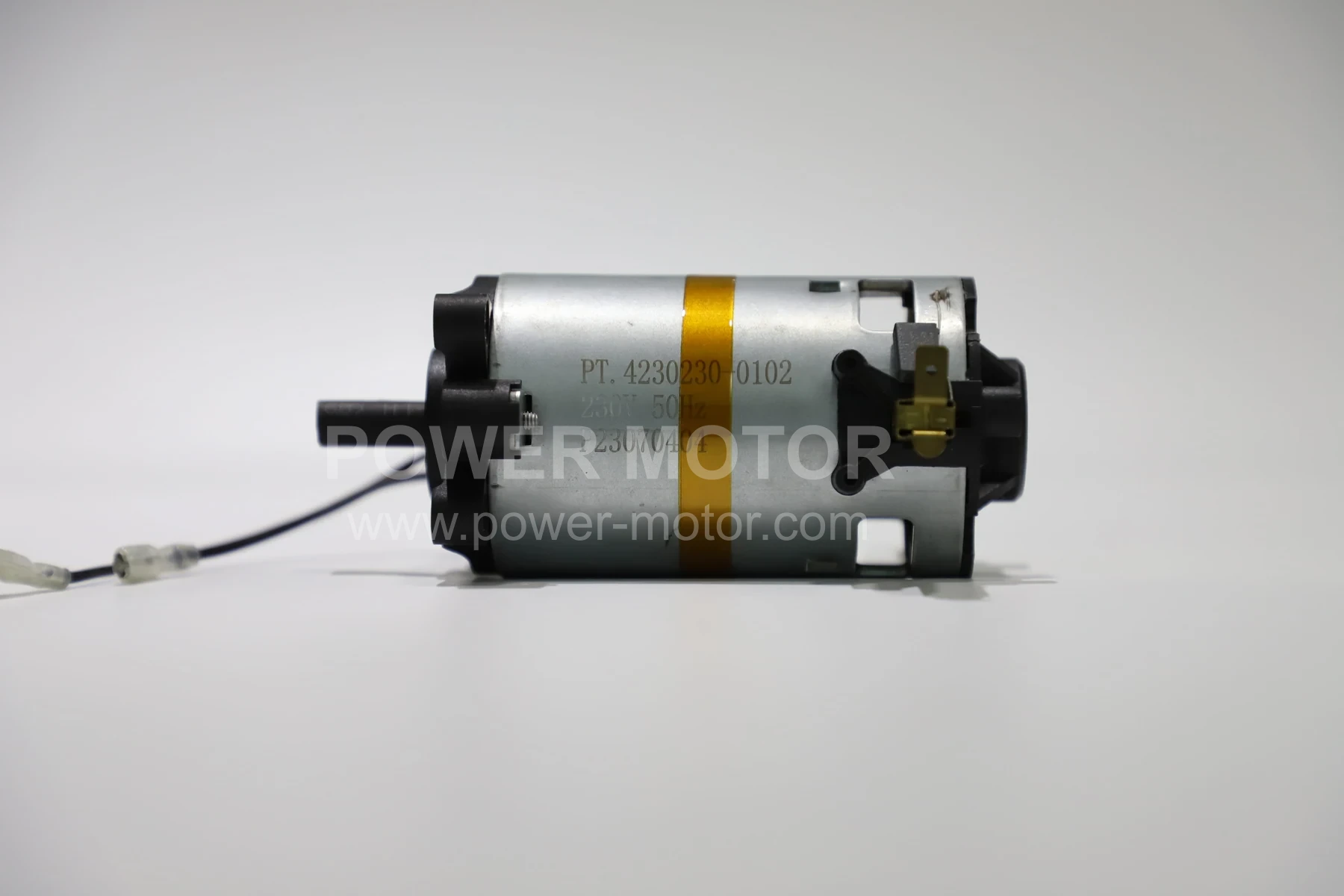

Product views
01

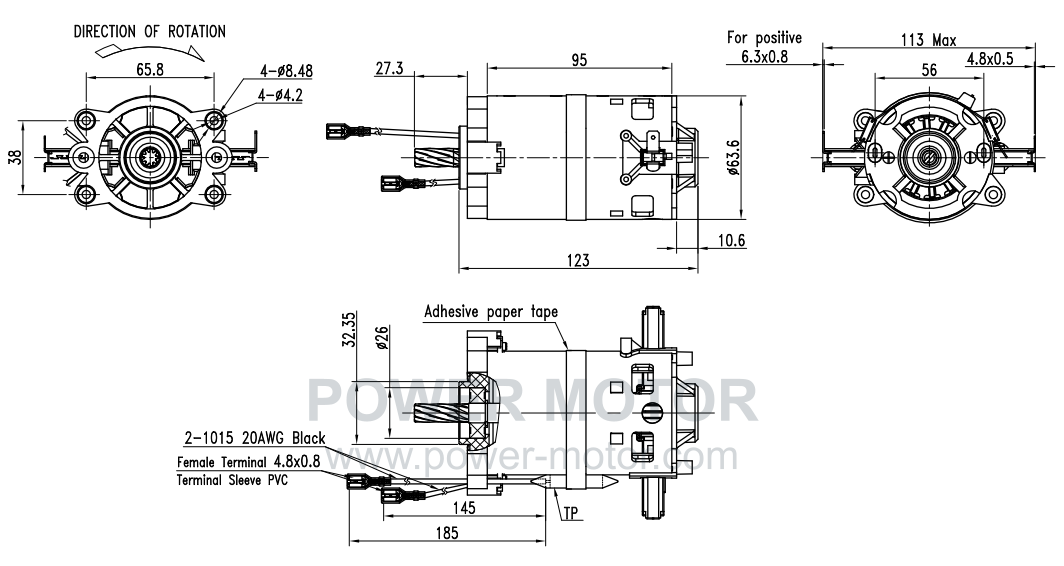

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.4230 | 220-240 | 230 | 14200 | 0.72Max | 11000 | 1.87 | 2264 | 222 | 257 |
03

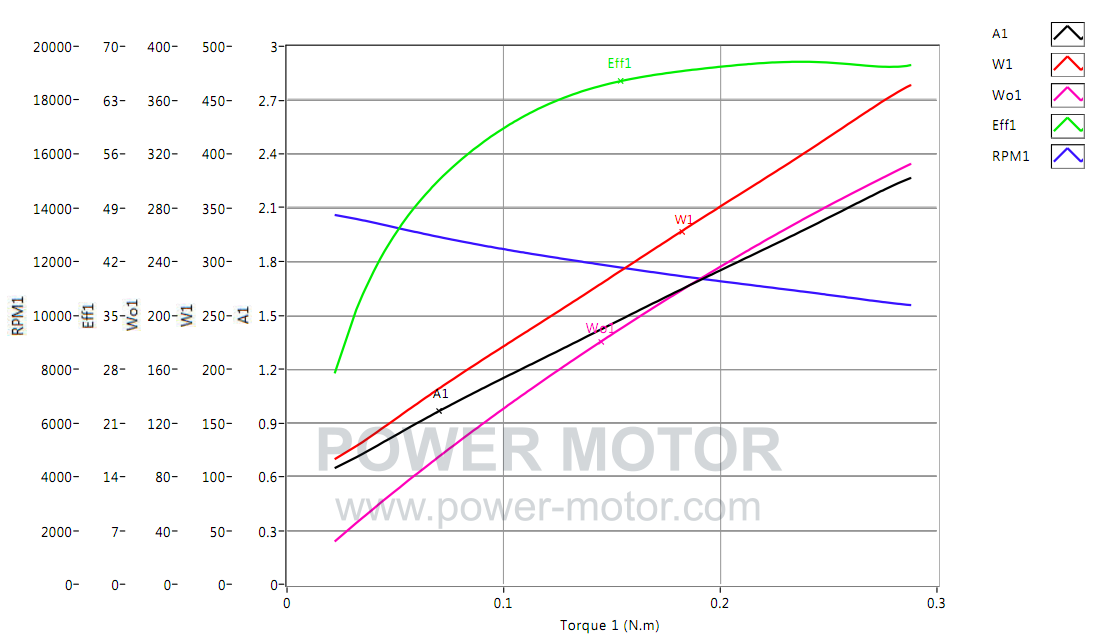

Performance curve
