Product model
PT.3250
DC motor
00
Technical profile
- Platform
- PT.3250
- Specification models
- PT.3250012-9108
- Typical applications
- Mining truck gearshift motor
- Voltage
- 12VDC
00

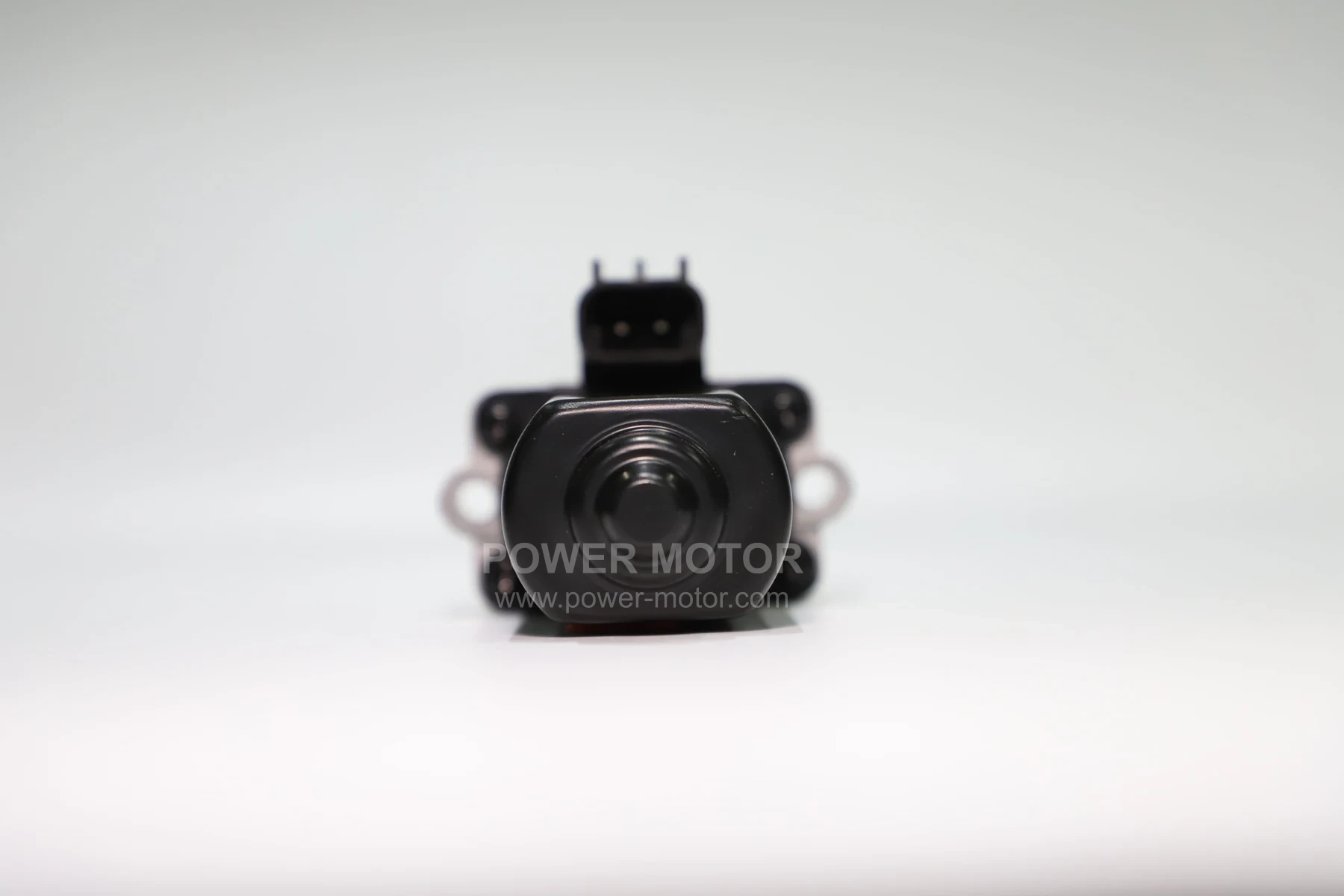

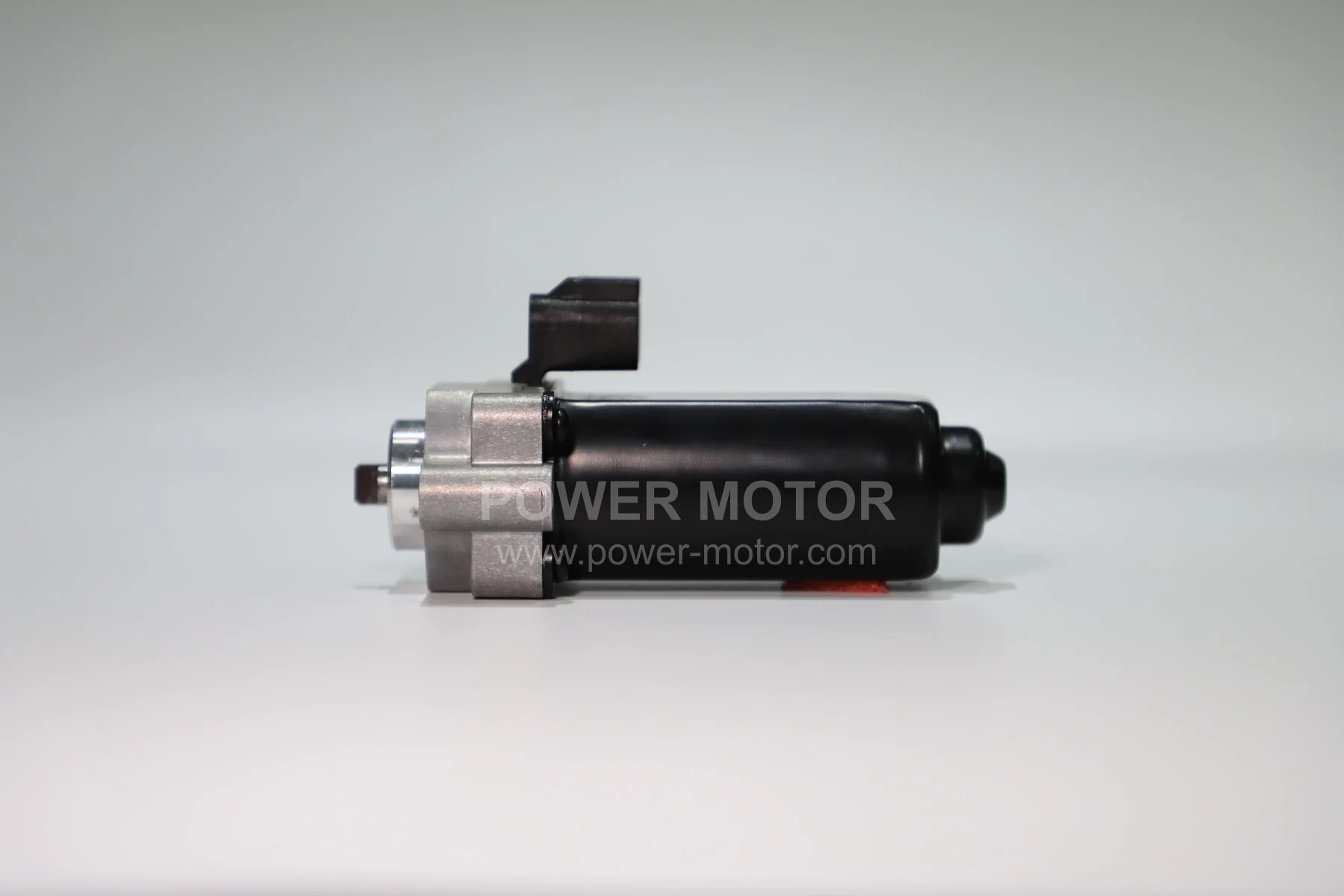

Product views
01

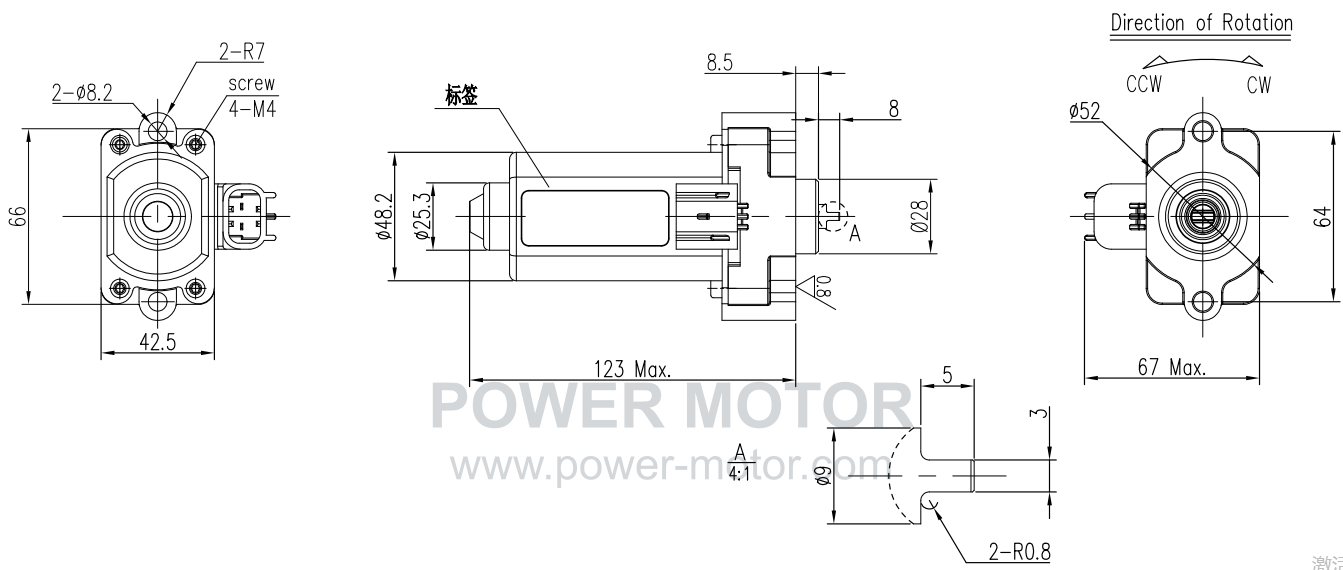

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.3250012-9108 | 12±2VDC | 12VDC | 5160±15% | 5MAX | 4000±10% | 15MAX | 170 | 65 |
03

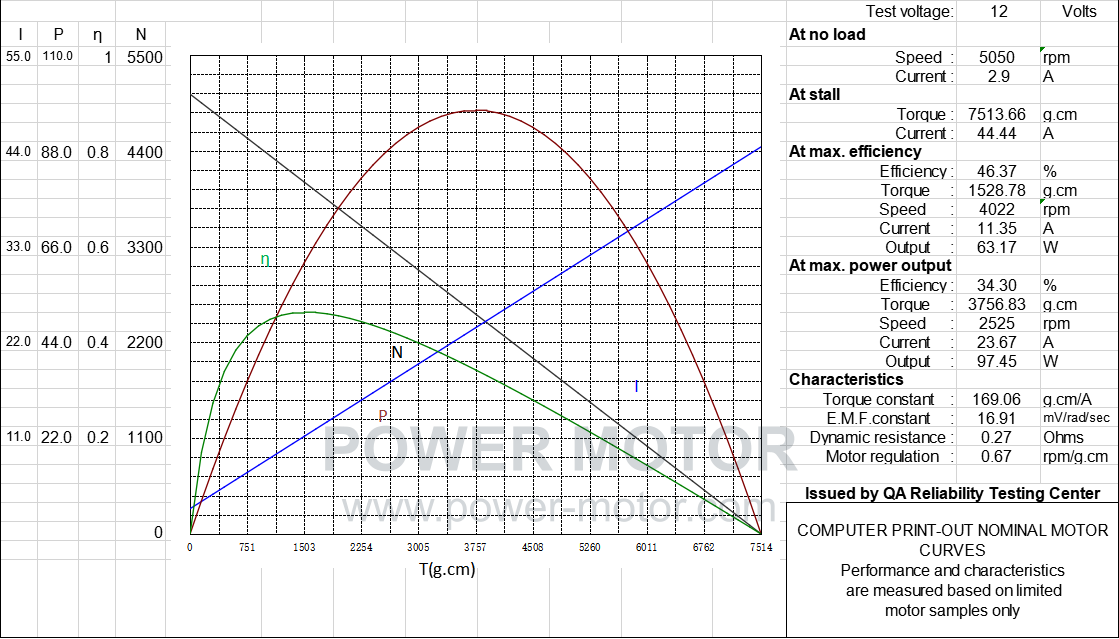

Performance curve
