Product model
PT.3033
DC motor
00
Technical profile
- Platform
- PT.3033
- Specification models
- PT.3033
- Typical applications
- Food processor
- Voltage
- 230 V
00

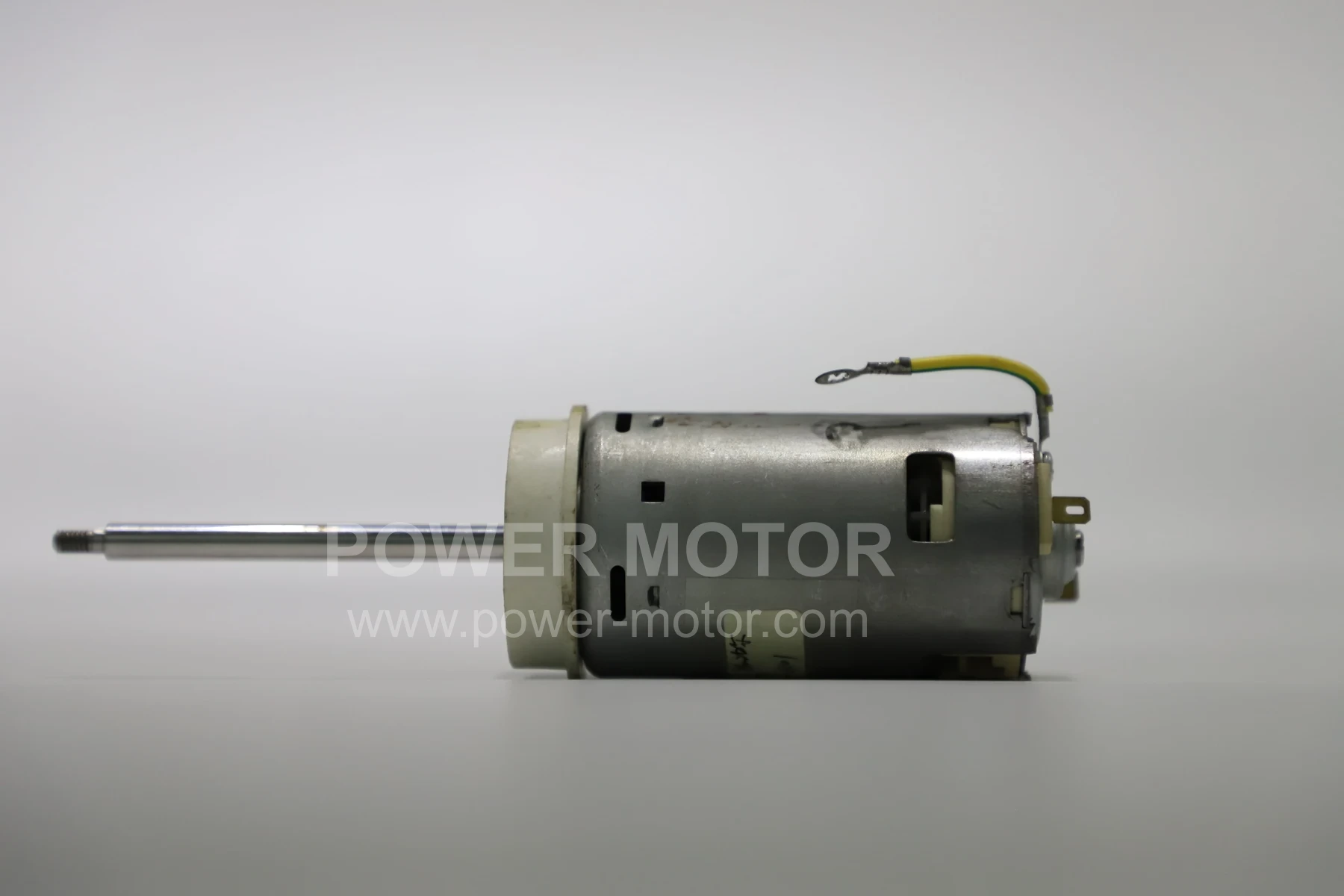

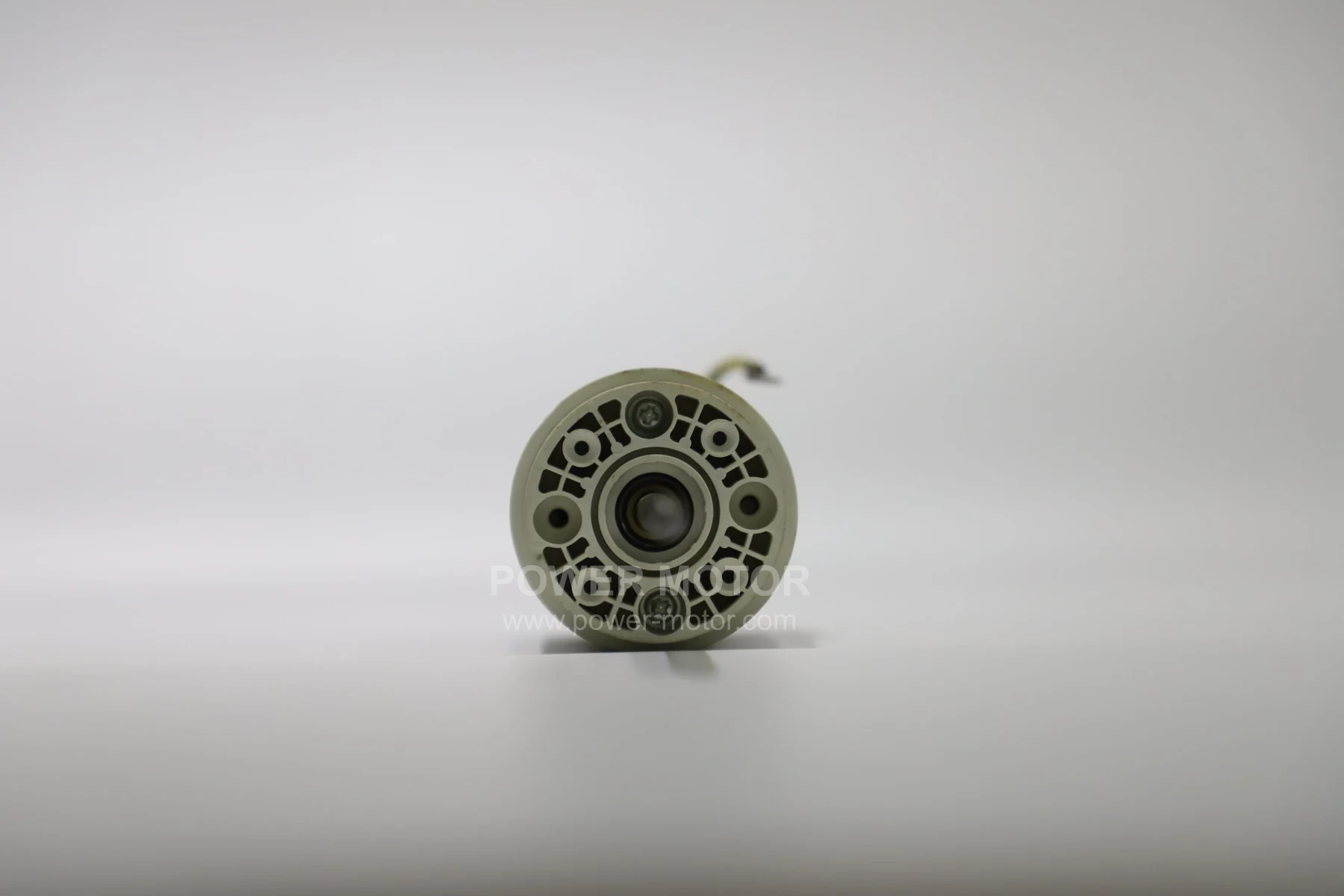

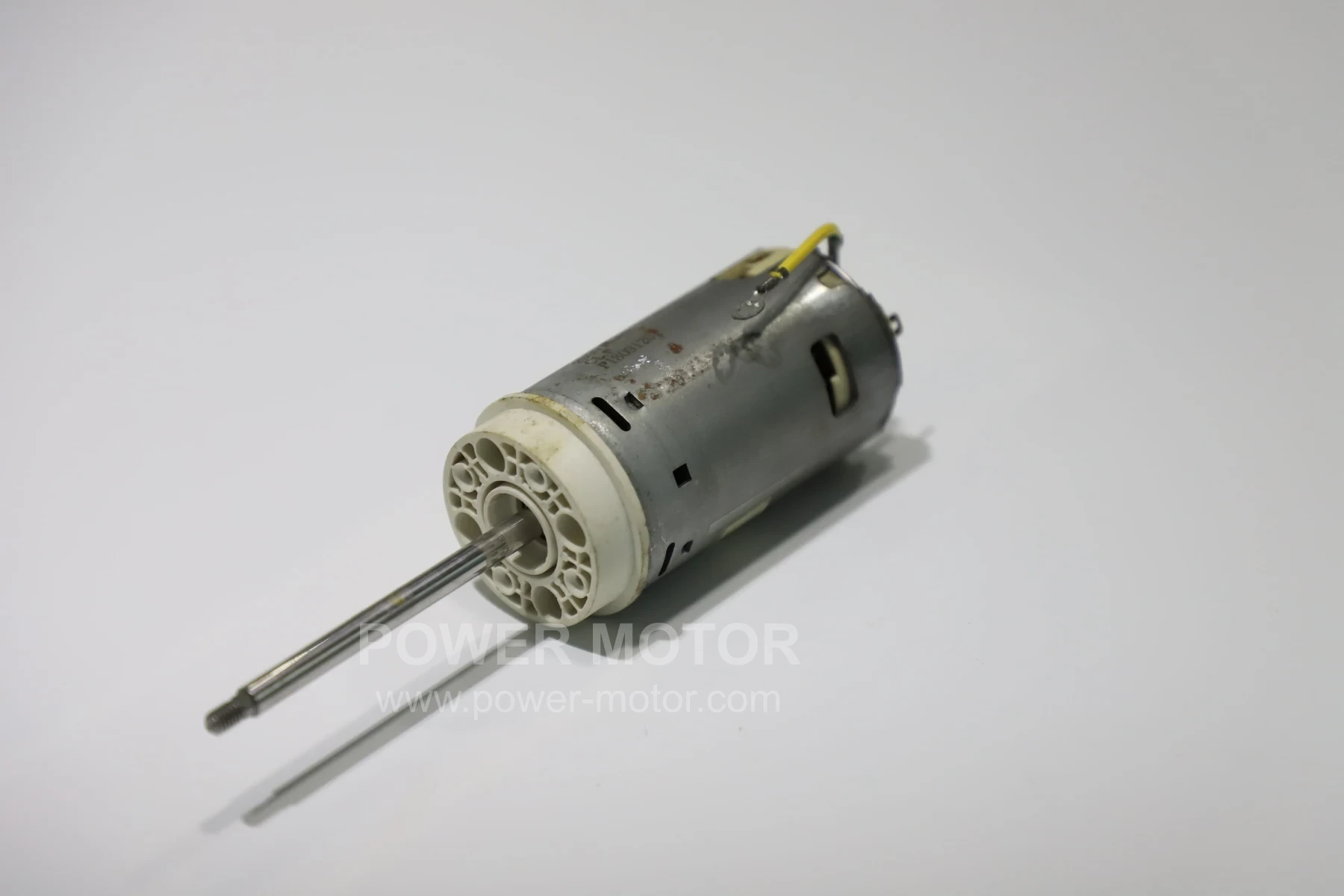

Product views
01

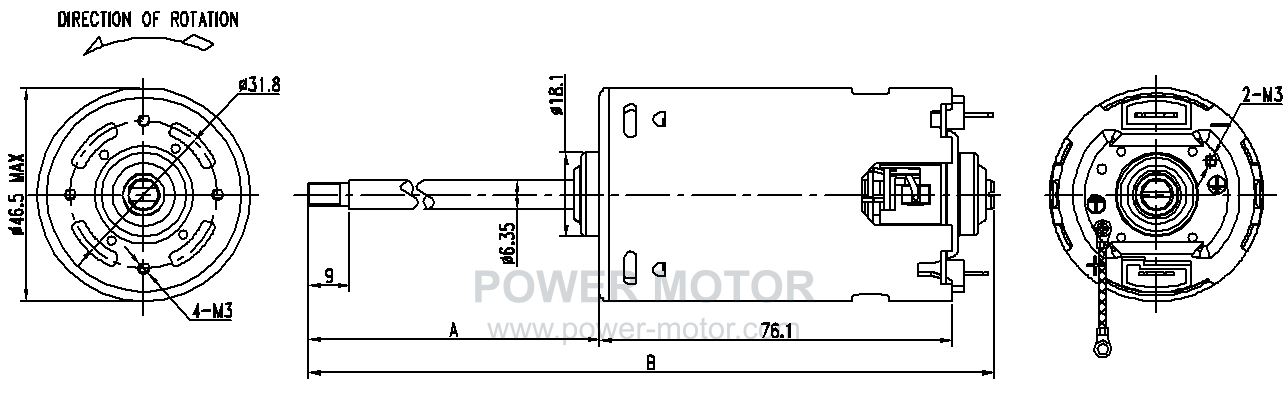

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.3033 | 220-240 | 230 | 12500 | 0.8Max | 11500 | 1.2 | 505 | 50 | 120 |
03

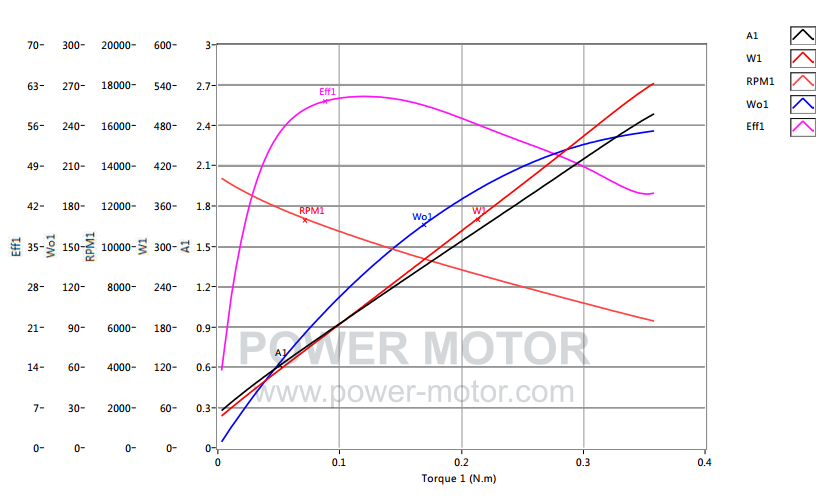

Performance curve
