Product model
PT.2630
DC motor
00
Technical profile
- Platform
- PT.2630
- Specification models
- PT.2630
- Typical applications
- Medical pump
- Voltage
- 24 V
00

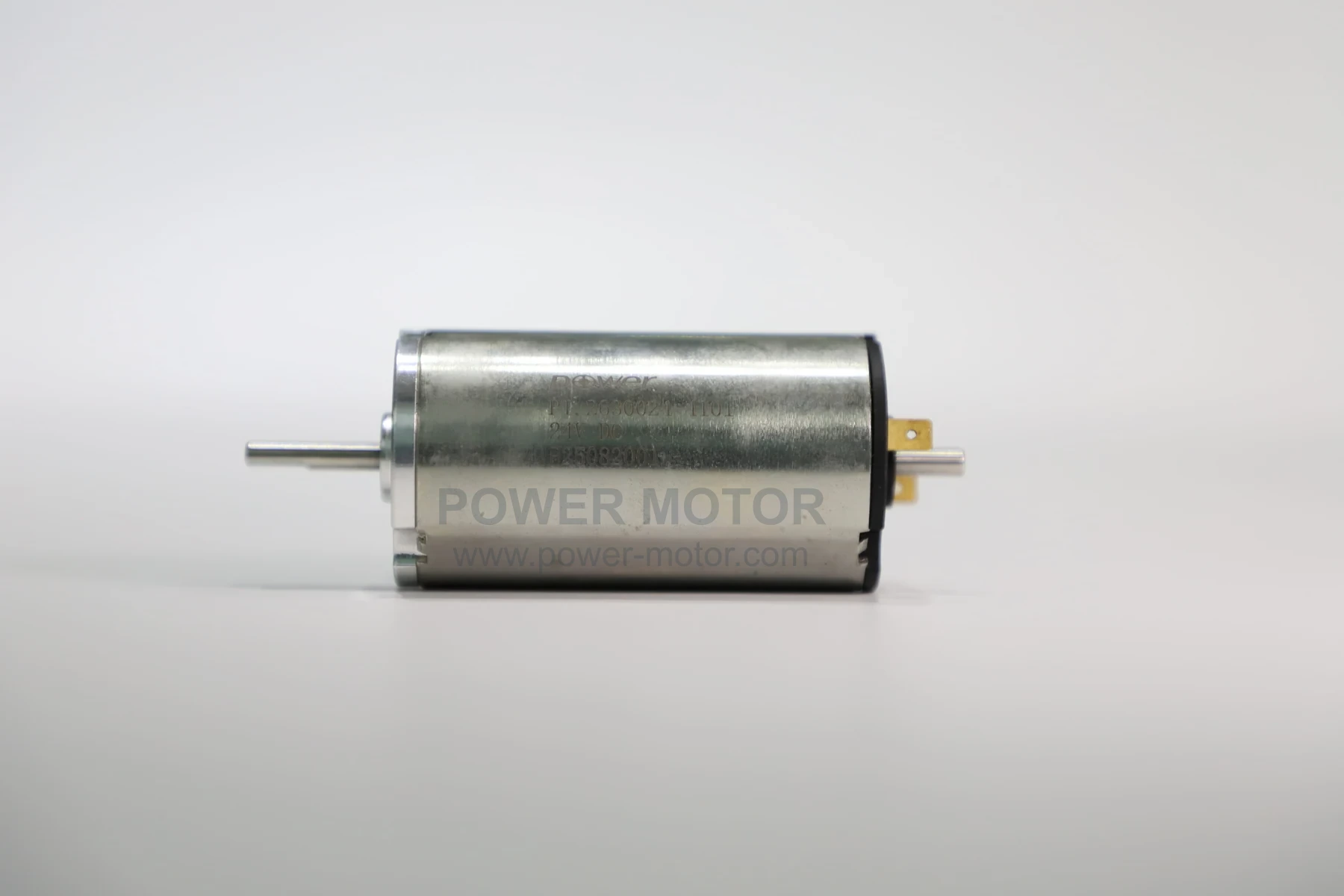

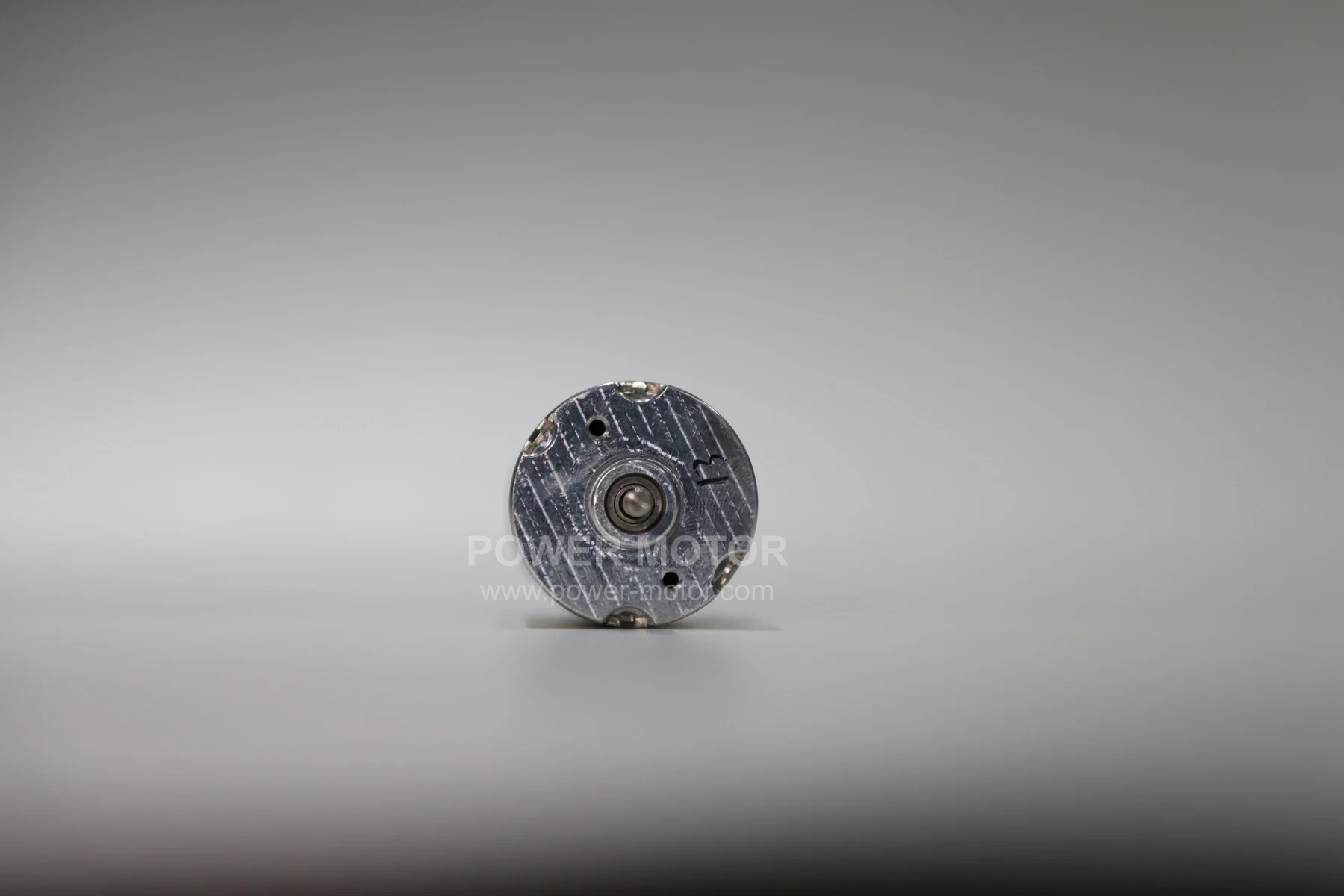

Product views
01

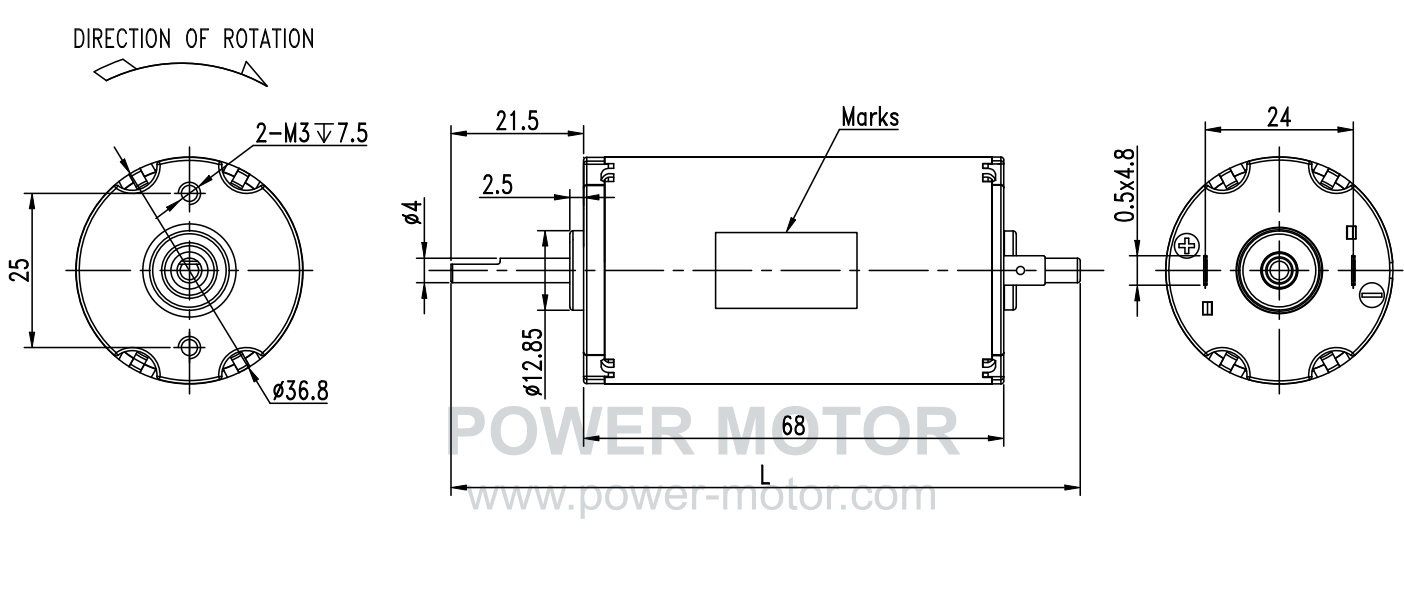

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.2630 | 12-48 | 24 | 2800 | 0.2Max | 1700 | 0.7 | 459 | 45 | 17 |
03

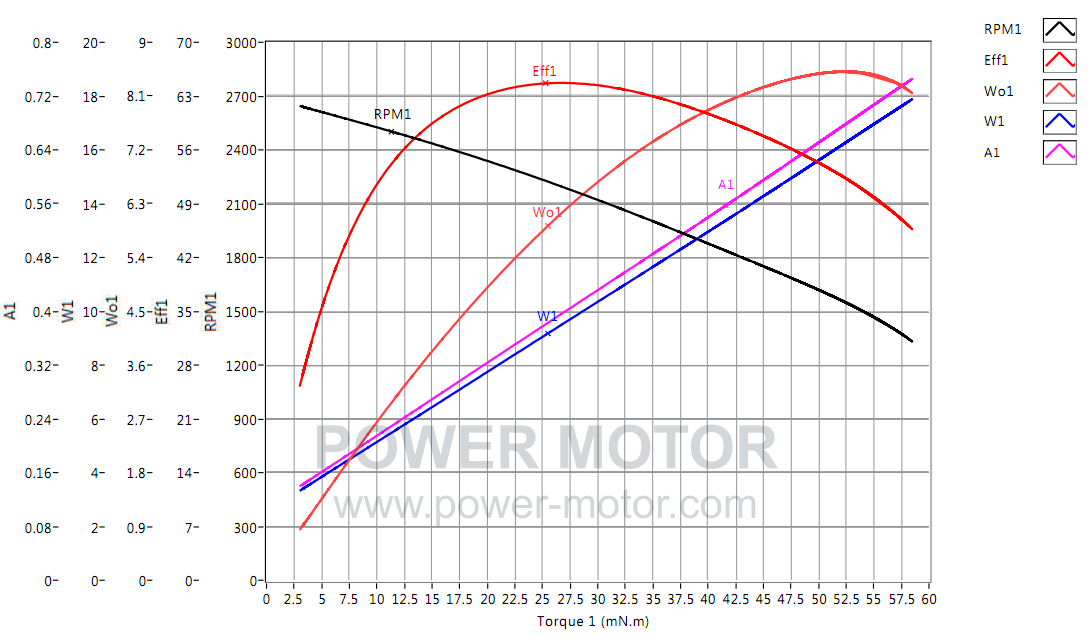

Performance curve
