Product model
PT.1813
DC motor
00
Technical profile
- Platform
- PT.1813
- Specification models
- PT.1813
- Typical applications
- Vending machine
- Voltage
- 24 V
00

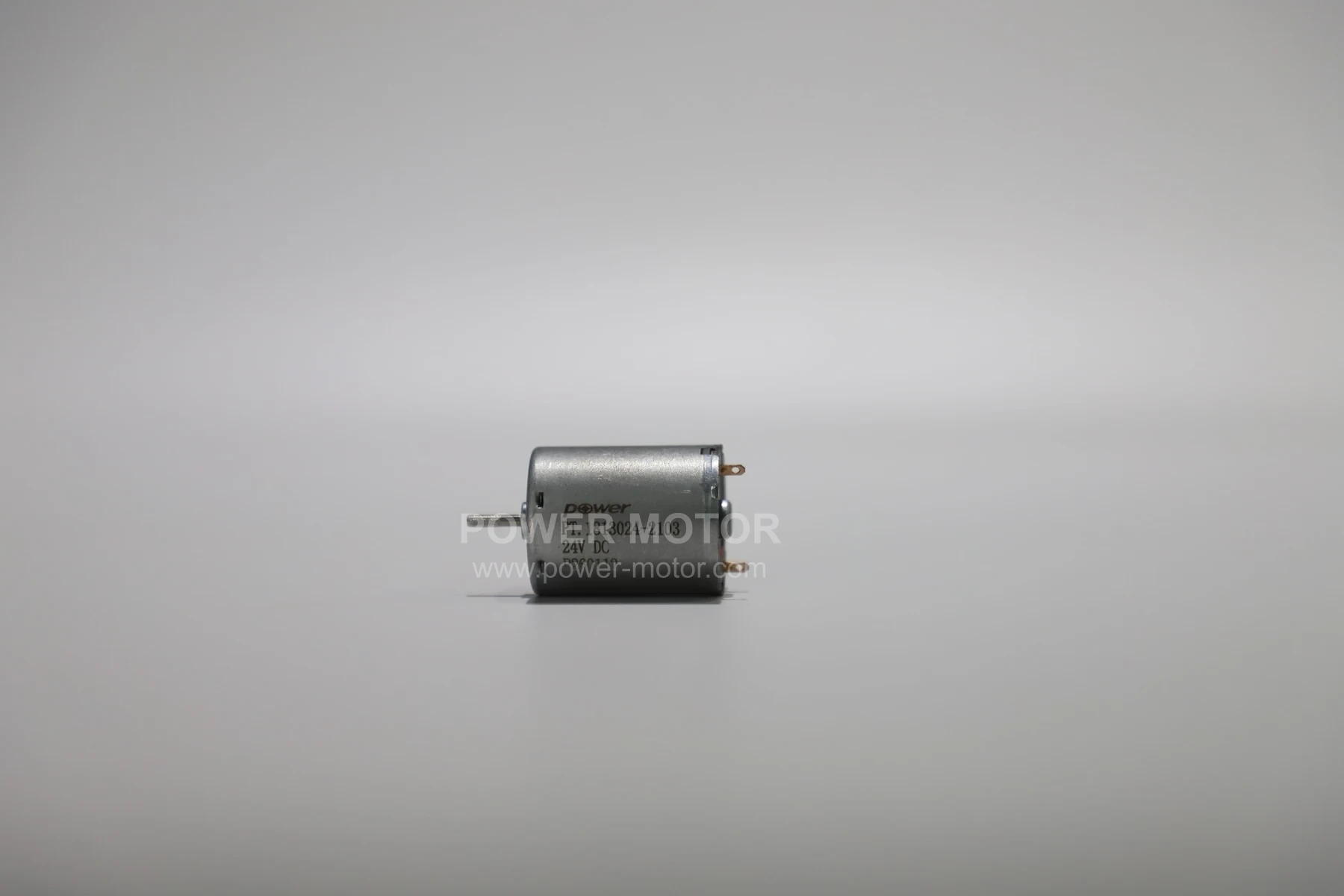

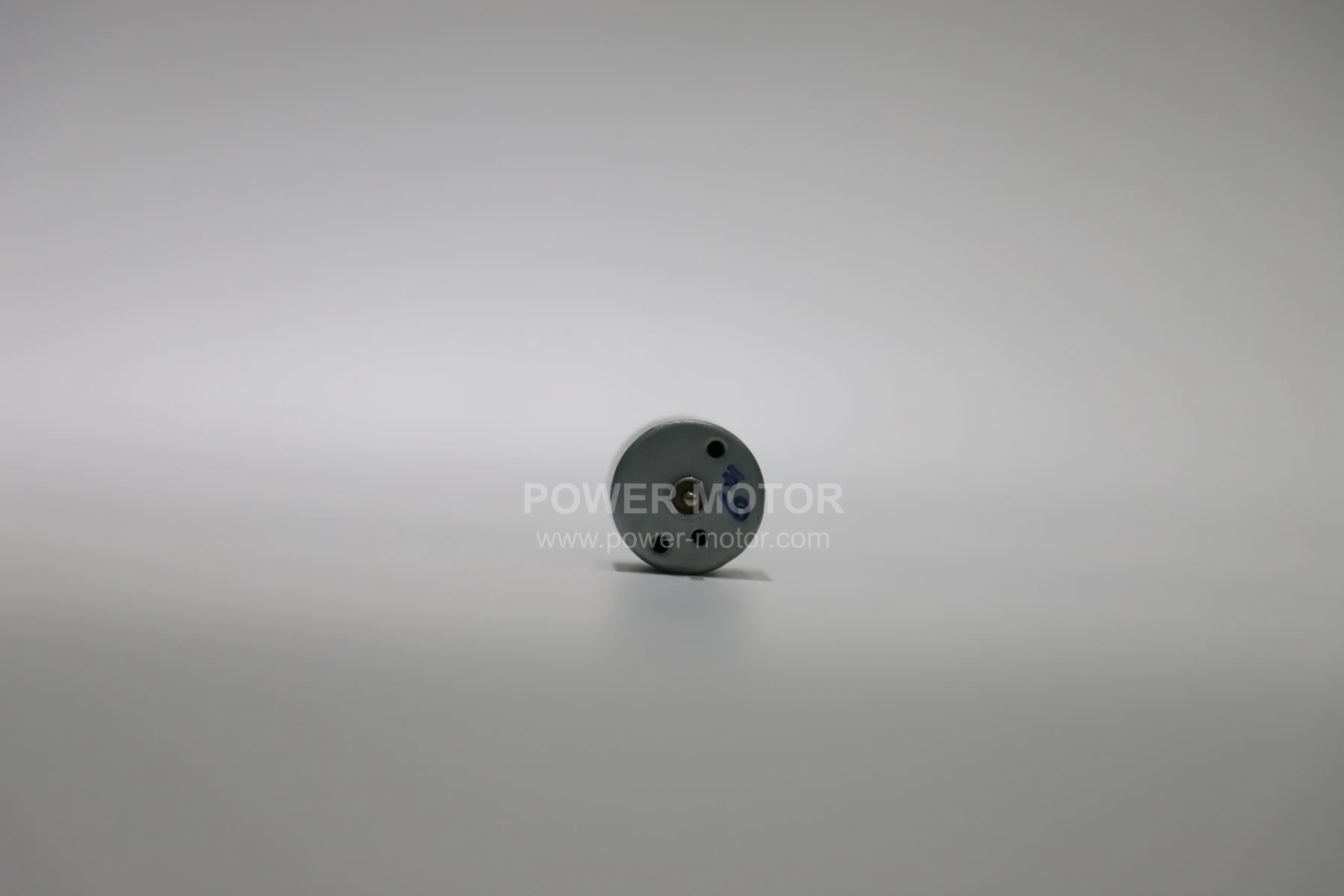

Product views
01

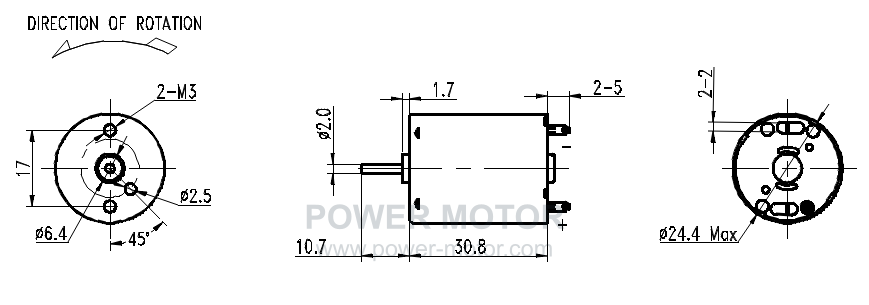

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE · V | VOLTAGE · NOMINAL · V | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.1813 | 22-26 | 24 | 5000 | 0.1Max | 3950 | 0.157 | 45.39 | 4.45 | 2 |
03

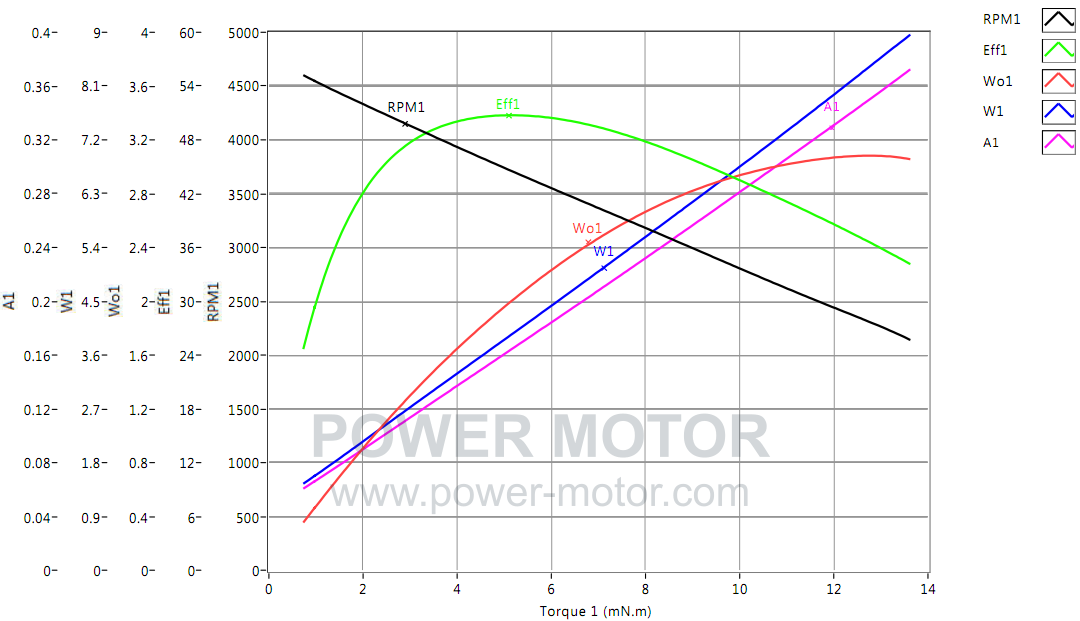

Performance curve
