Product model
PT.1315
DC motors
00
Technical profile
- Platform
- PT.1315
- Specification models
- PT.1315
- Typical applications
- Cabinet
- Voltage (contact us for units)
- 6
00

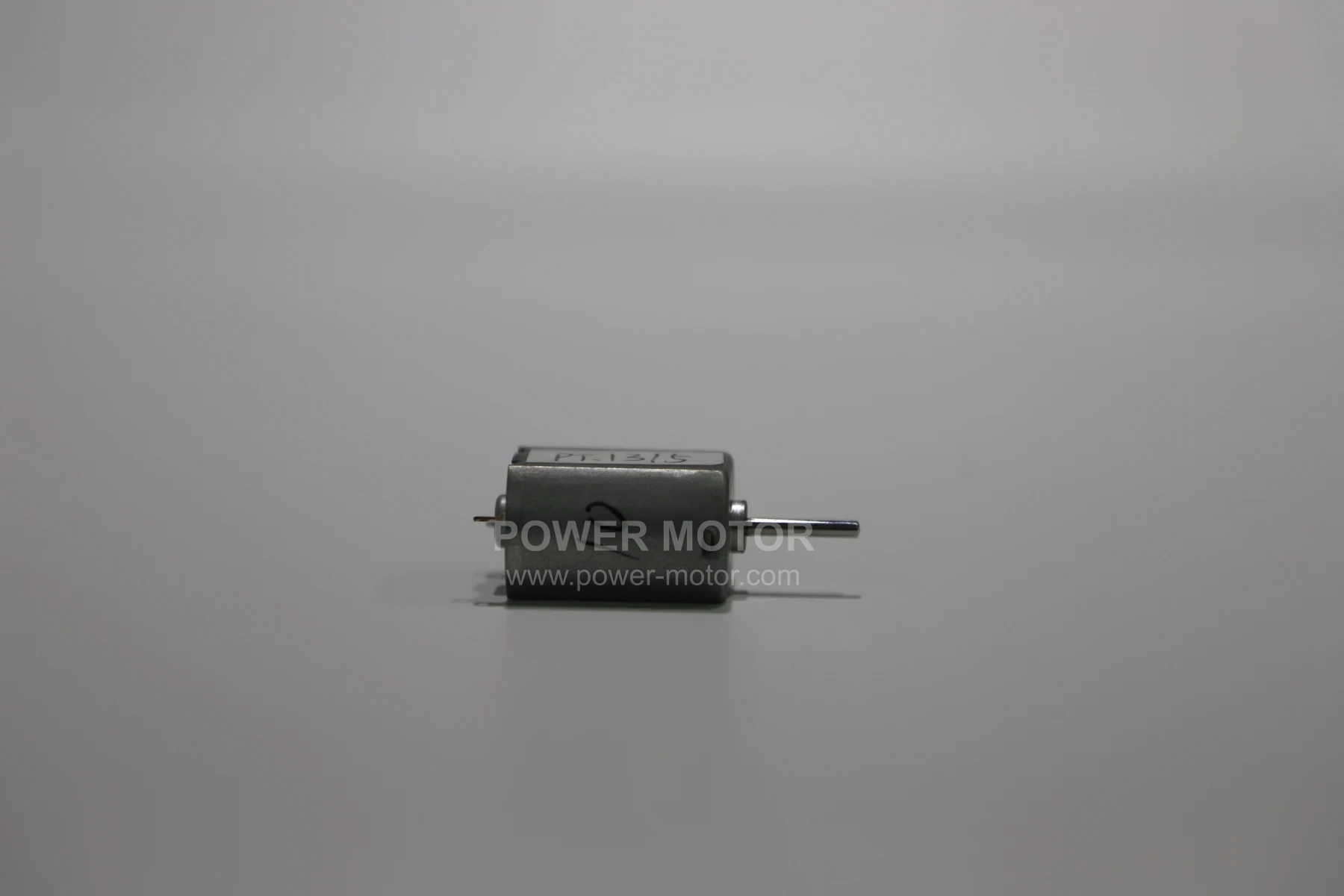

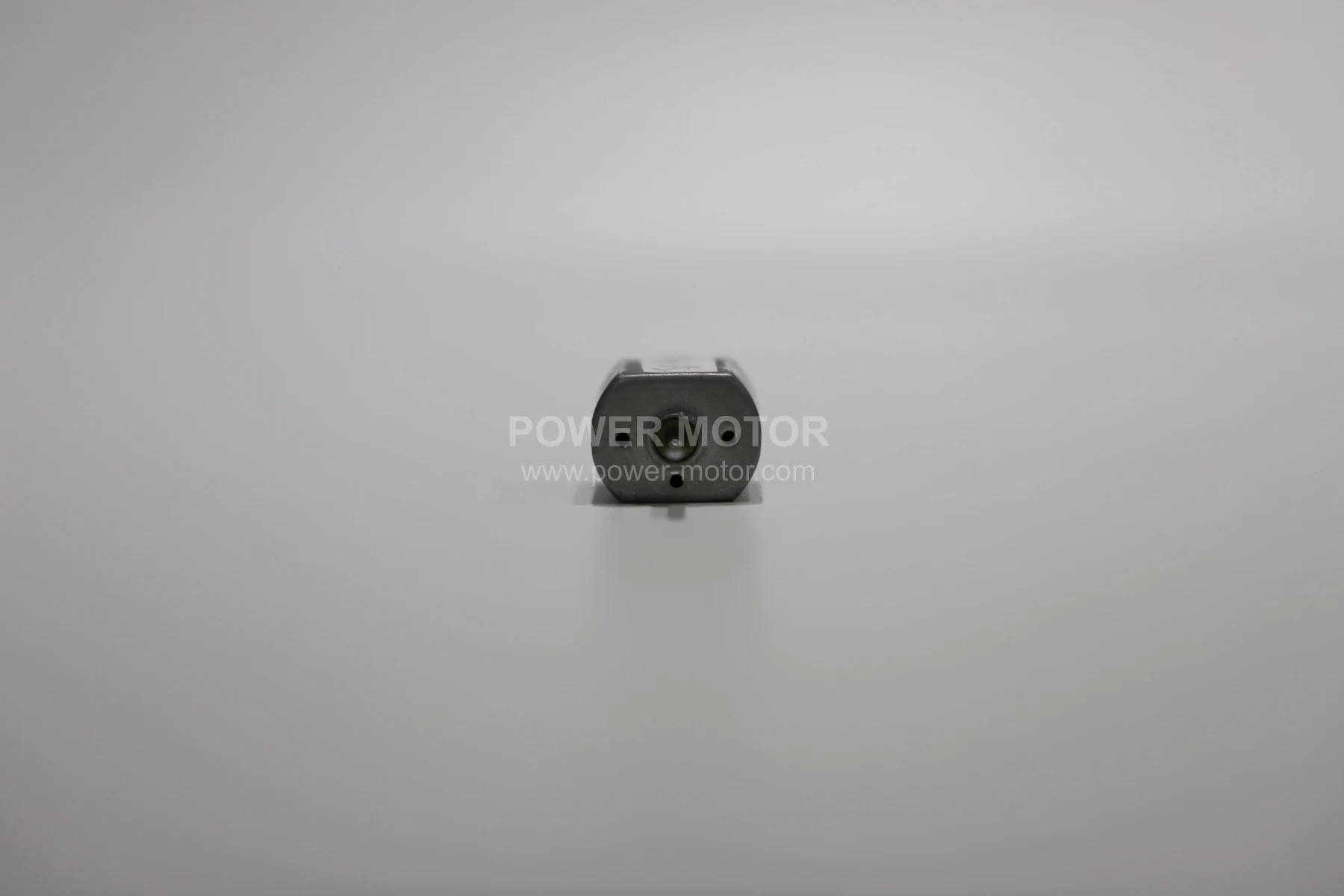

Product views
01

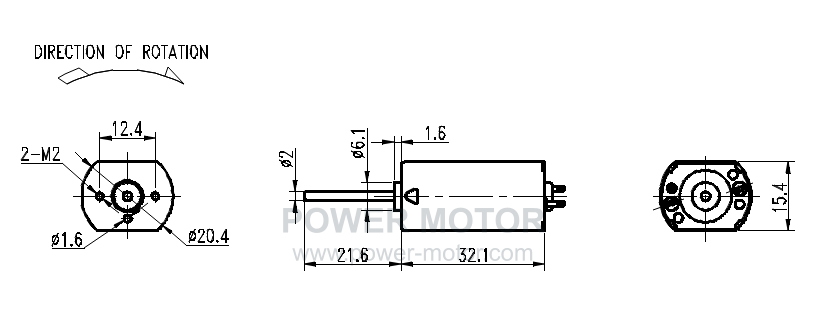

Outline / product media
02
Performance data
| MODEL | VOLTAGE · OPERATING RANGE | VOLTAGE · NOMINAL | NO LOAD · SPEED · r/min | NO LOAD · CURRENT · A | AT MAXIMUM EFFICIENCY · SPEED · r/min | AT MAXIMUM EFFICIENCY · CURRENT · A | AT MAXIMUM EFFICIENCY · TORQUE · g.cm | AT MAXIMUM EFFICIENCY · TORQUE · mN.m | AT MAXIMUM EFFICIENCY · OUTPUT · W |
|---|---|---|---|---|---|---|---|---|---|
| PT.1315 | 5-7 | 6 | 10500 | 0.2Max | 8162 | 0.565 | 22.2 | 2.18 | 2 |
03

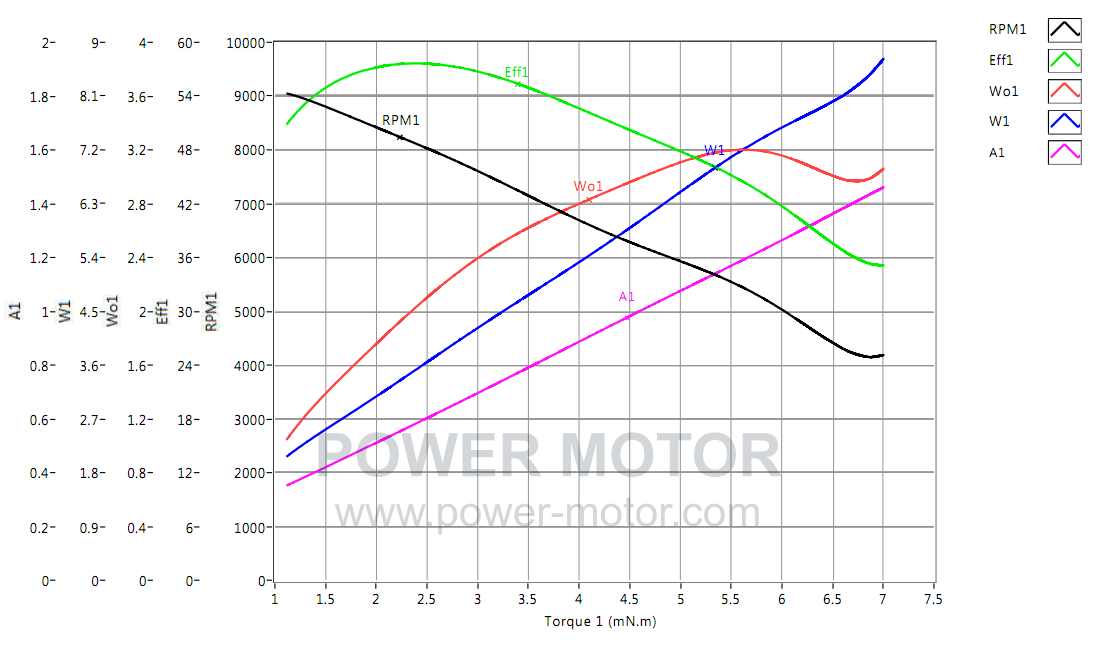

Performance curve
